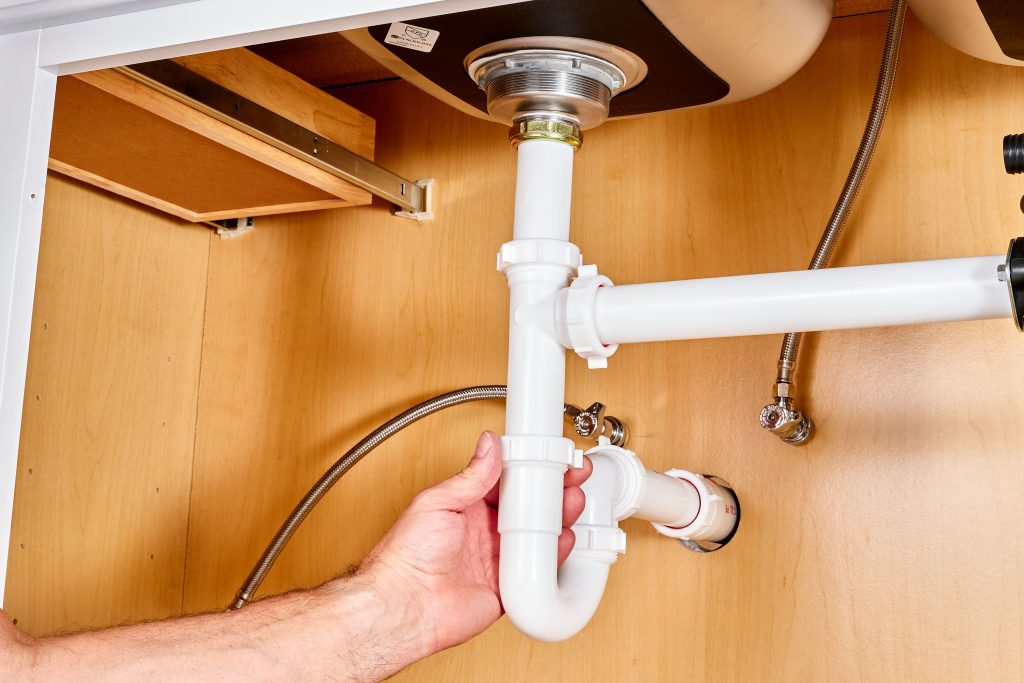

Plumbing a Kitchen Sink Drain Through Bottom of Cabinet

Have you ever opened your kitchen cabinet only to realize there isn’t enough vertical space for a standard P-trap? It is a frustrating scenario that many homeowners face during renovations or when installing deep farmhouse sinks. You are not alone in this struggle. The solution often involves plumbing a kitchen sink drain through bottom of cabinet, a method that requires precision but saves your backsplash and countertop from major reconstruction.

In this guide, we will walk you through exactly how to execute this modification safely, legally, and effectively. We will cover the necessary tools, code considerations, and step-by-step instructions to ensure your drainage system works flawlessly without leaks or clogs.

Why Would You Need to Route the Drain Downward?

Before we pick up a saw, it is crucial to understand why this method is chosen. Typically, kitchen drains exit horizontally through the back wall of the cabinet. However, several scenarios make this impossible:

1. Deep Farmhouse Sinks: These sinks extend further down than standard models, leaving little room for the trap assembly behind them.
2. Window Above the Sink: If a window is directly above the sink, cutting a hole in the back wall might compromise the structural integrity or aesthetics of the window frame.
3. External Wall Constraints: Sometimes, the exterior siding or brickwork makes horizontal penetration difficult or prone to weather sealing issues.

By routing the drain through the bottom, you utilize the unused space beneath the cabinet box, directing the pipe down into the floor joists or a crawlspace.

Is It Legal? Understanding Building Codes

One of the most common questions we hear is whether this modification violates building codes. The short answer is: It depends on your local jurisdiction.

However, most major plumbing codes, including the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC), do not explicitly forbid draining through the floor if certain conditions are met. The primary concern is not the direction of the pipe, but rather:

• Proper Venting: The drain must still be properly vented to prevent siphonage.
• Trap Seal Protection: The P-trap must maintain its water seal.
• Structural Integrity: Cutting into floor joists must be done within safe limits.

Expert Insight: According to general plumbing standards referenced by Wikipedia’s overview of plumbing codes, local amendments always take precedence. Always check with your local building department before cutting into structural elements.

Tools and Materials You Will Need

To successfully complete this project, gather the following items. Using the right tools ensures a clean cut and a leak-free connection.

Step-by-Step Guide: Plumbing a Kitchen Sink Drain Through Bottom of Cabinet

Follow these steps carefully. Rushing can lead to misaligned pipes and future leaks.

Step 1: Measure and Mark the Exit Point

Turn off the water supply and remove any existing debris under the sink. Identify the center line of your sink’s drain outlet.

1. Place a piece of masking tape on the bottom interior of the cabinet.
2. Use a plumb bob or a laser level to mark the exact center point directly below the drain outlet.
3. Ensure this spot does not conflict with cabinet drawers, shelves, or structural supports.

Step 2: Cut the Hole in the Cabinet Bottom

Using a jigsaw equipped with a fine-tooth blade, cut a hole slightly larger than the diameter of your drain pipe.

• Tip: If using a 1.5-inch pipe, cut a 2-inch hole. This extra space allows for minor adjustments and insulation if needed.
• Safety: Wear safety goggles and a dust mask. Cabinet bottoms are often made of particleboard, which creates fine dust.

Step 3: Prepare the Subfloor Penetration

If your cabinet sits on a finished floor, you will need to cut through the subfloor.

1. Drill a pilot hole from the cabinet bottom down through the subfloor.
2. From underneath (in the crawlspace or basement), locate the pilot hole.
3. Cut a corresponding hole in the subfloor. Ensure the edges are smooth to prevent damage to the pipe.

Step 4: Install the Vertical Drop Pipe

This is the critical phase of plumbing a kitchen sink drain through bottom of cabinet.

1. Insert a straight section of PVC or ABS pipe through the cabinet bottom.
2. Connect the top end to the sink tailpiece using a slip-nut washer. Tighten firmly but do not overtighten, as this can crack the plastic.
3. Extend the pipe downward through the subfloor.
4. Secure the Pipe: Use pipe straps to anchor the vertical pipe to the side of a floor joist. This prevents vibration and noise when water flows.

Step 5: Connect to the Main Drain Line

Underneath the floor, you must connect your new vertical drop to the existing horizontal drain line.

1. Install a sanitary tee or a wye fitting into the main drain line.
2. Ensure the connection slopes correctly (1/4 inch per foot) toward the main sewer or septic tank.
3. Prime and glue all PVC joints according to manufacturer instructions. Allow proper cure time (usually 2–24 hours) before testing.

Step 6: Test for Leaks

Never skip this step.

1. Remove the aerator from your faucet to allow maximum flow.
2. Run hot water for at least 2 minutes.
3. Check every joint: the slip nuts under the sink, the penetration point, and the underground connections.
4. Look for any dripping or moisture accumulation.

Common Challenges and Solutions

Even with careful planning, you may encounter hurdles. Here is how to overcome them.

Challenge 1: Limited Space in Crawlspace

If you have a shallow crawlspace, fitting a P-trap below the floor can be tricky.

• Solution: Use a “deep seal” trap or route the pipe horizontally immediately after it passes through the floor, ensuring you maintain the required slope.

Challenge 2: Freezing Pipes

In colder climates, pipes running through unheated crawlspaces can freeze.

• Solution: Insulate the vertical drop pipe with foam pipe insulation. Consider adding heat tape if the area is prone to extreme cold.

Challenge 3: Aesthetic Concerns

The hole in the bottom of the cabinet might look unfinished.

• Solution: Install a rubber grommet or a decorative escutcheon plate around the pipe where it exits the cabinet. This gives a professional, polished look.

Maintenance Tips for Floor-Drained Sinks

Once your system is installed, maintenance is key to longevity.

• Regular Cleaning: Use a mixture of baking soda and vinegar monthly to keep the trap clear of grease buildup.
• Inspect Seals: Every six months, check the slip nuts under the sink. Plastic can degrade over time due to temperature changes.
• Avoid Chemical Cleaners: Harsh chemical drain cleaners can damage PVC joints and seals. Stick to mechanical snakes or enzymatic cleaners.

FAQ Section

Q1: Can I use flexible pipe for the vertical drop?

A: It is generally not recommended. Flexible pipes (like corrugated tubing) have ridges that catch debris and cause clogs. Always use smooth-walled PVC or ABS for permanent installations.

Q2: Do I still need a P-trap if I go through the floor?

A: Yes. The P-trap is essential for preventing sewer gases from entering your home. You can install the P-trap either under the sink (if space allows) or below the floor in the crawlspace.

Q3: Will this void my home warranty?

A: Modifications to plumbing systems can affect warranties if not performed to code. Always pull the necessary permits and have the work inspected by a licensed professional if you are unsure.

Q4: What size pipe should I use?

A: Most kitchen sinks require a 1.5-inch drain pipe. However, some modern high-volume disposals may benefit from a 2-inch pipe. Check your local code and the specifications of your sink/disposal unit.

Q5: How do I stop pests from entering through the hole?

A: Seal the gap between the pipe and the cabinet/subfloor with expanding foam or silicone caulk. This creates an airtight and pest-proof barrier.

Conclusion

Plumbing a kitchen sink drain through bottom of cabinet is a viable and often necessary solution for challenging kitchen layouts. While it requires more effort than a standard rear-wall installation, it offers a clean, functional alternative that preserves your cabinetry and walls.

By following the steps outlined above—measuring accurately, cutting cleanly, and securing properly—you can achieve a professional-grade result. Remember, patience and adherence to local codes are your best tools.
