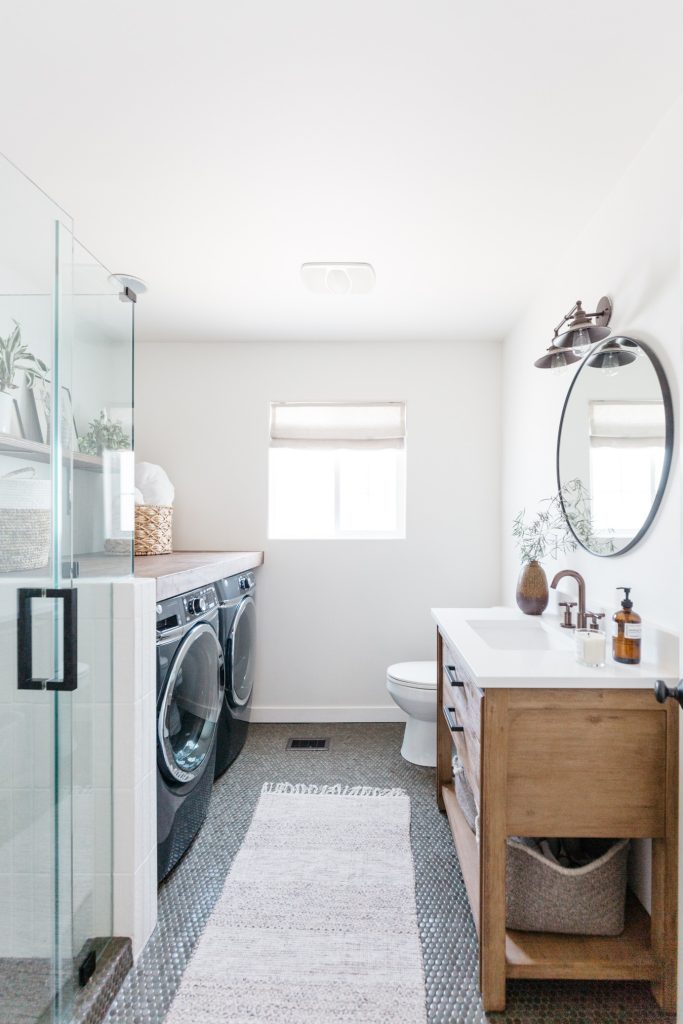

Plumbing a Laundry Room and Bathroom Back to Back: The Ultimate Guide

Are you planning a home renovation that involves moving walls or reconfiguring your floor plan? Many homeowners find themselves in a unique position where efficiency meets design: plumbing a laundry room and bathroom back to back. This configuration isn’t just a space-saving trick; it’s a strategic move that can significantly reduce construction costs and simplify maintenance.

However, combining wet areas requires careful planning to avoid costly mistakes like poor drainage, venting issues, or code violations. In this guide, we will walk you through everything you need to know to execute this project successfully, ensuring your home remains functional, compliant, and valuable.

Why Combine Laundry and Bathroom Plumbing?

Before diving into the technical details, it is essential to understand why this layout is so popular among contractors and architects. The primary benefit is economic. By sharing a common wall, you minimize the length of supply lines and drain pipes required.

Cost Efficiency

Running new water lines and sewer connections is one of the most expensive parts of any remodel. When you place these two rooms adjacent to each other, you can often tap into existing stacks more easily. According to industry estimates, sharing a plumbing wall can reduce piping material costs by up to 30% compared to placing these rooms on opposite sides of the house.

Structural Simplicity

From a structural standpoint, cutting fewer holes in floor joists and wall studs preserves the integrity of your home’s framework. Less invasive work means faster completion times and less debris during the construction phase.

Key Considerations Before You Start

While the benefits are clear, plumbing a laundry room and bathroom back to back comes with specific challenges. Ignoring these can lead to noisy pipes, slow drains, or even legal issues during home inspections.

1. Local Building Codes

Every municipality in the US has specific plumbing codes based on the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC). Some areas have strict rules about separating sanitary waste from greywater or requiring specific venting configurations for combined fixtures. Always check with your local building department before finalizing your plans.

2. Noise Control

Laundry machines and bathroom fixtures create noise. A washing machine’s spin cycle can vibrate through shared walls, potentially disturbing the quiet of a bathroom. Proper insulation and soundproofing are not optional—they are necessary for comfort.

3. Moisture Management

Both rooms generate humidity. Bathrooms produce steam from showers, while laundry rooms release moisture from dryers (if vented indoors, though outdoor venting is preferred) and washers. Ensuring adequate ventilation in both spaces is critical to prevent mold growth within the shared wall cavity.

Step-by-Step Guide to Planning the Layout

If you are ready to proceed, follow this logical workflow to ensure a smooth installation.

Step 1: Map Your Existing Stack

Locate your main soil stack (the large vertical pipe that carries waste to the sewer or septic tank). Ideally, your new back-to-back rooms should be close to this stack. The closer you are, the better your drainage slope will be, reducing the risk of clogs.

Step 2: Determine Fixture Placement

Decide which fixtures will share the wall. Common configurations include:

• Washing Machine vs. Bathtub/Shower: These share similar water supply needs (hot and cold) and large drain requirements.
• Utility Sink vs. Bathroom Vanity: These are easier to plumb due to smaller drain sizes (usually 1.5 inches).

Pro Tip: Place the washing machine drain as close to the main stack as possible. Washing machines pump out water rapidly, and a long horizontal run can cause backup issues.

Step 3: Calculate Pipe Sizes

Using the wrong pipe diameter is a common DIY mistake. Refer to this general guideline for US residential standards:

Note: Always verify these sizes with your local code, as some jurisdictions require 2-inch drains for all shower/tub combinations.

Step 4: Plan the Venting System

Venting is crucial. It prevents sewer gases from entering your home and allows wastewater to flow smoothly by equalizing pressure. When plumbing a laundry room and bathroom back to back, you may be able to use a “wet vent” configuration, where one fixture’s drain acts as a vent for another, provided the distances and diameters meet code requirements.

For detailed technical definitions of venting systems, you can refer to authoritative resources such as Wikipedia’s page on Plumbing Vents to understand the basic physics behind air admittance valves and stack vents.

Installation Best Practices

Soundproofing the Shared Wall

Do not skip this step. To minimize noise transfer:

1. Use Resilient Channels: Install metal channels that decouple the drywall from the studs.
2. Insulate Generously: Fill the wall cavity with high-density acoustic insulation (like rock wool) rather than standard fiberglass.
3. Double Drywall: Consider using two layers of 5/8-inch drywall with acoustic sealant between them.

Water Hammer Prevention

Washing machines shut off water valves quickly, which can cause a “hammering” noise in pipes. Install water hammer arrestors on the hot and cold supply lines for the washer. These small devices absorb the shock wave, protecting your pipes and reducing noise in the adjacent bathroom.

Access Panels

Always install access panels on at least one side of the shared wall. If a leak develops behind the vanity or near the washer hookup, you do not want to tear out tile or drywall to fix it. Make maintenance easy from day one.

Common Mistakes to Avoid

Even experienced DIYers can stumble when combining these complex systems. Here are the top pitfalls:

• Improper Slope: Drain pipes must slope downward at a rate of 1/4 inch per foot. If the slope is too flat, waste accumulates; if it’s too steep, water outruns the solids, causing clogs.
• Ignoring Cleanouts: Ensure you have accessible cleanout plugs for the main drain line serving both rooms. This is vital for clearing blockages without calling a plumber immediately.
• Overloading the Circuit: While this is an electrical issue, it often overlaps with plumbing renovations. Ensure your washing machine is on a dedicated 20-amp circuit, separate from the bathroom’s GFCI-protected outlets, to prevent tripping breakers during high-load cycles.

FAQ: Plumbing a Laundry Room and Bathroom Back to Back

Q1: Can I put a toilet and a washing machine on the same drain line?

A: Yes, but they must connect properly. The washing machine drain (2-inch) usually ties into the main stack or a larger branch line. The toilet (3-inch) has its own dedicated connection to the stack. They should not share the same immediate trap arm, but they can feed into the same vertical stack downstream.

Q2: Do I need a permit for this work?

A: In almost all US jurisdictions, yes. Moving or adding plumbing fixtures requires a permit. This ensures the work is inspected for safety and code compliance. Unpermitted work can cause issues when selling your home.

Q3: How far can the washing machine be from the vent stack?

A: This depends on the pipe diameter. For a 2-inch drain, the maximum distance to the vent is typically around 5–8 feet, depending on whether it’s a horizontal or vertical run. Check your local IPC or UPC amendments for exact figures.

Q4: What is the best insulation for soundproofing?

A: Mineral wool (rock wool) is superior to fiberglass for sound dampening. It is denser and does not settle over time. Look for products specifically rated for acoustic performance (STC ratings).

Q5: Can I use PEX piping for this project?

A: Absolutely. PEX (cross-linked polyethylene) is highly recommended for residential remodels. It is flexible, resistant to scale and chlorine, and easier to install in tight spaces behind walls compared to rigid copper or CPVC.

Q6: What if my existing wall is load-bearing?

A: If the shared wall is load-bearing, you cannot simply cut into it for pipes without proper structural support. You will need to install a header beam above any openings. Consult a structural engineer before cutting any studs in a load-bearing wall.

Conclusion

Plumbing a laundry room and bathroom back to back is a smart, efficient strategy for modern home renovations. By consolidating your wet areas, you save on materials, reduce labor time, and create a more maintainable home system. However, success lies in the details: proper venting, adequate soundproofing, and strict adherence to local building codes.

Remember, while DIY enthusiasm is great, plumbing mistakes can be costly and damaging. If you are unsure about venting calculations or stack modifications, hire a licensed plumber for the critical connections while handling the demolition and finish work yourself.
