Have you ever tried to install a basement sink or a utility room fixture only to realize the wastewater needs to travel uphill? It is a common headache for homeowners renovating lower-level spaces. When you are tasked with Plumbing A Sink Septic Pump With 15 Foot Rise, standard gravity drainage simply won’t work, and choosing the wrong equipment can lead to frequent clogs or motor burnout.
In this guide, we will break down exactly how to handle this vertical challenge. We will cover the necessary horsepower, the critical importance of pipe diameter, and the step-by-step process to ensure your system runs smoothly for years to come. Let’s turn that plumbing nightmare into a reliable, efficient system.
Why a 15-Foot Vertical Rise Changes Everything
When water flows horizontally, gravity does most of the work. However, when you introduce a vertical lift, you are fighting gravity directly. A 15-foot rise is not trivial; it requires significant pressure to push wastewater up that height before it can even begin to flow horizontally toward your septic tank.
Many DIYers make the mistake of buying a standard sump pump. This is a critical error. Sump pumps are designed for clean water (like rainwater from a basement floor). They cannot handle the solids, grease, and debris found in sink wastewater. For a sink, especially one connected to a septic system, you need a sewage ejector pump or a gray water pump specifically rated for vertical lifts.
According to basic fluid dynamics, every foot of vertical lift adds resistance to the pump. If your pump isn’t rated for at least 15 feet of “head” (vertical height), it will struggle, overheat, and eventually fail.
Choosing the Right Pump: Horsepower and Head Pressure
The most important decision you will make is selecting the correct pump. Not all pumps are created equal. Here is what you need to look for when Plumbing A Sink Septic Pump With 15 Foot Rise.
1. Understanding “Head” Pressure
In pumping terms, “head” refers to the vertical distance the pump must push the water. You need a pump with a maximum head rating that exceeds your 15-foot requirement. Ideally, look for a pump rated for at least 20–25 feet of head. This provides a safety margin, ensuring the pump doesn’t run at 100% capacity continuously, which extends its lifespan.
2. Horsepower (HP) Requirements
For a single sink with a 15-foot rise, you generally do not need a massive industrial pump.
- 1/3 HP: Often sufficient for a single bathroom sink or light-use utility sink.
- 1/2 HP: Recommended for kitchen sinks (due to grease and food particles) or if multiple fixtures drain into the same basin.
- 3/4 HP or higher: Usually overkill for a single sink unless there are other fixtures involved.
Pro Tip: Always check the pump’s performance curve chart provided by the manufacturer. Look for the gallon-per-minute (GPM) flow rate at 15 feet of head. You want a flow rate of at least 5–10 GPM to ensure waste is carried up effectively.
3. Solids Handling
Even though it is just a sink, hair, soap scum, and occasional small debris can accumulate. Ensure the pump has a solids-handling capability of at least 1/2 inch to 3/4 inch. This prevents clogging at the impeller.
Pipe Sizing and Material Selection
Once you have the right pump, the piping system is equally critical. Using the wrong pipe size can create backpressure, slowing down the flow and causing the pump to work harder than necessary.
| Pipe Diameter | Best Use Case | Pros | Cons |
|---|---|---|---|
| 1.5 Inches | Small bathroom sinks only | Cheaper, easier to fit in tight spaces | Prone to clogging with any debris |
| 2 Inches | Recommended Standard | Balanced flow, handles minor solids well | Slightly more expensive than 1.5″ |
| 3 Inches | Kitchen sinks or multiple fixtures | Excellent flow, rarely clogs | Overkill for a single sink, costly |
For Plumbing A Sink Septic Pump With 15 Foot Rise, we strongly recommend using 2-inch PVC or ABS pipe. This size offers the best balance between flow velocity and cost. It ensures that the wastewater moves quickly enough up the 15-foot column to prevent solids from settling back down when the pump turns off.
Always use Schedule 40 PVC for durability. Avoid thin-walled drain pipes for the pressurized section after the pump, as the pressure surge can cause them to burst over time.
Step-by-Step Installation Guide
Follow these steps carefully to ensure a leak-free and efficient installation.

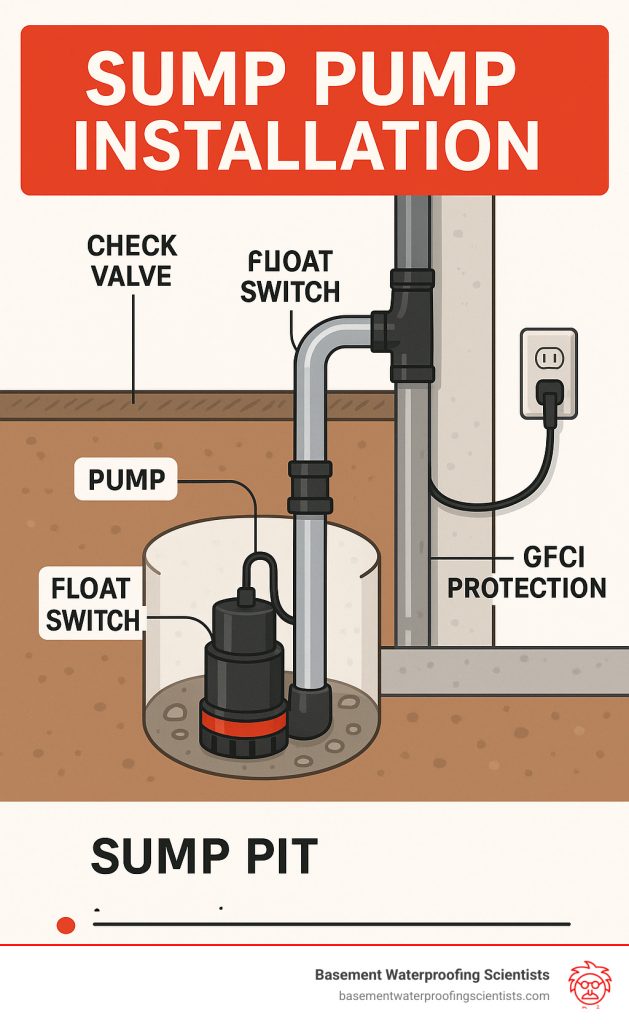

Step 1: Prepare the Basin
Install a sealed sewage basin or sump pit. This basin collects the water from the sink. Ensure the basin is large enough to hold the pump and allow for proper water accumulation before the float switch activates. For a single sink, a 18×18 inch basin is usually sufficient.
Step 2: Install the Check Valve
This is the most critical component for a vertical rise. You must install a check valve on the discharge line, ideally within the first few feet above the pump.
- Why? Without a check valve, when the pump turns off, the water in the 15-foot vertical pipe will fall back down into the basin due to gravity. This causes “water hammer” (loud banging noises) and forces the pump to re-pump the same water, wasting energy and wearing out the motor.
- Installation: Place the check valve so the arrow points upward (direction of flow).
Step 3: Connect the Discharge Pipe
Attach a 2-inch PVC pipe to the pump’s discharge outlet. Use a rubber coupling or threaded adapter as specified by the pump manufacturer. Run this pipe vertically up the 15-foot rise. Secure the pipe to the wall studs every 4 feet using pipe hangers to reduce vibration and noise.
Step 4: Venting the System
Your septic system requires proper venting to prevent air locks. If the pump basin is sealed, it needs an air inlet vent or a connection to the main home vent stack. Without this, a vacuum can form in the pipe, making it difficult for the pump to push water up the 15-foot rise. For more details on septic system ventilation standards, you can refer to general plumbing codes outlined on Wikipedia.
Step 5: Electrical Connection
Connect the pump to a dedicated GFCI (Ground Fault Circuit Interrupter) outlet. Never hardwire a portable sump/sewage pump unless it is specifically designed for it. The GFCI protects against electrical shocks in wet environments.
Step 6: Testing
Pour approximately 5 gallons of water into the basin. Watch the float switch rise. The pump should activate automatically. Listen for smooth operation. Verify that water is being pushed up the 15-foot rise and out to the septic line without leaks.
Common Mistakes to Avoid
- Ignoring the Check Valve: As mentioned, this leads to water hammer and premature pump failure.
- Using Too Small Pipe: 1.5-inch pipe might seem easier to install, but it increases friction loss. Over a 15-foot rise, this friction can significantly reduce flow rate.
- Poor Venting: An air-locked system will cause the pump to cavitate (make a grinding noise) and fail to move water efficiently.
- Undersizing the Pump: Buying a pump rated for only 10 feet of head when you have a 15-foot rise will result in a pump that runs continuously but never empties the basin.
FAQ Section
Q1: Can I use a regular sump pump for a sink?
A: No. Regular sump pumps are designed for clean water. Sink wastewater contains soap, grease, hair, and food particles. You need a sewage ejector pump or a gray water pump with solids-handling capabilities to prevent clogging and motor damage.
Q2: How long does a sewage pump last with a 15-foot rise?
A: With proper maintenance and correct sizing, a quality sewage pump should last between 7 to 10 years. The 15-foot rise is within the normal operating range for most 1/2 HP pumps, so it shouldn’t drastically shorten the lifespan if a check valve is installed.
Q3: Do I need a permit for this installation?
A: In most US jurisdictions, any modification to the plumbing system, especially involving septic connections, requires a permit. Check with your local building department. Improper installation can lead to health hazards and fines.
Q4: What happens if the power goes out?
A: If the power fails, the pump will not operate. Water from the sink will back up into the basin and potentially overflow into the room. Consider installing a battery backup system for the pump if this area is critical or prone to power outages.
Q5: Can I connect a toilet to this same pump?
A: Only if the pump is specifically rated for “sewage” (handling 2-inch solids) and has sufficient horsepower (usually 1/2 HP or more). A standard “sink-only” gray water pump cannot handle toilet waste. Always check the manufacturer’s specifications for solids handling.
Conclusion
Plumbing A Sink Septic Pump With 15 Foot Rise is entirely manageable with the right preparation. By selecting a pump with adequate head pressure (aim for 20+ feet rating), using 2-inch piping, and installing a crucial check valve, you can create a system that is both efficient and durable.
Remember, the key to success is respecting the physics of vertical lift. Don’t cut corners on the pump quality or the venting system. A well-installed system will operate quietly and reliably, keeping your lower-level living space dry and functional.
If you found this guide helpful, please share it with your friends or on social media who might be tackling similar DIY plumbing projects. Have questions or tips of your own? Leave a comment below!
