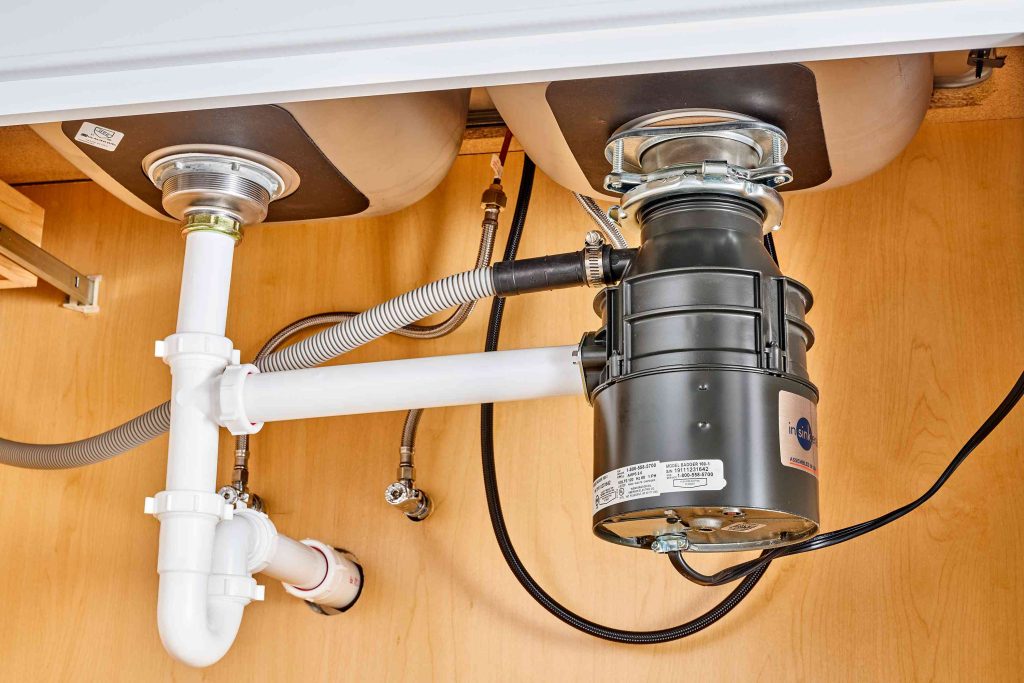

Plumbing a Triple Sink with Dishwasher & Disposal

Are you renovating your kitchen or upgrading to a larger workstation sink, only to feel overwhelmed by the maze of pipes underneath? You are not alone. Many homeowners struggle with the complexity of plumbing a triple sink with dishwasher and garbage disposal, fearing leaks, clogs, or code violations. This guide breaks down the process into manageable steps, ensuring your new setup is efficient, compliant, and leak-free.

Why Is Plumbing a Triple Basin So Complex?

Before diving into the wrench work, it is crucial to understand why a triple-basin sink presents unique challenges compared to standard double bowls. The primary issue is drainage volume and venting.

When you add a dishwasher and a garbage disposal to the mix, you are creating a high-traffic hub for water and waste. According to the International Plumbing Code (IPC), proper drainage requires adequate pipe diameter and correct slope to prevent siphoning and backflow. A triple sink often means wider cabinets and longer horizontal drain runs, which can lead to stagnation if not pitched correctly.

Expert Insight: “The most common mistake in multi-basin installations is improper venting. Without an air gap or high-loop configuration, dirty dishwater can siphon back into your clean sink.” – Licensed Master Plumber, J. Reynolds.

Key Components You Will Need

• P-Traps: One for each basin (or a shared assembly if configured correctly).
• Garbage Disposal Unit: Typically mounted under the primary prep bowl.
• Dishwasher Drain Hose: Must connect to the disposal or an air gap.
• Tailpieces and Slip Nuts: For connecting sink drains to the P-trap.
• Sanitary Tee or Wye Fitting: To merge multiple drain lines.

How Do You Connect a Garbage Disposal to a Triple Sink?

Connecting a garbage disposal in a triple-sink setup requires strategic planning regarding which bowl handles the heavy waste. Typically, the largest or deepest bowl is designated for the disposal.

Step-by-Step Connection Process

1. Mount the Disposal: Follow the manufacturer’s instructions to mount the disposal unit to the sink flange of the chosen basin. Ensure the mounting ring is tight to prevent vibrations.
2. Install the Knockout Plug: If your dishwasher will drain into the disposal, you must remove the plastic knockout plug inside the disposal’s dishwasher inlet. Use a screwdriver and hammer to tap it out. Failure to do this will cause your dishwasher to flood.
3. Connect the Tailpiece: Attach a 1.5-inch tailpiece to the bottom of the disposal. Use plumber’s putty or Teflon tape on threads if required by your specific model.
4. Link to the Drain System: Connect the disposal’s outlet to the main drain line using a sanitary tee. This allows water from the other two sinks to flow past the disposal without entering it.

For more detailed technical specifications on disposal units, you can refer to general engineering standards on Wikipedia.

What Is the Correct Way to Hook Up a Dishwasher?

Integrating a dishwasher into a triple-sink plumbing system involves two critical aspects: the water supply and the drain line. While the supply line is straightforward (connecting to the hot water valve), the drain line requires adherence to local codes to prevent contamination.

The High-Loop vs. Air Gap Debate

Most US building codes require either an air gap device installed on the countertop or a high-loop configuration under the sink.

• Air Gap: A physical device that creates a break in the water line, preventing backflow. It is the gold standard for hygiene but requires drilling a hole in your countertop or sink deck.
• High-Loop: The drain hose is secured to the highest point possible under the sink (usually the top of the cabinet wall) before dropping down to the disposal. This uses gravity to prevent wastewater from flowing back into the dishwasher.

Recommendation: If your local code permits, a high-loop is easier to install and maintain. However, if you have a triple sink with limited under-sink vertical space, an air gap might be safer to ensure no cross-contamination occurs between the three basins.

Connecting to the Disposal

1. Remove the knockout plug from the disposal (as mentioned earlier).
2. Slide the dishwasher drain hose clamp onto the hose end.
3. Push the hose firmly onto the disposal’s dishwasher inlet nipple.
4. Tighten the clamp with a screwdriver until snug. Do not overtighten, as this can crack the plastic nipple.

How Do You Manage Drainage for Three Basins?

Plumbing three separate basins requires a manifold approach. You cannot simply daisy-chain them indefinitely without risking clogs. The goal is to merge the flows efficiently.

Option 1: The Continuous Waste Kit

Many manufacturers sell “triple bowl continuous waste kits.” These pre-assembled pipes connect all three strainers into a single outlet that leads to one P-trap.

• Pros: Fewer connections, less chance of leaks, cleaner look.
• Cons: Less flexible if you want to isolate one basin for a disposal.

Option 2: Individual Traps Merging into a Sanitary Tee

If you are installing a disposal in one bowl, you may need individual traps for the non-disposal bowls.

1. Install P-traps on the two non-disposal basins.
2. Connect these traps to a horizontal arm.
3. Merge this arm with the disposal’s drain line using a sanitary tee or a wye fitting.
4. Ensure the entire assembly slopes downward at a rate of 1/4 inch per foot toward the main wall drain.

Pro Tip: Use clear PVC pipes for the initial setup if possible. This allows you to visually inspect for clogs or improper water flow during testing.

What Are Common Mistakes to Avoid?

Even experienced DIYers can stumble when dealing with complex sink configurations. Here are the top pitfalls:

• Ignoring Ventilation: If your sink island is not properly vented, you may hear gurgling sounds. This indicates air starvation, which slows drainage. Consider an Air Admittance Valve (AAV) if running a new vent stack is impossible.
• Using Too Many Elbows: Every 90-degree elbow increases the risk of clogging. Use two 45-degree elbows instead to create a smoother sweep for waste water.
• Incorrect Pipe Size: Standard sink drains are 1.5 inches. Do not reduce this size anywhere in the system. If merging three basins, ensure the main horizontal run is at least 2 inches if local code allows, to handle the increased volume.
• Loose Slip Nuts: Hand-tighten first, then give a quarter-turn with pliers. Over-tightening strips the plastic threads; under-tightening causes leaks.

FAQ Section

1. Can I use one P-trap for all three sinks?

Yes, if you use a continuous waste kit designed for triple bowls. However, if one bowl has a garbage disposal, it is often better to have the disposal discharge directly into the main line, while the other two basins share a trap that merges with the disposal line. Always check local plumbing codes.

2. Does my dishwasher need to connect to the garbage disposal?

It is not strictly required, but it is highly recommended. Connecting the dishwasher to the disposal allows food particles caught in the disposal to be ground up before entering the drain system. If you do not have a disposal, the dishwasher must connect to a dedicated drain branch or an air gap.

3. Why is my triple sink draining slowly?

Slow drainage in a triple sink usually indicates a partial clog in the main horizontal run or improper sloping. Check that the pipe slopes downward at least 1/4 inch per foot. Also, ensure that the vent system is not blocked, as poor ventilation can create air locks.

4. Do I need a permit to replumb my kitchen sink?

In most US jurisdictions, minor repairs do not require a permit. However, moving drain lines, adding new fixtures, or altering the venting system often does. Check with your local building department. Failure to pull a required permit can void home insurance claims related to water damage.

5. What size pipe should I use for a triple sink?

The individual tailpieces and P-traps should be 1.5 inches. The horizontal drain line that collects water from all three basins should be at least 1.5 inches, but 2 inches is preferred for longer runs to prevent clogging from accumulated grease and food particles.

Conclusion

Plumbing a triple sink with dishwasher and garbage disposal is a significant upgrade that enhances your kitchen’s functionality. By understanding the interplay between drainage, venting, and appliance connections, you can avoid costly mistakes and ensure a smooth-flowing system. Remember to prioritize proper slope, secure connections, and code-compliant venting.

If you follow these steps, you will enjoy a clutter-free, efficient kitchen workspace for years to come. Did you find this guide helpful? Share it with your friends on social media who might be tackling their own kitchen renovations!
