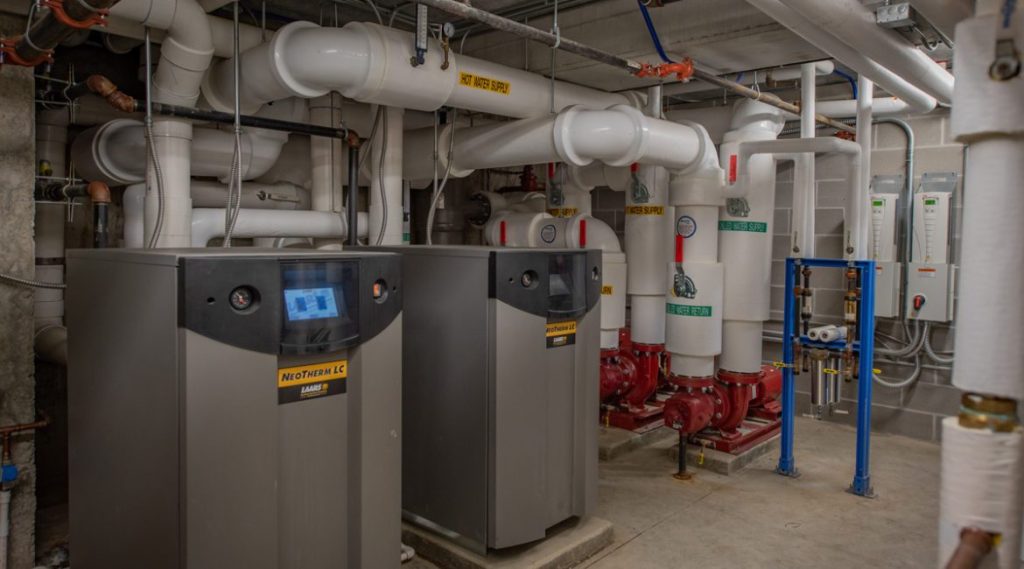

Are you tired of uneven heating and skyrocketing energy bills during the harsh winter months? Many homeowners are discovering that plumbing a water heater for a hydronic heating system offers a consistent, comfortable, and energy-efficient solution compared to traditional forced-air systems. Whether you are renovating an older home or building from scratch, understanding how to properly integrate your water heater into a radiant loop is crucial for long-term reliability and safety.
In this guide, we will walk you through the critical components, safety considerations, and step-by-step processes required to get your system up and running. By the end of this article, you will have the confidence to plan your installation or communicate effectively with your professional plumber.
Why Choose a Water Heater for Hydronic Heat?
Before diving into the pipes and valves, it is essential to understand why this setup is gaining popularity in the US market. Hydronic heating uses water as a heat transfer medium, which is far more efficient at retaining and distributing heat than air.
Efficiency and Comfort
Traditional furnaces blow hot air, which can dry out your skin and create dust circulation issues. In contrast, hydronic systems provide radiant heat that warms objects and people directly. According to the U.S. Department of Energy, radiant floor heating can be 10% to 20% more efficient than conventional forced-air heating systems.
The Role of the Water Heater
While dedicated boilers are common, modern high-efficiency tankless or condensing tank water heaters are increasingly used for hydronic applications. They offer:
- Dual Purpose: One unit provides both domestic hot water (DHW) and space heating.
- Space Saving: Compact units fit easily in closets or utility rooms.
- On-Demand Heat: Tankless models eliminate standby heat loss.
Expert Insight: “When selecting a water heater for hydronic use, ensure it is rated for ‘space heating’ applications. Not all residential water heaters are designed to handle the continuous load of a heating loop.” – John Miller, Licensed Master Plumber.
Essential Components for Your System
You cannot simply connect a standard water heater to floor tubes. A proper hydronic loop requires specific components to manage pressure, temperature, and flow. Here is what you need before you start plumbing.
| Component | Function | Why It’s Critical |
|---|---|---|
| Circulator Pump | Moves water through the loops | Ensures even heat distribution; prevents stagnation. |
| Expansion Tank | Absorbs water expansion | Prevents pressure buildup that could burst pipes. |
| Mixing Valve | Regulates water temperature | Protects flooring materials from excessive heat damage. |
| Air Separator | Removes trapped air | Prevents gurgling noises and corrosion in the system. |
| Zone Valves | Controls heat per room | Allows you to heat only occupied areas, saving energy. |
Step-by-Step: Plumbing A Water Heater For A Hydronic Heating System
Note: This section outlines the general process. Local building codes vary significantly across the US. Always check with your local authority having jurisdiction (AHJ) before beginning work.
Step 1: Planning the Loop Layout
The efficiency of your system depends on the layout. For radiant floors, the most common patterns are serpentine or spiral. Ensure your tubing spacing is consistent (usually 6–12 inches apart) to avoid cold spots. Calculate the total linear footage of PEX tubing required, adding 10% for waste and connections.
Step 2: Installing the Manifold
The manifold is the heart of the distribution system. It splits the hot water from the heater into individual zone loops.
- Mount the manifold supply and return bars on a sturdy wall near the water heater.
- Connect the main supply line from the water heater to the manifold’s inlet.
- Install flow meters on each zone loop to balance the water flow later.
Step 3: Connecting the Circulator and Expansion Tank
Proper hydraulic separation is key.
- Circulator Pump: Install the pump on the supply side of the loop, after the mixing valve but before the manifold. Use union fittings for easy future maintenance.
- Expansion Tank: Connect the expansion tank to the system using a tee fitting near the pump suction. This location ensures the tank sees the lowest pressure point in the system, maximizing its effectiveness.
Step 4: Integrating the Mixing Valve
Water heaters often output water at 120°F–140°F (49°C–60°C), but radiant floors typically require 85°F–105°F (29°C–40°C). Excessive heat can crack tile grout or warp wood floors.
- Install a thermostatic mixing valve on the supply line.
- Set the desired output temperature according to your flooring manufacturer’s specifications.
- Test the valve by running hot water and measuring the output with a digital thermometer.
Step 5: Pressure Testing and Flushing
Never skip this step. Air pockets are the enemy of hydronic systems.
- Close all zone valves except one.
- Connect a hose to the drain valve and flush water through the loop until it runs clear and bubble-free.
- Repeat for each zone.
- Pressurize the system to 15–20 PSI and check for leaks at every connection point. Let it sit for 24 hours to ensure stability.
Common Mistakes to Avoid
Even experienced DIYers can stumble when plumbing a water heater for a hydronic heating system. Here are the most frequent errors:
- Ignoring Oxygen Barrier Tubing: Standard PEX allows oxygen to permeate, leading to rust in metal components. Always use PEX-AL-PEX or EVOH-barrier PEX for closed-loop heating.
- Undersizing the Pump: A pump that is too weak won’t push water through long loops, resulting in cold rooms. Use a pump curve chart to match head pressure and flow rate.
- Skipping the Air Separator: Without proper air removal, your system will become noisy and inefficient over time. An automatic air vent is a small investment for big peace of mind.
For more detailed technical standards on hydronic piping materials, you can refer to general engineering principles outlined on Wikipedia’s page on Hydronics.
FAQ Section
Q1: Can I use my existing standard tank water heater for hydronic heating?
A: It is not recommended. Standard tank heaters are designed for intermittent domestic use, not the continuous demand of space heating. This can lead to premature failure and void warranties. Look for models specifically certified for combination (combi) use.
Q2: What is the ideal water temperature for radiant floor heating?
A: Most residential radiant floor systems operate best between 85°F and 105°F (29°C–40°C). Tile floors can handle higher temperatures, while wood floors require lower temps to prevent warping. Always consult your flooring manufacturer’s guidelines.
Q3: Do I need a separate boiler for my hydronic system?
A: No. Modern high-efficiency tankless water heaters or combi-boilers can handle both domestic hot water and space heating. This saves space and initial equipment costs, though the unit must be sized correctly for the peak load of both systems.
Q4: How often should I maintain my hydronic heating system?
A: Annual maintenance is ideal. Check the pressure gauge, inspect the expansion tank’s pre-charge, and bleed any air from the manifolds. Every 3–5 years, consider a professional flush to remove sediment buildup.
Q5: Is plumbing a hydronic system difficult for a DIYer?
A: It is moderately difficult. While connecting PEX tubing is user-friendly, sizing pumps, calculating heat loads, and ensuring code compliance require technical knowledge. If you are unsure about gas lines or electrical connections, hire a licensed professional for those specific parts.
Conclusion
Plumbing a water heater for a hydronic heating system is a smart investment in your home’s comfort and energy efficiency. By providing consistent, radiant warmth, you eliminate the drafts and dryness associated with forced-air systems. While the initial setup requires careful planning—specifically regarding component selection like mixing valves and circulator pumps—the long-term benefits in utility savings and comfort are undeniable.
Remember, safety and code compliance are paramount. If you feel overwhelmed by the hydraulic calculations or gas line connections, do not hesitate to consult a licensed HVAC technician or plumber. A well-installed system can last for decades, providing cozy winters for your family.
