Have you ever stood in your basement or crawl space, measuring tape in hand, wondering if steeper is better when it comes to draining wastewater? It is a common misconception among DIY enthusiasts that a sharper angle will ensure water flows away faster and prevents clogs. However, when asking “Plumbing Can I Have A 1 Slope Per Foot,” the short answer is generally no, and understanding why is crucial for a functional, long-lasting plumbing system.

In this guide, we will break down the science behind pipe gradients, explain the risks of excessive slope, and provide you with the exact measurements you need to get your project right the first time.

Why a 1-Inch Per Foot Slope Is Problematic

To understand why a 1-inch per foot slope (often referred to as a 1:12 gradient) is rarely recommended for standard horizontal drainage lines, we must look at how wastewater behaves inside a pipe.

The Science of Flow: Solids vs. Liquids

Wastewater is not just water; it is a mixture of liquid and solid waste. For a drainage system to work effectively, the water must move fast enough to carry solids along but not so fast that it outruns them. This concept is known as scouring velocity.

If you install a pipe with a 1-inch drop per foot, the water accelerates rapidly due to gravity. While the liquid rushes down the pipe, heavier solids (such as toilet paper, organic matter, or debris) tend to lag behind. Eventually, the water separates from the solids, leaving them stranded on the pipe walls. Over time, these stranded solids accumulate, leading to stubborn blockages that are difficult to clear.

Expert Insight: According to general engineering principles found in fluid dynamics resources on Wikipedia, maintaining a balance between flow rate and friction is essential for self-cleaning pipes. A slope that is too steep disrupts this balance.

Comparison: Ideal Slope vs. 1-Inch Slope

What Is the Correct Pipe Slope for Drainage?

If a 1-inch slope is too steep, what should you aim for? The answer depends on the diameter of your pipe and local building codes, but there are universal standards accepted across most of the United States.

Standard Guidelines by Pipe Size

Most US plumbing codes, including the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC), specify the following minimum slopes for horizontal drainage piping:

• Pipes 2½ inches or smaller: Minimum slope of 1/4 inch per foot (2% grade).
• Pipes 3 inches to 6 inches: Minimum slope of 1/8 inch per foot (1% grade).
• Pipes larger than 6 inches: Minimum slope of 1/16 inch per foot (0.5% grade).

For most residential applications, such as sink drains, shower lines, and toilet connections, the 1/4 inch per foot rule is the gold standard. This gradient provides enough gravity pull to keep waste moving without causing the separation issue mentioned earlier.

Is There a Maximum Slope Limit?

Yes. While many people worry about the slope being too shallow, few realize it can also be too steep. Generally, if a slope exceeds 1/2 inch per foot, you enter the danger zone where water begins to separate from solids. A 1-inch per foot slope is double this recommended maximum, making it highly inefficient for standard waste removal.

How to Measure and Set the Correct Slope

Setting the correct slope requires precision. Here is a step-by-step tutorial on how to measure and install your drainage pipes with the proper gradient.

Tools You Will Need

• A high-quality spirit level (at least 2 feet long)
• Measuring tape
• Marker or pencil
• Pipe hangers or straps
• Calculator (optional)

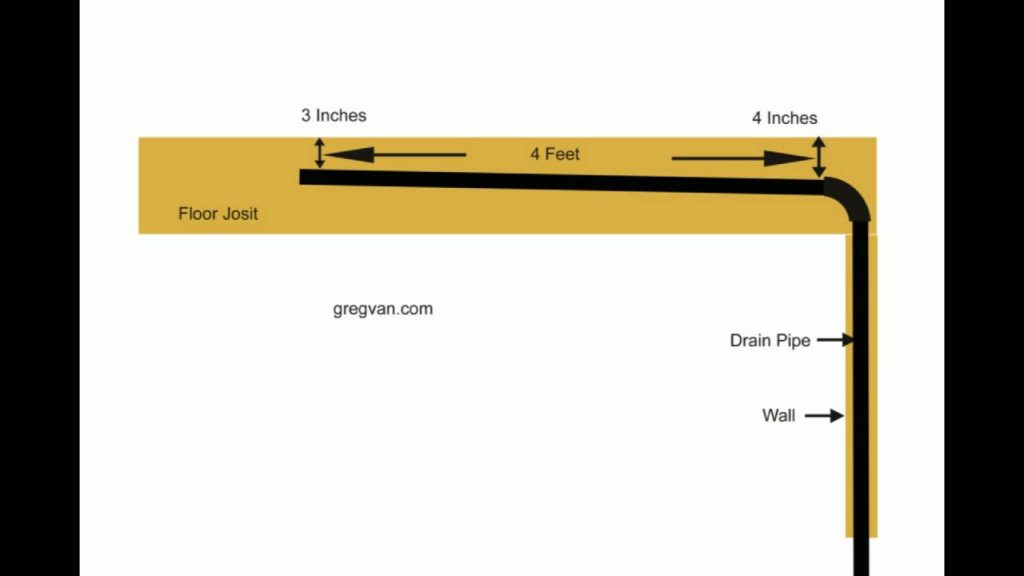

Step-by-Step Installation Guide

1. Determine the Run Length: Measure the total horizontal distance the pipe will travel. For example, let’s say you have a 10-foot run for a 2-inch sink drain.
2. Calculate the Total Drop: Using the standard 1/4 inch per foot rule:
   • Calculation: 10 feet × 0.25 inches = 2.5 inches.
   • This means the end of the pipe must be 2.5 inches lower than the start.
3. Mark Your Reference Points: At the starting point (near the fixture), mark the height of the pipe. At the ending point (10 feet away), mark a spot 2.5 inches lower.
4. Use Your Level: Place your spirit level on the pipe. If you have a 2-foot level, you need a drop of 0.5 inches over that 2-foot span (since 2 × 0.25 = 0.5). Adjust the pipe hangers until the bubble sits perfectly between the lines while the pipe aligns with your marked endpoints.
5. Secure the Pipe: Once the slope is verified, tighten all hangers. Ensure the pipe is supported every 4 to 6 feet to prevent sagging, which can create low spots where water pools.

Pro Tip: Always double-check your slope after securing the pipe. Weight from the pipe itself or concrete pouring can sometimes shift the alignment slightly.

Common Mistakes to Avoid

Even experienced DIYers can make errors when calculating gradients. Here are the most frequent pitfalls:

• Ignoring Fittings: Remember that elbows and tees take up space. When measuring your run, account for the length consumed by fittings to ensure your final slope calculation remains accurate.
• Sagging Pipes: If hangers are spaced too far apart, the pipe may bow in the middle. This creates a “belly” where water stands still, leading to sediment buildup and odors.
• Confusing Vent Pipes with Drain Pipes: Vent pipes do not carry wastewater and therefore do not require the same slope considerations. They are typically installed vertically or with minimal slope to prevent condensation buildup.

FAQ: Frequently Asked Questions

1. Can I use a 1-inch slope for any type of pipe?

While generally discouraged for horizontal waste lines, a steeper slope might be acceptable for stormwater drainage or specific industrial applications where only clean water is involved. However, for sanitary sewage containing solids, stick to the 1/4 inch per foot standard.

2. What happens if my slope is too flat?

If the slope is less than 1/8 inch per foot, water will move too slowly. This leads to stagnant water, which allows solids to settle and decompose, causing bad smells and frequent clogs. It essentially turns your pipe into a settling tank rather than a transport channel.

3. Does the type of pipe material affect the slope?

The material (PVC, ABS, Cast Iron) does not change the required slope percentage, but it does affect friction. Smoother pipes like PVC allow water to flow more easily than rougher materials like old cast iron. However, the 1/4 inch per foot rule remains the safe baseline for all residential materials.

4. Can I correct a pipe that was installed with a 1-inch slope?

If the pipe is already installed and causing issues, you may need to re-hang it to reduce the gradient. In some cases, adding cleanouts or using specialized jetting techniques can help manage clogs, but correcting the physical slope is the only permanent solution.

5. Is a 1/2 inch per foot slope acceptable?

A 1/2 inch per foot slope is often considered the maximum recommended limit for small-diameter pipes. While it is better than 1 inch per foot, it still carries a higher risk of water-solid separation compared to the ideal 1/4 inch. Use it only if space constraints demand a steeper drop.

Conclusion

When tackling the question “Plumbing Can I Have A 1 Slope Per Foot,” the evidence is clear: while it might seem logical that steeper equals better, physics dictates otherwise. A 1-inch per foot slope causes water to outrun solid waste, leading to inevitable clogs and maintenance headaches.

By adhering to the standard 1/4 inch per foot gradient for most residential pipes, you ensure a self-cleaning system that operates efficiently and quietly. Proper planning, accurate measurement, and secure installation are the keys to a plumbing system that lasts for decades.
