Are you tired of skyrocketing energy bills while still dealing with inconsistent hot water temperatures? Many homeowners are now looking for ways to combine the reliability of modern tankless systems with the eco-friendly benefits of solar energy. Understanding the correct Plumbing For On Demand Water Tank To Solar Heater is the critical first step in creating a hybrid system that saves money and reduces your carbon footprint.
In this guide, we will break down the complex piping requirements into simple, actionable steps. Whether you are a DIY enthusiast or preparing to hire a professional plumber, this article provides the technical clarity you need to ensure your system runs safely and efficiently for years to come.
Why Combine Solar Pre-Heating with On-Demand Units?
Before diving into the pipes and fittings, it is essential to understand why this configuration is becoming popular in the United States. An on-demand (tankless) water heater is excellent for providing endless hot water, but it requires significant energy to raise cold groundwater (often 50°F in winter) to a comfortable 120°F.
By installing a solar thermal collector as a pre-heater, you raise the incoming water temperature significantly before it reaches the tankless unit. This means the gas or electric burner in your on-demand unit has to work much less, extending its lifespan and slashing your utility bills.
The Efficiency Boost
According to the U.S. Department of Energy, solar water heating systems can be 50%–80% more efficient than conventional electric or gas water heaters. When paired with a tankless unit, you eliminate “standby loss” (energy wasted keeping a large tank hot) while maximizing solar gain.

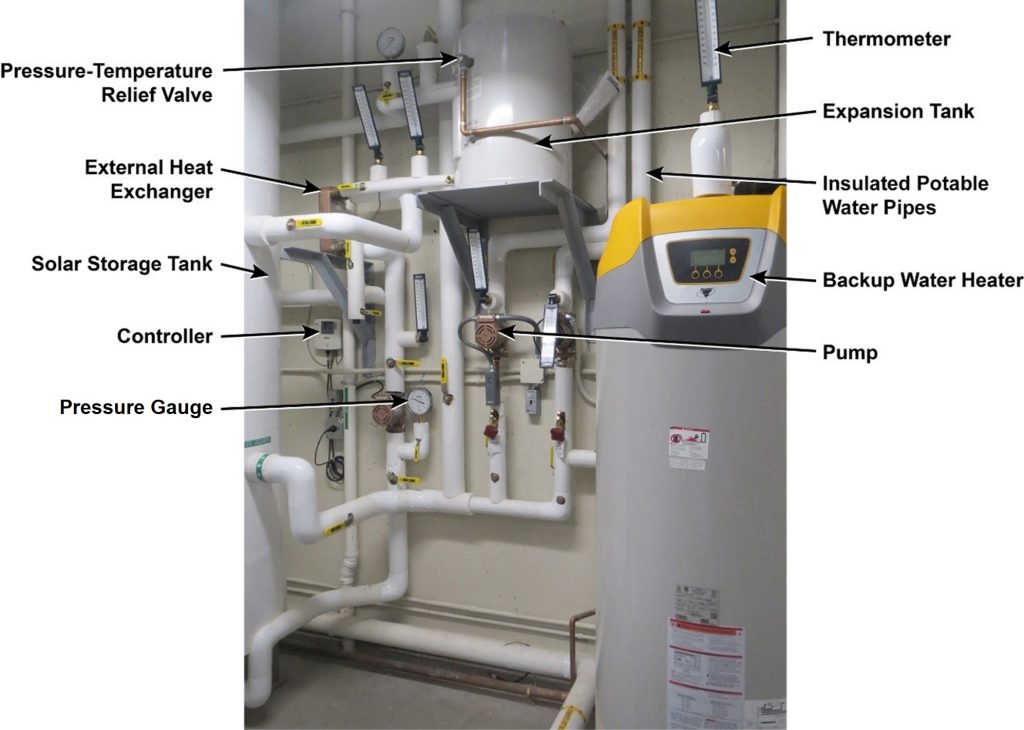

Essential Components for Your Hybrid System
To execute the Plumbing For On Demand Water Tank To Solar Heatercorrectly, you need more than just pipes. You need specific components that handle pressure, temperature fluctuations, and flow direction.
Component
Purpose
Why It’s Critical
Solar Storage Tank
Acts as a buffer/pre-heat reservoir.
Prevents cold shocks to the tankless unit.
Check Valves
Ensures one-way water flow.
Prevents hot water from flowing backward into cold lines at night.
Tempering Valve
Mixes hot and cold water.
Prevents scalding if solar heat exceeds 140°F.
Expansion Tank
Absorbs pressure changes.
Protects pipes from bursting due to thermal expansion.
Circulation Pump
Moves water through solar collectors.
Essential for active solar systems (most common in US homes).
Pro Tip: Always use copper or PEX-A piping rated for high temperatures. Standard PVC cannot handle the potential heat spikes from solar collectors, which can exceed 200°F on stagnant days.
Step-by-Step Plumbing Configuration
The core challenge in Plumbing For On Demand Water Tank To Solar Heater setups is ensuring the tankless unit receives water that is warm enough to be efficient, but not so hot or pressurized that it triggers error codes. Here is the standard recommended flow path.
Step 1: Install the Solar Pre-Heat Loop
The solar collectors should connect to a dedicated solar storage tank (often called a “pre-heat tank”). This tank does not need to be insulated as heavily as a standard water heater because the water is constantly moving, but insulation helps retain heat overnight.
Connect the cold water supply to the bottom of the solar tank.
Connect the top of the solar tank to the circulation pump loop leading to the roof collectors.
Step 2: Connect Solar Output to Tankless Input
This is the most critical junction. The hot water outlet from the top of your solar pre-heat tank must connect directly to the cold water inlet of your on-demand water heater.
Pipe Sizing: Ensure the pipe diameter matches the inlet requirements of your tankless unit (usually 3/4 inch). Restricting flow here will cause the tankless unit to underperform.
Isolation Valves: Install service valves on both the inlet and outlet of the tankless unit. This allows you to flush and maintain the unit without draining the entire house plumbing.
Step 3: Integrate Safety and Tempering
Solar water can get dangerously hot. If the water entering the tankless unit is already 150°F, the unit may shut down for safety, or worse, deliver scalding water if it fails to modulate.
Install a thermostatic mixing valve after the tankless heater’s output.
Set this valve to your desired delivery temperature (e.g., 120°F).
This ensures that even if the solar tank and tankless heater produce excessive heat, the water reaching your shower is safe.
For more detailed technical standards on solar thermal systems, you can refer to general engineering principles outlined on Wikipedia’s Solar Water Heating page.
Common Mistakes to Avoid
Even experienced plumbers can stumble when integrating these two distinct technologies. Here are the most frequent errors in Plumbing For On Demand Water Tank To Solar Heater projects:
Ignoring Flow Rate Requirements: Tankless heaters require a minimum flow rate to activate. If your solar pump is too weak or pipes are too narrow, the tankless unit may not turn on, leaving you with lukewarm water.
Skipping the Expansion Tank: Water expands when heated. In a closed-loop solar system connected to a tankless unit, pressure can build up rapidly. An expansion tank is non-negotiable for safety.
Poor Insulation: Any pipe running from the roof to the basement loses heat. Use high-quality foam insulation with UV protection for exterior runs to maintain efficiency.
Maintenance Tips for Longevity
A hybrid system is only as good as its maintenance routine. Because you are combining two systems, you have double the components to check.
Flush the Tankless Unit Annually: Mineral buildup (scale) is the enemy of tankless heaters. Use a vinegar solution or a commercial descaler to flush the heat exchanger once a year.
Check Solar Fluid Levels: If you are using a glycol-based antifreeze system (common in colder US states like Minnesota or Maine), check the fluid level and pH balance every two years.
Inspect Check Valves: Ensure that hot water isn’t thermosiphoning back into the cold lines at night, which can cool down your solar tank unnecessarily.
FAQ Section
1. Can I connect a solar heater directly to a tankless unit without a storage tank?
While technically possible in very specific, small-scale scenarios, it is not recommended. A storage tank acts as a buffer. Without it, cloud cover passing over your solar panels would cause rapid temperature fluctuations, causing the tankless unit to cycle on and off frequently, which wears out the components.
2. What happens if the solar water is hotter than the tankless heater’s maximum input temperature?
Most modern tankless units have high-limit sensors that will shut the unit down if the incoming water is too hot (usually above 140°F–150°F). This is why a tempering valve or a bypass loop is essential in the Plumbing For On Demand Water Tank To Solar Heater design to mix in cold water before it enters the unit.
3. Do I need a special type of pipe for solar plumbing?
Yes. Standard white PVC is not suitable for high-temperature solar applications. You should use CPVC, Copper, or PEX-A tubing that is rated for continuous high-temperature exposure. Using incorrect piping can lead to leaks and system failure.
4. Will this setup work in winter?
Yes, but efficiency drops. In freezing climates, you must use a closed-loop system with propylene glycol antifreeze in the solar collector loop. The heat is then transferred to your domestic water via a heat exchanger in the pre-heat tank. Never run plain water through roof-mounted solar panels in freezing zones.
5. How much can I save with this hybrid setup?
Savings vary by location and usage, but homeowners typically see a 40%–60% reduction in water heating costs. The tankless unit handles the “top-up” heating, so it uses minimal gas or electricity compared to heating cold water from scratch.
Conclusion
Implementing the correct Plumbing For On Demand Water Tank To Solar Heater configuration is a smart investment for any homeowner looking to reduce energy costs and environmental impact. By using a solar pre-heat tank, you protect your tankless unit from extreme temperature swings and maximize the efficiency of every ray of sunshine.
Remember, precision is key. Proper pipe sizing, the inclusion of safety valves, and regular maintenance will ensure your system provides endless hot water for decades.
