Are you standing in your bathroom framing, staring at a PVC pipe that seems just a little too high, and wondering if you’ve made a costly mistake? You are not alone. Many homeowners and even novice contractors face anxiety when dealing with a rough in plumbing shower drain stub above subfloor pan because getting this measurement wrong can lead to leaks, poor drainage, or expensive rework.
In this guide, we will demystify the exact height requirements, explain why this dimension matters so much, and provide step-by-step solutions to ensure your shower base sits perfectly level and drains efficiently. Whether you are installing a pre-fabricated fiberglass pan or building a custom tiled shower, understanding this critical interface between your plumbing and your flooring is the key to a professional finish.
Why Does the Drain Stub Height Matter?
Before we dive into the measurements, it is crucial to understand why this specific detail causes so many headaches. The “stub” refers to the vertical section of the drain pipe that protrudes from the floor structure. Its height determines how well the shower drain assembly (the clamping mechanism) connects to the waterproofing layer.
If the stub is too low, you cannot properly secure the drain body, leading to potential leaks under the pan. If it is too high, the shower pan may not sit flush against the subfloor, creating a rocking hazard or preventing the door from closing correctly.
The Golden Rule of Drain Heights
For most standard acrylic or fiberglass shower pans, the top of the drain stub should typically be flush with or slightly below the finished subfloor level. However, this varies depending on the type of drain and pan you are using.
| Drain Type | Ideal Stub Height Relative to Subfloor | Reason |
|---|---|---|
| Standard Fiberglass Pan | Flush to 1/4″ below | Allows the pan to sit flat; gasket compresses evenly. |
| Tile-Ready (Mud Bed) Pan | Varies by manufacturer | Often requires specific adapter heights for membrane integration. |
| Linear Drains | Precise manufacturer spec | Requires exact leveling for proper slope integration. |
Pro Tip: Always check the installation manual of your specific shower pan model. Manufacturers like Kohler, Delta, and Schluter have precise tolerances that override general rules of thumb.
How High Should the Rough In Plumbing Shower Drain Stub Be?
This is the most common question found in “People Also Ask” sections across search engines. The answer depends on whether you are measuring from the subfloor or the finished floor.
Measuring from the Subfloor
When we talk about the rough in plumbing shower drain stub above subfloor pan, we are generally referring to the state of the pipe before the final flooring is installed.
- For Glue-On Pans: The stub should usually be cut so that the top of the pipe is level with the top of the structural subfloor (usually 3/4″ plywood or OSB).
- For Clamped Drains: If your drain uses a rubber gasket and a locking nut, the stub needs to be long enough to pass through the pan’s hole but short enough to allow the nut to tighten without hitting the bottom of the pan. Typically, this means the stub extends about 1/2 inch to 1 inch above the subfloor before the pan is placed, but it gets trimmed or adjusted during installation.
The Impact of Building Codes
While local codes vary, most US jurisdictions follow the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC). These codes do not specify an exact “inch” measurement for the stub height above the subfloor but rather mandate that the drain must be securely connected and watertight.
According to Wikipedia’s overview of plumbing codes, compliance ensures that waste water is removed efficiently and that sanitary conditions are maintained. A poorly aligned drain stub violates the spirit of these codes by risking water intrusion into the subfloor structure.
Step-by-Step: Fixing a Drain Stub That Is Too High
If you have already poured your concrete slab or framed your floor and realized the rough in plumbing shower drain stub above subfloor pan is sticking up too high, don’t panic. Here is how to fix it without tearing out your entire floor.
Step 1: Assess the Excess Height
Measure exactly how much the pipe extends above the subfloor. Use a tape measure and note the difference. Is it 1/2 inch? 2 inches? This determines your approach.
Step 2: Cut the Pipe (If Accessible)
If the pipe is PVC and accessible from below (e.g., in a crawlspace or basement), this is the easiest fix.

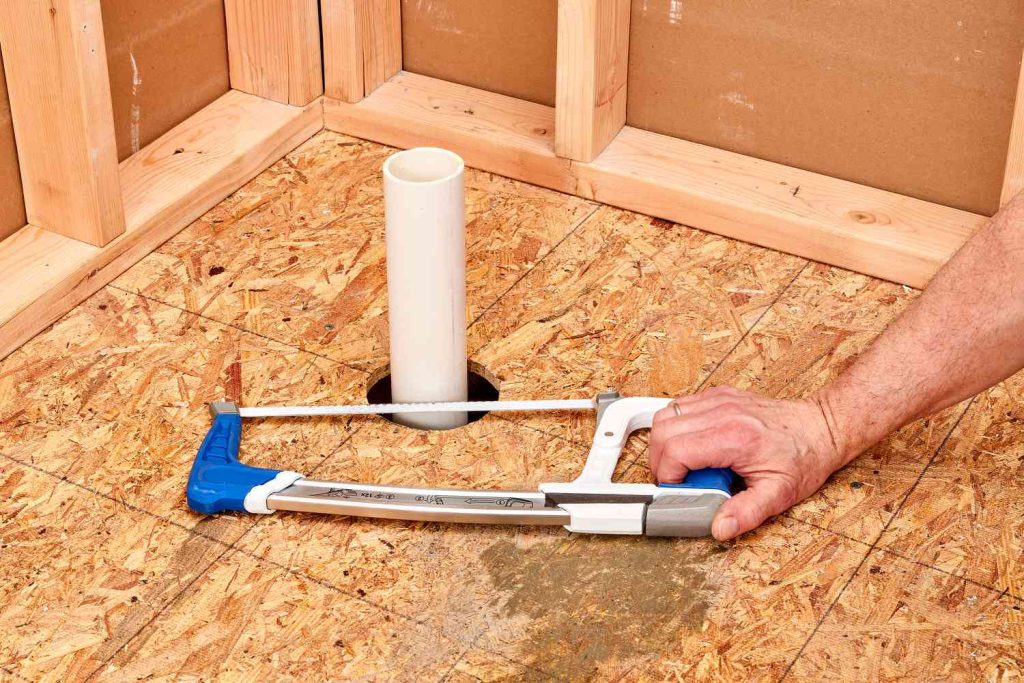

- Use a hacksaw or reciprocating saw.
- Cut the pipe carefully to leave it 1/4 inch below the subfloor surface.
- Deburr the inside and outside edges of the cut to ensure a smooth fit for the drain gasket.
Step 3: Use a Drain Extension Kit (If Top-Access Only)
If you cannot access the pipe from below, you may need to use a specialized drain extension or adjust the pan.
- Some modern drains come with adjustable collars.
- If the stub is only slightly high (less than 1/2 inch), you might be able to recess the subfloor around the drain using a router or chisel to create a pocket for the pipe head.
Step 4: Test the Fit
Place the shower pan over the drain without glue. Check if it sits flat. Use a level to ensure there is no rocking. If it rocks, the stub is still interfering, or the subfloor is uneven.
Common Mistakes to Avoid During Rough-In
Even experienced plumbers can make errors during the rough-in phase. Here are the top three pitfalls to avoid when dealing with your shower drain stub.
1. Ignoring the Slope
The drain stub itself is vertical, but the pipes leading to it must have a proper slope (1/4 inch per foot). If the horizontal piping sags or slopes incorrectly toward the stub, water will pool, leading to clogs and odors.
2. Forgetting the Cleanout
Many codes require a cleanout access point near the shower drain. Ensure your rough-in includes this if required by your local jurisdiction. It saves massive hassle if a clog occurs later.
3. Poor Sealing at the Subfloor Penetration
Where the drain stub passes through the subfloor, there is a gap. This gap must be sealed to prevent air leaks and pest entry. Use expanding foam or hydraulic cement to seal the annular space around the pipe before installing the pan.
FAQ Section
Q1: Can I install a shower pan if the drain stub is 2 inches above the subfloor?
A: Generally, no. A 2-inch protrusion is too high for standard shower pans. You will need to cut the pipe down or raise the subfloor level around the drain (which affects the rest of the bathroom floor height). Consult a plumber to cut the pipe from below if possible.
Q2: What is the standard diameter for a shower drain stub?
A: The standard diameter for a residential shower drain is 2 inches. Older homes may have 1.5-inch drains, but modern codes typically require 2 inches to handle the volume of water from modern showerheads and reduce clogging risks.
Q3: Do I need to glue the drain stub to the shower pan?
A: It depends on the drain type. Most modern showers use a mechanical clamp with a rubber gasket, which does not require glue between the pipe and the pan. However, the pipe joints below the subfloor must be solvent-welded (glued) securely. Always follow the manufacturer’s instructions.
Q4: How do I know if my rough-in is ready for the shower pan?
A: Your rough-in is ready when:
- The drain stub is at the correct height (flush or slightly below subfloor).
- The pipe is securely anchored to the framing.
- The area around the pipe is sealed.
- You have performed a water test (if applicable) to check for leaks in the supply lines nearby.
Q5: What if my subfloor is uneven around the drain stub?
A: An uneven subfloor can cause the shower pan to crack. Use a self-leveling compound to flatten the area around the drain stub before installing the pan. Ensure the compound does not get into the drain pipe itself.
Conclusion
Getting the rough in plumbing shower drain stub above subfloor pan height right is one of the most critical steps in bathroom renovation. It bridges the gap between your hidden plumbing infrastructure and the visible, functional surface of your shower. By ensuring the stub is flush or slightly recessed relative to the subfloor, you guarantee a watertight seal, a stable base, and peace of mind.
Remember, precision beats speed in plumbing. Take the time to measure twice, cut once, and always refer to your specific shower pan manufacturer’s guidelines. A well-installed drain prevents costly water damage down the road and ensures your shower remains a relaxing retreat rather than a source of stress.
