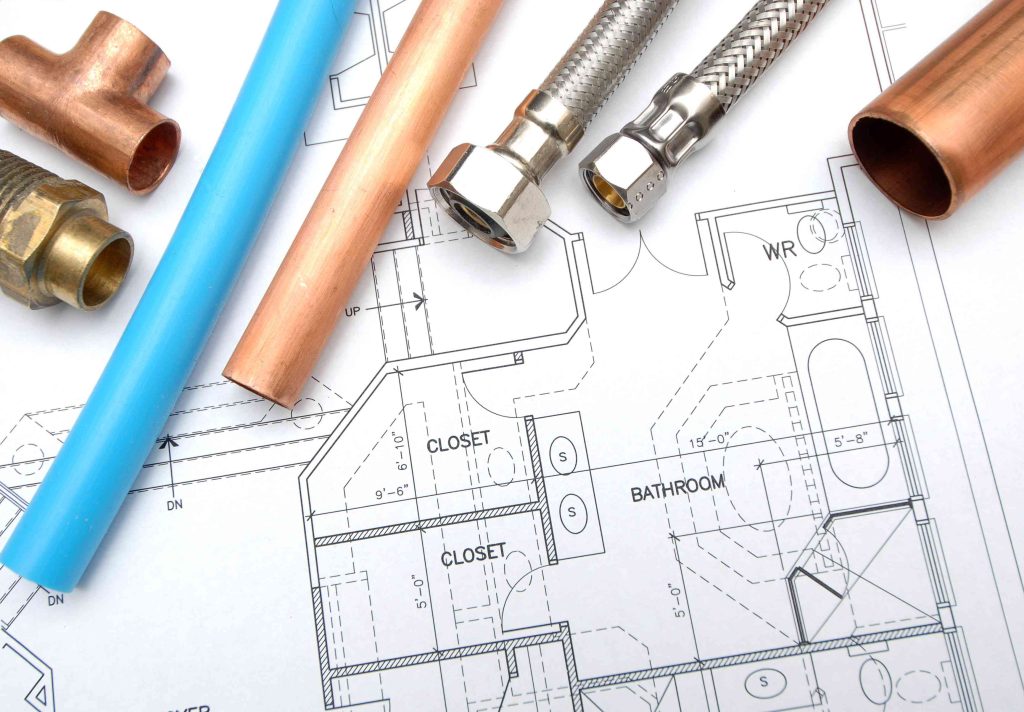

Rough In Plumbing: Mastering Supply Lines and Drain Pipes for Your Bathroom Sink

There is nothing more frustrating than realizing your dream bathroom vanity doesn’t fit because the water lines are two inches off, or worse, discovering a slow leak behind the wall after you’ve already tiled. Whether you are a DIY enthusiast tackling a home renovation or a homeowner trying to understand what your contractor is doing, getting the rough in plumbing supply lines and drain pipe bathroom sink configuration right is the single most critical step in the process. This phase determines the functionality, safety, and longevity of your bathroom. In this guide, we will walk you through the exact measurements, materials, and best practices used by professional plumbers to ensure your project passes inspection and stands the test of time.

What Exactly Is “Rough-In” Plumbing and Why Does It Matter?

Before we dive into the specific pipes, let’s clarify the terminology. Rough-in plumbing refers to the initial stage of a plumbing installation where all water supply lines and drain pipes are installed within the walls and floors, but before the fixtures (like the sink, toilet, or shower) are attached.

Think of it as the skeleton of your plumbing system. If the skeleton is crooked, the body won’t function correctly. According to industry standards, errors made during the rough-in phase are the leading cause of call-backs for plumbers and costly renovations for homeowners. A study by the National Association of Home Builders (NAHB) suggests that plumbing defects account for a significant portion of new home warranty claims, many of which stem from improper rough-in spacing or poor joint sealing.

Getting this right ensures:

• Code Compliance: Meeting local building codes to pass inspection.
• Fixture Fit: Ensuring your chosen sink and vanity align perfectly.
• Leak Prevention: Properly sloped drains and secured supply lines prevent future water damage.

The Golden Rules: Standard Measurements for Bathroom Sinks

One of the most common questions homeowners ask is, “Where exactly do I put the pipes?” While local codes can vary slightly, there are industry-standard dimensions that work for 90% of residential bathroom sinks. Deviating from these without a specific reason can limit your fixture choices later.

Standard Height and Horizontal Placement

For a standard vanity height (32 to 36 inches), the following measurements are the gold standard:

Pro Tip: Always measure from the finished floor, not the subfloor. If you are installing tile or luxury vinyl plank (LVV), you must add the thickness of your flooring material (usually ½ inch) to your measurements. If you forget this, your pipes might end up too high, preventing the P-trap from fitting under the sink basin.

Why These Numbers Matter

The 20-24 inch range for supply lines allows enough room for shut-off valves and flexible supply connectors without crowding the P-trap. The drain at 18-20 inches ensures it sits comfortably inside the vanity cabinet while maintaining the necessary slope for waste removal.

Supply Lines: Choosing the Right Material and Installation Method

When setting up the rough in plumbing supply lines, you generally have three material options: Copper, PEX (Cross-linked Polyethylene), and CPVC. Each has its pros and cons, but modern trends heavily favor PEX for residential retrofits and new builds.

1. PEX (The Modern Standard)

PEX tubing has revolutionized the plumbing industry. It is flexible, resistant to scale and chlorine, and doesn’t corrode.

• Pros: Fewer fittings required (reducing leak points), faster installation, and better freeze resistance.
• Cons: Cannot be used outdoors (UV sensitivity).
• Installation Note: When running PEX, ensure you use proper expansion tools or crimp rings. A loose crimp is a ticking time bomb.

2. Copper (The Traditional Choice)

Copper has been used for decades and is still preferred in some high-end applications or where local codes restrict plastic piping.

• Pros: Long history of reliability, rigid structure holds its shape well.
• Cons: Expensive, requires soldering (fire hazard during install), and susceptible to pinhole leaks in acidic water conditions.

3. CPVC (The Budget Option)

Chlorinated Polyvinyl Chloride is cheaper than copper but more brittle than PEX.

• Pros: Low cost, easy to cut and glue.
• Cons: Can become brittle over time, prone to cracking if hit during construction, and flow restriction due to thicker walls.

Expert Recommendation: For most bathroom sink rough-ins, 1/2-inch PEX is the ideal choice. It provides ample water volume for a sink while being easy to maneuver around studs.

Did You Know? According to Wikipedia, PEX plumbing systems have been used in Europe since the 1970s and have gained massive popularity in North America due to their durability and ease of installation compared to traditional copper.

Drain Pipes: Slope, Sizing, and Venting Essentials

While supply lines bring water in, the drain pipe takes waste out. This side of the rough in plumbing supply lines and drain pipe bathroom sink equation is governed strictly by gravity. If the slope is wrong, you will face chronic clogs and foul odors.

The Critical 1/4 Inch Per Foot Slope

For a standard 1-1/4 inch or 1-1/2 inch drain line serving a bathroom sink, the pipe must slope downward at a rate of 1/4 inch per foot.

• Too Flat: Water moves too slowly, leaving solids behind which cause clogs.
• Too Steep: Water rushes away faster than the solids, leaving waste stuck in the pipe (a phenomenon known as “solids separation”).

Sizing the Drain

• Minimum Code Requirement: 1-1/4 inches.
• Recommended Best Practice: 1-1/2 inches. Why go bigger? A 1-1/2 inch pipe is less prone to clogging from hair and soap scum, which are the primary enemies of bathroom sinks. Most modern vanities are also designed to accommodate a 1-1/2 inch P-trap.

The Importance of Venting

You cannot have a drain without a vent. The vent pipe allows air to enter the drainage system, equalizing pressure. Without it, water flowing down the drain can create a vacuum that siphons the water out of your P-trap. Once the P-trap is dry, sewer gases enter your home.

• Rule of Thumb: The vent connection should be within 6 feet of the trap weir (the point where water exits the trap) for a 1-1/4 inch pipe, though local codes may vary.

Step-by-Step: How to Rough In a Bathroom Sink

If you are ready to get your hands dirty, follow this precise workflow. Accuracy here saves hours of frustration later.

Tools Needed: Tape measure, level, stud finder, hole saw, PEX crimper/cutter, drill, marker.

1. Locate the Centerline: Find the exact center of where your vanity will sit. Mark a vertical line on the stud wall from the floor up.
2. Mark the Heights:
   • Measure up 20 inches from the finished floor level and mark the center of the drain hole.
   • Measure up 22 inches (average) and mark the locations for the hot and cold supply lines, typically 6 inches to the left and right of your centerline.
3. Drill the Holes: Use a hole saw to drill through the studs. Ensure the holes are centered and large enough for the pipe plus insulation/sleeves if required by code.
   • Note: Do not drill holes in the top or bottom 2 inches of a stud, or within the middle third of the stud width, as this compromises structural integrity.
4. Install the Drain Stub-Out: Run your 1-1/2 inch PVC or ABS pipe to the marked drain location. Leave a “stub-out” (the open end of the pipe) protruding from the wall about 1 to 2 inches. Cap it immediately to prevent debris from entering.
5. Run the Supply Lines: Run your hot and cold PEX lines to the marked locations. Leave enough slack (about 6-8 inches) protruding from the wall to make connections easier later, but cap them securely.
6. Pressure Test: Before closing up the walls, you must test the supply lines. Pressurize the system to roughly 60-80 PSI and let it sit for at least an hour (or per local code) to check for drops in pressure indicating a leak.
7. Document Everything: Take photos of the pipe locations relative to the studs. Once the drywall goes up, you won’t be able to see where the pipes are, and this helps avoid drilling into them later when hanging mirrors or cabinets.

Common Mistakes to Avoid

Even experienced DIYers can stumble on these details. Here are the top pitfalls to watch out for:

• Ignoring the Vanity Backsplash: If you plan to have a 4-inch backsplash, your faucet holes might not align with the supply lines if you measured strictly for the countertop depth. Always account for the full depth of the vanity unit.
• Placing Pipes Behind Stiles: Many vanities have vertical support beams (stiles) inside the cabinet. If your drain pipe lands directly behind a stile, you won’t be able to install the P-trap. Check the internal layout of your specific vanity model before finalizing pipe placement.
• Using the Wrong Elbows: For drains, use long-sweep elbows (gentle curves) rather than sharp 90-degree turns. Sharp turns increase turbulence and clog potential.
• Forgetting Insulation: If your bathroom is on an exterior wall, insulate your supply lines to prevent freezing in winter.

FAQ: Frequently Asked Questions

Q1: Can I move the drain pipe later if I change my mind about the vanity size?

A: Moving a drain pipe after the concrete slab is poured or the floor joists are closed up is extremely difficult and expensive. It involves cutting into floors or ceilings. It is crucial to finalize your vanity dimensions before the rough-in phase. If you are unsure, placing the drain in the universal center (usually 16-18 inches from the finished floor) offers the most flexibility for future changes.

Q2: What is the difference between a 1-1/4 inch and 1-1/2 inch drain pipe?

A: While code often allows 1-1/4 inch for bathroom sinks, 1-1/2 inch is superior. The larger diameter significantly reduces the chance of clogs caused by hair and soap accumulation. Most professional plumbers now default to 1-1/2 inch for all bathroom sinks as a best practice.

Q3: Do I need a permit to rough in plumbing for a bathroom sink?

A: In almost all jurisdictions, yes. Moving or installing new water supply and drain lines requires a permit and subsequent inspections. This ensures the work meets safety codes and prevents contamination of the drinking water supply. Always check with your local building department before starting.

Q4: How far can the sink drain be from the vent pipe?

A: This depends on the diameter of the drain pipe. For a 1-1/4 inch pipe, the maximum distance to the vent is typically 5 feet. For a 1-1/2 inch pipe, it can usually extend up to 6 feet. However, these distances vary by local code, so always verify with your specific municipal regulations.

Q5: Should I use flexible hoses or rigid pipes for the final connection?

A: During the rough-in phase, you install rigid pipes (PEX, Copper, PVC). The final connection to the faucet and shut-off valves is almost always done with flexible braided stainless steel hoses. These allow for slight adjustments when installing the faucet and absorb minor vibrations.

Conclusion

Mastering the rough in plumbing supply lines and drain pipe bathroom sink setup is the foundation of a successful bathroom renovation. By adhering to standard measurements, choosing the right materials like PEX and 1-1/2 inch drain pipes, and ensuring proper slope and venting, you set yourself up for a leak-free, functional, and code-compliant result. Remember, the extra time spent measuring twice and pressure testing your lines pays off exponentially when you’re enjoying your finished bathroom years down the road without worrying about hidden leaks.

Are you planning a bathroom remodel soon? Share this guide with your contractor or DIY partner to ensure you’re both on the same page! Don’t forget to tag us in your renovation progress photos on social media—we’d love to see your project come to life.
