There is nothing more frustrating than purchasing a sleek, space-saving stackable washer and dryer only to discover your utility connections are three inches off or your vent line is too long. A proper rough in vent and plumbing for stackable washer and dryer setup is the invisible backbone of a functional laundry room; get it wrong, and you face leaks, poor drying performance, or even fire hazards. Whether you are building a new home or remodeling a closet, understanding the precise measurements and code requirements now will save you hundreds of dollars in contractor call-backs later. Let’s walk through exactly how to position your utilities for a seamless installation.
Why Precision Matters in Stackable Laundry Rough-ins
Unlike side-by-side units, stackable washers and dryers have a very specific “footprint” regarding where water, drain, and power lines must land. If your rough-in is too high, the unit won’t fit flush against the wall. If it’s too low, you might not be able to access the shut-off valves in an emergency.
According to general industry standards, the margin for error in a stacked configuration is often less than 2 inches vertically compared to standard units. A study by the National Association of Home Builders (NAHB) indicates that laundry room functionality is a top priority for home buyers, with improper utility placement being a leading cause of renovation disputes. Getting the rough in vent and plumbing for stackable washer and dryer correct ensures not just aesthetic appeal, but operational safety and efficiency.
Optimal Height and Location for Water Supply Lines

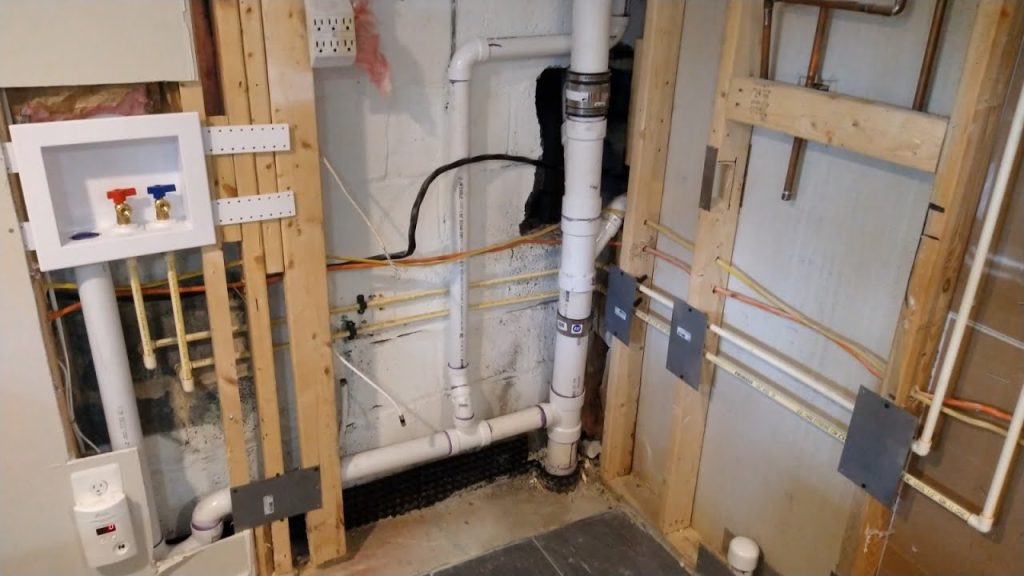

The first step in your rough-in process is determining the exact height for your hot and cold water supply lines. For stackable units, the connection point is typically located behind the washer portion of the stack, which is usually the bottom unit.
Recommended Measurements
- Vertical Height: The center of the water supply boxes should be positioned between 34 and 36 inches above the finished floor. This range accommodates most major brands like LG, Samsung, and Whirlpool.
- Horizontal Placement: Place the supplies within the central 12-inch zone of the unit’s width. For a standard 27-inch wide stackable, this means centering them at roughly 13.5 inches from either side.
- Pipe Type: Use PEX tubing with brass crimp rings or copper piping. Avoid galvanized steel, which is prone to corrosion and restricted flow over time.
Pro Tip: Always install individual shut-off valves for both hot and cold lines. Label them clearly with “H” and “C” tags. In a tight stackable enclosure, you do not want to be guessing which valve controls the water during a leak.
Drain Standpipe Requirements and Code Compliance
The drain standpipe is where many DIY enthusiasts make critical mistakes. A standpipe that is too short will cause siphoning (where water drains out while the machine is trying to fill), while one that is too tall can cause backflow issues.
Key Specifications
- Height: The top of the standpipe must be between 18 and 30 inches above the trap weir (the bottom of the U-bend). For stackable units, aiming for 24 inches is the sweet spot.
- Diameter: Modern high-efficiency (HE) washers discharge water rapidly. You must use a 2-inch diameter PVC or ABS pipe. The old standard of 1.5 inches is no longer sufficient for most modern machines and violates current UPC (Uniform Plumbing Code) standards.
- Air Gap: Ensure there is an air gap between the top of the standpipe and the bottom of the washer drain hose. The hose should be secured with a strap but never inserted so deeply that it creates a seal.
For a deeper understanding of plumbing codes and sanitary drainage systems, you can reference authoritative resources like Wikipedia’s page on Plumbing, which outlines the historical and technical evolution of drainage standards.
Dryer Venting: The Critical Safety Component
Perhaps the most vital aspect of your rough in vent and plumbing for stackable washer and dryer project is the dryer vent. Improper venting is the leading cause of residential laundry fires. Because stackable dryers often have longer internal duct paths to reach the rear exhaust, external vent resistance must be minimized.
Rigid Metal vs. Flexible Foil
| Feature | Rigid Metal Duct (Recommended) | Flexible Foil/Vinyl Duct |
|---|---|---|
| Fire Safety | High (Non-combustible) | Low (Traps lint easily) |
| Airflow | Smooth interior, minimal resistance | Ribbed interior, traps lint |
| Code Status | Required by most modern codes | Often prohibited |
| Durability | Lasts lifetime of home | Degrades quickly |
Always use rigid galvanized steel or aluminum ducting. Never use the white plastic or foil accordion-style hoses inside the wall.
Vent Length and Elbows
The total equivalent length of your vent run should not exceed 25 feet. However, you must subtract distance for every elbow used:
- Subtract 2.5 feet for each 45-degree elbow.
- Subtract 5 feet for each 90-degree elbow.
If your calculation exceeds 25 feet, you may need to install a booster fan, though this is rarely ideal for residential stackable units. Ideally, keep the path as straight as possible.
Electrical and Gas Considerations
While water and venting get the most attention, power and gas (if applicable) must also be roughed in correctly.
Electric Dryers
Most stackable electric dryers require a 240-volt, 30-amp circuit.
- Receptacle: Install a NEMA 14-30R outlet (4-prong) rather than the older 3-prong style. New homes are required to use 4-prong outlets for better grounding.
- Location: Place the outlet slightly offset from the center, usually to the side, so the thick power cord doesn’t push the unit away from the wall.
Gas Dryers
If you are installing a gas dryer:
- Supply Line: Use black iron pipe or CSST (Corrugated Stainless Steel Tubing) with a dedicated shut-off valve.
- Pressure: Ensure the line provides adequate pressure (typically 7 inches of water column for natural gas).
- Leak Testing: Before closing up walls, pressure test the line with a manometer to ensure zero leaks.
Step-by-Step Installation Checklist
Follow this concrete checklist to ensure your rough-in is ready for the final install:
- Mark the Centerline: Draw a vertical plumb line on the wall representing the center of your 27-inch (or 24-inch) unit.
- Measure Heights: From the finished floor, mark 35 inches for water supplies and 24 inches for the drain standpipe top.
- Cut and Frame: Cut openings in the studs. Install blocking (wood supports) between studs where the heavy unit will rest if wall-mounting brackets are required.
- Install Pipes: Run PEX for water and 2-inch PVC for the drain. Ensure the drain trap is accessible.
- Run the Vent: Install the rigid metal duct through the wall or ceiling. Seal all joints with aluminum foil tape (not duct tape).
- Pressure Test: Turn on water supplies and check for leaks. Run air through the vent line to check for obstructions.
- Final Check: Verify that no pipe protrudes more than 1 inch from the wall surface, as this can prevent the stackable unit from sitting flush.
Frequently Asked Questions (FAQ)
1. Can I place the water connections behind the dryer instead of the washer?
Generally, no. In a stackable configuration, the washer is almost always on the bottom. Placing connections behind the top unit (dryer) would require drilling through the washer casing or using excessively long hoses, which increases the risk of bursting and reduces water pressure. Always rough in behind the washer section.
2. What happens if my dryer vent run is longer than 25 feet?
If your vent run exceeds the maximum allowable length (after calculating elbow deductions), the dryer will not dry clothes efficiently, and lint buildup will become a severe fire hazard. In such cases, you must install a certified lint booster fan or redesign the vent path to be shorter and straighter.
3. Do I need a special outlet for a stackable washer-dryer combo?
If you have a single-unit “combo” (one machine that washes and dries), it typically runs on a standard 120V outlet, though some larger models need 240V. However, for a stacked pair (two separate machines), you will need both a standard 120V outlet for the washer and a 240V outlet for the electric dryer.
4. Is it okay to use a “periscope” vent kit to lower the exit height?
Periscope vents (elbows that drop the vent height immediately behind the dryer) are acceptable if necessary to fit cabinetry, provided they are made of rigid metal and do not add excessive resistance to the airflow. Keep the number of bends to an absolute minimum.
5. How far from the wall should the pipes stick out?
Water supply boxes and the drain standpipe should not protrude more than 1 to 1.5 inches from the finished wall surface. If they stick out further, the stackable unit will be pushed forward, creating an unsightly gap and potential instability.
6. Can I vent my dryer into the attic or crawl space?
Absolutely not. Venting moist, lint-filled air into an attic or crawl space will cause mold growth, wood rot, and presents a significant fire risk. All dryer vents must terminate outdoors, away from windows and intake vents.
Conclusion
Mastering the rough in vent and plumbing for stackable washer and dryer setup is about more than just connecting pipes; it is about ensuring the longevity, safety, and efficiency of your home’s laundry system. By adhering to precise height measurements, using rigid metal venting, and following current plumbing codes, you create a foundation that supports hassle-free operation for years to come. Remember, the extra time spent measuring twice and using high-quality materials during the rough-in phase pays off by preventing costly repairs down the road.
