SharkBite 3/8 Inch PEX Straight Connector: The Ultimate Guide

Have you ever stared at a leaking pipe under your sink, dreading the thought of soldering copper or crimping complex fittings? You are not alone. For many homeowners and even professional plumbers, the SharkBite Straight Connector Plumbing Fitting 3 8 Inch Pex has become the go-to solution for quick, reliable, and tool-free repairs. Whether you are fixing an ice maker line, connecting a humidifier, or repairing a tight spot in your bathroom vanity, understanding how to use this specific fitting correctly can save you hours of frustration and hundreds of dollars in plumber fees. In this guide, we will break down everything you need to know to install it with confidence.

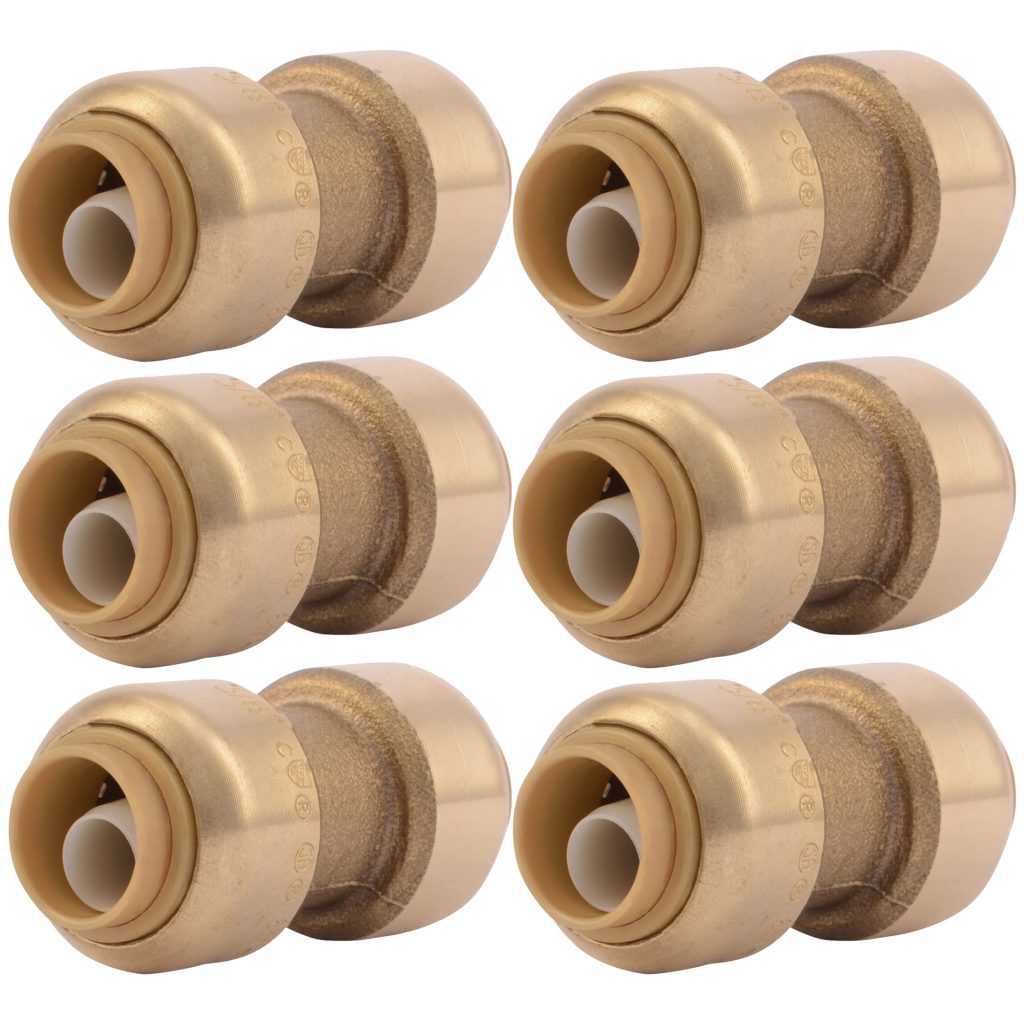

What Is a SharkBite 3/8 Inch Straight Connector?

Before diving into the installation, it is crucial to understand what makes this specific fitting unique. SharkBite fittings are part of a “push-to-connect” system that uses a stainless steel grab ring and an O-ring to create a watertight seal.

The 3/8 inch size is particularly important because it is the standard diameter for low-volume water lines. Unlike the 1/2 inch or 3/4 inch lines that supply your shower or kitchen faucet, 3/8 inch lines are typically used for:

• Refrigerator ice makers
• Whole-house humidifiers
• Toilet supply lines (in some older homes)
• Under-sink filtration systems

The “Straight Connector” variant simply means it joins two pieces of PEX tubing in a straight line without changing direction or reducing diameter. It is the simplest form of connection, yet doing it wrong can still lead to leaks.

Why Choose SharkBite Over Traditional Methods?

When deciding on a plumbing method, you generally have three choices: Soldering (Copper), Crimping (PEX), or Push-to-Connect (SharkBite). Here is why the SharkBite 3/8 inch connector often wins for DIYers and quick repairs.

Speed and Convenience

Traditional PEX installation requires a specific crimping tool, which can cost between $50 and $150. If you only have one leak to fix, buying a tool is not cost-effective. SharkBite requires zero tools. You literally push the tube in, and you are done.

Versatility

One of the biggest advantages is compatibility. A single SharkBite fitting can connect:

• PEX-A
• PEX-B
• PEX-C
• Copper Tube
• CPVC (with proper insert)

This versatility is invaluable when you are dealing with older homes where pipe materials may be mixed.

Removability

Unlike crimped fittings, which are permanent, SharkBite fittings can be removed and reused if installed correctly. This is a game-changer if you make a mistake during measurement or need to adjust your piping layout.

Step-by-Step Installation Guide

Installing a SharkBite Straight Connector Plumbing Fitting 3 8 Inch Pex is straightforward, but precision is key. Follow these exact steps to ensure a leak-free connection.

Tools and Materials Needed

• SharkBite 3/8 inch Straight Coupling
• 3/8 inch PEX Tubing
• SharkBite Deburring Tool (or a fine-grit sandpaper/file)
• Pipe Cutter (specifically for PEX/copper)
• Depth Gauge Tool (often included with SharkBite fittings)
• Rag or towel

Step 1: Turn Off the Water

Never attempt to cut live pipes. Locate your main water shut-off valve or the local isolation valve for the specific fixture you are repairing. Open a faucet downstream to relieve pressure and drain any remaining water from the line.

Step 2: Cut the PEX Tubing

Using a sharp pipe cutter, cut the 3/8 inch PEX tubing. Ensure the cut is perfectly square (90-degree angle). A jagged or angled cut will prevent the O-ring from sealing properly, leading to immediate leaks.

• Pro Tip: Do not use scissors or wire cutters, as they crush the tube and deform its shape.

Step 3: Deburr and Clean

This is the most skipped step and the most common cause of failure. Use the SharkBite deburring tool to smooth out the inner and outer edges of the cut PEX tube.

• Remove any plastic burrs on the outside.
• Ensure the inside edge is smooth so it does not damage the O-ring during insertion.
• Wipe the end of the tube with a clean rag to remove dirt, grease, or moisture.

Step 4: Mark the Insertion Depth

Take the depth gauge tool (a small plastic card usually provided in the box) and mark the insertion depth on your PEX tube. For a 3/8 inch fitting, the typical insertion depth is approximately 5/8 inch (16mm).

• Why this matters: If you do not push the tube in far enough, the grab ring will not engage, and the fitting will pull off under pressure.

Step 5: Push to Connect

Hold the SharkBite fitting in one hand and the PEX tube in the other. Align the tube with the fitting and push firmly until the tube reaches the mark you made in Step 4. You should feel a slight resistance as the stainless steel teeth grip the tube, followed by a solid stop.

• Give the tube a gentle tug to ensure it is locked in place. It should not pull out.

Step 6: Repeat and Test

Repeat the process for the other side of the straight connector. Once both sides are connected, slowly turn the water back on. Check for any drips or sprays. If it is dry, you have successfully installed your SharkBite Straight Connector Plumbing Fitting 3 8 Inch Pex.

SharkBite vs. Crimp Fittings: A Comparison

To help you decide if SharkBite is right for your project, here is a quick comparison table.

Note: Always check your local plumbing codes. While SharkBite is approved by ICC and IAPMO, some local jurisdictions may have specific restrictions.

Common Mistakes to Avoid

Even with a user-friendly product, errors happen. Here are the top three mistakes users make with 3/8 inch connectors:

1. Ignoring the Scratches: If your PEX tube has deep scratches or gouges on the surface, do not use it. The O-ring needs a smooth surface to seal. If the scratch is shallow, rotate the tube so the scratch is not in the sealing zone.
2. Using the Wrong Size: It sounds obvious, but 3/8 inch PEX looks very similar to 1/2 inch PEX at a glance. Double-check the printing on the side of the tube. Using a 1/2 inch fitting on 3/8 inch tube will result in a catastrophic leak.
3. Not Supporting the Pipe: SharkBite fittings are heavier than plastic crimp rings. Ensure your PEX tubing is properly clipped and supported every 32 inches horizontally and 6 feet vertically, as per plumbing code standards. Unsupported pipes can sag, putting stress on the fitting and potentially causing it to disengage over time.

FAQ Section

Q1: Can I use SharkBite fittings behind walls?

A: Yes, SharkBite fittings are approved for behind-the-wall installations in most jurisdictions, provided they are accessible via an access panel or if local codes allow concealed connections. However, many professionals prefer crimped fittings for concealed spaces due to lower cost and proven long-term track records. Always verify with your local building inspector.

Q2: How long do SharkBite fittings last?

A: SharkBite offers a 25-year warranty against manufacturing defects when installed correctly. Real-world data suggests they can last much longer, but their lifespan depends heavily on water quality and proper installation. High chlorine levels or excessive UV exposure (if used outdoors) can degrade the O-rings over time.

Q3: Can I reuse a SharkBite fitting after removing it?

A: Technically, yes, but it is not recommended for critical applications. Each time you remove and reinsert a tube, the O-ring and grab ring undergo wear. For a temporary fix or testing, reuse is fine. For a permanent installation, always use a new fitting to ensure maximum reliability.

Q4: What is the maximum pressure rating for a 3/8 inch SharkBite connector?

A: SharkBite fittings are rated for up to 200 PSI at 73°F (23°C) and 80 PSI at 180°F (82°C). Most residential water systems operate between 40 and 80 PSI, so these fittings are well within safe operating limits for home use.

Q5: Do I need a special tool to remove the fitting?

A: While you can sometimes wiggle a fitting off with pliers, it is risky and can damage the pipe. It is highly recommended to use a SharkBite Disconnect Clip or Disconnect Tongs. These inexpensive tools release the grab ring safely, allowing you to pull the tube out without damaging the fitting or the PEX.

Conclusion

The SharkBite Straight Connector Plumbing Fitting 3 8 Inch Pex is more than just a convenient gadget; it is a reliable engineering solution that democratizes plumbing repairs. By eliminating the need for expensive tools and complex skills, it empowers homeowners to tackle leaks quickly and efficiently. Whether you are connecting an ice maker or fixing a burst line under the sink, following the proper preparation steps—cutting square, deburring, and marking depth—will ensure a leak-free connection that lasts for years.

Remember, while DIY is rewarding, safety and code compliance come first. If you are unsure about your local regulations or the complexity of the repair, consulting a licensed plumber is always a wise choice.
