Are you staring at a leaking pipe or planning a quick bathroom renovation, only to feel overwhelmed by the thought of soldering copper joints? You are not alone. Many homeowners dread the complexity of traditional plumbing methods, fearing costly mistakes or water damage. Fortunately, modern solutions like the SharkBite U120LFA Straight Connector Plumbing Male 1 2 In offer a reliable, tool-free alternative that simplifies your life. This guide will walk you through everything you need to know about this essential fitting, ensuring your next repair is swift, secure, and professional-grade.
What Is the SharkBite U120LFA Connector?

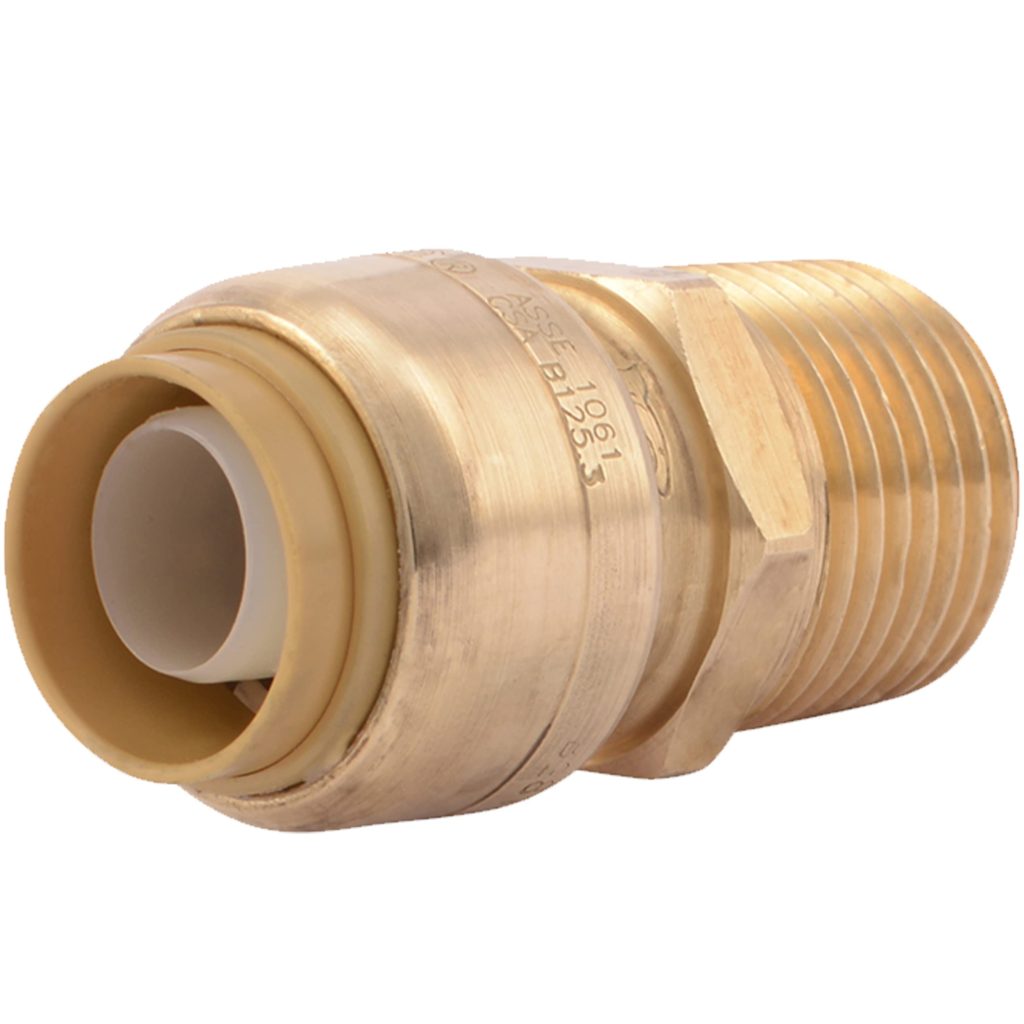

The SharkBite U120LFA is a specific type of push-to-connect fitting designed to bridge the gap between different piping materials. Specifically, it is a straight adapter that features a push-to-connect end for PEX, Copper, CPVC, PE-RT, or HDPE pipes, and a male threaded end (typically 1/2 inch NPT) for connecting to fixtures, valves, or other threaded components.
Key Specifications at a Glance
| Feature | Specification |
|---|---|
| Model Number | U120LFA |
| Connection Type | Push-to-Connect x Male Thread |
| Pipe Size | 1/2 Inch (CTS – Copper Tube Size) |
| Thread Size | 1/2 Inch NPT (National Pipe Taper) |
| Material | DZR Brass Body, Stainless Steel Grab Ring |
| Max Pressure | 200 PSI |
| Max Temperature | 200°F (93°C) |
| Certifications | NSF/ANSI 61, CSA B125.1 |
This fitting is part of the broader SharkBite ecosystem, which revolutionized the plumbing industry by eliminating the need for torches, glue, or crimping tools for many common connections. For more background on how push-fit technology changed residential plumbing standards, you can refer to general industry insights on plumbing fixture standards.
Why Choose the U120LFA Over Traditional Fittings?
When deciding between a SharkBite adapter and a traditional soldered or crimped fitting, several factors come into play. The U120LFA stands out for its versatility and ease of use.
1. Speed and Efficiency
Traditional soldering requires cleaning, fluxing, heating, and cooling. A single joint can take 10–15 minutes to do correctly. With the SharkBite U120LFA, the connection is made in seconds. This is invaluable for emergency repairs where water needs to be shut off for the shortest time possible.
2. No Special Tools Required
You do not need a propane torch, solder, or a specialized crimping tool. The only tool you might need is a pipe cutter to ensure a clean cut and a deburring tool to smooth the edges. This lowers the barrier to entry for DIY enthusiasts.
3. Removability and Reusability
One of the biggest advantages of SharkBite fittings is that they are removable. If you make a mistake or need to adjust the length of your pipe, you can use a disconnect clip or tongs to release the fitting and reuse it. Traditional soldered joints are permanent; if you mess up, you have to cut the pipe and start over.
4. Material Compatibility
The U120LFA allows you to connect dissimilar metals without worrying about galvanic corrosion as much as you would with direct metal-to-metal contact, thanks to the internal O-ring seal. It works seamlessly with:
- Copper (Type K, L, M)
- PEX (A, B, C)
- CPVC
- PE-RT
- HDPE (SDR-9)
Step-by-Step Installation Guide
Installing the SharkBite U120LFA Straight Connector Plumbing Male 1 2 In is straightforward, but precision is key to preventing leaks. Follow these steps carefully.
Step 1: Prepare the Pipe
Cut the pipe squarely using a sharp pipe cutter. Avoid using a hacksaw if possible, as it can leave burrs and uneven edges. If you must use a saw, file the end smooth afterward.
Step 2: Deburr and Clean
Use a deburring tool to remove any sharp edges from the inside and outside of the pipe. Wipe the pipe end with a clean cloth to remove dirt, moisture, or oxidation. Note: The pipe must be free of scratches or gouges within the first 1–2 inches from the end.
Step 3: Mark the Insertion Depth
Most SharkBite fittings have an insertion depth marker. For a 1/2-inch fitting, the pipe should be inserted approximately 3/4 of an inch deep. You can mark this distance on your pipe with a pencil to ensure full insertion.
Step 4: Push to Connect
Hold the fitting in one hand and the pipe in the other. Push the pipe firmly into the push-to-connect end of the U120LFA until it hits the stop. You should feel it seat securely. Give it a gentle tug to ensure it is locked in place.
Step 5: Connect the Threaded End
Apply Teflon tape or pipe dope to the male threads of the U120LFA. Screw the fitting into the female threaded component (such as a valve or faucet supply line). Hand-tighten first, then use a wrench to give it an additional 1–2 turns. Do not overtighten, as this can crack the brass body or distort the threads.
Step 6: Pressure Test
Turn the water back on slowly. Check for any drips around the push-to-connect end and the threaded connection. If you see a leak at the push-end, ensure the pipe was fully inserted. If the leak is at the thread, tighten slightly more.
Common Mistakes to Avoid
Even with easy-to-use fittings, errors can happen. Here are the most common pitfalls:
- Incomplete Insertion: This is the #1 cause of leaks. If the pipe isn’t pushed all the way in, the O-ring won’t seal properly. Always look for the gap between the pipe end and the fitting shoulder.
- Scratched Pipes: Deep scratches on the outer diameter of the pipe can compromise the O-ring seal. If your pipe is damaged, cut it back to a clean section.
- Overtightening Threads: Brass is softer than steel. Overtightening the male thread into a stainless steel or brass female port can strip the threads.
- Using on Damaged Fittings: If you remove a SharkBite fitting, inspect the internal grab ring and O-ring. If they look worn or cracked, replace the fitting rather than reusing it.
SharkBite U120LFA vs. Traditional Crimp Rings
| Feature | SharkBite U120LFA | Traditional Crimp Ring |
|---|---|---|
| Installation Time | Seconds | Minutes |
| Tools Needed | None (optional cutter) | Crimping Tool |
| Removable? | Yes | No |
| Cost per Unit | Higher | Lower |
| Skill Level | Beginner | Intermediate |
| Best For | Repairs, Tight Spaces | New Construction, High Volume |
While crimp rings are cheaper per unit, the cost of the tool and the labor time often make SharkBite more economical for small jobs and repairs.
Frequently Asked Questions (FAQ)
1. Is the SharkBite U120LFA safe for drinking water?
Yes, the SharkBite U120LFA is certified by NSF/ANSI Standard 61 for potable water applications. It meets all US safety standards for lead-free materials, making it safe for your family’s drinking water.
2. Can I use this fitting behind walls?
According to SharkBite’s official guidelines, their push-to-connect fittings are approved for use behind walls and underground, provided they are installed correctly and accessible for inspection if required by local code. However, always check your local plumbing codes, as some municipalities have specific restrictions.
3. What is the difference between U120LFA and U120L?
The U120L is a straight coupling that connects two pieces of 1/2-inch pipe together (Push x Push). The U120LFA is an adapter that connects a 1/2-inch pipe to a 1/2-inch male threaded connection (Push x Male Thread). Choosing the wrong one will result in a mismatched connection.
4. How long do SharkBite fittings last?
SharkBite offers a 25-year warranty against manufacturing defects when installed according to instructions. In real-world applications, they have been known to last much longer, provided they are not exposed to UV light (sunlight) for extended periods, which can degrade the O-rings.
5. Can I rotate the fitting after installation?
Once the pipe is inserted into the push-to-connect end, you should not rotate the pipe itself. However, the threaded end can be screwed into place. Ensure the orientation is correct before fully tightening the threads.
6. Does the U120LFA work with PVC pipe?
No, SharkBite push-to-connect fittings are not compatible with standard Schedule 40 PVC pipe. They are designed for CTS (Copper Tube Size) pipes like Copper, PEX, CPVC, and PE-RT. Using them on PVC will result in leaks and potential failure.
Conclusion
The SharkBite U120LFA Straight Connector Plumbing Male 1 2 In is a game-changer for both DIYers and professional plumbers. Its ability to provide a secure, leak-free connection without the need for soldering or special tools makes it an indispensable item in any toolkit. Whether you are fixing a leaky sink, installing a new toilet, or repiping a section of your home, this fitting offers reliability and peace of mind.
By following the installation steps outlined above and avoiding common mistakes, you can ensure a professional-quality result every time. Remember, the key to success is preparation: clean cuts, deburred edges, and full insertion.
