SharkBite U514LFA 1/2″ End Cap: The Ultimate Guide

Have you ever stared at an open pipe end during a renovation, wondering how to seal it off quickly without soldering or gluing? It is a common frustration for both DIY enthusiasts and professional plumbers who need a reliable, leak-free solution under time pressure. The SharkBite U514LFA End Cap Plumbing Fitting 1 2 Inch offers exactly that: a secure, tool-free way to cap off copper, PEX, CPVC, or PE-RT lines instantly. In this guide, we will explore why this specific fitting has become a staple in modern plumbing and how you can install it with confidence.

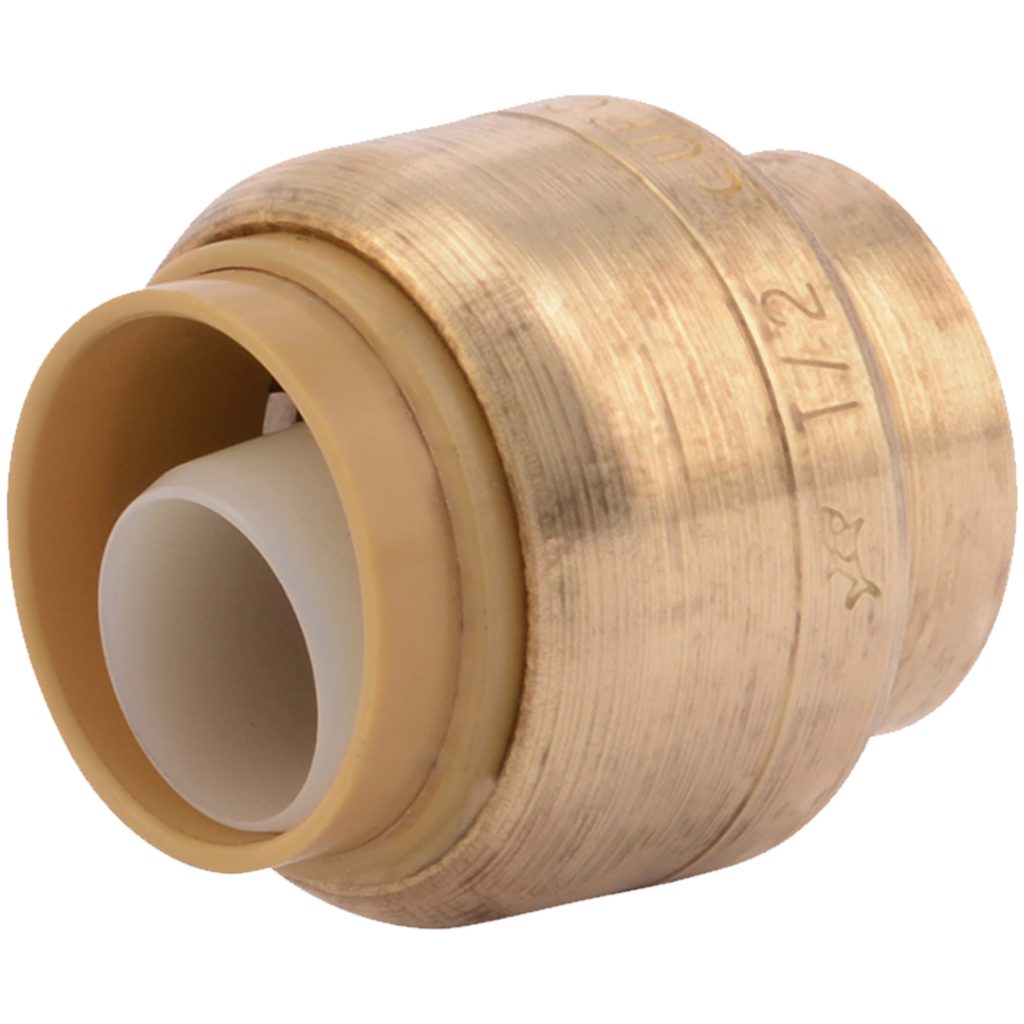

What Is the SharkBite U514LFA End Cap?

The SharkBite U514LFA is part of the renowned SharkBite Max series, designed specifically for 1/2-inch diameter pipes. Unlike traditional fittings that require heat, glue, or crimping tools, this fitting utilizes a revolutionary push-to-connect technology.

At its core, the fitting contains a stainless steel grab ring that bites into the pipe and an O-ring that creates a watertight seal. When you push the pipe into the fitting, these components lock together mechanically. This design eliminates the variables associated with soldering (like overheating) or solvent welding (like improper curing time).

Key Specifications

• Model Number: U514LFA
• Size: 1/2 Inch (CTS – Copper Tube Size)
• Material Body: DZR Brass (Dezincification Resistant)
• Compatible Pipes: Copper, PEX-A, PEX-B, PEX-C, CPVC, PE-RT
• Pressure Rating: Up to 200 PSI at 73°F (23°C)
• Temperature Range: 33°F to 200°F (0.5°C to 93°C)

Why Choose SharkBite Over Traditional Methods?

When deciding between push-to-connect fittings and traditional methods, it is essential to weigh the pros and cons. While soldering copper has been the industry standard for decades, technology has evolved.

The Advantage of Reusability

One of the most significant benefits of the SharkBite U514LFA End Cap Plumbing Fitting 1 2 Inch is its reusability. If you make a mistake during installation or need to extend the line later, you do not need to cut the pipe and waste materials. Using a simple disconnect clip (or even two adjustable wrenches in a pinch), you can release the grip and remove the cap. This feature alone saves money and reduces waste on large projects.

Step-by-Step Installation Guide

Installing a SharkBite end cap is straightforward, but precision is key to ensuring a long-lasting, leak-free seal. Follow these steps carefully.

Step 1: Prepare the Pipe

The most critical step in any push-to-connect installation is pipe preparation. The pipe end must be cut square (90-degree angle). Use a dedicated tube cutter for copper or PEX; avoid using a hacksaw if possible, as it often leaves jagged edges.

• Cut: Ensure the cut is clean and straight.
• Deburr: Use a deburring tool to remove any sharp edges or burrs from the outside and inside of the pipe. Sharp edges can damage the O-ring inside the fitting.
• Clean: Wipe the pipe end with a clean cloth to remove dirt, grease, or moisture.

Step 2: Mark the Insertion Depth

SharkBite fittings have a specific insertion depth. For a 1/2-inch fitting, the pipe needs to go in approximately 3/4 of an inch.

• Look for the depth gauge on the SharkBite disconnect tool, or simply measure 3/4 inch from the end of your pipe.
• Mark this spot with a pencil or marker. This visual cue ensures you push the pipe in far enough to engage the grab ring fully.

Step 3: Push to Connect

Align the pipe with the opening of the SharkBite U514LFA End Cap.

• Push the pipe firmly into the fitting until it hits the internal stop.
• You should feel a slight resistance as the stainless steel teeth engage, followed by a solid “bottoming out” sensation.
• Check your mark: The pencil line you made in Step 2 should now be just inside or flush with the edge of the fitting. If you can still see the mark clearly outside the fitting, push harder.

Step 4: Test the Connection

Before closing up walls or turning on full water pressure, perform a quick test.

• Try to pull the pipe out gently. It should not move.
• Turn on the water supply slowly and check for any immediate drips.
• For new constructions, it is recommended to pressure test the entire system according to local plumbing codes.

Common Applications for the U514LFA

Understanding where to use this fitting helps maximize its utility. Here are the most common scenarios:

1. Temporary Caps During Renovations: When remodeling a bathroom, you may need to cap off water lines while moving fixtures. The U514LFA allows you to seal lines quickly so water can be turned back on for other parts of the house.
2. Abandoning Old Lines: If you are replacing a sink and no longer need a specific supply line, instead of cutting it flush with the wall (which makes future access difficult), cap it with a SharkBite. This keeps the line accessible and sealed.
3. PEX Manifold Systems: In radiant heating or whole-house PEX systems, unused ports on a manifold can be capped off efficiently using these end caps.
4. Emergency Repairs: If a pipe bursts and you need to isolate a section immediately, cutting the damaged area and capping the good ends with SharkBite fittings can restore water service to the rest of the home temporarily.

Troubleshooting and Maintenance

Even with user-friendly designs, issues can arise. Here is how to address common problems.

Leak at the Connection

If you notice a drip, do not panic.

• Cause: The pipe was likely not inserted fully, or debris was present on the pipe.
• Solution: Turn off the water. Use a disconnect clip to remove the cap. Inspect the O-ring for damage. Re-cut and deburr the pipe, then reinstall. Ensure you push until it bottoms out.

Difficulty Removing the Cap

• Cause: The grab ring is tightly engaged.
• Solution: Never try to pull the pipe out without releasing the grab ring. Use the official SharkBite disconnect clip. Slide the clip over the pipe and push it toward the fitting body. This compresses the grab ring teeth, allowing you to pull the pipe out easily.

For more detailed technical specifications and safety data sheets, you can refer to the manufacturer’s documentation or general plumbing standards available on Wikipedia.

FAQ Section

Q1: Is the SharkBite U514LFA approved for behind-the-wall use?

A: Yes, SharkBite fittings are generally approved for concealed spaces (behind walls and underground) in most US jurisdictions, provided they are installed according to the manufacturer’s instructions and local codes. However, always check with your local building inspector, as codes can vary by city or state.

Q2: Can I use this fitting on gas lines?

A: No. The SharkBite U514LFA is designed strictly for potable water and hydronic heating applications. It is not rated for natural gas, propane, or compressed air. Using it for gas lines is dangerous and violates code.

Q3: How long do SharkBite fittings last?

A: SharkBite offers a 25-year warranty against manufacturing defects when installed correctly. In real-world applications, many installations have lasted well beyond this period without issue, provided the system is maintained and not exposed to freezing temperatures that could burst the pipe itself.

Q4: Do I need a special tool to install the U514LFA?

A: No special tool is required for installation. You only need a pipe cutter and a deburring tool. However, a disconnect clip is highly recommended for removal, though it is not strictly necessary for the initial installation.

Q5: Can I rotate the fitting after installation?

A: Yes, once the pipe is inserted, you can rotate the fitting to align it properly. However, do not twist the pipe while inserting it, as this can damage the O-ring. Insert straight, then rotate if needed.

Conclusion

The SharkBite U514LFA End Cap Plumbing Fitting 1 2 Inch represents a significant leap forward in plumbing convenience and reliability. By eliminating the need for torches, glue, and specialized crimping tools, it empowers homeowners and professionals alike to complete jobs faster and with greater confidence. Its ability to work with multiple pipe types and its reusability make it a cost-effective choice for both emergency repairs and long-term installations.

Whether you are capping off an old line during a kitchen remodel or sealing a temporary bypass, this fitting delivers a secure, code-compliant seal in seconds. Remember, proper pipe preparation is the secret to success—cut square, deburr well, and push until it stops.
