Have you ever stared under your kitchen cabinet, confused by the maze of pipes, and thought, “I just need to show me a picture of a kitchen sink plumbing setup to understand what I’m looking at”? You are not alone. For many US homeowners, the area beneath the sink is a mysterious dark space that only gets attention when something leaks or clogs.
Understanding your kitchen sink plumbing is essential for basic maintenance, saving money on plumber visits, and ensuring your home remains safe and hygienic. In this comprehensive guide, we will break down every component, provide clear visual descriptions, and offer expert advice to help you master your under-sink infrastructure.
What Does Standard Kitchen Sink Plumbing Look Like?

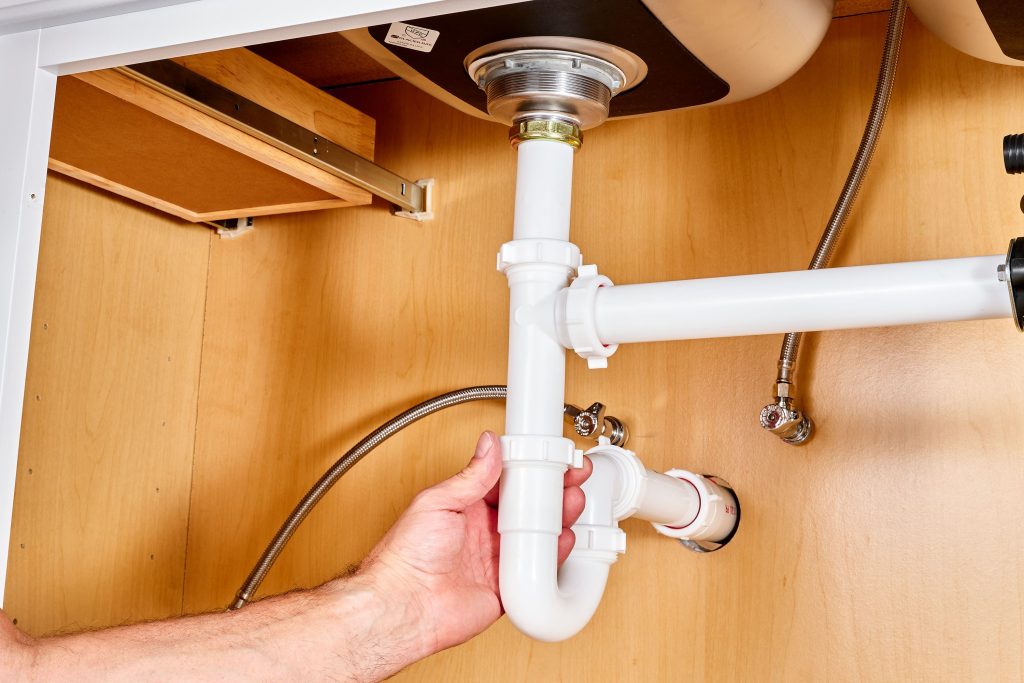

When you search for images to show me a picture of a kitchen sink plumbing, you are typically looking for a standard configuration found in most American homes. While layouts can vary based on age and renovation status, the core components remain consistent.
The standard setup consists of two main drain lines (one for each basin if you have a double sink) that merge into a single trap and connect to the wall or floor drain. Here is a breakdown of the primary visual elements:
- The Strainer Body: This is the metal basket visible inside the sink bowl. It catches food debris and connects directly to the tailpiece.
- The Tailpiece: A vertical pipe extending down from the strainer. It is usually 1.5 inches in diameter.
- The P-Trap: The most recognizable part of the system. It looks like a “U” or “P” shape and holds water to prevent sewer gases from entering your home.
- The Trap Arm: The horizontal pipe that extends from the P-trap into the wall or floor drain pipe.
According to the International Plumbing Code (IPC), which is adopted by many US states, these components must be accessible and properly vented to function correctly. Understanding this layout is the first step in any repair or installation project.
Key Components of Under-Sink Plumbing Explained
To truly understand what you see in plumbing diagrams, you need to know the name and function of each part. Let’s dive deeper into the specific hardware that makes your sink work.
1. The P-Trap: The Heart of the System
The P-trap is named for its shape, which resembles the letter “P” when viewed from the side. Its primary function is not just to direct water downward but to create a water seal.
- How it works: After water flows down the drain, a small amount remains in the curved bottom of the trap. This water block stops methane and other sewer gases from rising up through the pipes and into your kitchen.
- Material: Modern P-traps are often made of PVC (polyvinyl chloride) or ABS plastic, which are resistant to corrosion. Older homes may still have chrome-plated brass traps.
2. The Tailpiece and Extension Tube
The tailpiece connects the sink strainer to the P-trap. If your sink is mounted high or the trap needs to be adjusted, an extension tube is used to bridge the gap.
- Adjustability: Most modern tailpieces are telescopic, meaning they can slide up and down to fit different sink heights. This flexibility is crucial for DIY installations.
3. The Cleanout Plug
Many P-traps feature a cleanout plug at the bottom of the curve. This is a small cap that can be unscrewed to allow easy access for clearing clogs without dismantling the entire pipe system.
| Component | Material Options | Primary Function | Common Issues |
|---|---|---|---|
| Strainer | Stainless Steel, Brass | Catch debris, seal sink hole | Leaks around the rim |
| Tailpiece | PVC, Chrome Plated | Connect sink to trap | Cracking, misalignment |
| P-Trap | PVC, ABS, Brass | Prevent sewer gas entry | Clogs, loose slip nuts |
| Trap Arm | PVC, Copper | Connect trap to wall drain | Improper slope, blockages |
How to Interpret Plumbing Diagrams and Photos
When you look at a photo to show me a picture of a kitchen sink plumbing system, it can be overwhelming. Here is how to read the visual data effectively.
Follow the Flow of Water
Always trace the path of water from the sink bowl down to the main drain. Water moves via gravity, so every pipe must slope downward. If you see a pipe sloping upward, it is likely a vent line or an error in installation.
Identify Connection Points
Look for the “slip nuts.” These are the threaded rings that hold the pipes together. In diagrams, these are often highlighted because they are the most common source of leaks. A properly tightened slip nut should be hand-tight plus a quarter turn with pliers. Over-tightening can crack plastic pipes.
Check for Venting
While not always visible in under-sink photos, proper plumbing requires a vent. This is usually a pipe that goes up through the roof. Without it, water flow can be sluggish due to air pressure issues. For more detailed technical standards on venting, you can refer to Wikipedia’s article on Plumbing Vents to understand the broader building code requirements.
Step-by-Step: How to Assemble Basic Kitchen Sink Plumbing
If you are installing a new sink or replacing old pipes, follow these concrete steps. This process assumes a standard double-bowl stainless steel sink.
Tools Needed:
- Adjustable wrench
- Pipe cutter or hacksaw
- Teflon tape
- Bucket and towels
Step 1: Install the Strainers Apply a bead of plumber’s putty around the underside of the strainer flange. Insert it into the sink hole from the top. From underneath, screw on the locking nut and tighten it firmly. Wipe away excess putty.
Step 2: Attach the Tailpieces Screw the tailpiece onto the strainer body. If you have a double sink, you will have two tailpieces. Ensure they are vertical.
Step 3: Connect the Tee Fitting If you have a double sink, use a “tee” fitting to connect the two tailpieces into a single outlet. This fitting should be positioned centrally between the two bowls.
Step 4: Install the P-Trap Attach the curved P-trap section to the outlet of the tee fitting (or the single tailpiece). Use slip nuts and washers. Ensure the washer is oriented correctly (flat side against the nut, tapered side against the pipe).
Step 5: Connect to the Wall Drain Measure the distance from the P-trap to the wall drain pipe. Cut a piece of PVC pipe (the trap arm) to fit. Insert one end into the P-trap and the other into the wall drain adapter. Tighten all slip nuts.
Step 6: Test for Leaks Run water for 2 minutes at full blast. Check every connection point. If you see dripping, tighten the slip nut slightly. Do not overtighten.
Common Problems and Troubleshooting Tips
Even with a perfect installation, issues can arise. Here are the most common problems homeowners face when dealing with kitchen sink plumbing.
1. Persistent Clogs
If water drains slowly, the clog is likely in the P-trap.
- Solution: Place a bucket under the trap. Unscrew the slip nuts and remove the P-trap. Clear out any debris. Rinse it with hot water before reinstalling.
2. Leaking Slip Nuts
Water dripping from the connections usually means the washer is misaligned or the nut is loose.
- Solution: Disassemble the joint. Check the rubber or plastic washer for cracks. Realign it and tighten the nut by hand. Use pliers only if necessary.
3. Bad Odors
If you smell sewage, the P-trap may have dried out or been installed incorrectly.
- Solution: Run water for a minute to refill the trap. If the smell persists, check for cracks in the pipe or improper venting.
FAQ: Your Questions About Kitchen Sink Plumbing Answered
Q1: Why is my kitchen sink plumbing making a gurgling sound?
A gurgling sound usually indicates a venting issue. When water drains, it needs air to replace the volume it leaves behind. If the vent is blocked, air is pulled through the water in the trap, causing the gurgle. Try cleaning your roof vent or using a drain snake to clear potential blockages in the main line.
Q2: Can I use flexible hoses instead of rigid PVC pipes?
Yes, flexible corrugated pipes are available and easier to install in tight spaces. However, they are more prone to clogging because the ridges can catch grease and food particles. Rigid PVC or ABS pipes are recommended for better long-term performance and easier cleaning.
Q3: How often should I clean my P-trap?
For a typical household, cleaning the P-trap every 6 to 12 months is sufficient. If you cook frequently or dispose of grease down the drain, you may need to clean it quarterly. Regular maintenance prevents severe clogs and extends the life of your plumbing.
Q4: What is the standard height for kitchen sink plumbing?
The standard height for the drain outlet in the wall is typically between 20 and 24 inches from the floor. This allows enough room for the P-trap and provides adequate clearance for storage cabinets. Always check local building codes as they can vary by municipality.
Q5: Is it normal to have water sitting in the P-trap?
Yes, it is not only normal but essential. The water sitting in the bottom of the P-trap creates a seal that prevents sewer gases from entering your home. If the trap is dry, you will likely experience unpleasant odors.
Q6: Can I install kitchen sink plumbing myself?
Yes, basic sink plumbing is a manageable DIY project for most homeowners with basic tools. However, if you need to move the main drain line in the wall or deal with complex venting, it is advisable to consult a licensed plumber to ensure compliance with local codes.
Conclusion
Understanding what lies beneath your sink empowers you to handle minor repairs and maintain a healthy home environment. By using this guide to show me a picture of a kitchen sink plumbing setup, you can confidently identify parts, troubleshoot issues, and even perform installations.
Remember, the key to a leak-free system is proper alignment, correct washer placement, and avoiding over-tightening. Keep this guide handy for your next plumbing project.
Did you find this visual guide helpful? Share it with your friends and family on social media to help them demystify their own kitchen plumbing!
