Show Me A Picture Of Mobile Home Plumbing Location

If you’re a mobile home owner dealing with leaks, frozen pipes, or planning renovations, understanding your plumbing layout is crucial. Many homeowners search “show me a picture of mobile home plumbing location” because standard residential guides don’t apply to manufactured housing. Unlike traditional homes with basements or crawl spaces, mobile homes have unique plumbing configurations that require specialized knowledge. This comprehensive guide will help you visualize exactly where your pipes run and how to maintain them properly.

Understanding Mobile Home Plumbing Basics

How Is Mobile Home Plumbing Different from Traditional Homes?

Mobile home plumbing systems differ significantly from site-built houses in several critical ways:

• Location: Pipes typically run beneath the home’s floor rather than inside walls or underground
• Materials: Older mobile homes often used polybutylene or PVC pipes instead of copper
• Accessibility: Most plumbing is accessible from underneath through removable skirting panels
• Vulnerability: Exposed pipes face greater risks from freezing, pests, and physical damage

According to the U.S. Department of Housing and Urban Development (HUD), manufactured homes must comply with federal construction standards that specify plumbing requirements, including proper insulation and support systems. These regulations ensure safety but create distinct maintenance challenges compared to conventional housing.

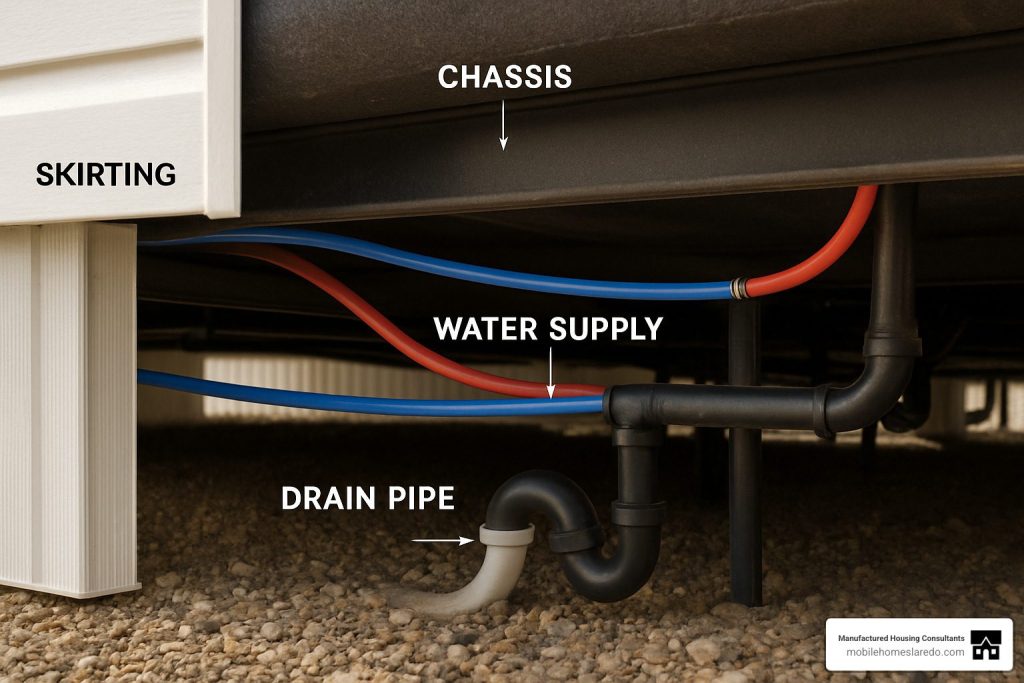

Where Exactly Are the Main Water Lines Located?

The primary water supply line enters your mobile home through the belly board—the protective covering underneath the structure. Here’s the typical path:

1. Entry Point: Usually near the front hitch area or along one side wall
2. Main Distribution: Runs parallel to the home’s length beneath the floor joists
3. Branch Lines: Split off to serve kitchen, bathrooms, and laundry areas
4. Connection Points: Rise vertically through floor openings to reach fixtures

Most mobile homes have their main shut-off valve located either:

• Underneath the home near the water heater
• Inside a utility closet or bathroom cabinet
• At the point where the external supply line connects

Pro Tip: Mark your main shut-off valve location clearly. In emergencies, every second counts when trying to stop water flow.

Visual Guide: Common Mobile Home Plumbing Layouts

Single-Wide Mobile Home Plumbing Diagram

Single-wide units (typically 14-18 feet wide) feature straightforward plumbing layouts:

Front Section:

• Kitchen sink and dishwasher connections
• Primary water heater (if located at front)
• Cold and hot water distribution manifolds

Middle Section:

• Bathroom #1 with toilet, sink, and shower/tub
• Vertical pipe risers connecting to floor fixtures

Rear Section:

• Second bathroom (in larger models)
• Laundry hookups
• Water heater (alternative location)

The entire system usually runs within 12-18 inches of the floor, making it relatively accessible for repairs but vulnerable to ground moisture and temperature fluctuations.

Double-Wide Mobile Home Plumbing Configuration

Double-wide homes (20+ feet wide) present more complex arrangements:

Double-wides require careful attention to the marriage line—where two sections join. Plumbing crossings at this junction need flexible connectors to accommodate slight movement during transport and settling.

Triple-Wide and Multi-Section Homes

Larger manufactured homes follow similar principles but with extended distribution networks. Multiple water heaters may be installed to ensure adequate hot water pressure throughout the expanded footprint.

Critical Components You Need to Identify

The Belly Board and Skirting System

The belly board serves as your plumbing’s first line of defense. This vapor barrier protects pipes from:

• Ground moisture and condensation
• Rodent infestation
• Wind-driven rain and debris
• Temperature extremes

Warning Signs of Belly Board Damage:

• Sagging or torn material visible from underneath
• Water stains on interior floors
• Musty odors indicating moisture intrusion
• Increased heating costs due to poor insulation

Skirting panels around your home’s perimeter should remain intact and properly ventilated. Blocked vents can cause moisture buildup that accelerates pipe corrosion.

Water Heater Placement and Connections

Mobile home water heaters are typically smaller (30-40 gallons) than those in traditional homes. Common locations include:

• Utility Closet: Most convenient for maintenance
• Hallway Cabinet: Space-efficient but harder to access
• Under Sink: Compact tankless options in newer models
• Exterior Compartment: Rare, but found in some designs

Check your manufacturer’s manual for specific location details. If unavailable, trace the hot water pipes from fixtures back to their source.

Drain and Waste Line Routing

Unlike supply lines that bring fresh water in, drain lines carry wastewater out. Key characteristics:

• Slope Requirements: Must maintain 1/4 inch per foot downward slope
• Vent Stack: Extends through roof to prevent sewer gas buildup
• Cleanout Access: Typically located outside near foundation
• Septic or Sewer Connection: Varies by community regulations

For detailed information about manufactured housing standards, visit Wikipedia’s article on manufactured housing.

Step-by-Step: How to Inspect Your Mobile Home Plumbing

Follow this systematic approach to assess your plumbing condition:

Step 1: Gather Necessary Tools

• Flashlight or headlamp
• Mirror on extendable handle
• Camera or smartphone for documentation
• Tape measure
• Notebook for recording observations

Step 2: Exterior Inspection

1. Walk around your home’s perimeter
2. Check skirting for gaps, damage, or missing panels
3. Look for wet spots or unusual vegetation growth (indicates leaks)
4. Locate the main water shut-off valve
5. Identify where the supply line enters the home

Step 3: Under-Home Examination

1. Remove skirting panels carefully (keep screws organized)
2. Use flashlight to illuminate dark areas
3. Check belly board integrity—look for tears or sagging
4. Inspect visible pipes for:
   • Corrosion or discoloration
   • Leaks or moisture accumulation
   • Proper insulation coverage
   • Secure mounting brackets

Step 4: Interior Assessment

1. Test all faucets for water pressure and temperature
2. Check under sinks for signs of leakage
3. Flush toilets and listen for unusual sounds
4. Run dishwasher and washing machine cycles
5. Note any slow drains or gurgling noises

Step 5: Document Findings

Take photos of problem areas and create a maintenance log. Include dates, observations, and recommended actions.

Common Plumbing Problems in Mobile Homes

Frozen Pipes During Winter

Mobile homes are particularly susceptible to frozen pipes because:

• Pipes run in unheated spaces beneath the home
• Thin insulation provides minimal protection
• Wind chill factors increase heat loss through skirting

Prevention Strategies:

• Install heated tape on vulnerable sections
• Ensure skirting is complete and vents aren’t blocked
• Keep interior thermostat above 55°F even when away
• Let faucets drip slightly during extreme cold

Polybutylene Pipe Failures

Many mobile homes built between 1978-1995 used polybutylene (PB) piping. This material becomes brittle over time and is prone to:

• Cracking at connection points
• Catastrophic failures without warning
• Expensive whole-house replacement needs

If your home has gray PB pipes with copper or plastic fittings, consider proactive replacement before problems occur.

Low Water Pressure Issues

Common causes include:

• Clogged aerators on faucets
• Sediment buildup in older pipes
• Faulty pressure regulator
• Partially closed shut-off valves
• Undersized supply lines for fixture demands

Maintenance Best Practices for Long-Term Reliability

Annual Inspection Checklist

✓ Test main shut-off valve operation
✓ Check all visible pipe connections for leaks
✓ Inspect belly board condition
✓ Verify skirting ventilation isn’t obstructed
✓ Flush water heater to remove sediment
✓ Test sump pump if applicable
✓ Review insurance coverage for plumbing-related damage

When to Call a Professional

While basic inspections are DIY-friendly, contact licensed plumbers for:

• Major leak repairs requiring pipe replacement
• Water heater installation or replacement
• Repiping projects involving multiple fixtures
• Septic system issues
• Code compliance questions for renovations

Professional mobile home plumbers understand the unique constraints of manufactured housing and can work efficiently within limited access spaces.

FAQ Section

Q: Can I see my mobile home plumbing without going underneath?

A: Limited visibility is possible through interior access points like under-sink cabinets, water heater closets, and bathroom vanities. However, a complete assessment requires examining the belly area beneath your home. Some newer models feature interior plumbing chases that provide better access without crawling underneath.

Q: How deep are mobile home water lines buried?

A: Mobile home supply lines typically aren’t buried at all—they run above ground from the street connection to your home’s entry point, then travel beneath the structure. The external portion should be buried below the frost line (varies by region, typically 12-36 inches deep) to prevent freezing. Internal lines rest on or just above the belly board.

Q: What’s the average cost to replace mobile home plumbing?

A: Complete repiping costs range from $2,000-$5,000 depending on home size, accessibility, and materials chosen. Partial repairs average $150-$400 per incident. Factors affecting price include:

• Labor rates in your area
• Whether skirting removal is required
• Type of replacement piping (PEX vs. copper)
• Extent of existing damage

Q: How long does mobile home plumbing last?

A: With proper maintenance, modern PEX or CPVC systems can last 25-40 years. Older polybutylene installations typically fail within 15-25 years. Copper piping lasts longest (50+ years) but is rarely used in mobile homes due to cost and theft concerns. Regular inspections help identify problems before they become catastrophic.

Q: Is it safe to insulate pipes myself?

A: Yes, adding foam pipe insulation is a straightforward DIY project. Use pre-slit foam tubes sized to match your pipe diameter. Focus on exposed sections beneath the home, especially near exterior walls and entry points. Avoid covering electrical wiring or creating fire hazards near water heaters. For best results, combine insulation with vapor barrier repairs.

Q: Can I add a second bathroom to my mobile home?

A: Technically possible but challenging. You’ll need to:

• Verify structural capacity for additional plumbing weight
• Ensure adequate water pressure and drainage capacity
• Obtain proper permits (requirements vary by jurisdiction)
• Hire professionals familiar with manufactured home modifications
• Consider whether costs justify the investment versus purchasing a larger unit

Consult your home’s original blueprints and local building codes before proceeding.

Conclusion

Understanding your mobile home’s plumbing location and configuration empowers you to maintain your property effectively and avoid costly emergencies. By knowing where pipes run beneath your floor, recognizing early warning signs of trouble, and performing regular inspections, you’ll extend your plumbing system’s lifespan and protect your investment.

Remember that mobile home plumbing requires specialized attention due to its exposed nature and unique design constraints. Don’t hesitate to consult professional plumbers experienced with manufactured housing when facing complex issues.
