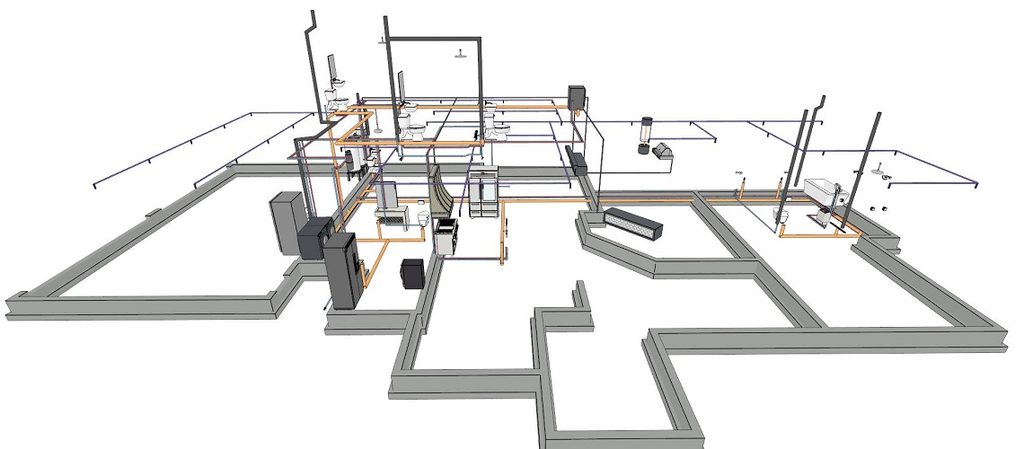

Have you ever stared at a flat, two-dimensional blueprint and struggled to imagine how complex water lines and drainage systems fit behind your walls? It is a common frustration for homeowners and even some contractors, leading to costly mistakes during construction. Creating a 3 Dementional Drawing That Includes The Plumbing Plan solves this problem by offering a clear, immersive view of your entire system before a single pipe is cut.
In this guide, we will explore why transitioning from 2D to 3D modeling is essential for modern construction. We will break down the benefits, tools, and steps to create accurate models that ensure your plumbing works perfectly the first time.
Why Move Beyond Flat Blueprints?
Traditional 2D drawings have served the construction industry for decades. However, they have significant limitations when it comes to complex mechanical systems like plumbing. A flat sheet cannot easily show depth, elevation changes, or how pipes intersect with electrical wiring and HVAC ducts.
The Cost of Miscommunication
According to industry studies, rework due to design conflicts can account for up to 5–10% of total project costs. When a plumber interprets a 2D plan differently than the framer or electrician, clashes occur.
A 3D model eliminates this guesswork. It provides a single source of truth where every stakeholder can see exactly where a drain line drops or where a vent stack rises. This clarity reduces change orders and keeps your project on budget.
What Is a 3D Plumbing Model?
A 3D plumbing model is a digital representation of your plumbing system within the context of the building’s structure. Unlike a simple sketch, it includes precise dimensions, material specifications, and spatial relationships.
Key Components Included
- Supply Lines: Hot and cold water paths from the main entry to fixtures.
- Drain-Waste-Vent (DWV) Systems: Gravity-fed pipes that remove wastewater and allow air circulation.
- Fixtures: Toilets, sinks, showers, and water heaters placed in their exact locations.
- Structural Context: Walls, floors, and beams to ensure pipes do not conflict with load-bearing elements.
By integrating these elements, you get a holistic view of the infrastructure. This is often part of a broader Building Information Modeling (BIM) process, which manages data throughout the lifecycle of a building. For more on the history and standards of BIM, you can refer to Wikipedia’s comprehensive overview.
How Does 3D Design Prevent Construction Errors?
One of the most compelling reasons to use 3D modeling is clash detection. In a 2D plan, a pipe might look fine on the floor plan but could collide with a beam in the elevation view. In 3D, these issues are visible immediately.
Clash Detection in Action
Imagine you are designing a bathroom renovation. In 2D, the sink drain looks clear. But in 3D, you realize the new drain path intersects directly with an existing structural joist.
| Feature | 2D Drawing | 3D Model |
|---|---|---|
| Visualization | Flat, abstract symbols | Realistic, spatial representation |
| Clash Detection | Manual, error-prone | Automated, instant alerts |
| Material Estimation | Approximate calculations | Precise quantity take-offs |
| Client Understanding | Difficult for non-experts | Intuitive and easy to grasp |
This proactive approach saves hours of on-site troubleshooting. It ensures that what is built matches what was designed.
Step-by-Step: Creating Your First 3D Plumbing Plan
Creating a 3 Dementional Drawing That Includes The Plumbing Plan may seem daunting, but modern software makes it accessible. Follow these steps to get started.
Step 1: Gather Accurate Measurements
Start with precise dimensions of the space. Measure wall thicknesses, ceiling heights, and the location of existing penetrations. Accuracy here is critical; a mistake of even one inch can cause major issues later.
Step 2: Choose the Right Software
Select a tool that fits your skill level and budget.
- For Professionals: Revit or AutoCAD Plant 3D offer robust BIM capabilities.
- For DIY/Homeowners: SketchUp or HomeByMe provide user-friendly interfaces for basic 3D modeling.
Step 3: Model the Structure First
Before adding pipes, build the shell of the room or house. Include walls, floors, and major structural elements. This creates the “container” for your plumbing system.
Step 4: Place Fixtures
Insert 3D models of your fixtures (toilets, sinks, etc.). Ensure they are aligned with your design intent. Most software libraries have pre-made components that include connection points for pipes.
Step 5: Route the Pipes
Connect the fixtures using the software’s piping tools.
- Supply Lines: Use smaller diameter pipes (e.g., 1/2 inch or 3/4 inch).
- Drain Lines: Use larger diameters (e.g., 1.5 inches for sinks, 3–4 inches for toilets) and ensure proper slope (typically 1/4 inch per foot) for gravity flow.
Step 6: Review and Validate
Rotate the model in 3D space. Look for any intersections with beams, ducts, or electrical conduits. Most advanced software will highlight these clashes automatically.
Best Practices for Clear 3D Plumbing Documentation
Even the best 3D model needs to be communicated effectively to the construction team. Here are some tips to ensure your drawings are useful on-site.
Use Color Coding
Assign specific colors to different systems. For example:
- Blue: Cold water supply
- Red: Hot water supply
- Green: Drain/Waste lines
- Yellow: Vent lines
This visual cue helps plumbers quickly identify lines without reading every label.
Generate 2D Views from 3D
While 3D is great for visualization, installers often still need 2D schematics for quick reference. Most 3D software allows you to generate orthographic views (top, front, side) directly from the model. This ensures consistency between your 3D vision and 2D documentation.
Annotate Critical Details
Do not rely solely on the visual model. Add text annotations for:
- Pipe materials (e.g., PEX, Copper, PVC)
- Slope requirements
- Inspection access points
Frequently Asked Questions (FAQ)
1. Do I need expensive software to create a 3D plumbing plan?
Not necessarily. While professional firms use high-end tools like Revit, there are affordable and even free options like Blender or SketchUp Free that can handle basic plumbing modeling. For homeowners, specialized home design apps often include plumbing modules that are easy to use.
2. Can 3D models replace licensed plumber approvals?
No. A 3D model is a design and visualization tool. Local building codes still require permits and inspections by licensed professionals. Always have your final design reviewed by a certified plumber or engineer to ensure compliance with local regulations.
3. How does 3D modeling help with material estimation?
3D software can automatically calculate the length of pipes needed based on the routed paths. This leads to more accurate material orders, reducing waste and preventing last-minute trips to the hardware store. It provides a precise bill of materials (BOM).
4. Is it difficult to learn 3D plumbing design?
The learning curve depends on the software. Basic tools are designed for beginners and can be learned in a few hours. Professional BIM software requires more training but offers greater precision. Many online tutorials and courses are available to help you get started.
5. What file formats are best for sharing 3D plumbing plans?
Common formats include .RVT (Revit), .SKP (SketchUp), and .IFC (Industry Foundation Classes). IFC is particularly useful because it is an open standard that can be read by many different BIM programs, facilitating collaboration between different trades.
6. Can I update my 3D model if changes happen during construction?
Yes, one of the biggest advantages of digital modeling is flexibility. If a wall is moved or a fixture is changed, you can update the 3D model instantly. This keeps your documentation current and helps manage any subsequent changes efficiently.
Conclusion
Transitioning to a 3 Dementional Drawing That Includes The Plumbing Plan is no longer just a luxury for large commercial projects; it is a smart strategy for any construction or renovation job. By visualizing your system in three dimensions, you gain clarity, prevent costly errors, and ensure a smoother installation process.
Whether you are a DIY enthusiast planning a bathroom remodel or a contractor managing a new build, embracing 3D modeling empowers you to build with confidence. It transforms abstract lines into a tangible, workable plan.
Ready to upgrade your design process? Start by downloading a trial version of a 3D modeling tool today. Share this article with your fellow builders or friends planning renovations to help them avoid plumbing nightmares!
