3D Drawing That Includes The Plumbing Plan: A Complete Guide

Have you ever stared at a flat, two-dimensional blueprint and struggled to visualize how pipes weave through walls, floors, and ceilings? You are not alone. Many homeowners, contractors, and even junior architects find it challenging to interpret traditional 2D schematics, leading to costly errors during installation. This is where a 3 Dimensional Drawing That Includes The Plumbing Plan becomes an invaluable asset. By transforming abstract lines into a realistic, interactive model, you can spot conflicts before they become expensive problems. In this guide, we will explore how 3D modeling revolutionizes plumbing design, the tools you need, and how to create these drawings effectively.

Why Move Beyond 2D Blueprints?

Traditional 2D drawings have served the construction industry for decades. However, they have significant limitations when it comes to complex mechanical systems like plumbing. A 2D plan shows the location of pipes from a top-down view, but it often fails to convey vertical depth, clearance issues, or spatial relationships with other building components.

The Cost of Misinterpretation

According to industry studies, rework due to coordination errors can account for up to 5% of total project costs. When a plumber installs a drain line only to find it clashes with an HVAC duct or an electrical conduit, the result is delayed timelines and increased labor costs. A 3D model eliminates this guesswork by providing a holistic view of the entire building system.

Enhanced Communication

For clients who lack technical training, 2D blueprints can look like confusing scribbles. A 3D drawing allows stakeholders to “walk through” the virtual space. This transparency builds trust and ensures that everyone—from the homeowner to the general contractor—is on the same page regarding the layout and functionality of the plumbing system.

What Is a 3D Plumbing Model?

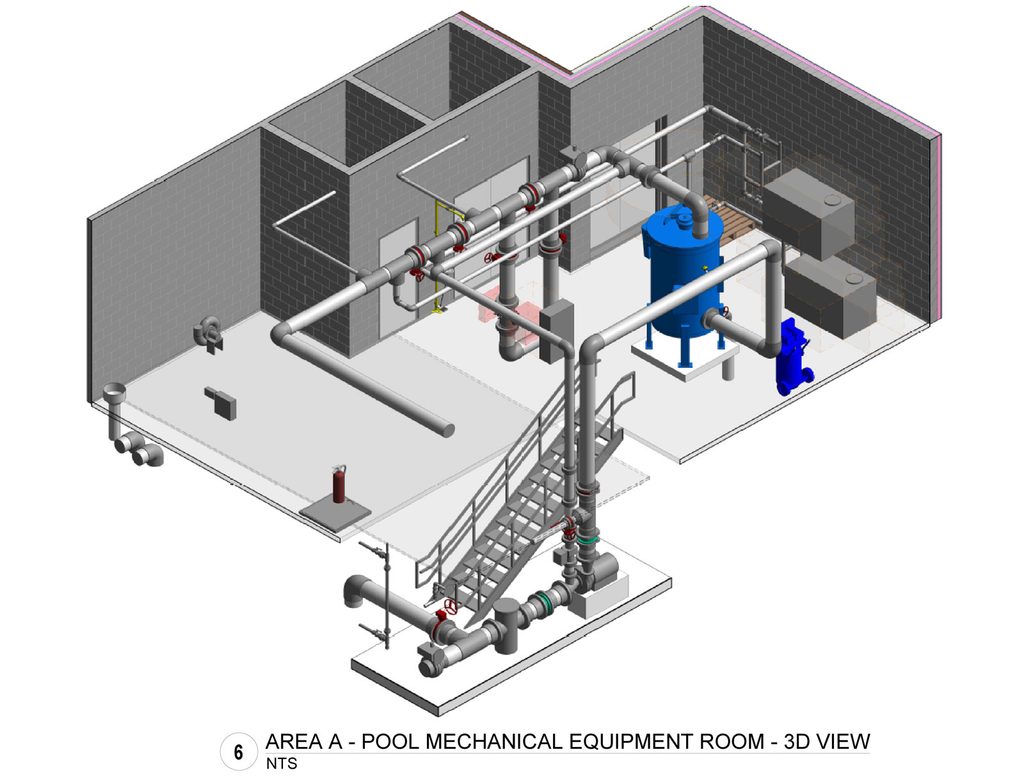

A 3 Dimensional Drawing That Includes The Plumbing Plan is a digital representation of a building’s water supply, drainage, and venting systems within a three-dimensional space. Unlike simple 3D renderings used for marketing, these models are often data-rich and integrated into Building Information Modeling (BIM) workflows.

Key Components of the Model

• Supply Lines: Hot and cold water pipes running to fixtures.
• Drain-Waste-Vent (DWV) Systems: Gravity-fed pipes that remove wastewater and allow air into the system.
• Fixtures: Toilets, sinks, showers, and water heaters placed in their exact spatial coordinates.
• Structural Context: Walls, floors, beams, and other utilities (electrical/HVAC) to show clearances.

By integrating these elements, the model serves as a single source of truth for the project. It allows designers to check for slope requirements in drainage pipes, ensure adequate access for maintenance, and verify that pipe sizes match flow calculations.

How Does 3D Modeling Improve Accuracy?

One of the primary advantages of using a 3 Dimensional Drawing That Includes The Plumbing Plan is the ability to perform clash detection. Clash detection is a process where software automatically identifies intersections between different building systems.

Real-World Example

Imagine designing a bathroom in a multi-story apartment complex. In 2D, the shower drain might appear clear. However, in 3D, you might discover that the main soil stack runs directly through the proposed shower location. Without 3D modeling, this issue would likely be discovered only after the concrete slab was poured, requiring expensive core drilling and rerouting. With 3D, you can adjust the layout digitally in minutes.

Data-Driven Decisions

Modern 3D plumbing software doesn’t just draw lines; it calculates data. It can estimate material quantities, calculate water pressure losses, and predict flow rates. This level of detail supports better budgeting and ensures compliance with local plumbing codes.

Top Tools for Creating 3D Plumbing Drawings

Choosing the right software is crucial for creating an effective 3 Dimensional Drawing That Includes The Plumbing Plan. Here are some of the industry-leading tools:

Revit: The Industry Standard

Autodesk Revit is widely considered the gold standard for BIM. It allows for parametric modeling, meaning if you change the size of a pipe in one view, it updates across all plans, sections, and 3D views. This consistency reduces human error significantly.

SketchUp: The User-Friendly Option

For smaller residential projects or quick client presentations, SketchUp is an excellent choice. While it lacks the deep analytical capabilities of Revit, its intuitive interface makes it easy to create a 3 Dimensional Drawing That Includes The Plumbing Plan without extensive training. Plugins like “Pipe Maker” can automate much of the routing process.

Step-by-Step: Creating Your First 3D Plumbing Plan

If you are new to 3D plumbing design, follow these steps to create a basic model. We will use a generalized approach applicable to most software.

Step 1: Import or Create the Architectural Base

Start with the architectural layout of the building. Ensure that walls, floors, and structural columns are accurately modeled. This provides the context for your plumbing system. If you are using BIM software, link the architectural model rather than copying it to maintain file efficiency.

Step 2: Place Fixtures

Insert 3D models of all plumbing fixtures: toilets, sinks, bathtubs, and water heaters. Position them according to the design requirements. Ensure there is enough clearance for user comfort and code compliance. For example, leave at least 15 inches from the centerline of a toilet to any side wall.

Step 3: Route Supply Lines

Begin connecting fixtures to the main water supply. Use the software’s pipe routing tools to draw hot and cold water lines. Pay attention to:

• Pipe Diameter: Typically ½ inch for fixtures and ¾ inch for main lines.
• Insulation: Add insulation layers to hot water pipes to prevent heat loss.
• Supports: Include hangers and supports every 4–6 feet, depending on pipe material.

Step 4: Design the DWV System

This is the most critical part. Drainage relies on gravity, so slope is essential.

• Slope Requirement: Ensure a minimum slope of ¼ inch per foot for pipes 3 inches in diameter or smaller.
• Venting: Connect each fixture trap to a vent stack to prevent siphoning and allow sewer gases to escape.
• Cleanouts: Include access points for future maintenance.

Step 5: Clash Detection and Review

Run a clash detection analysis against other systems (HVAC, Electrical, Structural). Resolve any conflicts by adjusting pipe routes or elevations. Rotate the 3D model to inspect hard-to-reach areas.

Step 6: Generate Documentation

Once the 3 Dimensional Drawing That Includes The Plumbing Plan is finalized, generate 2D sheets for the construction team. These should include floor plans, riser diagrams, and detailed sections derived directly from the 3D model. This ensures that what is built matches what was designed.

Benefits of Using 3D Plumbing Plans

Investing time in creating a 3 Dimensional Drawing That Includes The Plumbing Plan offers numerous long-term benefits:

1. Reduced Rework: Identifying errors in the design phase is far cheaper than fixing them on-site.
2. Accurate Material Estimation: The software can count every elbow, tee, and foot of pipe, reducing waste and preventing shortage delays.
3. Improved Safety: Visualizing confined spaces helps plan safer installation procedures.
4. Better Client Satisfaction: Clients can see exactly where their pipes will go, reducing anxiety and increasing confidence in the contractor.

For more information on building standards and coding, you can refer to Wikipedia’s page on Plumbing, which provides a broad overview of global practices and historical context.

FAQ Section

Q1: Is 3D plumbing modeling necessary for small residential projects?

While not strictly necessary for simple renovations, it is highly recommended. Even in small homes, hidden conflicts between plumbing and framing can occur. A simple 3D sketch can save hours of troubleshooting during installation.

Q2: Can I create a 3D plumbing plan without professional software?

Yes, basic tools like SketchUp Free or even advanced CAD viewers can help visualize simple layouts. However, for accurate slope calculations and code compliance, professional BIM software like Revit or specialized plumbing tools are superior.

Q3: How does 3D modeling help with permit approvals?

Many municipalities are beginning to accept or even require BIM submissions. A clear 3 Dimensional Drawing That Includes The Plumbing Plan can speed up the review process because inspectors can easily verify code compliance, such as proper venting and trap placement.

Q4: What is the difference between a 3D rendering and a BIM model?

A 3D rendering is a visual image, often used for marketing. A BIM model is an intelligent database containing geometric and non-geometric information (like material type, cost, and manufacturer details). For construction, BIM is far more valuable.

Q5: How long does it take to learn 3D plumbing design?

Basic proficiency in tools like SketchUp can be achieved in a few weeks. Mastering BIM software like Revit typically takes several months of dedicated practice and training. However, the investment pays off quickly through increased efficiency.

Q6: Can 3D models be used for existing buildings?

Yes, through a process called “Scan-to-BIM.” Laser scanners capture the existing conditions of a building, and this data is converted into a 3D model. This is particularly useful for renovation projects where original blueprints are missing or inaccurate.

Conclusion

Creating a 3 Dimensional Drawing That Includes The Plumbing Plan is no longer just a luxury for large commercial projects; it is becoming a standard practice for efficient, error-free construction. By moving beyond flat blueprints, you gain clarity, accuracy, and control over your project. Whether you are a DIY enthusiast planning a bathroom remodel or a professional contractor managing a multi-unit development, 3D modeling empowers you to visualize the invisible and build with confidence.

Don’t let ambiguous lines lead to costly mistakes. Embrace the power of 3D visualization today. If you found this guide helpful, please share it with your colleagues or on social media to help others master the art of modern plumbing design!
