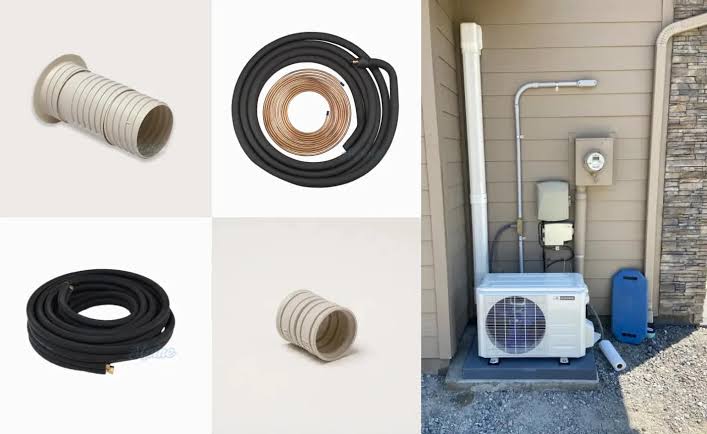

Can Plumbing Connections Be Used For HVAC Lineset?

Have you ever stood in your garage, looking at a pile of leftover copper pipes from a bathroom renovation, and wondered if they could save you money on your air conditioning repair? It is a common thought for DIY enthusiasts trying to cut costs, but the answer involves more than just fitting pieces together. Many homeowners ask, “Can Plumbing Connections Be Used For Hvac Lineset,” hoping for a quick fix, but the technical differences are critical for system safety and efficiency.

In this guide, we will break down exactly why these two systems are not interchangeable, the risks involved, and what you should use instead. We want to ensure your home stays cool without compromising safety or voiding your warranty.

Why HVAC and Plumbing Pipes Are Not Interchangeable

At first glance, copper is copper. Both plumbing and HVAC systems often use copper tubing, which leads to the confusion. However, the manufacturing standards, wall thickness, and intended pressures differ significantly. Using plumbing-grade materials for an HVAC lineset can lead to catastrophic system failure.

The Difference in Pressure Ratings

The most critical distinction lies in pressure handling. HVAC systems, particularly those using modern refrigerants like R-410A or R-32, operate under extremely high pressures.

• HVAC Systems: Can operate at pressures exceeding 400–600 PSI (pounds per square inch) during operation and even higher when the system is off in hot weather.
• Plumbing Systems: Typically handle water pressures between 40–80 PSI. Even hot water lines rarely exceed 150 PSI.

If you use standard plumbing fittings or thin-walled plumbing copper (Type M) for an HVAC lineset, the material may burst under the high pressure of the refrigerant. This is not just a leak; it is a potential explosion hazard that can release harmful chemicals into your home.

Refrigerant Compatibility and Purity

Refrigerants are sensitive to contamination. Plumbing pipes often contain residues, oils, or moisture that are acceptable for water transport but disastrous for HVAC systems.

Moisture inside an AC line can mix with refrigerant oil to form acid, which corrodes the compressor from the inside out. This process, known as “sludging,” can destroy a $2,000 compressor in a matter of weeks. HVAC-grade copper is cleaned, capped, and sealed at the factory to remain nitrogen-purged and dry. Plumbing pipes are not held to this same standard of internal purity.

Understanding Copper Types: Type L vs. Type M

When shopping for copper, you will see different colors of markings. These indicate the wall thickness of the pipe. Understanding this is vital to answering whether plumbing connections can be used for HVAC.

Most local building codes and HVAC manufacturers strictly require Type L copper for refrigerant lines. Type M, commonly found in plumbing supply aisles for drain lines or low-pressure water feeds, is generally too thin to withstand the stress of thermal expansion and high refrigerant pressure safely.

The Risk of Using Plumbing Fittings on HVAC Lines

Even if you manage to find Type L copper in a plumbing store, the connections—the elbows, couplings, and valves—are another story. Plumbing fittings are designed for soldering with water-compatible fluxes. HVAC fittings are designed for brazing, which requires much higher temperatures.

Brazing vs. Soldering

• Soldering (Plumbing): Uses filler metal that melts below 840°F (450°C). It creates a bond sufficient for water but lacks the structural integrity for high-vibration, high-pressure gas lines.
• Brazing (HVAC): Uses filler metal that melts above 840°F. It creates a molecular bond with the copper, resulting in a joint that is as strong as the pipe itself.

If you use plumbing solder on an HVAC lineset, the vibration from the compressor can cause the joints to crack over time. Furthermore, standard plumbing flux is corrosive. If not completely cleaned out (which is nearly impossible in a closed loop), it will eat away at the copper from the inside, leading to pinhole leaks.

What Do Experts and Codes Say?

According to the International Mechanical Code (IMC) and guidelines from major manufacturers like Carrier and Trane, only materials specifically listed for refrigerant service should be used.

For further reading on general piping standards, you can refer to the Wikipedia page on Copper Tubing, which outlines the various ASTM standards governing pipe thickness and usage. Note that ASTM B88 covers water tubes, while ASTM B280 covers seamless copper tube for air conditioning and refrigeration field service. These are distinct specifications.

HVAC technicians undergo specific certification to handle refrigerants because of the environmental and safety risks. Using improper materials violates EPA regulations regarding refrigerant containment. If a leak occurs due to improper installation, you could be liable for significant fines and environmental cleanup costs.

Step-by-Step: How to Properly Install an HVAC Lineset

If you are undertaking a DIY HVAC project (where legal in your area), here is how you should approach the lineset installation to ensure safety and efficiency.

1. Purchase Correct Materials: Buy only ACR (Air Conditioning and Refrigeration) grade copper tubing. Ensure it is Type L or K. Verify it comes with end caps to maintain nitrogen pressure.
2. Measure and Cut: Measure the distance between the indoor and outdoor units. Add 10% for bends. Use a tube cutter for clean, square cuts. Do not use a hacksaw, as it leaves burrs that restrict flow.
3. Deburr and Clean: Use a reaming tool to remove internal burrs. Clean the outside of the pipe and the inside of the fitting with sandcloth until shiny.
4. Apply Flux (If Soldering) or Prepare for Brazing: For HVAC, brazing is preferred. Use a sil-phos brazing rod which does not require flux, eliminating the risk of corrosion.
5. Heat and Join: Use an oxy-acetylene torch. Heat the fitting evenly, not the rod. Apply the brazing rod when the copper reaches the correct temperature (cherry red). Capillary action will pull the filler into the joint.
6. Pressure Test: Before connecting to the unit, pressurize the lines with dry nitrogen to 150–200 PSI. Use soap bubbles or a digital leak detector to check for leaks. Hold the pressure for at least 15 minutes.
7. Vacuum and Charge: Once leak-free, connect to the unit. Use a vacuum pump to pull the system down to 500 microns to remove all moisture and air. Only then should you release the refrigerant charge.

FAQ Section

1. Can I use soft copper plumbing coil for my AC line set?

No. Soft copper plumbing coil is usually Type M or thin-walled Type L intended for water. It is not hardened or cleaned to ACR standards. It is prone to kinking, which restricts refrigerant flow, and may contain moisture that will damage your compressor. Always buy hard-drawn or annealed ACR-specific copper.

2. What happens if I use plumbing solder on HVAC lines?

Plumbing solder is weaker than brazing filler. The vibration from the AC compressor can cause soldered joints to fatigue and crack. Additionally, plumbing flux is acidic and can corrode the interior of the copper lines if not perfectly flushed, leading to premature system failure.

3. Is it cheaper to use plumbing parts for HVAC repairs?

While plumbing parts may have a lower upfront cost, the long-term expense is much higher. A failed lineset can lead to lost refrigerant (which is expensive to replace), compressor replacement, and potential property damage from leaks. Using the correct ACR materials is an investment in reliability.

4. Can I connect PVC plumbing pipes to my HVAC system?

Absolutely not. PVC cannot withstand the pressure or temperature extremes of refrigerant lines. It will shatter or melt, causing an immediate and dangerous refrigerant leak. PVC is only used for condensate drain lines, which carry water, not refrigerant.

5. Does using the wrong pipe void my warranty?

Yes. Almost all HVAC manufacturers require installation according to AHRI (Air-Conditioning, Heating, and Refrigeration Institute) standards. Using non-approved materials like plumbing-grade copper or fittings will void your equipment warranty immediately.

6. What is the difference between ACR copper and regular copper?

ACR (Air Conditioning and Refrigeration) copper is cleaned, dehydrated, and sealed with nitrogen to prevent oxidation and moisture ingress. Regular plumbing copper is not cleaned to this level and is not sealed, making it unsuitable for the sensitive environment of a refrigerant circuit.

Conclusion

So, can plumbing connections be used for HVAC lineset? The short answer is no. While they may look similar, the differences in pressure ratings, material purity, and joining methods make plumbing components unsafe and ineffective for air conditioning systems.

Using plumbing pipes risks bursting lines, corroded compressors, and voided warranties. Always invest in proper ACR-rated Type L copper and brazing materials. Your comfort and safety are worth the extra effort and cost of doing it right.

If you found this guide helpful, please share it with your fellow DIYers on social media. Helping others avoid costly mistakes keeps our homes safe and efficient!
