Are you planning a bathroom remodel or fixing a persistent slow-drain issue in your Columbus or Cleveland home? Understanding the Code For Ohio Plumbing Drain Elbow Restrictions Of Flow is critical to ensuring your system works efficiently and passes inspection. Many DIY enthusiasts unknowingly install “hard 90s” that trap waste and cause costly backups down the line.
In this guide, we will break down exactly what the Ohio Residential Code (ORC) says about pipe fittings, angles, and flow dynamics. We’ll help you navigate these technical requirements with confidence, ensuring your plumbing is safe, compliant, and built to last.
What Does the Ohio Plumbing Code Say About Drain Elbows?
When discussing drainage, the primary concern is gravity. Waste needs to move smoothly from your fixture to the sewer or septic tank. The Ohio Residential Code (ORC), which largely adopts the International Residential Code (IRC) with specific state amendments, is strict about how pipes change direction.
The core rule is simple: Avoid sharp turns in horizontal drainage lines.
Specifically, the code restricts the use of standard 90-degree elbows (often called “hard 90s”) in horizontal drain lines. Why? Because wastewater contains solids. When water hits a sharp 90-degree turn at high speed, the liquid may continue around the bend, but the solids can slam into the outer wall of the pipe, losing momentum and settling there. Over time, this creates a blockage.
The “Sweep” Requirement
Instead of a hard 90, the code mandates the use of long-sweep 90s or two 45-degree elbows spaced apart. These fittings provide a gradual curve, allowing the water and waste to maintain their velocity and slide around the corner without impacting the pipe wall violently.
Expert Insight: According to master plumbers in Ohio, using a long-sweep elbow reduces the risk of clogs by up to 60% compared to standard short-radius elbows in horizontal runs.
Why Are Hard 90-Degree Elbows Restricted in Horizontal Lines?
To understand the restriction, we must look at fluid dynamics within a pipe. This isn’t just bureaucratic red tape; it is physics.
1. Momentum and Solids Separation
In a horizontal drain, water flows at the bottom of the pipe. If you use a tight 90-degree elbow:
- The water changes direction quickly.
- Heavier solids (toilet paper, waste, food particles) have more inertia.
- They tend to continue straight, hitting the back of the elbow fitting.
- Once they hit the wall, they drop out of the flow stream and accumulate.
2. Airflow and Venting Issues
Drainage systems rely on air pressure balance. Sharp turns can create turbulence that disrupts the smooth flow of air and water. This can lead to:
- Siphoning: Water being pulled out of P-traps, letting sewer gas into your home.
- Gurgling: Noisy drains as air struggles to escape.
3. Cleanout Accessibility
Ohio code emphasizes maintainability. A hard 90 is difficult to snake if a clog occurs right at the bend. A long-sweep elbow allows a plumber’s auger to navigate the turn much more easily during maintenance.
For a deeper understanding of fluid mechanics in piping systems, you can refer to general engineering principles on Wikipedia’s Pipe Flow page.
What Fittings Are Allowed for Ohio Drain Lines?
Not all elbows are created equal. When shopping at your local hardware store in Cincinnati or Dayton, look for these specific fittings to stay compliant with the Code For Ohio Plumbing Drain Elbow Restrictions Of Flow.
Approved Fittings for Horizontal Drains
| Fitting Type | Description | Code Status in Ohio | Best Use Case |
|---|---|---|---|
| Long-Sweep 90 | A 90-degree bend with a long radius curve. | ✅ Allowed | Changing direction 90 degrees in horizontal lines. |
| Two 45-Degree Elbows | Two 45s separated by a short piece of pipe (at least 6 inches). | ✅ Allowed | Creating a gentle 90-degree turn; easier to clean. |
| Combination Wye & 1/8 Bend | A wye fitting paired with a 22.5-degree elbow. | ✅ Allowed | Connecting a horizontal branch to a vertical stack. |
| Short-Radius 90 (Hard 90) | A tight 90-degree bend. | ❌ Prohibited | Never use in horizontal drainage. Only for vertical-to-vertical or vent lines. |
| Sanitary Tee | A T-shaped fitting with a curved inlet. | ⚠️ Restricted | Only allowed for vertical-to-horizontal connections (fixture drains entering a stack). Not for horizontal-to-horizontal. |
Key Takeaway
If you are running a pipe horizontally under your floor or in a crawl space, always choose the longest radius available. If a long-sweep 90 doesn’t fit, use two 45-degree elbows with a small spacer between them. This creates a “S” shape that is much gentler on the flow than a single sharp corner.

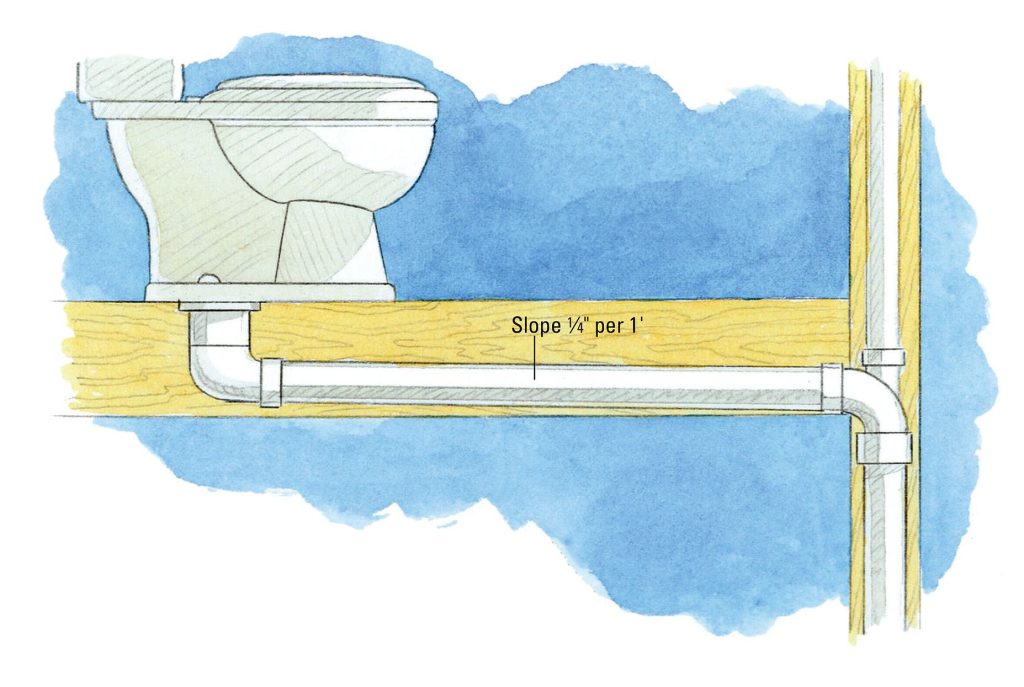

How Does Pipe Slope Impact Flow Through Elbows?
Even the best elbow cannot fix a poorly sloped pipe. The Ohio Residential Code specifies exact slopes for different pipe diameters to ensure self-scouring velocity.
Standard Slope Requirements
- Pipe Diameter 2½ inches or smaller: Minimum slope of 1/4 inch per foot.
- Pipe Diameter 3 inches to 6 inches: Minimum slope of 1/8 inch per foot.
The Interaction Between Slope and Elbows
If your slope is too steep (greater than 1/2 inch per foot), the water may outrun the solids, leaving waste behind to dry out and clog the pipe. If the slope is too flat, the water lacks the energy to push solids through the elbow.
Best Practice:
- Maintain a consistent 1/4 inch per foot slope for most residential sink and shower drains (1.5–2 inch pipes).
- Ensure the elbow itself does not create a “belly” or dip where water can pool.
- Support the pipe every 4 feet to prevent sagging, which negates the proper slope.
Step-by-Step: Installing a Compliant Drain Elbow in Ohio
Follow these steps to ensure your installation meets the Code For Ohio Plumbing Drain Elbow Restrictions Of Flow.
Tools Needed:
- PVC or ABS pipe (check local jurisdiction for approved material)
- Long-sweep 90-degree elbow or two 45-degree elbows
- Primer and Cement
- Level and Tape Measure
- Pipe Hangers/Straps
Instructions:
- Measure and Cut: Measure the distance to the turn. Cut your pipe using a hacksaw or PVC cutter. Deburr the edges to ensure smooth flow.
- Dry Fit the Assembly: Before gluing, assemble the pipes and fittings. Use a level to check that you have a 1/4 inch drop for every foot of run.
- Check the Elbow Orientation: Ensure the long-sweep elbow is oriented correctly. The curve should follow the direction of the flow naturally. If using two 45s, leave at least 6 inches of straight pipe between them if space allows.
- Prime and Cement: Apply purple primer to both the pipe end and the inside of the fitting. Follow immediately with clear cement. Push the pipe into the fitting with a quarter-turn twist to distribute the glue. Hold for 15 seconds.
- Support the Pipe: Install pipe hangers within 12 inches of the elbow and every 4 feet thereafter. This prevents the weight of the water from pulling the joint apart or creating a low spot.
- Test the Flow: Once cured (usually 24 hours), run water through the line. Check for leaks and ensure the water drains rapidly without gurgling.
FAQ: Common Questions About Ohio Drain Codes
1. Can I use a sanitary tee on its side in Ohio?
No. Using a sanitary tee on its side (horizontal inlet to horizontal outlet) is generally prohibited in Ohio for drainage. It creates a sharp 90-degree turn for the flow. You must use a wye fitting or a combination wye and 1/8 bend for horizontal-to-horizontal connections.
2. Are hard 90s ever allowed in drainage systems?
Yes, but only in specific scenarios. Hard 90s are permitted in vertical stacks (going straight down) or in vent lines where no waste flows. They are strictly forbidden in horizontal drainage lines carrying waste.
3. What is the difference between a “street elbow” and a regular elbow?
A street elbow has male threads on one end and female on the other, allowing it to screw directly into another fitting. While convenient, they often have a tighter radius. For drainage, avoid threaded street elbows in favor of solvent-welded long-sweep fittings to maintain better flow characteristics.
4. Does the type of pipe (PVC vs. ABS) change the elbow rules?
No. The restrictions on elbow types (long-sweep vs. hard 90) apply regardless of whether you use PVC (white) or ABS (black) pipe. The material affects the glue and primer used, but the physics of flow and the code requirements for fittings remain the same in Ohio.
5. Do I need a permit to replace a drain elbow in Ohio?
Minor repairs like-for-like replacements often do not require a permit, but altering the layout or adding new fixtures usually does. Always check with your local building department (city or county) as rules can vary slightly between jurisdictions like Franklin County vs. Cuyahoga County.
Conclusion
Navigating the Code For Ohio Plumbing Drain Elbow Restrictions Of Flow doesn’t have to be confusing. By remembering one simple rule—no hard 90s in horizontal drains—you can avoid the most common plumbing mistakes. Always opt for long-sweep elbows or double 45s to keep your waste moving smoothly and your home free from nasty clogs.
Proper plumbing protects your investment and your health. If you are unsure about your specific setup, consulting a licensed Ohio plumber is always the safest bet.
Found this guide helpful? Share it with your neighbors or on social media to help others build better, code-compliant homes! 🛠️🏠
