Renovating a bathroom can feel overwhelming, especially when you stare at the empty wall where your new sink should be. Getting the bathroom vanity plumbing wrong can lead to costly leaks, poor drainage, or a vanity that simply doesn’t fit. You want a setup that is not only functional but also compliant with local codes and aesthetically pleasing.
This guide breaks down exactly how plumbing should be configured for your bathroom vanity. Whether you are a DIY enthusiast or hiring a pro, understanding these standards ensures a smooth installation and long-term reliability. Let’s dive into the specifics of pipes, heights, and connections.
Standard Rough-In Dimensions for Bathroom Vanities
Before you buy a vanity or start cutting drywall, you need to understand the “rough-in.” This refers to the position of the water supply lines and the drain pipe before the finish materials (like tile or drywall) are installed.
Water Supply Line Height and Spacing
The hot and cold water supply lines are critical for connecting your faucet. If these are misplaced, you might end up with hoses that are too short or kinked, which restricts water flow.
Height: The standard height for water supply stubs is typically 21 inches from the finished floor. However, this can vary between 18 to 24 inches depending on the vanity design.
Spacing: The centers of the hot and cold lines are usually spaced 8 inches apart. Some modern faucets require a 4-inch spread, so always check your faucet’s specification sheet before finalizing the rough-in.
Offset: Ideally, these lines should be centered relative to the sink basin. For a single-sink vanity, this means measuring the total width of the vanity, finding the center, and offsetting slightly if the sink bowl is off-center.
Drain Pipe Location and Size
The drain is perhaps the most crucial element. A misaligned drain can force you to use unsightly flexible hoses instead of rigid PVC or ABS pipes, increasing the risk of clogs.
Height: The drain stub-out should generally be between 18 and 20 inches from the finished floor. This height allows enough room for the P-trap while keeping it hidden inside the vanity cabinet.
Diameter: The standard drain pipe size for a bathroom sink is 1.25 inches or 1.5 inches. While 1.25 inches was common in older homes, modern codes often prefer 1.5 inches for better flow and reduced clogging.
Centering: Like the water lines, the drain should align with the sink’s drain hole. If you are installing a vessel sink (a bowl that sits on top of the counter), note that the drain rough-in might need to be adjusted higher or lower depending on the vessel’s depth.
Pro Tip: Always measure your specific vanity model. “Standard” dimensions are guidelines, but manufacturers vary. A custom vanity may require unique plumbing placements.
Understanding the P-Trap and Venting Requirements
A common misconception is that you can just connect a pipe to the wall and be done. Proper drainage requires a trap and a vent to function correctly and safely.
The Role of the P-Trap

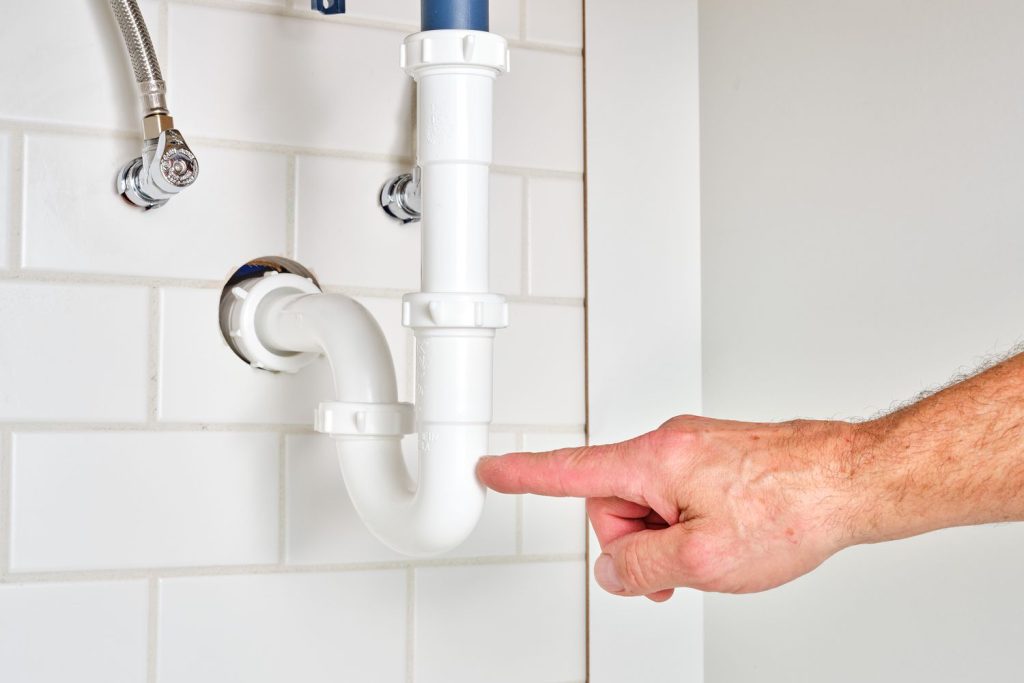

The P-trap is the U-shaped pipe under your sink. It holds a small amount of water, which creates a seal that prevents sewer gases from entering your home. Without it, your bathroom would smell like sewage.
Material: Use PVC (polyvinyl chloride) or ABS (acrylonitrile butadiene styrene) for durability. Chrome-plated brass traps are popular for exposed plumbing in modern designs but require more maintenance to prevent corrosion.
Installation: The trap must be securely glued or threaded. Leaks here are the most common cause of water damage under vanities. Ensure the slip nuts are hand-tightened plus a quarter turn with pliers—over-tightening can crack the plastic.
Venting: Why It Matters
You might notice a pipe going up through your roof. That’s the vent stack. Every fixture needs a vent to allow air into the drainage system. This prevents vacuum locks that slow down drainage and cause gurgling sounds.
Distance Limits: The distance between the trap and the vent is regulated. For a 1.25-inch drain, the vent must be within 30 inches. For a 1.5-inch drain, it can be up to 42 inches away. If your vanity is far from the main stack, you may need an Air Admittance Valve (AAV), also known as a Studor vent, which allows air in but not out.
Step-by-Step: Connecting Your Vanity Plumbing
If you are replacing an existing vanity, the rough-in is likely already done. Your job is to connect the new fixture. Here is a logical workflow to ensure a leak-free setup.
Step 1: Shut Off the Water
Locate the shut-off valves under the sink or at the main house supply. Turn them clockwise to stop the water flow. Open the old faucet to drain any remaining pressure.
Step 2: Remove the Old Vanity
Disconnect the supply lines using an adjustable wrench. Place a bucket under the P-trap to catch residual water. Unscrew the trap and remove the old vanity. Inspect the wall stubs for damage or corrosion.
Step 3: Install the New Faucet and Drain Assembly
It is much easier to install the faucet and pop-up drain assembly on the countertop before mounting the vanity.
Apply plumber’s putty or a rubber gasket under the drain flange.
Insert the drain body through the sink hole.
Tighten the locking nut from underneath.
Install the faucet according to the manufacturer’s instructions, ensuring all gaskets are seated properly.
Step 4: Position the Vanity
Slide the vanity into place. Use a level to ensure it is perfectly horizontal. Shim the bottom if necessary. Secure the vanity to the wall studs using screws through the back rail.
Step 5: Connect the Water Supply Lines
Attach flexible braided stainless steel supply lines to the shut-off valves and the faucet tails.
Hot Water: Connect to the left valve (standard convention).
Cold Water: Connect to the right valve.
Tightening: Hand-tighten first, then give a slight turn with a wrench. Do not overtighten, as this can damage the rubber washers.
Step 6: Install the P-Trap
Measure the distance from the sink tailpiece to the wall drain stub. Cut your PVC or ABS pipe to size. Assemble the P-trap, ensuring the curved part faces downward. Use Teflon tape on threaded connections if applicable.
Step 7: Test for Leaks
Turn the water supply back on slowly. Run the water and check every connection. Look for drips at the supply lines, the faucet base, and the P-trap joints. If you see moisture, tighten the connection slightly or reseat the gasket.
Common Plumbing Mistakes to Avoid
Even experienced DIYers can make errors. Here are the most frequent pitfalls and how to avoid them.
Mistake
Consequence
Solution
Using Flexible Drain Hoses
Prone to kinking, sagging, and clogging.
Use rigid PVC/ABS pipes for the main trap arm.
Over-Tightening Nuts
Cracked plastic fittings or stripped threads.
Hand-tighten, then use tools sparingly.
Ignoring Slope
Water pools in the pipe, causing slow drains.
Ensure the horizontal pipe slopes downward toward the wall at 1/4 inch per foot.
Missing Gaskets
Immediate leaks at connection points.
Always check that rubber washers are present and aligned.
FAQ: Bathroom Vanity Plumbing Questions
1. Can I move the plumbing for a new vanity?
Yes, but it involves opening the wall and extending or rerouting pipes. This is a complex task best left to licensed plumbers, as it requires soldering copper or gluing PVC and ensuring code compliance for venting.
2. What is the difference between a 1.25-inch and 1.5-inch drain?
A 1.5-inch drain allows for faster water flow and is less likely to clog with hair and soap scum. Many modern building codes now mandate 1.5-inch drains for bathroom sinks. Check your local regulations before deciding.
3. Do I need a plumber to install a vanity?
If you are simply swapping an old vanity for a new one in the same location, it is a manageable DIY project. However, if you are moving pipes, changing the layout, or installing a new vent, hiring a professional is recommended to avoid code violations and water damage.
4. Why is my sink draining slowly after installation?
This is often due to a blocked vent, a improperly sloped drain pipe, or debris caught in the P-trap. Check that the trap is clear and that the horizontal pipe has a slight downward slope toward the wall.
5. How high should the faucet be above the sink?
For standard drop-in or undermount sinks, the faucet spout should be at least 2–3 inches above the rim of the sink. For vessel sinks, you need a taller faucet that clears the height of the bowl plus provides adequate clearance for hand washing.
Conclusion
Proper bathroom vanity plumbing is the backbone of a functional and beautiful bathroom. By adhering to standard rough-in dimensions—typically 21 inches for supply lines and 18–20 inches for the drain—you ensure a seamless installation. Remember to prioritize rigid piping over flexible hoses, respect the importance of the P-trap and venting, and always test for leaks before closing up the project.
Taking the time to get these details right saves you from future headaches and costly repairs. If you found this guide helpful, please share it with friends or family who are planning their own bathroom renovations. A well-plumbed vanity is a joy to use every day!
