Renovating a bathroom can feel overwhelming, especially when you’re staring at rough-in pipes and wondering if everything will line up correctly. One of the most common questions homeowners and DIY enthusiasts face is: how off floor should plumbing drains be for vanity? Getting this measurement wrong can lead to ugly exposed pipes, difficult installations, or even code violations.
In this guide, we’ll break down the industry standards, explain why height matters for both aesthetics and function, and provide step-by-step instructions to ensure your vanity installation goes smoothly. Whether you are installing a sleek modern floating vanity or a traditional cabinet, knowing the right drain height is crucial for a professional finish.

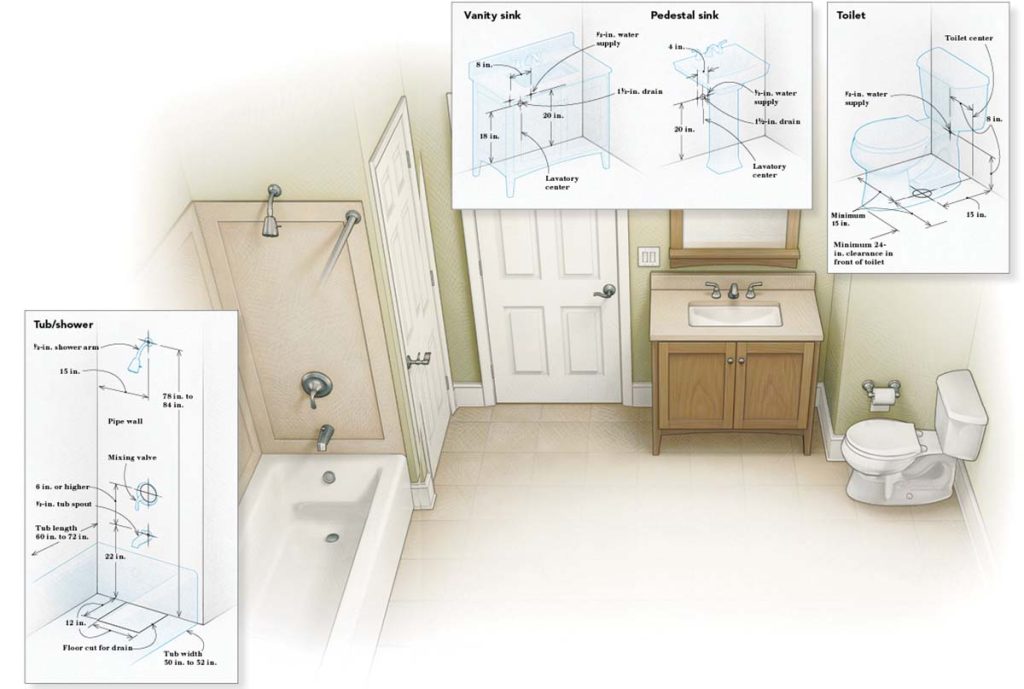

The Standard Height for Vanity Drains
When plumbers rough in a bathroom, they follow general building codes and industry best practices. While local regulations can vary slightly, there is a widely accepted standard for vanity drain heights.
The Golden Rule: 18 to 20 Inches
For most standard bathroom vanities, the center of the drain pipe (the waste outlet) should be positioned 18 to 20 inches above the finished floor.
- 18 inches: This is the minimum recommended height. It provides enough clearance for the P-trap and tailpiece without being too low.
- 20–21 inches: This is often considered the “sweet spot” for modern vanities, especially those with deeper sinks or thicker countertops.
Why this range? It ensures that the P-trap—the U-shaped pipe that holds water to prevent sewer gases from entering your home—fits comfortably inside the vanity cabinet. If the drain is too low, the trap may hit the bottom of the cabinet or the floor, causing leaks or requiring awkward angled fittings.
Pro Tip: Always measure from the finished floor, not the subfloor. If you are installing new tile or hardwood, account for the thickness of your flooring material (usually ½ to ¾ inch) when setting the pipe height during the rough-in phase.
Why Does Drain Height Matter?
You might think that as long as the water drains, the height doesn’t matter. However, the vertical position of your drain impacts three critical areas: functionality, aesthetics, and code compliance.
1. Preventing Leaks and Clogs
The primary function of the drain assembly is to move wastewater efficiently. If the drain is too low, the P-trap may sit too close to the bottom of the vanity. This can create a “low spot” where debris accumulates, leading to clogs. Furthermore, cramped spaces make it difficult to tighten slip nuts properly, increasing the risk of leaks.
2. Aesthetic Appeal
Nobody wants to open their vanity cabinet and see a jumble of pipes crammed against the back wall. Proper height ensures that the plumbing looks neat and organized. For floating vanities, where the plumbing is often exposed, precision is even more critical because there is no cabinet to hide mistakes.
3. Code Compliance
While the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) do not always specify an exact height for vanity drains, they do regulate the trap seal depth and venting requirements. Installing the drain within the 18–20 inch range generally ensures compliance with these broader structural requirements. For more detailed information on plumbing codes, you can refer to the International Plumbing Code overview on Wikipedia.
Factors That Influence Drain Height
Not all vanities are created equal. Several factors can shift the ideal drain height outside the standard 18–20 inch range.
Type of Vanity
- Standard Floor-Mounted Vanities: These typically have a back panel or open space at the back. The 18–20 inch rule applies here.
- Floating (Wall-Mounted) Vanities: Since these are mounted higher off the ground (often 24–30 inches from the floor to the bottom of the unit), the drain height must be adjusted. Usually, the drain should be centered behind the sink bowl, which often places it 20–24 inches off the floor, depending on the vanity’s design.
- Vessel Sinks: These sit on top of the counter. While the counter height remains standard (34–36 inches), the drain assembly inside the cabinet may need to be slightly higher to accommodate the longer tailpiece required to reach the sink basin.
Sink Bowl Depth
Deep sinks require longer tailpieces (the vertical pipe connecting the sink strainer to the P-trap). If you have a deep vessel sink or a large farmhouse-style basin, you may need to raise the drain outlet to ensure the P-trap doesn’t dip below the cabinet floor.
Local Building Codes
Always check with your local building department. Some municipalities have specific amendments to the national plumbing codes. For example, some areas may require specific venting distances that indirectly affect where you can place the drain.
Step-by-Step: How to Measure and Install
If you are in the planning stages or currently installing your vanity, follow these steps to ensure perfect alignment.
Step 1: Determine Your Finished Floor Level
Before measuring anything, know exactly how high your final floor will be.
- If tiling: Add the thickness of the mortar bed and tile (approx. ½–¾ inch).
- If vinyl/laminate: Add approx. ¼–½ inch.
Step 2: Mark the Centerline
Find the horizontal center of your vanity cabinet. Mark this line vertically on the wall. The drain should ideally align with this centerline to ensure symmetrical plumbing.
Step 3: Set the Vertical Height
Measure up from your finished floor level.
- Mark 18 inches as your minimum.
- Mark 20 inches as your ideal target.
- If using a floating vanity, consult the manufacturer’s template, but aim for 22–24 inches if no template is available.
Step 4: Install the P-Trap
Once the vanity is in place:
- Insert the tailpiece into the sink drain.
- Connect the P-trap to the tailpiece.
- Align the P-trap outlet with the wall drain pipe.
- Tighten all slip nuts by hand, then give a quarter-turn with pliers. Do not overtighten, as this can crack the plastic nuts.
Step 5: Test for Leaks
Run water for at least two minutes. Check all connections for drips. Place a dry paper towel under the P-trap; if it gets wet, you have a leak.
Common Mistakes to Avoid
Even experienced DIYers can stumble on these common pitfalls.
| Mistake | Consequence | Solution |
|---|---|---|
| Ignoring Floor Thickness | Drain ends up too low after tiling. | Always measure from the finished floor, not the subfloor. |
| Placing Drain Too Low | P-trap hits the cabinet bottom. | Keep the drain center at least 18 inches high. |
| Misaligned Center | Pipes look crooked; hard to connect. | Use a level and measure from the vanity center, not the wall edge. |
| Using Old Pipes | Corrosion leads to leaks. | Replace old galvanized pipes with PVC or ABS during renovation. |
FAQ: Frequently Asked Questions
1. Can I move the drain height after the wall is closed?
Moving a drain vertically after the drywall is installed is difficult and expensive. It requires opening the wall, cutting the existing pipe, and adding new fittings. It is much easier to adjust the height during the rough-in phase. If you must change it later, consider using a flexible P-trap kit, though these are not always code-compliant for permanent installations.
2. What if my drain is only 15 inches off the floor?
A 15-inch height is too low for most standard vanities. You have two options:
- Raise the Vanity: Use shims under the vanity legs to lift it slightly (if it’s floor-mounted).
- Use an Extended Tailpiece: You can use a longer tailpiece and a specialized P-trap configuration, but this may reduce storage space in the cabinet. In severe cases, you may need to cut into the wall to raise the pipe.
3. Does the drain need to be exactly in the center?
Ideally, yes. Centering the drain behind the sink bowl ensures the shortest, most direct path for water flow. However, if your vanity has a drawer bank on one side, the drain may need to be offset to avoid hitting the drawer box. In this case, use a flexible or offset P-trap to connect to the wall drain.
4. How high should the water supply lines be?
Water supply lines (hot and cold) should typically be installed 20 to 22 inches off the finished floor. They are usually placed 4 to 6 inches apart, centered on the sink. Keeping them slightly higher than the drain prevents them from interfering with the P-trap installation.
5. Is there a maximum height for a vanity drain?
Yes. If the drain is too high (e.g., over 24 inches for a standard vanity), the tailpiece may not reach the P-trap properly, or the slope of the drain arm may be insufficient. The general rule is that the drain should never be higher than the bottom of the sink basin’s tailpiece connection.
6. Do floating vanities require different plumbing?
Yes. Floating vanities often have exposed plumbing, so aesthetics are key. The drain and supply lines should be perfectly aligned and often use chrome-brass fittings instead of plastic. The height is typically higher (20–24 inches) to accommodate the elevated cabinet position.
Conclusion
Understanding how off floor should plumbing drains be for vanity is the key to a successful bathroom renovation. By aiming for the standard 18 to 20 inches from the finished floor, you ensure a leak-free, code-compliant, and aesthetically pleasing installation. Remember to account for your flooring thickness and the specific design of your vanity—whether it’s a traditional cabinet or a modern floating unit.
Taking the time to measure correctly during the rough-in phase saves you from costly repairs and frustrating adjustments later. If you’re unsure about local codes, always consult a licensed plumber or your local building authority.
