How To Attach A Dishwasher To Cabinet With Plumbing

Replacing or installing a new dishwasher can feel like a daunting task, especially when you are worried about potential water leaks or damaging your expensive cabinetry. You want your kitchen to look seamless and function perfectly without calling in a costly professional for a job that might be within your reach. This guide will walk you through exactly how to attach a dishwasher to cabinet with plumbing, ensuring a secure, level, and leak-free installation that stands the test of time.

Why Proper Mounting and Plumbing Matter

Before we dive into the tools, it is crucial to understand why precision matters. A dishwasher is not just a box that sits under the counter; it is a vibrating appliance that fills with heavy water loads. If it is not securely attached to the cabinet, it can “walk” out from under the counter during a cycle. This movement puts stress on your water supply line and drain hose, leading to catastrophic leaks that can ruin your hardwood floors and subflooring.

According to home insurance data, water damage is one of the most common and costly home insurance claims. A properly installed dishwasher mitigates this risk entirely. By following the manufacturer’s specifications and local plumbing codes, you ensure both safety and longevity.

Tools and Materials You Will Need

To successfully complete this installation, gather the following items before you begin. Having everything ready prevents mid-job trips to the hardware store.

• Adjustable Wrench: For tightening water supply nuts.
• Screwdriver Set: Both Phillips and flat-head heads.
• Drill with Bits: For creating pilot holes if necessary.
• Level: A 2-foot level is ideal for ensuring the unit is perfectly horizontal.
• Teflon Tape (Plumber’s Tape): For sealing threaded connections.
• Bucket and Towels: To catch any residual water during disconnection or testing.
• Mounting Brackets: Usually included with the dishwasher, but check your box.
• Shims: Wooden or plastic shims to level the unit if your floor is uneven.

Step 1: Preparing the Space and Safety Checks

Safety is the first priority in any home improvement project. Before touching any pipes or wires, you must isolate the utilities.

1. Turn Off the Power: Locate your circuit breaker panel and switch off the breaker labeled “Dishwasher” or “Kitchen Appliances.” Verify the power is off by trying to turn on the dishwasher.
2. Shut Off the Water Supply: Find the water shut-off valve under the sink. Turn it clockwise until it stops. If you do not have a dedicated valve, you may need to shut off the main water supply to the house.
3. Clear the Area: Remove the old dishwasher if applicable. Clean the cavity thoroughly, removing any debris, old insulation, or pest evidence.

Pro Tip: Take a photo of the existing plumbing setup before disconnecting anything. This serves as a valuable reference if you get confused during reassembly.

Step 2: Connecting the Water Supply Line

The water supply line is the lifeline of your dishwasher. Most modern dishwashers use a 3/8-inch compression fitting or a flexible braided stainless steel hose.

Inspecting the Inlet Valve

Locate the water inlet valve on the dishwasher. It is usually found at the bottom front or side of the unit. Ensure the rubber washer inside the connection point is intact and seated correctly. A missing or cracked washer is the number one cause of immediate leaks.

Making the Connection

1. Wrap Teflon tape around the threads of the water supply valve under your sink (if using threaded connections). Do not over-wrap; two to three layers are sufficient.
2. Connect one end of the supply line to the shut-off valve under the sink. Hand-tighten it first, then use your adjustable wrench to give it a quarter-turn past hand-tight. Do not overtighten, as this can strip the threads or crush the washer.
3. Connect the other end to the dishwasher’s inlet valve. Again, hand-tighten followed by a slight turn with the wrench.

For more detailed information on standard plumbing fittings and safety standards, you can refer to Wikipedia’s article on Pipe Fittings, which provides an excellent overview of industry-standard components.

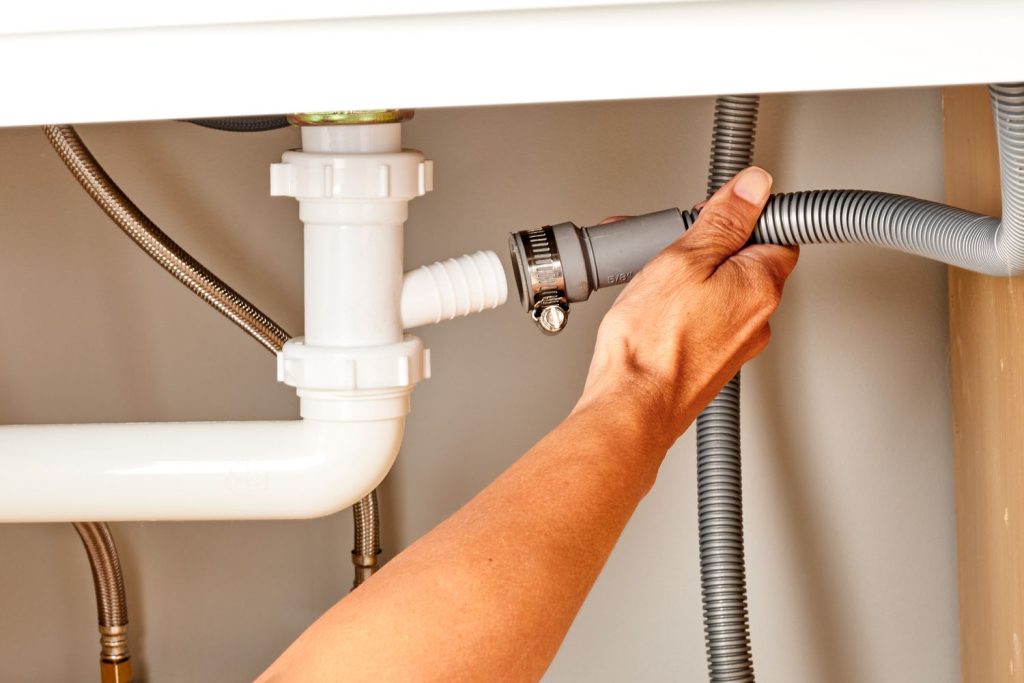

Step 3: Setting Up the Drain Hose

Proper drainage is essential to prevent dirty water from siphoning back into your clean dishes. There are two common methods for draining: connecting to a garbage disposal or connecting directly to the sink drain pipe.

The High Loop Requirement

Regardless of your connection method, you must create a “high loop.” This means the drain hose should rise up to the underside of the countertop before descending to the drain connection.

• Why? The high loop prevents sink water from flowing back into the dishwasher when the sink is full or draining.
• How? Use a bracket or a zip tie to secure the highest point of the hose to the underside of the counter or the top of the cabinet wall.

Connecting to Garbage Disposal

If you have a garbage disposal, knock out the plastic plug inside the disposal’s dishwasher inlet port (if it’s a new disposal). Slide the hose clamp over the drain hose, push the hose onto the disposal inlet, and tighten the clamp securely with a screwdriver.

Step 4: How To Attach A Dishwasher To Cabinet With Plumbing

This is the critical structural step. Now that the plumbing is connected, you must secure the unit to prevent movement.

Leveling the Unit

1. Slide the dishwasher carefully into the cabinet space. Be careful not to kink the drain hose or pinch the water line at the back.
2. Place your level on the door (when closed) and across the top rack rails.
3. Adjust the front leveling legs by rotating them with a wrench or pliers. Raise or lower each corner until the bubble in the level is centered.
4. If the back is uneven, some models allow you to adjust rear feet, or you may need to place shims under the rear wheels/base.

Securing to the Cabinet

Most dishwashers come with mounting brackets. There are two primary ways to attach them:

1. Top Mounting (Under Counter):
   • Open the dishwasher door.
   • Locate the holes in the top frame of the tub.
   • Drive screws upward through these holes into the underside of the countertop. Note: Ensure your countertop material can handle screws (e.g., wood, laminate). Do not drill into granite or quartz without proper anchors.
2. Side Mounting (Into Cabinet Walls):
   • If top mounting is not possible, use the side brackets provided.
   • Pull the dishwasher out slightly to access the side tabs.
   • Bend the tabs outward if required by the manual.
   • Slide the unit back in and drive screws through the side brackets into the adjacent cabinet walls.

Step 5: Final Checks and Testing

Never skip the testing phase. A small drip now can save you thousands in water damage later.

1. Turn On Water: Slowly open the shut-off valve under the sink. Check both connection points (under sink and at the dishwasher) for immediate drips.
2. Restore Power: Turn the circuit breaker back on.
3. Run a Test Cycle: Select a short or “rinse” cycle.
4. Monitor: Watch the dishwasher during the fill phase. Check for leaks around the inlet valve. During the drain phase, ensure water is exiting properly and not backing up.
5. Inspect the Floor: After the cycle, pull the kick plate off and check the floor pan for any moisture.

Frequently Asked Questions (FAQ)

1. Can I install a dishwasher if I don’t have a garbage disposal?

Yes, absolutely. You can connect the drain hose directly to the sink’s drain pipe using a “Y” branch tailpiece. Ensure you still maintain the high loop to prevent backflow.

2. Why is my dishwasher leaking from the front after installation?

If it leaks from the front, the unit is likely not level. If the dishwasher tilts forward, water can splash over the door seal during operation. Re-check your leveling legs and ensure the door gasket is clean and seated properly.

3. Do I need a permit to install a dishwasher?

In most US jurisdictions, replacing an existing dishwasher does not require a permit. However, if you are moving plumbing lines or adding new electrical circuits, you may need a permit. Always check with your local building department.

4. What size water supply line do I need?

The standard size for a dishwasher water supply line is 3/8-inch compression. Most new dishwashers come with a flexible hose, but if you are buying one separately, ensure it is rated for hot water and has the correct fittings.

5. Can I use the old drain hose?

It is highly recommended to replace the drain hose whenever you install a new dishwasher. Old hoses can become brittle, clogged with grease, or harbor bacteria. New hoses are inexpensive and provide peace of mind.

Conclusion

Learning how to attach a dishwasher to cabinet with plumbing is a rewarding DIY project that saves money and ensures your appliance runs efficiently. By focusing on three key areas—secure mounting, proper water line sealing, and correct drainage hierarchy—you can avoid common pitfalls like leaks and vibration noise.

Remember, patience is key. Take your time to level the unit and double-check every connection. Once you’ve completed the installation, enjoy the convenience of your perfectly installed dishwasher!
