Double Sink Upgrade: The Ultimate Plumbing Guide

Are you tired of fighting for counter space every morning? You are not alone. Many homeowners find that a single-basin vanity simply doesn’t meet the demands of a busy household. Upgrading to a double vanity can transform your daily routine, offering convenience and increasing your home’s resale value. However, the prospect of moving pipes and drilling through cabinets can feel overwhelming. This guide will walk you through exactly how to convert single sink to double sink plumbing, breaking down complex tasks into manageable steps so you can tackle this project with confidence.

Is It Possible to Convert a Single Sink to a Double Sink?

Before you buy tools, you need to assess feasibility. The short answer is yes, but it depends on your existing infrastructure.

Converting a single sink to a double isn’t just about swapping out the basin; it involves significant changes to the water supply lines, drainage system, and cabinet structure. According to general construction standards, a double vanity typically requires a minimum width of 60 inches, though compact 48-inch models exist.

Key Feasibility Factors

• Space Availability: Do you have enough wall width? Standard single vanities are 24–30 inches wide, while doubles start at 48 inches.
• Plumbing Access: Are your water lines and drain stack accessible from behind the wall or below the floor?
• Ventilation: Does your current vent line support two fixtures?

If you are moving from a 30-inch cabinet to a 60-inch one, you are likely looking at a semi-major renovation. If you are keeping the same cabinet footprint but splitting one large basin into two smaller ones (rare but possible in custom setups), the plumbing work is minimal. Most conversions involve replacing the entire vanity unit.

What Tools and Materials Do You Need?

Preparation is half the battle. Having the right tools prevents mid-project trips to the hardware store. Here is a checklist for a standard conversion involving a new double vanity unit.

Essential Tools

• Adjustable Wrenches: Two are better than one (one to hold, one to turn).
• Pipe Cutter: For clean cuts on copper or PEX supply lines.
• Hacksaw: For cutting PVC drain pipes.
• Drill & Hole Saw Kit: To cut holes in the countertop and cabinet back.
• Level: Crucial for ensuring proper drainage slope.
• Tape Measure & Pencil: For precise markings.
• Bucket & Rags: For inevitable water spills.

Materials List

• Double Vanity Unit: Pre-assembled or ready-to-assemble.
• Two Faucets: Ensure they match your hole spacing (usually 4-inch or 8-inch spread).
• Supply Lines: Braided stainless steel hoses (check length: 12″, 16″, or 20″).
• Drain Kit: A “double bowl kitchen sink drain kit” style adapter or specific bathroom double waste kits.
• PVC Pipes & Fittings: 1.5-inch diameter for drains.
• Plumber’s Putty or Silicone Caulk: For sealing bases.
• Teflon Tape: For threading connections.

Pro Tip: Always check local building codes. Some jurisdictions require permits for changing plumbing layouts. For detailed definitions of plumbing standards, you can refer to the Uniform Plumbing Code guidelines via Wikipedia to understand regional variations.

Step-by-Step: How to Convert Single Sink to Double Sink Plumbing

This section details the core process. We assume you are replacing an old single vanity with a new double vanity unit, which is the most common scenario for this search intent.

Step 1: Shut Off Water and Demolition

Safety first. Locate the shut-off valves under the sink and turn them clockwise until tight. If there are no individual valves, shut off the main water supply to the house.

1. Disconnect the supply lines from the faucet tails.
2. Place a bucket under the P-trap (the U-shaped pipe).
3. Unscrew the slip nuts on the P-trap and remove it. Expect some residual water.
4. Unbolt the old vanity from the wall studs.
5. Remove the old vanity and dispose of it properly.

Step 2: Assess and Modify Plumbing Rough-Ins

This is the most technical part of learning how to convert single sink to double sink plumbing. Your existing water lines and drain are likely centered. A double vanity needs connections on the left and right sides.

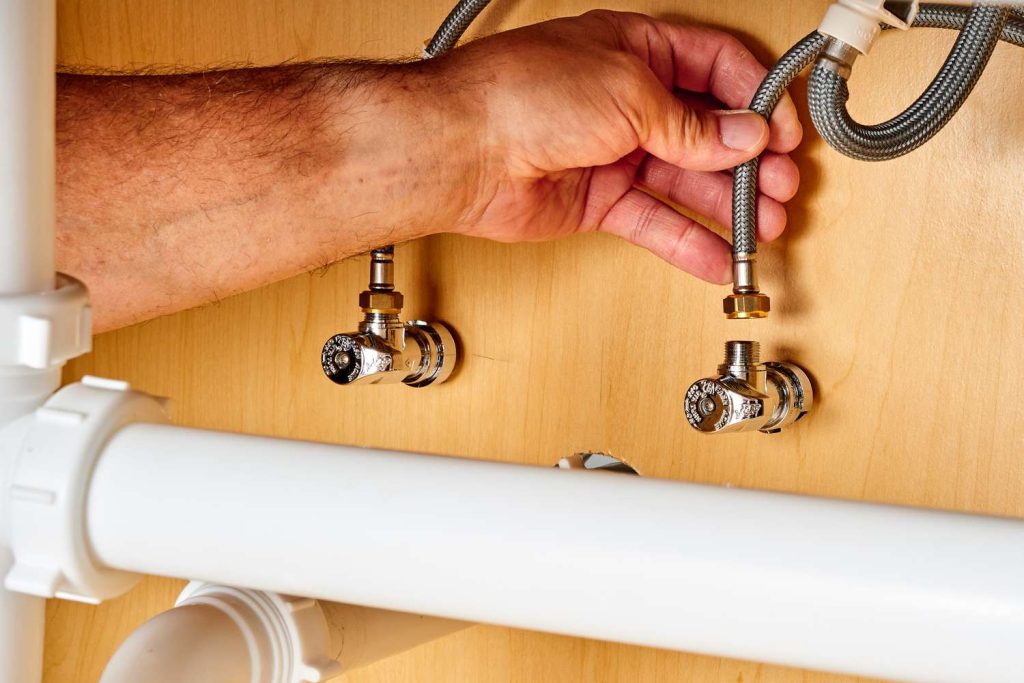

Moving Water Lines:

• If your walls are open (stud exposure), extend the hot and cold copper/PEX lines horizontally to the new faucet positions.
• Use shark-bite fittings for easier DIY connections if you are not comfortable soldering copper. Ensure you leave enough vertical pipe sticking out for the new supply lines.

Moving the Drain:

• The drain must be centered between the two new sinks or configured to handle both outputs.
• You will need to install a double fixture fitting (often called a “sanitary tee” or a specialized double branch wye) in the drain line.
• Ensure the slope of the horizontal drain pipe is 1/4 inch per foot toward the main stack. This gravity-fed slope is critical to prevent clogs.

Step 3: Install the New Double Vanity

1. Position the new cabinet against the wall.
2. Use a level to ensure it is perfectly straight. Shim underneath if the floor is uneven.
3. Secure the cabinet to the wall studs using lag screws through the back rail.
4. If the countertop is separate, place it on top and secure it according to manufacturer instructions.

Step 4: Install Faucets and Drains

1. Apply plumber’s putty around the base of each drain flange.
2. Insert the drains into the pre-drilled holes in the sink basins.
3. Tighten the locking nuts from underneath. Wipe away excess putty.
4. Install the faucets. Connect the hot and cold lines to the corresponding valve stems.
5. Hand-tighten the mounting nuts, then give a quarter-turn with pliers. Do not overtighten, as this can crack ceramic sinks.

Step 5: Connect the Double Drain Assembly

Connecting two sinks to one drain requires a specific configuration.

1. Install the tailpieces on both sink drains.
2. Connect a double arm kit or a Y-branch connector. This allows water from both sinks to flow into a central P-trap.
3. Connect the central P-trap to the wall drain pipe.
4. Ensure all slip nuts have rubber washers installed correctly (tapered side facing the nut).
5. Hand-tighten all connections. Use channel-lock pliers for a final gentle snugness.

Step 6: Testing for Leaks

1. Turn the water supply back on slowly.
2. Run both faucets simultaneously.
3. Check every connection point with a dry paper towel. If the towel gets wet, you have a leak.
4. Fill the sinks partially and release the stoppers to test drainage speed.
5. If drainage is slow, check for airlocks or improper sloping in the pipes.

Common Challenges and Solutions

Even with a perfect plan, issues arise. Here is how to troubleshoot common problems when you convert single sink to double sink plumbing.

FAQ: Frequently Asked Questions

1. Can I keep my existing single drain pipe for a double sink?

Yes, but you must modify the connection. You cannot simply plug two drains into one hole. You need a double fixture fitting that merges the two tailpieces into a single 1.5-inch or 2-inch drain line that connects to your existing wall pipe.

2. Do I need a permit to convert my sink?

In many US jurisdictions, replacing a “like-for-like” fixture does not require a permit. However, moving water lines or drain pipes inside the walls often does. Check with your local building department. Failure to permit can cause issues when selling your home.

3. How much does it cost to convert a single sink to a double?

Costs vary widely. A DIY approach might cost $300–$800 for the vanity, faucets, and plumbing supplies. Hiring a professional plumber can raise the total to $1,500–$3,500+, depending on labor rates and the complexity of moving pipes.

4. What is the minimum width for a double sink vanity?

The absolute minimum is typically 48 inches. This allows for two small basins (approx. 16-18 inches each) with a small amount of counter space in between. For comfort, 60 inches is the recommended standard.

5. Can I use the existing hot and cold water lines?

You can use the existing source lines, but you will need to extend them. You cannot connect two faucets to a single supply valve without splitting the line. You will need to install tee-fittings to create separate hot and cold feeds for each faucet.

6. Why is my new double sink gurgling?

Gurgling usually indicates a venting issue. When water drains from one side, it may pull air from the other side if the vent is inadequate. Installing an Air Admittance Valve (AAV) under the sink can often resolve this without opening up walls.

Conclusion

Learning how to convert single sink to double sink plumbing is a rewarding DIY project that enhances both the functionality and value of your home. While it requires careful planning and attention to detail—especially regarding drainage slopes and leak prevention—the result is a spacious, modern bathroom that serves your family better.

Remember to take your time during the demolition and rough-in phases. Accuracy here saves hours of troubleshooting later. If you encounter complex wall modifications or suspect your venting is inadequate, don’t hesitate to consult a licensed plumber for those specific segments.
