How To Convert Sink Plumbing From Floor To Wall

Are you frustrated by the unsightly pipes protruding from the floor beneath your bathroom vanity? You are not alone. Many homeowners find that floor-mounted drains limit their storage space and detract from the sleek, modern aesthetic they desire. Learning how to convert sink plumbing from floor to wall is the perfect solution to reclaim under-sink cabinet space and achieve a cleaner look.

While this project might seem intimidating, it is a manageable DIY task for those with basic plumbing skills. By moving the drain connection from the floor to the wall, you eliminate the vertical pipe drop, allowing for deeper drawers or easier access to cleaning supplies. In this guide, we will walk you through the process safely and efficiently, ensuring your new setup is leak-free and code-compliant.

Why Switch From Floor Drain to Wall Drain?

Before diving into the tools and steps, it is essential to understand why this conversion is worth the effort. The primary motivation is usually aesthetics and functionality.

The Aesthetic Advantage

Floor drains require a vertical pipe section to connect the sink’s P-trap to the floor. This creates a visual clutter that is hard to hide, even in a cabinet. A wall drain allows the P-trap to sit horizontally against the back wall, creating a “floating” effect that looks significantly more modern.

Functional Benefits

• Increased Storage: Without the vertical pipe obstructing the center of the cabinet, you gain usable shelf space.
• Easier Cleaning: Fewer nooks and crannies around a vertical pipe mean less dust accumulation and easier wiping.
• Accessibility: For wheelchair users or those with mobility issues, a wall-drain setup often provides better knee clearance under the sink.

According to industry standards, converting to a wall drain can increase usable under-sink storage by up to 30%, depending on the vanity size. This small change can have a significant impact on daily convenience.

Tools and Materials You Will Need

Preparation is key to a successful plumbing project. Gathering the right tools before you start prevents mid-project trips to the hardware store.

Essential Tools

• Adjustable Wrenches (2): One for holding nuts, one for turning.
• Pipe Cutter or Hacksaw: For cutting existing PVC or ABS pipes.
• Drill with Hole Saw Kit: To create the new hole in the drywall or studs.
• Stud Finder: To locate safe drilling zones.
• Level: To ensure pipes are sloped correctly.
• Tape Measure & Pencil: For precise markings.
• Safety Gear: Gloves and safety glasses.

Materials

• Wall Drain Kit: Includes the escutcheon plate and stub-out adapter.
• PVC or ABS Pipes: Match your existing plumbing material (usually 1.5-inch diameter).
• P-Trap Kit: A new trap is recommended to ensure fresh seals.
• Primer and Cement: Specific to your pipe type (PVC or ABS).
• Teflon Tape: For threaded connections.
• Drywall Patch Kit: If you need to repair the old floor hole or new wall cut.

Pro Tip: Always check your local building codes before starting. Some jurisdictions require permits for altering drainage lines. For general plumbing definitions and standards, you can refer to Wikipedia’s entry on Plumbing to understand the broader context of residential systems.

Step-by-Step Guide: Converting Floor Plumbing to Wall

This tutorial assumes you are working with a standard bathroom vanity and existing PVC or ABS drainage lines. If you have cast iron pipes, consider hiring a professional, as cutting and connecting to cast iron requires specialized tools.

Step 1: Shut Off Water and Prepare the Area

Safety first. Turn off the water supply valves under the sink. Open the faucet to drain any remaining water in the lines. Place a bucket under the P-trap to catch residual water when you disconnect it.

Remove the existing P-trap and the vertical tailpiece extending toward the floor. Clean the area thoroughly. You now have an open drain hole in the floor and a disconnected sink drain outlet.

Step 2: Determine the New Wall Drain Height

The height of your new wall drain is critical. It must be lower than the sink’s drain outlet but high enough to allow proper slope for the P-trap.

1. Measure the distance from the floor to the bottom of the sink’s drain outlet.
2. Subtract approximately 4 to 6 inches. This is your target height for the center of the new wall drain.
3. Use a stud finder to ensure you are not drilling directly into a stud where the main drain line needs to pass. Ideally, you want to drill between studs or through a stud if you can route the pipe correctly.

Step 3: Cut the Hole in the Wall

Mark the center point for your new drain on the wall. Using your drill and hole saw, cut a hole slightly larger than the diameter of your drain pipe (usually 2 inches for a 1.5-inch pipe).

• Caution: Wear safety glasses to protect your eyes from drywall dust and debris.
• Ensure the hole is clean and free of jagged edges that could damage the pipe.

Step 4: Connect to the Existing Floor Drain Line

This is the most technical part. You need to redirect the horizontal flow from the wall to the existing vertical floor drain stack.

1. Access the Floor Pipe: You may need to cut the existing vertical floor pipe just below the floor level.
2. Install a Sanitary Tee or Wye: Fit a sanitary tee or wye fitting onto the existing floor drain line. This fitting should direct flow from the wall into the main drain stack.
3. Run the Horizontal Pipe: Connect a horizontal pipe from the wall hole to the new fitting on the floor line.
4. Ensure Proper Slope: Plumbing codes typically require a slope of 1/4 inch per foot for 1.5-inch pipes. Use your level to ensure the pipe slopes downward toward the main drain. Incorrect slope can lead to clogs and slow drainage.

Step 5: Install the Wall Stub-Out

Insert the new wall drain stub-out through the hole you cut in Step 3. Secure it firmly to the wall studs using pipe straps or brackets. The stub-out should protrude from the wall by about 1 to 2 inches.

Apply primer and cement to all PVC/ABS joints. Allow the cement to cure for at least 15–30 minutes before testing, though full strength takes 24 hours.

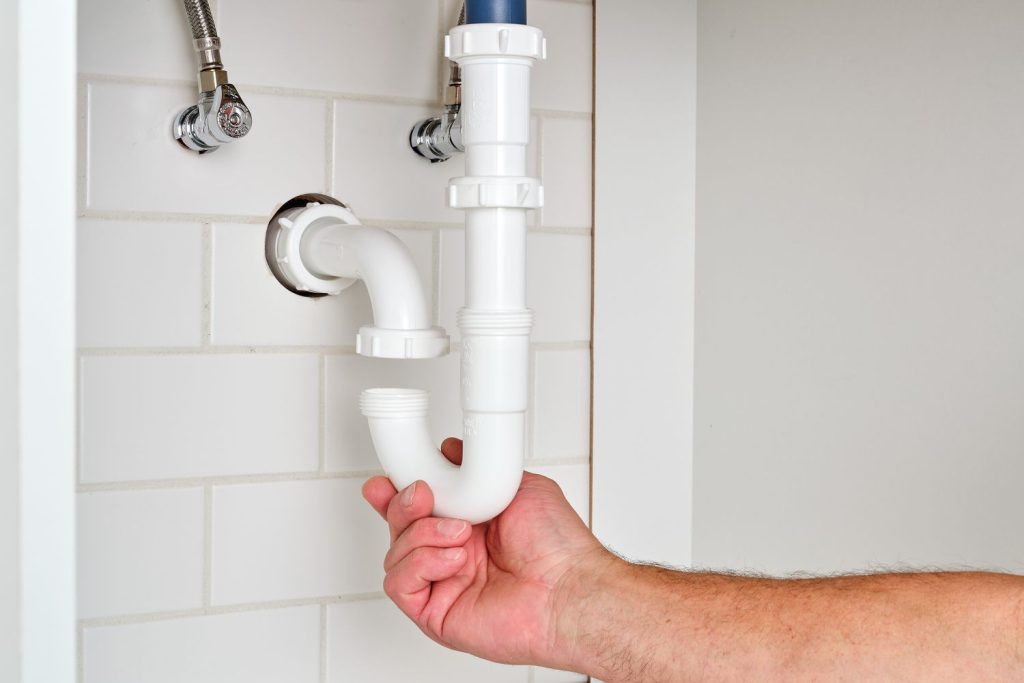

Step 6: Reconnect the Sink P-Trap

Now that the wall drain is in place, reconnect the sink.

1. Attach the new P-trap to the sink’s tailpiece.
2. Connect the other end of the P-trap to the new wall stub-out.
3. Tighten the slip nuts by hand, then give them a quarter-turn with pliers. Do not overtighten, as this can crack the plastic or distort the washers, leading to leaks.
4. Install the escutcheon plate (flange) against the wall to cover the hole and provide a finished look.

Step 7: Test for Leaks

Turn the water supply back on. Run water in the sink for several minutes. Check every joint for drips.

• If you see a leak: Tighten the nut slightly or disassemble and check the washer alignment.
• Check for drainage speed: Ensure the water drains quickly without gurgling, which indicates proper venting and slope.

Common Challenges and Solutions

FAQ: Frequently Asked Questions

1. Is it difficult to convert sink plumbing from floor to wall?

It is moderately challenging. If you are comfortable using basic tools and understanding pipe fittings, it is a doable weekend project. However, if you encounter cast iron pipes or complex venting issues, it is best to consult a licensed plumber.

2. Do I need a permit to move my sink drain?

In many US jurisdictions, moving a drain line requires a plumbing permit. Check with your local building department. Unpermitted work can cause issues when selling your home or if insurance claims arise from water damage.

3. Can I use flexible pipes for this conversion?

Flexible PVC pipes are available, but rigid PVC or ABS is preferred for permanent installations. Flexible pipes can sag over time, creating negative slopes that lead to clogs. Most plumbing codes restrict the use of flexible connectors for hidden wall installations.

4. What is the standard height for a wall sink drain?

The standard height for a bathroom vanity wall drain is typically 18 to 20 inches from the finished floor. However, this varies based on the vanity design and sink type. Always measure your specific setup.

5. Will this conversion affect my sink’s drainage speed?

No, if done correctly. As long as the pipe maintains the required 1/4 inch per foot slope and the venting system is intact, drainage speed should remain optimal. In some cases, it may even improve due to fewer sharp turns in the pipe path.

6. How much does it cost to convert floor drain to wall?

DIY costs typically range from $50 to $150 for materials (pipes, fittings, wall patch). Hiring a professional plumber can cost between $300 and $800, depending on labor rates and complexity.

Conclusion

Learning how to convert sink plumbing from floor to wall is a rewarding home improvement project that enhances both the beauty and utility of your bathroom. By following these steps, you can eliminate cluttered pipes, gain valuable storage space, and enjoy a modern, streamlined look.

Remember, patience and precision are your best tools. Double-check your measurements, ensure proper slope, and test thoroughly for leaks. If you feel unsure at any stage, do not hesitate to call a professional.
