How To Cut For Plumbing In Bottom Of Vanity: A Pro Guide

So, you’ve bought the perfect bathroom vanity. It looks stunning in the showroom, but now it’s sitting in your bathroom, and there’s a small problem: the pre-drilled hole doesn’t quite line up with your existing plumbing. Or worse, your new vanity came without any cutouts at all. It’s a frustrating moment that stops many DIYers in their tracks.

Don’t worry; this is a very common hurdle in bathroom renovations. Knowing how to cut for plumbing in bottom of vanity is a crucial skill that can save you hundreds of dollars in contractor fees. With the right tools and a steady hand, you can achieve a professional-looking result that protects your cabinet from water damage and ensures your pipes fit snugly. Let’s dive into exactly how to do it safely and effectively.

Why Precision Matters When Cutting Vanity Bottoms

Before we pick up a saw, it is important to understand why accuracy is non-negotiable. The bottom of your vanity cabinet is typically made of particleboard, MDF, or plywood. These materials are highly susceptible to moisture.

If your cut is too large, you leave gaps where humidity and potential leaks can seep in, causing the wood to swell, warp, or mold over time. If the cut is too small, you risk forcing pipes against the wood, which can lead to stress fractures in PVC or copper lines. According to general construction standards, maintaining a tight seal around plumbing penetrations is essential for the longevity of bathroom cabinetry.

Pro Tip: Always measure twice and cut once. A 1/4-inch error can mean the difference between a sleek installation and a costly replacement cabinet.

Tools You Will Need for the Job

To execute this task like a pro, you need the right equipment. Using improper tools can lead to jagged edges or splintered wood. Here is your essential toolkit:

• Jigsaw: Ideal for straight cuts and larger rectangular openings.

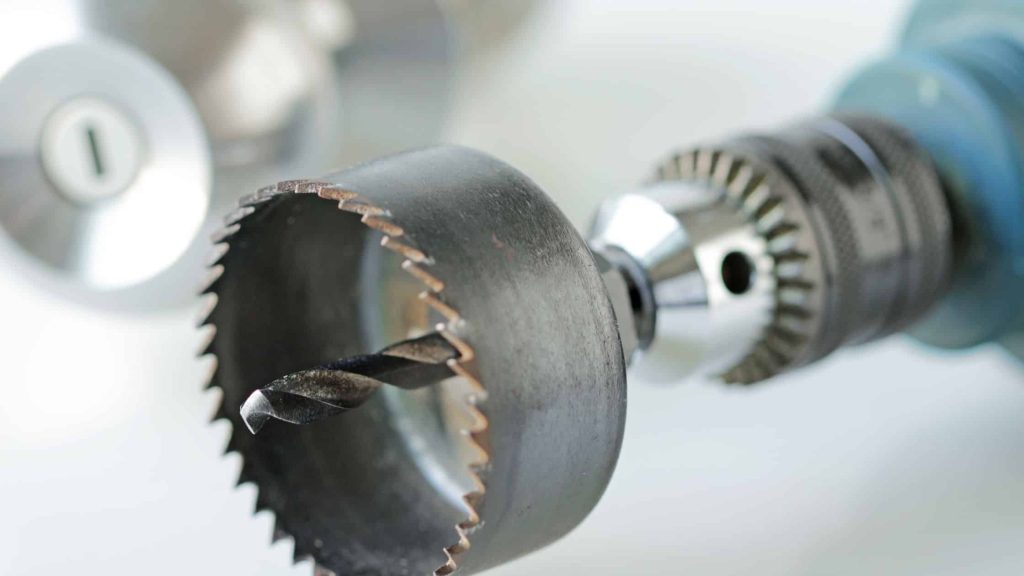

• Hole Saw Kit: Essential for circular cuts around drain pipes (typically 2-4 inches).
• Oscillating Multi-Tool: Great for plunge cuts if you cannot remove the drawer or back panel.
• Measuring Tape & Combination Square: For precise measurements.
• Pencil or Marker: For marking cut lines.
• Drill with Pilot Bit: To start your hole saw or jigsaw blade.
• Sandpaper (120-grit): To smooth rough edges.
• Silicone Caulk & Paintable Sealant: To waterproof the cut edges.

Step-by-Step: How To Cut For Plumbing In Bottom Of Vanity

Follow these detailed steps to ensure a clean, functional cutout.

Step 1: Measure and Mark the Location

First, you need to determine exactly where the pipes exit the wall or floor. Place the vanity in its final position (temporarily) or measure from the back corner of the cabinet to the center of the plumbing stack.

1. Transfer these measurements to the bottom of the vanity cabinet.
2. Use a combination square to draw a clear “X” or a circle where the pipe will pass through.
3. Critical Check: Ensure there are no drawers, shelves, or structural supports blocking this spot inside the cabinet. If there is a drawer, you may need to cut the drawer box as well, or modify the vanity design.

Step 2: Choose Your Cutting Method

The method depends on the shape of the opening required.

Option A: Circular Cut (For Drain Pipes)

Most sink drains require a round hole.

1. Select a hole saw bit that matches the diameter of your pipe plus an extra 1/2 inch for clearance. For a standard 1.5-inch drain pipe, a 2-inch or 2.5-inch hole saw is usually ideal.
2. Drill a small pilot hole in the center of your marked circle.
3. Attach the hole saw to your drill.
4. Drill slowly from the top side of the vanity bottom to prevent splintering. If the material is thick, drill halfway, flip the cabinet, and finish from the bottom to ensure a clean exit hole.

Option B: Rectangular/U-Shaped Cut (For P-Traps and Supply Lines)

If you have complex plumbing with hot/cold supply lines and a P-trap, a simple round hole won’t suffice. You’ll need a larger notch.

1. Mark the rectangular area needed to accommodate all pipes.
2. Drill a starter hole inside the marked area large enough for your jigsaw blade.
3. Insert the jigsaw blade and carefully cut along the marked lines.
4. Keep the jigsaw base plate flat against the wood to ensure a vertical cut.

Step 3: Test the Fit

Before finalizing, place the vanity back over the plumbing. Do not force it. The pipes should pass through the hole with minimal resistance. There should be about 1/4 to 1/2 inch of clearance around the pipes. This space allows for minor adjustments during installation and prevents vibration noise.

If the fit is tight, use a rasp or sandpaper to gently widen the hole. Never force the cabinet down onto the pipes, as this can crack the vanity bottom or damage the plumbing connections.

Step 4: Seal and Protect the Cut

This step is often skipped by amateurs but is vital for E-E-A-T compliant quality work. The raw edge of the cut wood is vulnerable to water.

1. Sand the edges smooth to remove splinters.
2. Apply a generous bead of 100% silicone caulk around the inner edge of the cutout.
3. Alternatively, use a brush-on polyurethane sealant if you prefer a paintable finish.
4. This creates a moisture barrier, protecting the integrity of the vanity bottom for years to come.

Common Mistakes to Avoid

Expert Insight: Dealing with Different Vanity Materials

Not all vanities are created equal. The material dictates your approach:

• Particleboard/MDF: These are dense but crumble easily when wet. Use a fine-tooth jigsaw blade and go slow. Sealing is mandatory.
• Plywood: More forgiving and stronger. It handles jigsaw cuts well but can still splinter. Use a backing board if possible.
• Solid Wood: Rare for modern vanity bottoms, but if present, it can be cut with standard woodworking tools. It expands and contracts with humidity, so leave slightly more clearance.

For more detailed information on wood properties and moisture resistance, you can refer to the Wood Material Science resources on Wikipedia, which provides an excellent overview of how different timber types react to environmental changes.

FAQ Section

1. What size hole do I need for a bathroom sink drain?

Typically, a 2-inch to 2.5-inch hole is sufficient for a standard 1.5-inch drain pipe. This provides enough clearance for the pipe and any insulation or wrapping without leaving a massive gap. Always measure your specific pipe diameter first.

2. Can I cut the vanity bottom after it is installed?

It is extremely difficult and risky to cut the bottom after the vanity is glued and screwed in place. You risk damaging the wall, the floor, and the plumbing. It is always best to perform the cut before setting the vanity in its final position.

3. What if my vanity has a drawer in the way of the plumbing?

You have two options. First, you can cut a corresponding hole in the drawer box itself, though this reduces storage space. Second, you can opt for a “false front” drawer design where the back of the drawer is cut out, or simply remove the drawer entirely and replace it with a fixed panel if storage isn’t a priority.

4. Is it better to use a hole saw or a jigsaw?

Use a hole saw for simple, circular drain pipes. It is faster and cleaner. Use a jigsaw for complex shapes, rectangular notches, or when you need to cut around multiple pipes (hot, cold, and drain) simultaneously.

5. How do I prevent the laminate from chipping when cutting?

Apply painter’s tape over the area you intend to cut. Mark your lines on the tape. This helps hold the laminate surface together and reduces chipping. Additionally, use a blade with fine teeth (high TPI – Teeth Per Inch) designed for laminate or metal.

6. Do I need to support the vanity bottom after cutting a large hole?

If you are removing a significant portion of the structural bottom (more than 30%), you may need to add wooden cleats or braces inside the cabinet to maintain rigidity. For standard plumbing holes, the remaining material is usually sufficient to support the weight of the sink and countertop.

Conclusion

Learning how to cut for plumbing in bottom of vanity is a empowering DIY skill that bridges the gap between a frustrating renovation stall and a beautiful, functional bathroom. By measuring carefully, choosing the right tool for the material, and sealing your work properly, you ensure a durable installation that stands the test of time.

Remember, patience is key. Rushing the cut can lead to expensive mistakes. Take your time, double-check your measurements, and don’t forget to seal those edges!
