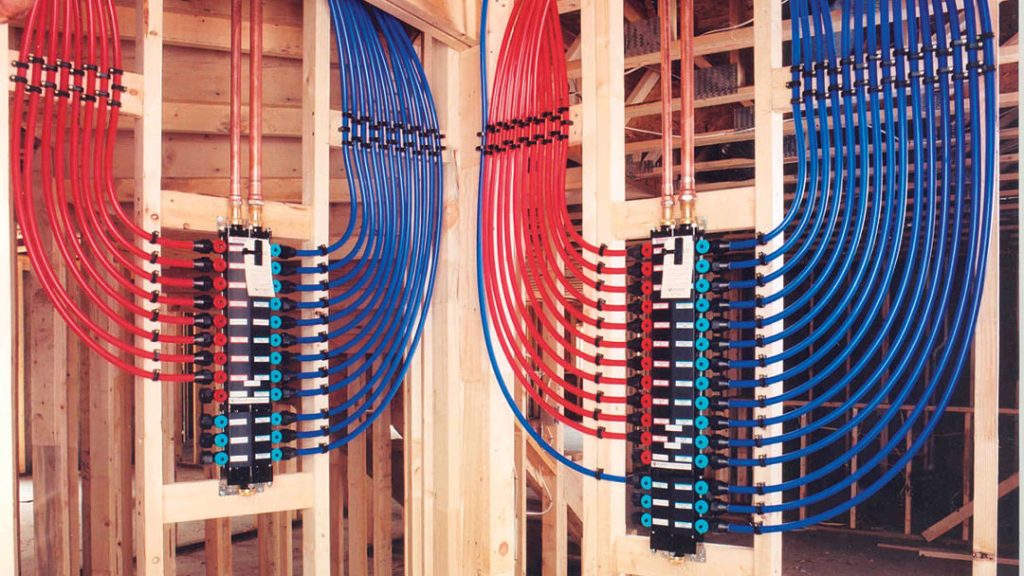

How To Design A Pex Plumbing Trunk And Branch

Are you planning a bathroom remodel or a new home build and feeling overwhelmed by the maze of pipes behind the walls? You are not alone; many homeowners and junior plumbers struggle to balance water pressure and ensure consistent flow throughout the house. Understanding how to design a Pex plumbing trunk and branch system is the key to solving these issues, offering a reliable, cost-effective, and efficient solution for modern residential plumbing.

Unlike the older “home run” manifold systems that require endless lines running from a central point, the trunk and branch method mimics the traditional copper piping layout but with the flexibility and durability of cross-linked polyethylene (PEX). This guide will walk you through the exact steps to plan your layout, calculate pipe sizes, and avoid common pitfalls, ensuring your water flows smoothly every time you turn on the tap.

What Is a Trunk and Branch PEX System?

Before diving into the calculations, it is crucial to understand the architecture. A trunk and branch system uses a large-diameter main line (the trunk) that runs through the house, typically in the attic, basement, or crawlspace. Smaller diameter lines (the branches) tee off from this main trunk to supply individual fixtures like sinks, toilets, and showers.

This hybrid approach offers the best of both worlds:

• Efficiency: It uses less tubing than a home-run manifold system.
• Performance: It maintains better pressure consistency than poorly designed traditional layouts.
• Simplicity: It requires fewer fittings than a manifold setup, reducing potential leak points.

According to industry standards, this method is widely accepted in the US for both new constructions and retrofits because it balances material costs with hydraulic performance.

Step 1: Calculate Your Water Demand (Fixture Units)

The most critical step in learning how to design a Pex plumbing trunk and branch system is determining how much water your house needs simultaneously. You cannot simply guess pipe sizes; you must calculate the load.

Understanding Fixture Units (FU)

Plumbers use “Fixture Units” to measure the demand of different appliances. A toilet has a lower demand than a washing machine.

• Toilet: 2–3 FU
• Bathroom Sink: 1.5 FU
• Shower/Tub: 2 FU
• Kitchen Sink: 2 FU
• Washing Machine: 3 FU

The Diversity Factor

Not all fixtures run at the same time. The probability of simultaneous use decreases as the number of fixtures increases. For example, while you might use the kitchen sink and a bathroom sink simultaneously, it is unlikely that all five bathrooms in a house are running showers at the exact same second.

Pro Tip: Use the Hunter’s Curve or standard IPC (International Plumbing Code) tables to convert total Fixture Units into Gallons Per Minute (GPM). For a typical 2-bathroom home, you might expect a peak demand of 6–8 GPM.

Step 2: Determine the Main Trunk Size

The main trunk acts as the highway for your water. If it is too narrow, traffic (water) jams, causing pressure drops when multiple fixtures are used.

Standard Sizing Guidelines

For most single-family homes in the US:

• 3/4-inch PEX: This is the standard size for the main trunk line supplying cold and hot water. It can handle up to 10–12 GPM with acceptable pressure loss over reasonable distances.
• 1-inch PEX: Recommended for larger homes (3+ bathrooms) or long runs exceeding 100 feet from the water heater/main supply.

Note: Always check local codes, as some municipalities have specific requirements for minimum pipe diameters.

Step 3: Plan the Branch Lines and Drops

Once the trunk is sized, you need to design the branches that feed the fixtures. This is where precision matters to ensure that flushing a toilet doesn’t cause the shower to scald the user.

Branch Sizing Rules

• 1/2-inch PEX: Used for individual fixture supplies (sinks, toilets, showers). This is the standard “drop” size.
• 3/4-inch PEX: May be required for high-demand fixtures like large soaking tubs or if the branch run is exceptionally long (over 50 feet) from the trunk.

Layout Strategy

1. Run the Trunk: Lay the main 3/4″ line along the most central path of the house to minimize branch lengths.
2. Tee Off Strategically: Use PEX tees to create branches. Avoid placing tees too close together (maintain at least 6–12 inches between fittings) to reduce stress on the pipe.
3. Minimize Elbows: Every 90-degree elbow adds friction loss. Use 45-degree elbows or sweep bends where possible to maintain pressure.

For more detailed technical specifications on fluid dynamics in piping, you can refer to general engineering principles on Wikipedia’s Pipe Flow page, which explains the physics behind friction loss and velocity.

Step 4: Address Pressure Loss and Friction

A common mistake in DIY plumbing is ignoring friction loss. PEX pipe has a smoother interior than copper, which is an advantage, but length and fittings still reduce pressure.

Key Factors Affecting Pressure

• Length: The longer the pipe, the greater the pressure drop.
• Fittings: Each tee, elbow, or valve restricts flow slightly.
• Temperature: Hot water PEX lines may have slightly different expansion characteristics, but flow resistance is similar to cold lines.

The 5 PSI Rule

Aim for a maximum pressure loss of 5 PSI from the source to the furthest fixture under peak demand. If your incoming water pressure is 60 PSI, the fixture should see no less than 55 PSI when other appliances are running. If you calculate a higher loss, you must upsize the trunk or branch pipes.

Step 5: Installation Best Practices for Trunk and Branch

Designing is only half the battle; proper installation ensures the design works in reality.

Securing the Pipes

• Support Intervals: Secure PEX pipes every 32 inches for horizontal runs and every 4 feet for vertical runs.
• Avoid Kinks: PEX is flexible, but kinking restricts flow permanently. Use bend supports when turning corners.
• Expansion Gap: Allow for slight expansion and contraction. Do not pull the pipe tight; leave a little slack.

Insulation is Mandatory

In unconditioned spaces (attics/crawlspaces), insulate both hot and cold lines.

• Hot Lines: Prevents heat loss and saves energy.
• Cold Lines: Prevents condensation (sweating) which can damage drywall and promotes mold growth. In freezing climates, insulation is critical to prevent burst pipes.

Color Coding

Always use Red PEX for hot water and Blue PEX for cold water. While clear or white PEX exists, color-coded pipes prevent costly mistakes during installation and future repairs.

Common Mistakes to Avoid

Even experienced DIYers can stumble when learning how to design a Pex plumbing trunk and branch system. Here are the top errors:

1. Undersizing the Trunk: Using 1/2″ pipe for the main trunk in a multi-bathroom home. This guarantees pressure drops.
2. Ignoring Future Needs: Not leaving capped ends for potential future additions (like a wet bar or outdoor spigot).
3. Poor Manifold Placement: If using a hybrid approach, placing the manifold in an inaccessible location.
4. Excessive Fittings: Using too many 90-degree turns instead of sweeping bends.

FAQ Section

Q1: Can I mix PEX trunk and branch with copper pipes?

A: Yes, this is very common in retrofits. You can run a PEX trunk through difficult areas (like finished walls) and transition to copper or CPVC for the final branch connections using appropriate transition fittings (e.g., PEX-to-Copper adapters). Ensure you use dielectric unions if connecting dissimilar metals to prevent corrosion.

Q2: Is a trunk and branch system better than a home-run manifold system?

A: It depends on your priority. Trunk and branch uses less material and is easier to install in tight spaces. However, a home-run manifold system allows you to shut off water to individual fixtures easily and has fewer joints in the walls. For most standard homes, trunk and branch is more cost-effective and provides excellent performance.

Q3: What is the maximum distance for a PEX branch line?

A: While PEX can run long distances, for a 1/2″ branch line, try to keep the distance from the trunk to the fixture under 50 feet to maintain optimal pressure. If the run is longer, consider upsizing to 3/4″ for that specific branch.

Q4: Do I need a recirculation pump with a trunk and branch system?

A: No, a recirculation pump is not required for the system to function. However, if you have long runs (over 70 feet) to distant bathrooms, a recirculation loop can provide instant hot water, improving convenience and saving water waste while waiting for the heat to arrive.

Q5: How do I balance water pressure in a trunk and branch system?

A: Proper sizing is the primary way to balance pressure. If you find one fixture has low pressure, check for kinks or closed valves first. In rare cases, you can install pressure-balancing valves at the fixture level, but correct pipe sizing during the design phase should make this unnecessary.

Conclusion

Mastering how to design a Pex plumbing trunk and branch system empowers you to create a plumbing infrastructure that is durable, efficient, and budget-friendly. By correctly calculating your fixture units, sizing your main trunk to 3/4″ or 1″, and keeping branch runs efficient, you ensure consistent water pressure throughout your home.

Remember, the key to success lies in the planning phase. Take the time to map out your layout, respect the physics of water flow, and adhere to local building codes. A well-designed system not only performs better but also adds value to your property by reducing the risk of leaks and maintenance issues down the road.
