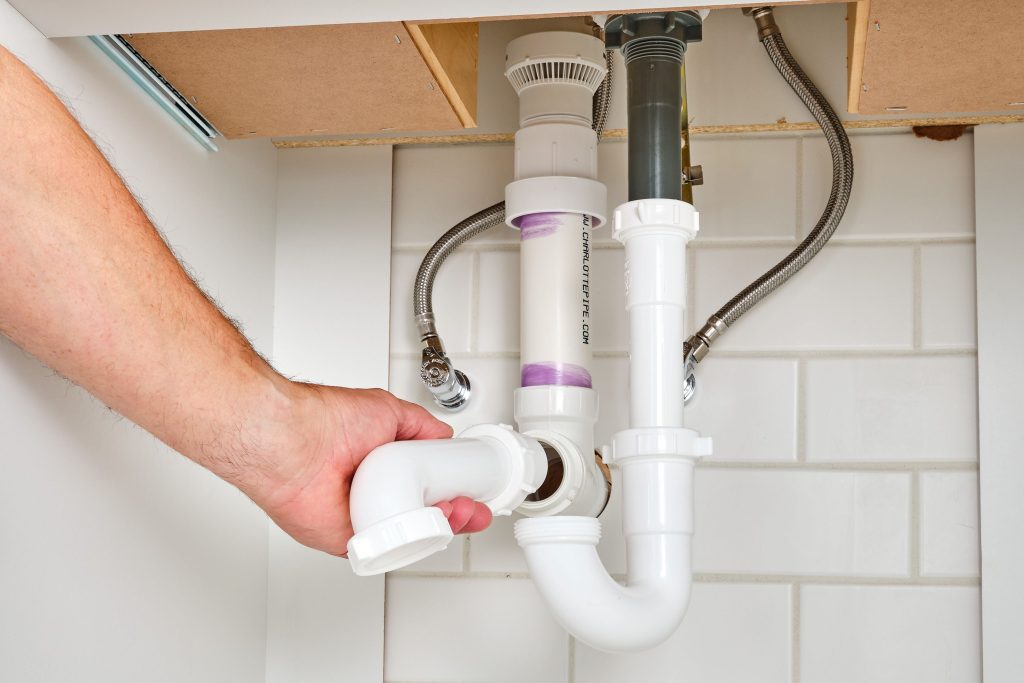

Is your kitchen sink draining slowly, or worse, emitting a foul sewer smell into your home? These are classic signs that your drainage system isn’t breathing properly, a problem that can quickly turn a simple meal prep into a sanitary nightmare. Understanding how to do kitchen sink plumbing connect to vent correctly is essential not just for performance, but for the health and safety of your household. In this guide, we will walk you through the mechanics of venting, ensuring you get it right the first time.
Why Your Kitchen Sink Needs a Vent
Before picking up a wrench, it is crucial to understand why vents exist. Many homeowners assume pipes only need to carry water away. However, plumbing is a closed system that relies on air pressure balance.
When water rushes down your drain, it creates a vacuum behind it. Without a vent to introduce air, this vacuum can siphon the water out of your P-trap—the U-shaped pipe under your sink. Once that water seal is gone, sewer gases enter your home. Furthermore, proper venting allows wastewater to flow smoothly by preventing “air locking,” which causes those annoying gurgling sounds and slow drains.
According to basic physics principles in fluid dynamics, air must replace the volume of water leaving the pipe to maintain atmospheric pressure. You can read more about the fundamental science of pressure systems on Wikipedia.
Understanding the Types of Vents
Not all vents are created equal. Depending on your kitchen’s layout and local building codes, you may use one of the following methods.
1. The Traditional Vertical Vent
This is the gold standard. A pipe runs vertically from the sink drain line, up through the roof, and exits above the eave line. This allows sewer gases to escape outdoors and air to enter freely.
2. The Air Admittance Valve (AAV)
Also known as a “Studor Vent,” this is a one-way mechanical valve. It opens to let air in when negative pressure is detected (when water drains) and closes tightly to prevent gas from escaping.
- Best for: Remodels where running a pipe to the roof is structurally difficult.
- Note: Always check if your local jurisdiction approves AAVs. Most US states do, but some have specific restrictions.
3. Island Loop Vent
If you have a kitchen island with no nearby walls, a loop vent rises from the drain, loops under the counter, and connects back into the main vent stack. This requires precise slope calculations.
Tools and Materials You Will Need
To successfully execute how to do kitchen sink plumbing connect to vent, gather these tools before starting. Precision is key in plumbing; missing a single washer can lead to leaks.
Tools:
- Adjustable wrenches (two are recommended)
- Hacksaw or PVC cutter
- Tape measure
- Level (torpedo level works best for tight spaces)
- Deburring tool or sandpaper
- Marker pencil
Materials:
- PVC or ABS piping (match your existing system material)
- P-Trap kit (1.5-inch diameter is standard for kitchens)
- Sanitary Tee or Wye fitting
- Air Admittance Valve (if not using a roof vent)
- PVC Primer and Cement (for PVC) or ABS Cement (for ABS)
- Teflon tape (for threaded connections)
Step-by-Step: Connecting the Sink to the Vent
Follow these steps carefully. We will assume a standard setup using an AAV for ease of installation in existing cabinetry, as this is the most common DIY scenario. If you are running a new vertical vent to the roof, the connection at the sink level remains similar, but the pipe extends upward.
Step 1: Measure and Cut the Drain Pipe
Start by measuring the distance from the sink tailpiece (the pipe coming directly out of the sink strainer) to the wall drain inlet.
- Dry-fit the P-trap components without glue.
- Ensure the trap arm (the horizontal pipe going into the wall) has a slight downward slope. The standard code requirement is 1/4 inch per foot of run.
- Mark your cut lines on the PVC pipe.
- Use your hacksaw or PVC cutter to make clean, straight cuts. Burrs inside the pipe can catch debris and cause clogs later, so use your deburring tool to smooth the edges.
Step 2: Install the P-Trap
The P-trap is your first line of defense against smells.
- Attach the slip nut and washer to the sink tailpiece.
- Insert the tailpiece into the top of the P-trap bend.
- Connect the other end of the P-trap to the trap arm.
- Hand-tighten all slip nuts. Do not use pliers yet. Over-tightening plastic nuts can crack them. Once aligned, give them a quarter-turn with pliers if necessary, but hand-tight is usually sufficient.
Step 3: Create the Vent Connection Point
This is the critical step in learning how to do kitchen sink plumbing connect to vent. You need to tie into the drain line after the P-trap but before it enters the wall.
- Locate the trap arm. You will need to insert a Sanitary Tee or a Wye fitting here.
- If you are using an AAV, the valve typically screws onto a threaded adapter.
- Cut the trap arm at the desired location. Ideally, the vent should connect as close to the P-trap as possible, within the limits allowed by code (usually within a certain distance based on pipe diameter).
- Install the fitting. If using solvent weld (glue), apply primer first, then cement. Push the pipe into the fitting with a quarter-turn twist to ensure an even seal. Hold for 15 seconds.
Step 4: Install the Vent Pipe
Now, extend the vent upward.
- Attach a vertical piece of pipe to the upward opening of your Sanitary Tee or Wye.
- If using an AAV: Screw the AAV onto the top of this vertical pipe. Ensure it is installed in the correct orientation (vertical). Most AAVs require at least 4 inches of clearance above any insulation or surrounding materials to function correctly.
- If using a traditional vent: Continue the PVC pipe upward, connecting it to the existing vent stack in the wall or running it through the cabinet top and into the attic/roof structure.
Step 5: Test for Leaks and Functionality
Never close up your cabinets without testing.
- Run hot water from the faucet for at least 60 seconds. Fill the sink partially and then release the stopper to create a surge of water.
- Check every joint for drips. Even a small bead of water indicates a failed seal.
- Listen for gurgling. If you hear gurgling, the vent may be blocked or improperly sized.
- Smell for odors. If you smell sewer gas, the P-trap may have been siphoned, or a connection is loose.
Common Mistakes to Avoid
Even experienced DIYers can stumble on these pitfalls. Avoiding them ensures your system passes inspection and functions long-term.
| Mistake | Consequence | Solution |
|---|---|---|
| Incorrect Slope | Water pools in the pipe, causing clogs. | Maintain a 1/4 inch drop per foot. Use a level. |
| Over-Gluing | Excess cement flows inside the pipe, creating a ridge. | Apply cement sparingly to the outer pipe and inner fitting. |
| Wrong Fitting Type | Using a regular Tee instead of a Sanitary Tee. | Always use Sanitary Tees or Wyes for drainage to allow smooth flow. |
| Ignoring Trap Arm Length | Too long without venting causes siphoning. | Keep the distance between the trap and vent within code limits (usually max 5 feet for 1.5″ pipe). |
FAQ: Frequently Asked Questions
1. Can I vent two kitchen sinks with one vent?
Yes, this is called a “common vent.” If you have a double-bowl sink, they share one P-trap and one vent connection. If you have two separate sinks (e.g., a main sink and a prep sink), they can share a vent if they are connected at the same elevation and the vent is sized correctly according to fixture units.
2. How high does an Air Admittance Valve (AAV) need to be installed?
An AAV must be installed at least 4 inches above the highest point of water entry (the flood level rim of the sink). It also needs to be accessible for future maintenance, so do not drywall over it.
3. What size pipe should I use for a kitchen sink vent?
For a standard residential kitchen sink, a 1.5-inch drain line is typical. The vent pipe can often be 1.5 inches as well, though some codes allow for a 1.25-inch vent for a single fixture. Always check your local plumbing code, as requirements vary by state.
4. Why does my sink gurgle when the dishwasher drains?
Gurgling indicates air is being pulled through the P-trap because the vent is insufficient or blocked. If you recently installed the plumbing, check that the AAV is not stuck closed or that the vent pipe isn’t obstructed. If it’s an older system, the vent stack on the roof might be clogged with leaves or debris.
5. Is it illegal to use an AAV in my house?
In most of the United States, AAVs are approved under the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC). However, some local municipalities have amendments that restrict their use. Always call your local building department before purchasing materials to ensure compliance.
Conclusion
Mastering how to do kitchen sink plumbing connect to vent empowers you to maintain a healthy, odor-free home. By ensuring proper airflow, you protect your P-trap seals and guarantee efficient drainage. Whether you choose a traditional roof vent or a modern Air Admittance Valve, the key lies in precise measurements, correct slopes, and secure connections.
Remember, plumbing is about precision. Take your time, double-check your fittings, and test thoroughly. If you found this guide helpful, please share it with your friends on social media who might be tackling their own DIY renovations. A well-vented sink is a happy sink!
