Have you ever stared at a blank wall, wondering exactly where those hidden pipes run before drilling a hole? It’s a common anxiety for homeowners and DIY enthusiasts alike. One wrong move can lead to costly water damage or expensive repairs. Knowing how to draw a map of plumbing plan retrospectively is not just a technical skill; it’s a safety net for your home improvement projects.
Whether you are planning a bathroom remodel, troubleshooting a leak, or simply want to understand your home’s infrastructure better, creating an “as-built” plumbing diagram is essential. This guide will walk you through the process with professional precision, ensuring you have a reliable reference for years to come.
Why You Need a Retrospective Plumbing Map
Before we pick up a pencil, let’s address the why. In the construction industry, original blueprints often get lost, or worse, they don’t reflect the changes made by previous owners. According to the Insurance Information Institute, water damage and freezing are among the most common homeowners insurance claims. Having an accurate map mitigates this risk.
A retrospective plan, also known as an as-built drawing, serves three critical purposes:
- Safety: Prevents accidental punctures during drilling or nailing.
- Efficiency: Helps plumbers locate issues faster, reducing labor costs.
- Value: Adds to your home’s documentation package, which can be appealing to future buyers.
Step 1: Gather Your Tools and Safety Gear
You don’t need expensive industrial equipment to start, but having the right tools makes the difference between a sketch and a professional-grade map.
Essential Toolkit
- Measuring Tape: A 25-foot tape measure is ideal for room dimensions.
- Graph Paper: Use ¼ inch scale paper for easier proportioning.
- Digital Camera or Smartphone: For documenting existing fixtures and pipe exposures.
- Stud Finder with AC/Metal Detection: Crucial for locating pipes behind drywall without invasive measures.
- Flashlight: To inspect dark crawl spaces, basements, or under sinks.
- Colored Pencils: Blue for cold water, red for hot water, and green or black for drain/waste lines.
Pro Tip: If you have access to a thermal imaging camera (you can rent these from many hardware stores), use it to detect temperature differences in walls caused by hot water pipes. This is a non-invasive way to trace lines accurately.
Step 2: Start with the “Wet Walls”
In residential construction, plumbers typically group plumbing fixtures along specific walls known as “wet walls.” This minimizes the amount of piping needed and simplifies venting.
Identifying Wet Walls
Look for walls that contain:
- Sinks (kitchen and bathroom)
- Toilets
- Showers or bathtubs
- Washing machines
Start your drawing by outlining the floor plan of your house. You don’t need to draw every piece of furniture; focus on the structural walls. Mark the location of every fixture you identified above.
Action Item: Measure the distance of each fixture from the nearest corner of the room. Record these measurements directly onto your graph paper. Accuracy here is vital. A deviation of even two inches can matter when installing new cabinetry.
Step 3: Trace the Supply Lines
Supply lines bring fresh water into your home. They are generally smaller in diameter (½ inch or ¾ inch) compared to drain lines.
The Logic of Flow
Water flows from the main source to the fixtures. In most US homes, the main water line enters either through the basement, crawlspace, or a utility closet.
- Locate the Main Shut-Off Valve: This is your starting point (Source).
- Trace the Branches: From the main line, pipes branch out to different zones (e.g., kitchen zone, bathroom zone).
- Hot vs. Cold: Remember that hot water lines must connect to the water heater. Trace the path from the heater to the fixtures.
When drawing this on your map:
- Use solid blue lines for cold water.
- Use solid red lines for hot water.
- Indicate the direction of flow with small arrows.
For more detailed information on standard residential plumbing systems, you can refer to the general overview on Wikipedia’s Domestic Water Plumbing page.
Step 4: Map the Drain-Waste-Vent (DWV) System
This is often the most confusing part for beginners. The DWV system relies on gravity, meaning pipes must slope downward toward the main sewer line or septic tank.
Key Components to Map
- Traps: The U-shaped pipe under every sink and tub that holds water to prevent sewer gases from entering the home.
- Vent Stacks: Pipes that extend through the roof. They allow air into the drainage system to prevent vacuum locks, ensuring water flows smoothly.
- Soil Stack: The large vertical pipe (usually 3-4 inches) that carries waste from toilets to the main drain.
Visualizing the Slope: On your 2D map, you cannot easily show slope, but you can note it. Add a note next to horizontal drain lines: “Slope ¼ inch per foot towards main stack.” This is the standard code requirement in most US jurisdictions.
Use dashed green lines to represent drain pipes on your map. This distinguishes them clearly from the supply lines.
Step 5: Verify with Non-Invasive Technology
Once you have a draft, you need to verify it. Guessing what’s behind the wall is risky. Here is how to confirm your retrospective map:
Using a Stud Finder
Modern stud finders have modes for detecting metal and live AC wires. Since copper and PEX pipes (with metal fittings) can be detected, scan the walls along your drawn lines.
- Mark the spots: Use painter’s tape to mark where the detector signals a pipe.
- Cross-reference: Compare these marks with your drawing. Do they align with your logical trace?
The Thermal Check
If you ran hot water in a sink for a few minutes, a thermal camera can show the heat signature of the pipe inside the wall. This is the most accurate way to confirm the exact path of hot water lines without cutting open drywall.
Common Challenges and Solutions
| Challenge | Solution |
|---|---|
| Pipes in Slab Foundations | Impossible to see directly. Rely on entry/exit points at fixtures and the main cleanout outside. |
| Old Galvanized Steel Pipes | These may be corroded and harder to detect with standard stud finders. Use acoustic listening devices if available. |
| PEX Tubing | Plastic PEX is invisible to metal detectors. You must rely on visual tracing at exposed points (under sinks, basement ceiling). |
| Missing Original Plans | Contact your local municipal building department. They often keep archives of permits and original plans for older homes. |
FAQ: Frequently Asked Questions
1. Is it legal to draw my own plumbing plan?
Yes, it is legal to draw a plan for your own reference and maintenance. However, if you are submitting plans for a major renovation permit, most local building departments require drawings to be signed by a licensed plumber or engineer. Always check local codes.
2. What is the difference between a plumbing plan and an isometric drawing?
A planning map (like the one we created) is a 2D top-down view, similar to a floor plan. An isometric drawing is a 3D representation that shows the vertical rise and fall of pipes. For retrospective mapping, a 2D plan is usually sufficient for homeowners, but professionals use isometrics for complex installations.
3. How often should I update my plumbing map?
You should update your map every time you perform a renovation that involves moving or adding pipes. Even replacing a water heater or adding a shut-off valve should be noted. Think of it as a living document.
4. Can I use software instead of paper?

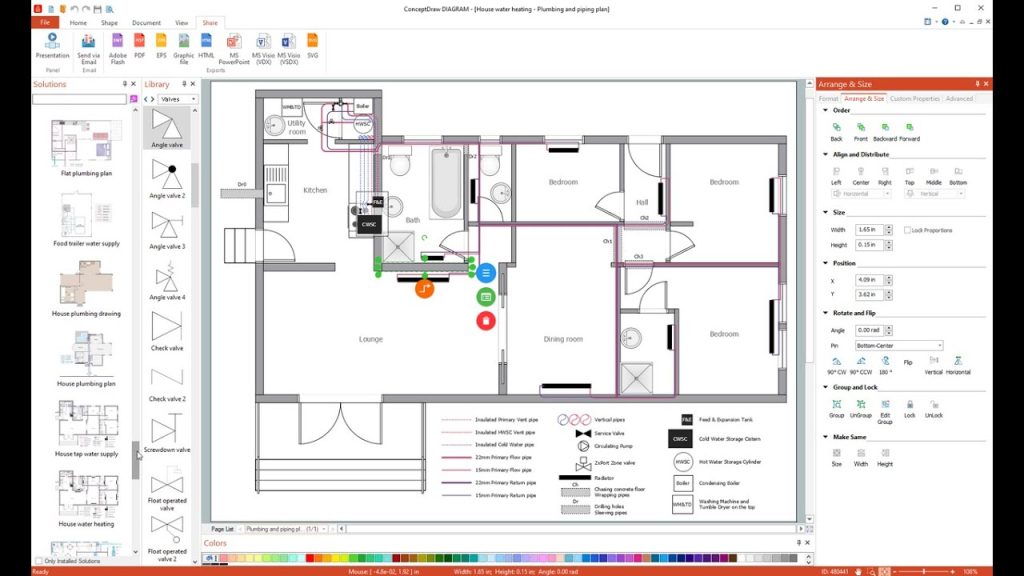

Absolutely. Software like SketchUp, AutoCAD, or even simpler apps like MagicPlan can help you create digital versions. Digital maps are easier to edit and share with contractors. However, starting with paper helps you understand the spatial relationships better before digitizing.
5. What if I can’t find the main cleanout?
The main cleanout is usually located near the foundation wall, either in the basement, crawlspace, or just outside the house. Look for a white or black PVC pipe with a screw-on cap. If you truly cannot find it, consult a professional plumber with a sewer camera inspection tool.
6. Does knowing how to draw a map of plumbing plan retrospectively save money?
Yes. By providing an accurate map to a plumber, you reduce their diagnostic time. Instead of spending hours hunting for a leak or tracing lines, they can go straight to the problem area. This can save hundreds of dollars in labor costs.
Conclusion
Learning how to draw a map of plumbing plan retrospectively empowers you to take control of your home’s maintenance. It transforms the unknown variables behind your walls into a clear, manageable system. By following the steps outlined above—identifying wet walls, tracing supply and drain lines, and verifying with technology—you create a valuable asset for your property.
Remember, accuracy is key. Take your time, double-check your measurements, and keep your map in a safe, accessible place.
Did you find this guide helpful? Share this article with your fellow DIY enthusiasts on social media or send it to a friend who is planning a renovation. Together, we can build safer, smarter homes.
