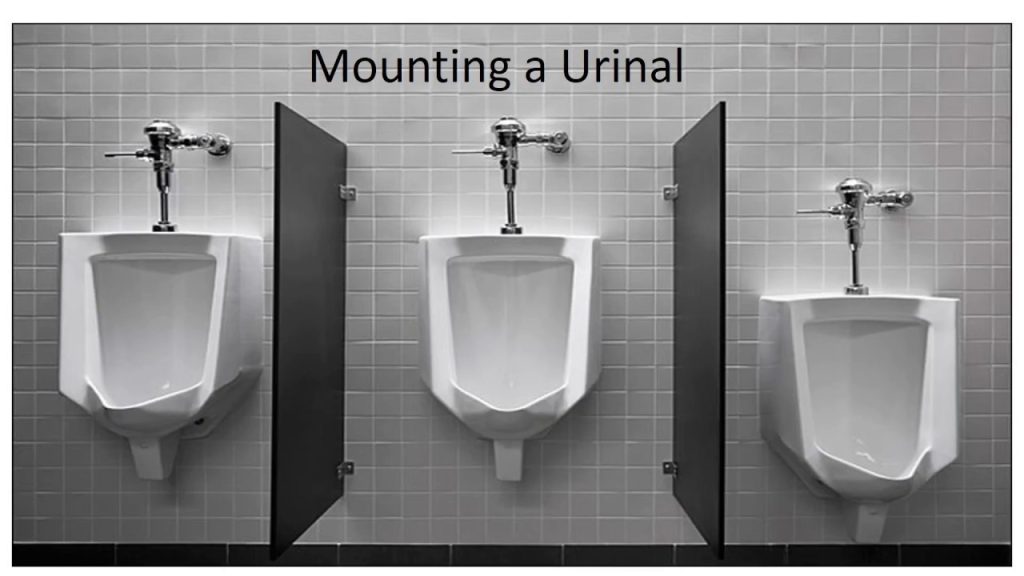

Installing a new fixture in your bathroom can feel intimidating, especially when water lines are involved. Many homeowners worry about leaks, incorrect pressure, or violating local building codes, which often leads to expensive plumber bills for what seems like a simple task. However, understanding how to hook the plumbing up in a urinal is a manageable DIY project if you have the right tools and follow precise steps. This guide will walk you through the process safely, ensuring your new urinal functions perfectly and looks professional.
Understanding the Basics: What You Need Before Starting
Before you pick up a wrench, it is crucial to understand the components involved. Unlike a toilet, a urinal typically requires a specific water supply line and a drainage connection that must align perfectly with your wall’s rough-in dimensions.
Essential Tools and Materials
To successfully complete this installation, gather the following items:
- Adjustable Wrenches: Two are recommended (one for holding, one for turning).
- Teflon Tape (PTFE): For sealing threaded connections.
- Pipe Thread Sealant: An extra layer of protection against leaks.
- Level: To ensure the urinal hangs straight.
- Drill and Masonry Bits: If you need to create new anchor holes.
- Supply Line: Typically a ½-inch flexible stainless steel braided hose.
- Wall Anchors and Screws: Usually provided with the urinal, but heavy-duty ones are better.
Checking Your Rough-In Dimensions
The “rough-in” is the distance from the finished wall to the center of the drain pipe. Most standard urinals have a 6-inch or 12-inch rough-in. Measure this carefully before purchasing your unit. If the measurements do not match, the urinal will not fit over the drain flange, leading to severe leakage issues.
Step 1: Preparing the Water Supply and Drain
The first phase of learning how to hook the plumbing up in a urinal involves preparing the existing infrastructure. If you are replacing an old unit, turn off the water supply valve and flush the old urinal to remove remaining water.
Safety First: Always shut off the main water supply or the specific branch line to the bathroom before cutting or unscrewing any pipes. Working under pressure can cause significant water damage in seconds.
If you are installing a new line, ensure the copper or PEX supply line ends with a threaded ½-inch male adapter. This adapter should protrude from the wall just enough to connect the supply line but not so much that it interferes with the urinal’s back panel.
For the drain, inspect the floor flange or wall outlet. It must be clean and free of old wax, putty, or debris. A clean surface is vital for creating a watertight seal with the new gasket.
Step 2: Installing the Mounting Hardware
Most modern urinals come with a mounting template. Use this to mark your drill holes on the wall.
- Mark the Holes: Hold the template against the wall, aligning it with your drain outlet. Use a pencil to mark the screw holes.
- Drill Pilot Holes: Using a masonry bit, drill holes at your marks. Ensure the depth matches the length of your wall anchors.
- Insert Anchors: Tap the plastic or lead anchors into the holes until they are flush with the wall.
- Attach the Bracket: If your urinal uses a metal mounting bracket, screw it into the anchors now. Use a level to ensure it is perfectly horizontal. An unlevel urinal can cause water to pool unevenly, leading to staining and odor issues.
Step 3: Connecting the Drain (The Spud Connection)
This is the most critical step in the process. The connection between the urinal and the drain pipe is often called the “spud” connection.
- Apply the Gasket: Place the rubber compression gasket (or wax ring, depending on the model) onto the drain inlet of the urinal. Do not stretch it; just seat it firmly.
- Position the Urinal: Lift the urinal and align the drain outlet with the wall flange. Simultaneously, align the mounting holes with the brackets or anchors you installed.
- Secure the Urinal: Insert the screws through the urinal’s mounting holes and into the wall anchors. Tighten them gradually. Do not overtighten, as porcelain can crack easily. Alternate between the left and right screws to apply even pressure.
According to industry standards, the urinal should sit firmly against the wall with no wobbling. Any movement here will break the seal over time.
Step 4: Hooking Up the Water Supply Line
Now that the unit is secure, you can focus on the water connection. This is where many DIYers make mistakes, leading to slow drips behind the wall.
- Prepare the Threads: Wrap Teflon tape around the threads of the water inlet valve on the urinal. Wrap it clockwise (looking at the end of the pipe) about 3–4 times. This ensures the tape doesn’t unravel when you screw on the nut.
- Connect the Supply Line: Attach one end of the flexible supply line to the urinal’s inlet valve. Hand-tighten it first, then use an adjustable wrench to give it a quarter-turn more.
- Connect to the Wall: Attach the other end of the supply line to the water stop valve coming out of the wall. Again, use Teflon tape and tighten securely.
Pro Tip: Ensure the supply line is not kinked or bent sharply. A restricted line can reduce water flow, affecting the flushing efficiency.
Step 5: Testing for Leaks and Adjusting Flow
Once everything is connected, it is time to test your work.
- Turn On the Water: Slowly open the water stop valve. Listen for hissing sounds, which indicate air escaping or high pressure.
- Check for Leaks: Use a dry paper towel to wipe around both connection points (the wall valve and the urinal inlet). If the towel gets wet, tighten the connection slightly.
- Flush Test: Activate the flush valve (manual or sensor). Watch the water flow into the urinal. It should rinse the entire bowl evenly and drain quickly without backing up.
If the water sprays too hard or too soft, you may need to adjust the flow rate using the screw on the flushometer valve. Refer to the manufacturer’s manual for specific adjustment instructions.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Overtightening Screws | Cracked porcelain | Tighten until snug, then stop. |
| Skipping Teflon Tape | Leaks at threads | Always use tape + sealant. |
| Ignoring Level | Poor drainage/Staining | Use a spirit level during install. |
| Wrong Rough-In | Unit won’t fit | Measure twice, buy once. |
For more detailed information on plumbing codes and standards, you can refer to Wikipedia’s article on Plumbing, which provides a global overview of regulatory frameworks.
FAQ Section
Q1: Can I install a urinal without a professional plumber?
Yes, if you have basic DIY skills and understand local plumbing codes. However, if you need to run new water lines or move the drain pipe, hiring a licensed plumber is recommended to ensure compliance and safety.
Q2: What is the standard height for a urinal?
The Americans with Disabilities Act (ADA) recommends that the rim of the urinal be no higher than 17 inches from the floor for accessible units. Standard commercial urinals are often installed with the rim at 24 inches, but residential preferences may vary.
Q3: Why is my urinal leaking at the base?
A leak at the base usually indicates a failed gasket or an uneven wall surface. Check if the urinal is level. If it is, you may need to remove the unit and replace the compression gasket or wax ring.
Q4: Do I need a vent for a urinal?
Yes, all plumbing fixtures require proper venting to prevent siphonage and allow wastewater to flow smoothly. If you are connecting to an existing stack, the vent is likely already in place. New installations must adhere to local code requirements for venting.
Q5: How do I clean the supply line connections?
Use a mild soap and water solution. Avoid harsh chemicals that can degrade the rubber washers inside the flexible supply lines. Regularly inspect for corrosion or mineral buildup.
Conclusion
Learning how to hook the plumbing up in a urinal empowers you to upgrade your bathroom with confidence. By following these steps—preparing the rough-in, securing the mount, sealing the drain, and connecting the water supply—you can achieve a professional-grade installation. Remember, patience and precision are key. Rushing the tightening process or skipping the level check can lead to costly repairs down the road.
