Renovating a bathroom can feel overwhelming, especially when it involves water lines and drainage. Many homeowners hesitate to tackle these projects due to fear of costly leaks or complex codes. However, understanding how to install plumbing for a tub and shower empowers you to take control of your renovation, ensuring safety, efficiency, and significant cost savings. This guide breaks down the process into manageable steps, blending professional insights with DIY-friendly instructions.
Understanding the Basics: Rough-In vs. Finish Plumbing
Before picking up a wrench, it is crucial to distinguish between the two main phases of plumbing installation. “Rough-in” plumbing involves installing the water supply lines, drain pipes, and vent stacks within the walls and floor before drywall or tile is applied. “Finish” plumbing occurs after the walls are closed and finished, involving the installation of the actual tub, shower valve trim, faucets, and showerheads.
For this guide, we focus primarily on the rough-in phase, as errors here are catastrophic and expensive to fix. According to the International Residential Code (IRC), all plumbing must be accessible for inspection before being covered. Ignoring this step can lead to failed inspections and mandatory demolition later.
What Tools and Materials Do You Need?
Having the right tools prevents frustration and ensures precise work. Here is a checklist of essentials:
- Tools: Pipe cutter or hacksaw, adjustable wrenches, pipe wrench, soldering torch (for copper), PEX crimping tool (if using PEX), level, tape measure, marker, and safety goggles.
- Materials: Copper or PEX piping (½ inch for supply lines), PVC or ABS piping (2 inches for drains), shower valve body, tub spout diverter, drain kit, Teflon tape, pipe dope, and hangers/straps.
Pro Tip: Always check local building codes. Some municipalities prohibit certain materials like PVC for specific applications or require licensed professionals for final connections.

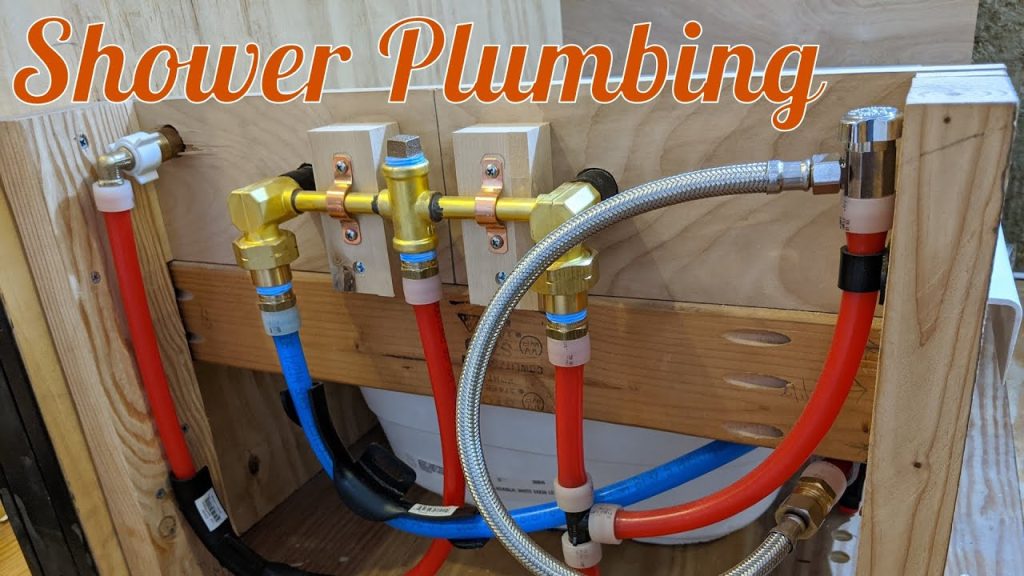

Step 1: Planning the Layout and Water Supply Lines
The first step in learning how to install plumbing for a tub and shower is mapping out your pipe routes. Standard bathtubs require two hot and cold water supply lines running to the shower valve location.
- Determine Valve Height: The standard height for a shower valve is between 45 and 48 inches from the finished floor. For tub-shower combos, it is often slightly lower, around 30–32 inches, to accommodate the tub spout below.
- Run the Lines: Cut your copper or PEX pipes to length. Ensure you leave enough slack (about 6–8 inches) protruding from the wall studs to connect to the valve body comfortably.
- Secure the Pipes: Use pipe hangers every 4–6 feet for horizontal runs and every 10 feet for vertical runs. Loose pipes can cause “water hammer,” a loud banging noise that damages joints over time.
Step 2: Installing the Shower Valve Body
The shower valve is the heart of your system. It controls water temperature and flow. Modern installations typically use pressure-balancing or thermostatic valves to prevent scalding.
- Positioning: Insert the valve body between the studs. It must be perfectly plumb (vertical) and level. If it is tilted, the trim plate will not sit flush against the wall later.
- Depth Adjustment: The front of the valve should align with the finished wall surface. If you are installing tile, account for the thickness of the cement board and tile (usually ½ to ¾ inch). Most valves have adjustable depth settings.
- Connection: Solder or crimp the hot and cold supply lines to the valve inputs. Use heat sinks (wet rags or commercial heat-absorbing pads) when soldering near plastic components to prevent melting.
Step 3: Connecting the Tub Spout and Diverter
In a tub-shower combination, water exits through either the tub spout or the showerhead, controlled by a diverter. There are two common types:
- Tee-Diverter: Located inside the tub spout itself. Water flows to the spout until you pull up the knob, redirecting it to the showerhead. This is simpler but less reliable over time.
- Gate-Diverter: Built into the valve body or a separate unit above the tub spout. This is more durable and provides better water pressure to the showerhead.
Installation Note: If using a slip-fit tub spout, ensure the copper pipe end is deburred and smooth to prevent cutting the O-ring inside the spout. For threaded spouts, use Teflon tape generously on the threads.
Step 4: Setting Up the Drain and Overflow System
The drain system removes wastewater and prevents sewer gases from entering your home via the P-trap.
- The P-Trap: This U-shaped pipe holds water, creating a seal. For bathtubs, the trap is usually located beneath the tub. Connect the 1½-inch or 2-inch drain pipe from the tub waste outlet to the P-trap.
- The Overflow Pipe: This connects to the upper hole in the tub wall. It prevents flooding if the tub overfills. Connect the overflow pipe to the drain assembly using a flexible or rigid linkage, depending on your kit.
- Sealing: Use plumber’s putty or silicone gaskets (as specified by the manufacturer) under the drain flange and overflow plate. Tighten securely but avoid overtightening, which can crack porcelain or fiberglass.
For a deeper understanding of drainage physics and venting requirements, refer to the Wikipedia entry on Drain-Waste-Vent systems. Proper venting is critical to allow air into the drainage system, preventing suction that could empty P-traps.
Step 5: Testing for Leaks Before Closing Walls
Never skip this step. Once all connections are made:
- Cap the Ends: Temporarily cap the showerhead arm and tub spout if they are not yet installed.
- Pressurize: Turn on the main water supply. Open the valve to let water flow through the lines.
- Inspect: Check every joint, solder point, and connection for drips or moisture. Use a dry paper towel to wipe joints; even small leaks will show up as wet spots.
- Drain Test: Fill the tub with a few inches of water and release it. Check the drain and overflow connections for leaks underneath.
If you find a leak, turn off the water, drain the lines, and repair the joint immediately. Fixing a leak behind tiled walls costs ten times more than fixing it now.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Incorrect Valve Depth | Trim kit won’t fit; leaks behind wall. | Measure wall thickness accurately; use extension kits if needed. |
| Poor Venting | Slow drainage; gurgling sounds. | Ensure vent pipe is within code distance from the trap. |
| Using Wrong Pipe Size | Low water pressure. | Use ½-inch supply lines minimum; 2-inch for drains. |
| Skipping Straps | Noisy pipes; joint stress. | Secure pipes every 4–6 feet with appropriate hangers. |
FAQ: Frequently Asked Questions
Q1: Can I install a shower valve without turning off the main water? A: No. You must shut off the main water supply or the specific branch line to the bathroom. Working on pressurized lines is dangerous and will result in significant water damage.
Q2: What is the best pipe material for shower plumbing? A: Copper is traditional and durable, but PEX (cross-linked polyethylene) is increasingly popular due to its flexibility, resistance to scale, and ease of installation. Both are accepted by most building codes.
Q3: How high should the showerhead pipe be? A: The standard height for a showerhead arm is 80 inches from the finished floor. However, this can be adjusted based on the height of the users.
Q4: Do I need a permit to install tub plumbing? A: In most US jurisdictions, yes. Plumbing work typically requires a permit and inspection to ensure it meets safety and health codes. Check with your local building department.
Q5: Why is my shower pressure low after installation? A: This could be due to debris in the lines, a restricted flow regulator in the showerhead, or incorrect pipe sizing. Flush the lines before installing the showerhead to remove sediment.
Conclusion
Learning how to install plumbing for a tub and shower is a rewarding skill that enhances your home’s value and functionality. By carefully planning your layout, selecting quality materials, and rigorously testing for leaks, you can achieve a professional-grade result. Remember, patience and precision are your best tools. If you encounter complex issues, such as major rerouting of vent stacks, consult a licensed plumber.
