Building a new home is an exciting journey, but the hidden infrastructure behind your walls can quickly become a source of stress if not planned correctly. Many homeowners underestimate the complexity of piping systems, leading to expensive retrofits or inefficient water usage down the line. If you are wondering how to map out plumbing in a new home, you are in the right place. This guide will walk you through the essential steps to create a functional, code-compliant, and efficient plumbing layout that stands the test of time.
Why Proper Plumbing Mapping Matters
Before diving into the technical details, it is crucial to understand why meticulous planning is non-negotiable. Plumbing is not just about connecting pipes; it is about ensuring hygiene, safety, and comfort. A poorly mapped system can lead to low water pressure, frequent clogs, and even structural damage from leaks.
According to the National Association of Home Builders (NAHB), plumbing issues account for a significant portion of post-construction warranty claims. By investing time in the mapping phase, you save thousands in repairs and ensure your home’s value remains intact.
Step 1: Understand Local Building Codes and Regulations
The first step in learning how to map out plumbing in a new home is understanding the rules of the game. Plumbing codes vary significantly by state, county, and even municipality in the US.
Key Compliance Areas:
- Pipe Materials: Some areas ban PVC for certain indoor applications, preferring PEX or Copper.
- Venting Requirements: Every fixture needs proper venting to prevent sewer gases from entering the home.
- Trap Arm Lengths: There are strict limits on how far a fixture can be from its vent.
Pro Tip: Always consult your local building department before finalizing your plans. What works in Texas might be illegal in New York.
For a broader understanding of standardized plumbing practices, you can refer to general engineering principles outlined on Wikipedia’s Plumbing page, which provides historical context and basic system architectures used globally.

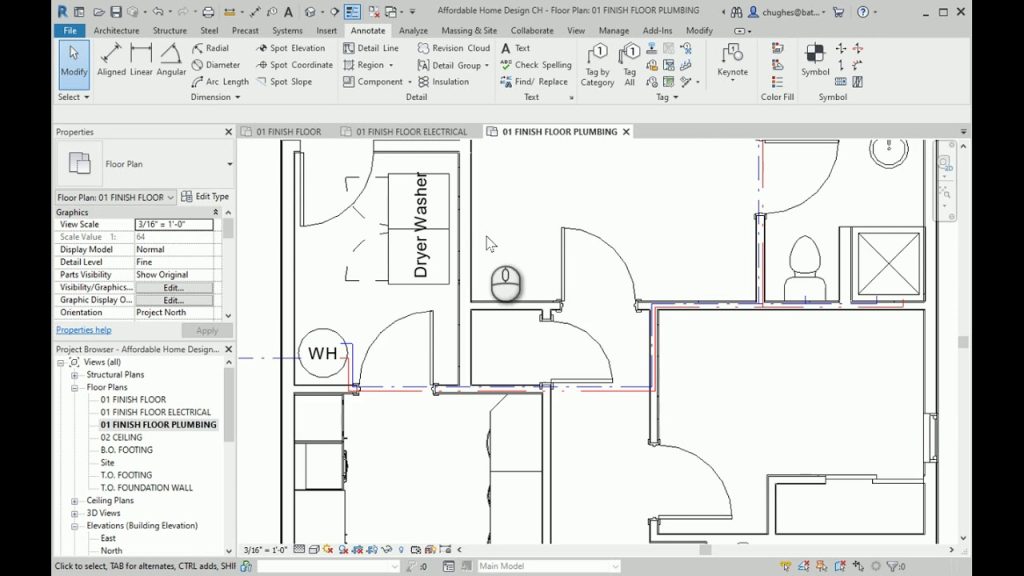

Step 2: Create a Detailed Floor Plan with Fixture Locations
You cannot map pipes without knowing where the water needs to go. Start with a scaled floor plan of your new home.
Identify Critical Zones
Group wet areas together to minimize pipe runs and reduce heat loss. Common zones include:
- Kitchen: Sink, dishwasher, ice maker fridge line.
- Bathrooms: Toilet, sink, shower/tub.
- Laundry Room: Washer hookup, utility sink.
- Water Heater Location: Ideally central to reduce wait time for hot water.
The “Stack” Strategy
In multi-story homes, align bathrooms and kitchens vertically. This allows you to use a single main soil stack (waste pipe) and vent stack, reducing material costs and simplifying installation.
| Zone | Primary Fixtures | Key Consideration |
|---|---|---|
| Kitchen | Sink, Dishwasher | Grease trap requirements (commercial vs. residential) |
| Master Bath | Toilet, Shower, Double Vanity | Water pressure balance for simultaneous use |
| Laundry | Washer, Dryer (gas/electric) | Drain height for modern high-efficiency washers |
Step 3: Choose the Right Piping Material
The material you choose affects longevity, cost, and ease of installation. Here is a comparison of the most common materials used in US new construction:
PEX (Cross-linked Polyethylene)
- Pros: Flexible, freeze-resistant, fewer fittings required (less leak potential), cost-effective.
- Cons: Cannot be used outdoors (UV sensitive), some concerns about chemical leaching (though certified safe).
- Best For: Most modern residential new builds.
Copper
- Pros: Durable, antimicrobial, high heat tolerance, adds home value.
- Cons: Expensive, requires soldering skills, prone to pinhole leaks in acidic water areas.
- Best For: High-end builds or areas with strict code requirements.
CPVC (Chlorinated Polyvinyl Chloride)
- Pros: Cheap, easy to cut and glue.
- Cons: Brittle over time, can crack if frozen, not as flexible as PEX.
- Best For: Budget-conscious projects in warm climates.
Step 4: Design the Water Supply System
Once fixtures and materials are selected, map the cold and hot water lines.
Cold Water Lines
These run directly from the main shut-off valve to each fixture. Ensure you include shut-off valves for individual fixtures (angle stops) to make future maintenance easier.
Hot Water Lines
Efficiency is key here. Long runs of hot water pipe mean wasted water and energy while waiting for heat.
- Recirculation Loops: Consider installing a recirculation pump if the water heater is far from the master bath. This provides instant hot water and reduces waste.
- Insulation: All hot water pipes should be insulated with foam sleeves to retain heat and prevent condensation on cold lines.
Step 5: Map the Drain-Waste-Vent (DWV) System
This is the most complex part of learning how to map out plumbing in a new home. Unlike supply lines which are under pressure, DWV systems rely on gravity.
The Golden Rule: Slope
Drain pipes must slope downward toward the main sewer line or septic tank.
- Standard Slope: 1/4 inch per foot for pipes up to 3 inches in diameter.
- Too Steep: Water outruns waste, leaving solids behind to clog the pipe.
- Too Flat: Waste doesn’t move efficiently, leading to blockages.
Venting Essentials
Every trap needs a vent to allow air in, preventing vacuum locks that suck water out of traps.
- Main Vent Stack: Extends through the roof.
- Air Admittance Valves (AAVs): Can be used under sinks where running a pipe to the roof is difficult, but check local codes as they are not permitted everywhere.
Step 6: Account for Future-Proofing
Smart homeowners plan for the future. When mapping your plumbing, consider:
- Rough-ins for Future Baths: If you have an unfinished basement, run stub-outs for a future bathroom. It is much cheaper to do this during initial construction than to break concrete later.
- Outdoor Spigots: Map out hose bibs on all sides of the house for gardening and cleaning.
- Water Filtration: Leave space and connections for a whole-house water filter or softener near the main entry point.
Common Mistakes to Avoid
- Ignoring Access Panels: Always install access panels behind tub/shower valves and cleanouts. You will need to service these eventually.
- Overlooking Water Pressure: If your municipal pressure is high (>80 psi), install a pressure-reducing valve (PRV) to protect your pipes and appliances.
- Crowding Pipes: Keep electrical wires and plumbing pipes separated. Never run electrical wires through the same hole as water pipes without proper grommets and separation distances to prevent shock hazards.
FAQ Section
Q1: Can I map out plumbing myself, or do I need a professional?
While you can draft the initial layout to visualize your needs, final plans usually require approval from a licensed plumber or engineer to ensure they meet local codes. DIY mapping is great for planning, but professional execution is recommended for safety and compliance.
Q2: What is the best layout for a small bathroom?
For small bathrooms, use a “wet wall” design where all plumbing fixtures share a single wall. This minimizes pipe runs, reduces costs, and simplifies insulation. Place the toilet closest to the main stack to reduce the chance of clogs.
Q3: How deep should water lines be buried in a new home?
Water supply lines entering the home must be buried below the frost line to prevent freezing. This depth varies by location—for example, it might be 12 inches in Florida but 4–6 feet in Minnesota. Check your local building code for the specific frost line depth in your area.
Q4: Should I use PEX or Copper for a new home?
For most new US homes, PEX is the preferred choice due to its flexibility, resistance to scale buildup, and lower installation cost. However, if you are building a luxury home where perceived value is critical, Copper may still be requested by some buyers.
Q5: How do I ensure good water pressure in a two-story home?
Use a manifold system (home-run method) with PEX. This involves running a dedicated line from the main manifold to each fixture. This ensures balanced pressure across all floors, unlike traditional trunk-and-branch systems where flushing a toilet might drop shower pressure.
Q6: What is a “cleanout” and where should it be placed?
A cleanout is an accessible opening in the drain pipe used to clear blockages. You should have at least one cleanout at the base of the main stack and another where the house drain exits the foundation. Additional cleanouts are recommended for long horizontal runs.
Conclusion
Learning how to map out plumbing in a new home is a critical skill that bridges the gap between a blueprint and a livable, functional space. By focusing on code compliance, efficient zoning, proper material selection, and future-proofing, you create a system that operates silently and reliably for decades.
Remember, the goal is not just to connect pipes, but to create a seamless flow of resources that supports your daily life. Take your time during the planning phase, consult with professionals when needed, and don’t hesitate to invest in quality materials.
