How To Plumb Drains For A Double Bathroom Sink

Are you upgrading your bathroom vanity but feeling overwhelmed by the maze of pipes underneath? You are not alone. Many homeowners hesitate to tackle this project because they fear leaks or complex configurations. However, learning how to plumb drains for a double bathroom sink is a manageable DIY task that can save you hundreds of dollars in plumber fees. With the right tools and a clear plan, you can achieve a professional, leak-free result that enhances both the functionality and aesthetic of your bathroom.

Understanding the Double Sink Drain Configuration

Before picking up a wrench, it is crucial to understand what makes a double sink different from a single one. The primary challenge is merging two separate drain lines into a single waste pipe that leads to your home’s main sewer line.

The Role of the Continuous Waste Kit

Unlike a single sink, a double vanity typically requires a continuous waste kit. This assembly connects both sinks via a horizontal pipe before directing water down into the P-trap. According to standard plumbing practices, this setup ensures that water from either basin flows smoothly without backing up into the other.

The configuration generally follows this path:

1. Tailpieces: Vertical pipes extending from each sink drain.
2. Tee Fitting: A connector that joins the two tailpieces.
3. Horizontal Arm: The pipe connecting the tee to the wall drain.
4. P-Trap: The U-shaped pipe that holds water to block sewer gases.

Pro Tip: Always check your local building codes. While most residential areas follow the International Plumbing Code (IPC), some municipalities have specific requirements for venting and pipe diameters.

Tools and Materials You Will Need

Having the right equipment on hand prevents mid-project trips to the hardware store. Here is a checklist for a successful installation:

Note: Ensure you purchase a drain kit specifically labeled for “double vanities.” Standard single-sink kits will not fit.

Step-by-Step Guide: How To Plumb Drains For A Double Bathroom Sink

Follow these detailed steps to ensure a secure and efficient drainage system.

Step 1: Prepare the Sink Drains

Start by installing the drain flanges into the bottom of each sink basin. Apply a rope of plumber’s putty around the underside of the flange. Insert it into the drain hole from the top, then secure it from below with the provided gasket and locking nut. Tighten firmly but avoid over-tightening, which can crack ceramic sinks. Wipe away any excess putty that squeezes out.

Step 2: Measure and Cut the Tailpieces

Attach the vertical tailpieces to the drain flanges. You may need to cut them to size so that they align properly with the horizontal tee fitting. Use a hacksaw for plastic pipes, ensuring the cut is straight and deburred (smooth edges) to prevent leaks.

• Measurement Tip: Leave enough length so the tailpieces extend at least 2–3 inches below the sink basin but do not touch the bottom of the cabinet.

Step 3: Assemble the Continuous Waste Tee

Connect the two tailpieces using the tee fitting. This component is the heart of the double sink system. Slide the slip nuts and washers onto the tailpieces before inserting them into the tee. Hand-tighten the nuts first, then use an adjustable wrench to give them a quarter-turn more.

• Critical Check: Ensure the outlet of the tee faces the wall drain. If it faces the wrong way, you will need to rotate the entire assembly or use additional elbow fittings.

Step 4: Connect to the Wall Drain

Now, connect the horizontal arm from the tee to the wall drain pipe. This section must have a slight downward slope (approximately 1/4 inch per foot) toward the wall to facilitate gravity-fed drainage.

If your wall drain is higher or lower than your tee outlet, you may need to use 45-degree elbows to adjust the angle. Avoid using 90-degree elbows if possible, as they can restrict flow and increase the risk of clogs.

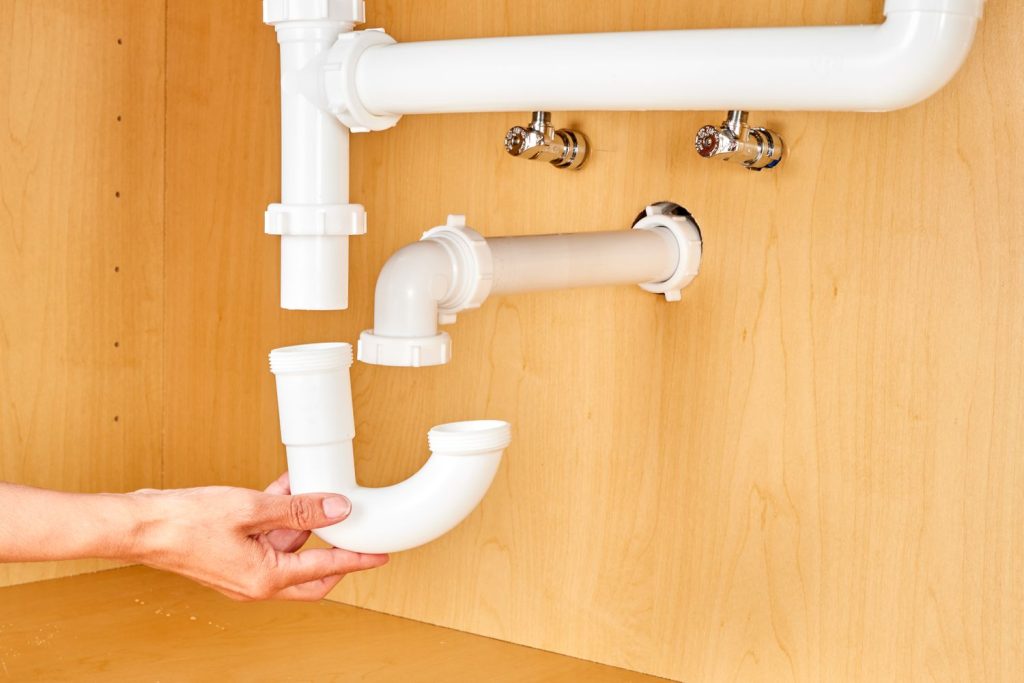

Step 5: Install the P-Trap

The P-trap is essential for preventing sewer gases from entering your home. Connect the P-trap to the end of the horizontal arm and then to the wall drain pipe.

1. Insert the slip nut and washer onto the pipe.
2. Push the pipe into the trap adapter.
3. Tighten the nut by hand, then snug it with a wrench.

For more detailed technical specifications on trap seals and venting requirements, you can refer to the Wikipedia page on Plumbing Traps, which provides an excellent overview of historical and modern standards.

Step 6: Test for Leaks

Once everything is assembled, turn on both faucets simultaneously. Let the water run for at least two minutes. Check every connection point for drips.

• If you see a leak: Tighten the corresponding slip nut slightly. If it persists, disassemble, check the washer for proper alignment, and reassemble.
• Check for drainage speed: If water drains slowly, there may be an airlock or a misalignment causing a restriction.

Common Mistakes to Avoid

Even experienced DIYers can make errors. Here are the most frequent pitfalls:

• Over-tightening Nuts: Plastic threads strip easily. Hand-tight plus a quarter-turn is usually sufficient.
• Ignoring Slope: A flat or upward-sloping horizontal pipe will cause standing water and eventual clogs.
• Missing Washers: Never install a slip nut without its rubber or plastic washer. These create the actual seal; the nut just provides pressure.
• Using Old Parts: Reusing old washers or corroded pipes is a recipe for disaster. Always use new components from your kit.

Pros and Cons: DIY vs. Hiring a Plumber

While hiring a professional offers peace of mind, many homeowners find that installing a double sink drain is well within their capabilities after reading a guide like this.

FAQ Section

Q1: Can I use a single P-trap for a double sink?

A: Yes, this is the standard method. Both sinks connect to a common tee, which then feeds into a single P-trap. This is more efficient and uses fewer parts than installing two separate traps.

Q2: Why is my double sink draining slowly?

A: Slow drainage is often caused by a lack of proper slope in the horizontal pipe or a partial clog in the P-trap. Ensure the pipe slopes downward toward the wall. If the problem persists, remove the P-trap and clean out any debris.

Q3: Do I need a vent for each sink?

A: Generally, no. As long as the common drain line is properly vented upstream (usually through the main stack or an air admittance valve), both sinks can share the same vent. However, local codes vary, so always verify with your municipal building department.

Q4: What size pipe should I use for a double bathroom sink?

A: Most residential bathroom sinks use 1.25-inch or 1.5-inch diameter pipes. The tailpieces and P-trap should match this size. Using a larger diameter than necessary can sometimes lead to slower drainage due to insufficient water volume to push waste through.

Q5: How often should I check for leaks under the sink?

A: It is good practice to visually inspect the connections every six months. Look for moisture, mineral deposits (white crust), or signs of corrosion. Early detection prevents water damage to your vanity cabinet.

Q6: Can I connect a dishwasher to this drain line?

A: No. Bathroom sink drains are not designed for the high-volume, high-temperature discharge of a dishwasher. Dishwashers must be connected to the kitchen sink drain or a dedicated laundry standpipe, adhering to specific code requirements for backflow prevention.

Conclusion

Learning how to plumb drains for a double bathroom sink empowers you to take control of your home improvement projects. By following the steps outlined above—preparing the drains, assembling the continuous waste kit, and ensuring proper slope—you can achieve a reliable, leak-free system. Remember, patience and attention to detail are your best tools.
