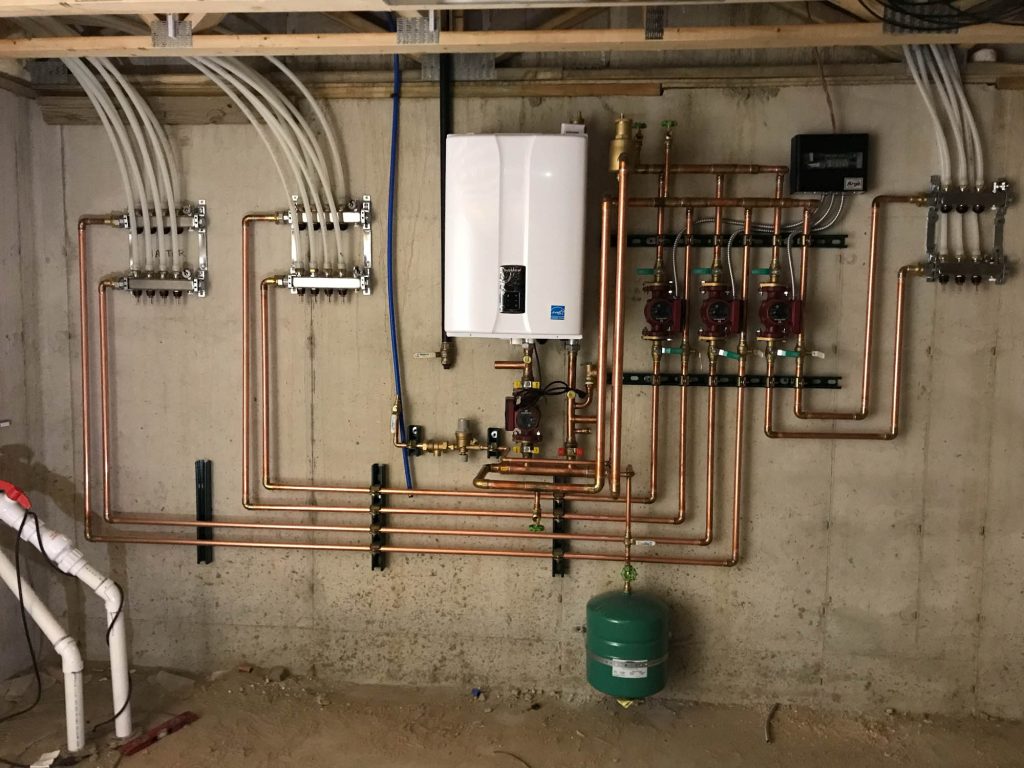

Are you tired of cold feet and uneven heating in your home? Many homeowners are turning to radiant floor systems for superior comfort, but figuring out how to plumb water heater in for infloor heating can seem daunting. This guide breaks down the process into manageable steps, ensuring you achieve a warm, efficient, and code-compliant system without the stress.
Understanding the Basics: Can You Use a Standard Water Heater?
Before picking up a wrench, it is crucial to understand the fundamental difference between domestic hot water and hydronic heating loops. While it is technically possible to use a standard residential water heater for radiant floor heating, it is not always the most efficient or durable choice.
Standard tank-style water heaters are designed to heat water for short bursts (showers, dishes), not for continuous circulation. However, with the right modifications and understanding of load calculations, they can work for small spaces like bathrooms or garages.
Key Considerations Before Starting
- BTU Output: Ensure your water heater has enough British Thermal Units (BTUs) to handle the square footage of your heated area.
- Recovery Rate: How quickly can the heater reheat the water after it circulates through the floors?
- Corrosion Risk: Continuous circulation introduces oxygen into the system, which can rust standard steel tanks faster than normal use.
Expert Insight: According to industry standards, using a dedicated boiler is often recommended for whole-house heating. However, for retrofits or small additions, a high-efficiency tankless or hybrid water heater can be a cost-effective alternative if plumbed correctly.
Essential Components for Your Radiant System
To successfully learn how to plumb water heater in for infloor heating, you need more than just pipes. You need a closed-loop system that protects your heater and ensures even heat distribution.
The Must-Have List
- Circulator Pump: Moves the water through the PEX tubing.
- Expansion Tank: Accommodates water expansion as it heats up, preventing pressure spikes.
- Mixing Valve: Crucial for protecting your water heater. It mixes cool return water with hot supply water to prevent thermal shock.
- Manifold: Distributes water to different zones (rooms).
- Air Separator: Removes air bubbles that can cause noise and reduce efficiency.
- PEX Tubing: Cross-linked polyethylene tubing is the standard for radiant floors due to its flexibility and durability.
| Component | Purpose | Why It’s Critical |
|---|---|---|
| Mixing Valve | Temperature Regulation | Prevents scalding hot water from damaging PEX and reduces thermal shock to the heater. |
| Expansion Tank | Pressure Management | Protects pipes and the heater from bursting due to thermal expansion. |
| Circulator Pump | Water Movement | Ensures consistent heat delivery; gravity flow is insufficient for most modern systems. |
Step-by-Step: How To Plumb Water Heater In For Infloor Heating
Follow these detailed steps to integrate your water heater into your radiant floor system. Always consult local building codes before starting, as regulations vary by state and municipality.
Step 1: Plan Your Loop Layout
Calculate the total length of PEX tubing needed. A typical loop should not exceed 300–400 feet to maintain proper flow and heat distribution. Divide your floor plan into zones based on room usage and insulation levels.
Step 2: Install the Manifold Station
Mount the manifold in a central location, preferably near the water heater. This will be the hub where supply lines go out and return lines come back. Ensure it is level and accessible for future maintenance.
Step 3: Connect the Circulator Pump and Expansion Tank
Install the circulator pump on the supply side of the system, after the mixing valve. The expansion tank should be connected to the system via a tee fitting, ideally near the pump inlet. This placement helps stabilize pressure throughout the cycle.
Step 4: Integrate the Mixing Valve
This is the most critical step in learning how to plumb water heater in for infloor heating.
- Connect the hot outlet of the water heater to the hot inlet of the mixing valve.
- Connect the return line from the manifold to the cold inlet of the mixing valve.
- Set the mixing valve to output water at 120°F–140°F (49°C–60°C). Most radiant floors operate best at lower temperatures than radiators.
Safety Note: Never send 180°F+ water directly into PEX tubing. It can degrade the material over time and create unsafe surface temperatures.
Step 5: Run the PEX Tubing
Lay the PEX tubing in your subfloor according to your layout plan. Use staple plates or aluminum heat transfer plates to secure the tubing and improve heat conduction. Keep bends gentle to avoid kinking.
Step 6: Pressure Test and Flush
Before connecting everything to the water heater, pressure test the PEX loops with air or water to check for leaks. Once confirmed leak-free, flush the system with clean water to remove debris.
Step 7: Final Connections and Fill
Connect the supply and return lines from the manifold to the mixing valve assembly. Fill the system with water, using an air separator to purge trapped air. Bleed each zone individually until water flows smoothly without sputtering.
Common Mistakes to Avoid
Even experienced DIYers can stumble when figuring out how to plumb water heater in for infloor heating. Here are the top pitfalls:
- Ignoring Oxygen Barrier PEX: Standard PEX allows oxygen to permeate the tube, leading to corrosion in metal components. Always use oxygen-barrier PEX for closed-loop heating systems.
- Undersizing the Pump: A weak pump won’t push water through long loops, resulting in cold spots. Calculate the head pressure and flow rate requirements carefully.
- Skipping the Expansion Tank: Without it, pressure builds up as water heats, potentially triggering the pressure relief valve constantly or damaging joints.
- Poor Insulation: If you don’t insulate beneath the PEX tubing, you’ll heat the ground below your house instead of your room. Use rigid foam insulation with a high R-value.
For more detailed technical specifications on hydronic systems, you can refer to resources like Wikipedia’s page on Radiant Heating to understand the historical and engineering context.
FAQ Section
Q1: Can I use my existing tank water heater for radiant floor heating?
A: Yes, but it is best suited for small areas. Ensure the heater has a high recovery rate and consider adding a storage tank buffer to prevent short-cycling. Tankless water heaters are often better suited for this application due to their on-demand heating capabilities.
Q2: What temperature should the water be for infloor heating?
A: Ideally, the water temperature should be between 100°F and 140°F (38°C–60°C). Lower temperatures are more energy-efficient and comfortable underfoot. High temperatures can damage flooring materials like vinyl or engineered wood.
Q3: Do I need a professional plumber for this project?
A: While DIY is possible, plumbing and electrical connections often require permits and inspections. If you are unsure about gas lines, electrical wiring for pumps, or local code compliance, hiring a licensed professional is strongly recommended for safety and insurance purposes.
Q4: How long does it take to install a radiant floor heating system?
A: For an average-sized room, the plumbing and tubing installation can take 2–3 days. However, if you are pouring concrete over the tubes, you must allow adequate curing time (usually 28 days) before installing the final floor covering.
Q5: Is radiant floor heating expensive to operate?
A: Generally, it is more efficient than forced-air systems because it heats objects and people directly rather than warming the air. When paired with a high-efficiency water heater or heat pump, operational costs can be significantly lower.
Q6: What type of flooring works best with radiant heating?
A: Tile and stone are the best conductors of heat. Engineered wood and laminate also work well. Solid hardwood can warp with temperature changes, and thick carpets act as insulators, reducing the system’s effectiveness.
Conclusion
Learning how to plumb water heater in for infloor heating is a rewarding project that can transform your home’s comfort level. By using the right components—like mixing valves, expansion tanks, and oxygen-barrier PEX—you can create a safe and efficient system. Remember to prioritize proper planning, adhere to local codes, and never skip the pressure testing phase.
