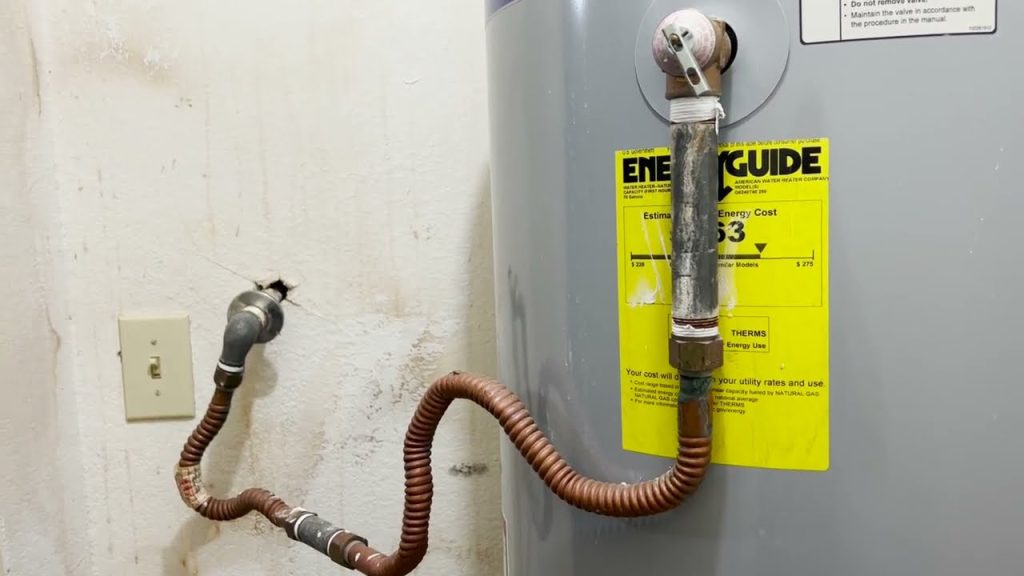

How To Plumb Water Heater Pressure Relief Valve Pipe

Is your water heater dripping from the side, or are you worried about potential pressure buildup causing a dangerous explosion? You are not alone; many homeowners face confusion when dealing with the Temperature and Pressure (T&P) relief valve. Understanding how to plumb water heater pressure relief valve pipe correctly is not just about fixing a leak—it is a critical safety measure that protects your home and family from catastrophic failure. In this guide, we will walk you through the exact steps to install this vital component correctly, ensuring compliance with local codes and peace of mind.

Why Is the T&P Relief Valve Pipe Critical?

Before diving into the tools and steps, it is essential to understand why this specific pipe matters. The T&P valve is your water heater’s last line of defense. If the thermostat fails and the water temperature rises above 210°F (99°C), or if the pressure exceeds 150 PSI, the valve opens to release hot water and steam.

Without a properly plumbed discharge pipe, this scalding water would spray directly onto the floor, your feet, or nearby appliances. According to the U.S. Consumer Product Safety Commission, thousands of injuries related to water heater explosions occur annually, many of which could be mitigated by proper safety valve maintenance and installation.

The Risks of Improper Plumbing

• Scalding Hazards: Discharged water can reach boiling temperatures instantly.
• Water Damage: Uncontrolled spraying can ruin flooring, drywall, and electrical systems.
• Code Violations: Incorrect piping can fail home inspections and void insurance claims.

Tools and Materials You Will Need

To ensure a professional-grade installation, gather these materials before starting. Using the right materials prevents future leaks and corrosion.

Pro Tip: Always check your local plumbing code. While national standards provide a baseline, cities like Los Angeles or New York may have specific requirements regarding material types (e.g., mandating copper over CPVC in certain zones).

Step-by-Step Guide: How To Plumb Water Heater Pressure Relief Valve Pipe

Follow these steps meticulously. Rushing this process can lead to leaks or safety hazards.

Step 1: Turn Off Power and Water Supply

Safety first. If you have an electric water heater, switch off the breaker at the main panel. For gas heaters, turn the gas control valve to the “Pilot” or “Off” position. Close the cold water inlet valve on top of the heater to stop water flow. Open a hot water faucet elsewhere in the house to relieve pressure in the tank.

Step 2: Inspect the Existing Valve and Port

Locate the T&P valve on the side or top of your water heater. Ensure the threads are clean. If you are replacing an old pipe, remove it carefully. If the valve itself is leaking or old (more than 5 years), consider replacing the valve entirely before plumbing the new pipe.

Step 3: Measure and Cut the Discharge Pipe

The discharge pipe must extend from the valve to within 6 inches of the floor, but no lower than 6 inches. This height ensures that if water discharges, it is visible and audible, alerting you to a problem, while preventing splash-back.

1. Measure the distance from the valve outlet to the desired endpoint.
2. Add extra length for fittings (elbows).
3. Cut the pipe using a tube cutter for a smooth edge. Burrs can restrict flow and cause turbulence.

Step 4: Assemble the Piping

Connect the pipe to the T&P valve.

• For CPVC: Apply primer and cement to both the pipe end and the fitting. Push together firmly and hold for 30 seconds.
• For Copper: Clean the ends, apply flux, and solder the joints using a propane torch. Ensure the flame does not damage the T&P valve’s internal components.

Crucial Rule: The pipe must run vertically downward as much as possible. Avoid horizontal runs unless absolutely necessary, and never install any valves, tees, or reducers in the discharge line. The path must be unrestricted.

Step 5: Secure the Pipe

Use pipe straps to secure the discharge pipe to the wall or the water heater stand every 4–6 feet. This prevents vibration from loosening the joints over time. Ensure the pipe is not supported by the T&P valve itself; the weight should rest on the straps.

Step 6: Test the System

Turn the water supply back on and allow the tank to fill. Check for leaks at the connection point. Once filled, restore power or gas. After the heater has run for a cycle, manually lift the test lever on the T&P valve briefly. You should hear water flow through the new pipe and out the end. If it drips continuously after you release the lever, the valve may be faulty.

Common Mistakes to Avoid

Even experienced DIYers make errors. Here are the most frequent pitfalls when learning how to plumb water heater pressure relief valve pipe:

1. Using the Wrong Material: Never use PVC (white pipe) for hot water discharge. It can warp and melt under high temperatures. Use CPVC (cream/yellowish), Copper, or PEX rated for high heat.
2. Capping the End: Never plug or cap the end of the discharge pipe. This turns a safety device into a bomb. If water cannot escape, pressure will build until the tank ruptures.
3. Reducing Pipe Diameter: The discharge pipe must be the same diameter as the valve outlet (usually 3/4 inch). Reducing it to 1/2 inch restricts flow and can cause dangerous pressure buildup.
4. Routing to a Drain Without Air Gap: If you route the pipe to a floor drain, there must be an air gap. The pipe should not be submerged in the drain water, as this can create a siphon effect or allow sewage gases to enter the system.

For more detailed technical specifications on safety valves, you can refer to the Wikipedia entry on Safety Valves, which outlines the engineering principles behind pressure relief mechanisms.

FAQ: Frequently Asked Questions

Q1: Can I use a flexible hose for the T&P discharge pipe?

A: No. Most plumbing codes prohibit the use of flexible hoses (like washing machine hoses) for T&P discharge lines. They can kink, degrade under high heat, and burst. Rigid piping like CPVC or Copper is required for safety and compliance.

Q2: Why is my T&P valve dripping after I installed the new pipe?

A: A slight drip immediately after testing is normal as the valve reseats. However, continuous dripping indicates either excessive pressure in your home’s water system (install a pressure reducing valve if pressure exceeds 80 PSI) or a faulty T&P valve that needs replacement.

Q3: How often should I test the T&P valve?

A: Experts recommend testing the valve once a year. Lift the lever briefly to ensure water flows freely. This prevents mineral deposits from sealing the valve shut, which is a common cause of failure.

Q4: Can I route the discharge pipe outside?

A: Yes, but it is generally discouraged in colder climates. If water freezes in the pipe, it will block the discharge path, rendering the safety valve useless. If you must go outside, ensure the pipe is insulated and has a downward slope to drain completely.

Q5: What is the maximum length for the discharge pipe?

A: While there is no strict federal maximum length, the shorter the better. Long runs increase friction and resistance. Keep the pipe as direct and vertical as possible. If the run is long, ensure you use the correct diameter (do not downsize) to maintain flow capacity.

Conclusion

Learning how to plumb water heater pressure relief valve pipe is a manageable DIY project that yields significant safety benefits. By using the correct materials, maintaining a clear downward path, and adhering to the 6-inch clearance rule, you ensure that your water heater operates safely and efficiently. Remember, this small pipe is a giant safeguard against potential disaster.
