Have you ever stood in the hardware aisle, staring at a wall of brass and PVC pieces, feeling completely overwhelmed? You are not alone. Identifying the correct part is the most critical step in any home repair, yet it is where most DIY enthusiasts get stuck. Misidentifying a fitting can lead to costly leaks, wasted time, and significant frustration.
This guide serves as your comprehensive visual reference for home plumbing accessories plumbing fittings names and pictures. Whether you are fixing a dripping faucet or installing a new sink, knowing exactly what you are holding in your hand is the first step toward a professional-quality repair. We have structured this article to mimic a downloadable PDF resource, allowing you to easily reference specific fittings as you work.
Why Correct Identification Matters for Home Safety
Before diving into the specific parts, it is essential to understand why precision matters. Plumbing systems operate under pressure. A mismatched fitting isn’t just an inconvenience; it is a safety hazard. According to insurance industry data, water damage is one of the most common home insurance claims in the United States, often stemming from failed connections or incorrect installations.
Using the wrong thread type (NPT vs. BSP) or material (copper vs. galvanized) can cause galvanic corrosion, leading to pipe bursts within months. By mastering the names and functions of these components, you protect your home’s structural integrity and save money on emergency plumber calls.

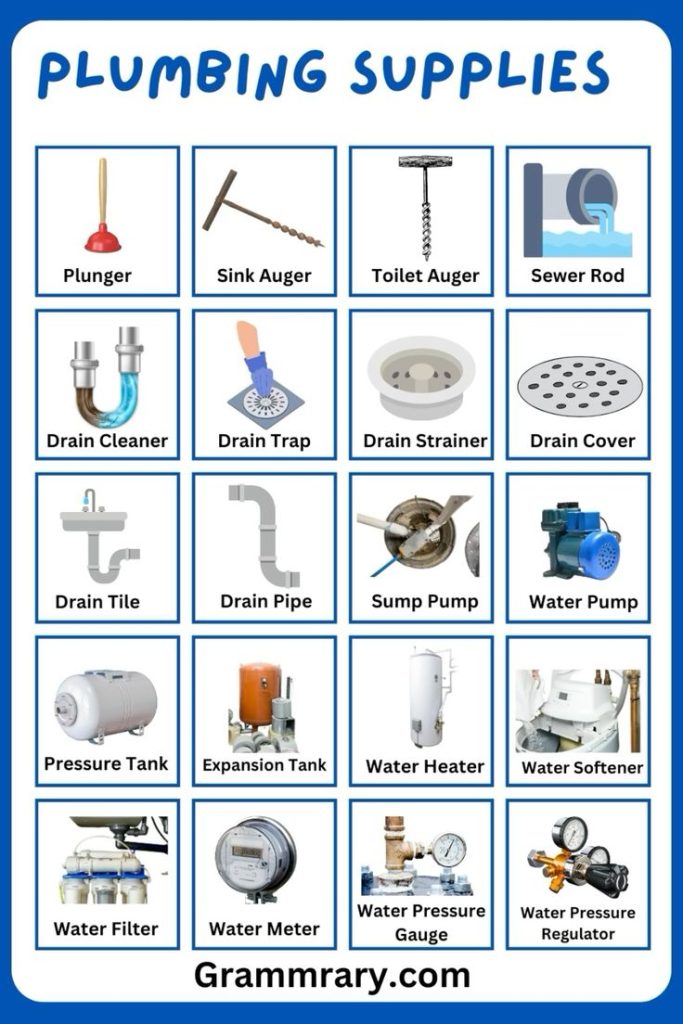

Common Plumbing Fittings: Names and Functions
To help you navigate your next project, we have categorized the most essential fittings. Think of this section as the “pages” of your digital PDF guide.
1. Elbows: Changing Direction
Elbows are perhaps the most recognizable fitting. They allow you to change the direction of the pipe flow.
- 90-Degree Elbow: Used to make a sharp right-angle turn. Common in connecting sinks to wall drains.
- 45-Degree Elbow: Used for gentler turns. These are preferred in drainage systems because they reduce resistance and prevent clogs compared to sharp 90-degree turns.
Pro Tip: In drainage lines, always use two 45-degree elbows instead of one 90-degree elbow if space permits. This improves flow efficiency significantly.
2. Tees: Splitting the Flow
As the name suggests, T-shaped fittings look like the letter “T.” They are used to combine or split water flow.
- Standard Tee: Connects three pipes. One inlet and two outlets (or vice versa).
- Sanitary Tee: Specifically designed for drainage. It has a curved center to guide waste water smoothly into the drain line, preventing blockages. Note: Never use a sanitary tee on its back (horizontal to horizontal) unless it is specifically rated for it.
3. Couplings and Unions: Connecting Pipes
When you need to join two pipes of the same diameter in a straight line, you use these fittings.
- Coupling: A simple slip-on fitting. It is permanent once glued or soldered. If you need to repair a section of pipe later, you must cut out the coupling.
- Union: Similar to a coupling but designed to be disconnected. It consists of three parts: two female ends and a nut in the middle. Unions are essential for connecting pipes to fixtures like water heaters or pumps, where future maintenance is expected.
4. Adapters: Bridging Different Materials
Not all pipes are made of the same material. Adapters allow you to connect different types of piping systems.
- Male/Female Adapter: Converts a plain pipe end into a threaded end.
- Dielectric Union: Crucial when connecting copper pipes to galvanized steel pipes. It contains a plastic spacer that prevents electrolysis (corrosion caused by two dissimilar metals touching).
5. Valves: Controlling the Water
While technically accessories, valves are vital fittings every homeowner should know.
- Ball Valve: Uses a rotating ball with a hole through it. They are highly reliable and provide a complete shut-off with a simple 90-degree turn of the handle. Recommended for main water shut-offs.
- Gate Valve: Uses a wedge-shaped gate. These are older technology and prone to failing over time. If you have gate valves, consider replacing them with ball valves during your next renovation.
Material Matters: Choosing the Right Fit
Understanding the name of the fitting is only half the battle. You must also match the material to your existing plumbing system. Using incompatible materials can lead to immediate leaks or long-term degradation.
| Material | Best Use Case | Connection Method | Durability |
|---|---|---|---|
| PVC | Drainage, Sewer, Cold Water | Solvent Cement (Glue) | High (Chemical Resistant) |
| CPVC | Hot and Cold Water Supply | Solvent Cement (Glue) | High (Heat Resistant) |
| Copper | Water Supply Lines | Soldering (Sweating) | Very High (Long-lasting) |
| PEX | Water Supply (Retrofit/New) | Crimp/Clamp Rings | High (Flexible) |
| Brass | Transitions, Fixtures | Threaded/Solder | Very High (Corrosion Resistant) |
For a deeper understanding of material properties and historical context in plumbing systems, you can refer to the detailed technical specifications on Wikipedia’s page on Plumbing. This external resource provides excellent background on how standardization has evolved over the decades.
How to Measure and Identify Fittings Step-by-Step
If you are heading to the store, do not guess. Follow this precise method to ensure you buy the correct part.
- Determine the Pipe Type: Is it copper, PVC, or PEX? Take a photo or bring a small sample piece to the store.
- Measure the Diameter:
- For Iron Pipe Size (IPS) threads (common in brass and steel), measure the outside diameter of the male thread. Note that the nominal size (e.g., 1/2 inch) is usually smaller than the actual measurement. A 1/2-inch NPT thread measures approximately 0.84 inches across.
- For Copper, measure the outside diameter of the pipe itself.
- Identify the Thread Type:
- NPT (National Pipe Taper): Standard in the US. The threads are tapered.
- BSP (British Standard Pipe): Common in imported fixtures. The threads are parallel. Warning: NPT and BSP are not interchangeable.
- Check the Gender:
- Male (MPT): Threads are on the outside.
- Female (FPT): Threads are on the inside.
Visualizing the Setup: A Text-Based Infographic
Since we cannot embed images directly in this text format, visualize the following common setup for a sink drain:
[Wall Pipe] –> (Slip Nut) –> (Slip Washer) –> [P-Trap U-Bend] –> (Slip Nut) –> (Slip Washer) –> [Tailpiece] –> [Sink Drain Flange]
- The P-Trap: Holds water to block sewer gases.
- Slip Nuts/Washers: Allow for hand-tightening without tools (usually).
- Tailpiece: Connects the sink strainer to the P-trap.
FAQ: Common Questions About Plumbing Fittings
1. What is the difference between a coupling and a union?
A coupling is a permanent connection used to join two pipes together. A union is a removable connection that allows you to disconnect pipes without cutting them, making it ideal for maintenance on appliances like water heaters.
2. Can I use PVC fittings for hot water?
No. Standard PVC (Polyvinyl Chloride) cannot withstand high temperatures and may warp or leak. For hot water lines, you must use CPVC (Chlorinated Polyvinyl Chloride), Copper, or PEX.
3. What does “NPT” mean on plumbing fittings?
NPT stands for National Pipe Taper. It is the US standard for threaded pipes. The threads are tapered, meaning they get slightly narrower toward the end, which helps create a seal when tightened with thread seal tape or dope.
4. Do I need Teflon tape for all connections?
You should use Teflon tape (or pipe dope) on all threaded connections (NPT) to ensure a watertight seal. However, do not use tape on compression fittings, flare fittings, or slip-fit connections (like PVC glue joints), as it can interfere with the seal and cause leaks.
5. Why is my brass fitting corroding?
If you are connecting brass directly to galvanized steel without a dielectric union, galvanic corrosion will occur. The two dissimilar metals react in the presence of water, causing the steel to rust rapidly. Always use a dielectric union or brass-to-galvanized adapter with a plastic liner.
6. Where can I find a printable PDF of plumbing fittings?
While this article serves as a comprehensive digital guide, many hardware manufacturers like SharkBite or Uponor offer printable specification sheets on their official websites. You can also save this page as a PDF using your browser’s “Print to PDF” function for offline reference.
Conclusion
Mastering home plumbing accessories plumbing fittings names and pictures is a skill that pays dividends for every homeowner. By understanding the difference between a tee and a wye, or a coupling and a union, you empower yourself to tackle repairs with confidence. Remember, the key to successful plumbing is not just strength, but precision—using the right part, for the right job, installed the right way.
Don’t let a small leak become a big problem. Use this guide as your reference, double-check your measurements, and always prioritize safety. If you found this guide helpful, please share it with your friends and family on social media. Helping others identify their plumbing parts can save them from costly mistakes and stressful emergencies.
Disclaimer: This article is for informational purposes only. For complex plumbing issues or major installations, always consult a licensed professional plumber to ensure compliance with local building codes.
