Home Plumbing Drain & Vent System: How It Works

Have you ever heard a strange gurgle from your sink after flushing the toilet, or noticed a lingering sewer smell in your bathroom? These are classic signs that your home plumbing drain and vent system isn’t functioning as it should. Understanding the hidden mechanics behind your walls can save you from costly repairs and unpleasant odors, giving you peace of mind in your own home.

Most homeowners only think about plumbing when something breaks. However, your drainage system is a marvel of engineering that relies on two critical forces: gravity and air pressure. In this guide, we will break down exactly how these systems work together, why vents are non-negotiable, and how you can spot issues before they become emergencies.

The Two Sides of Plumbing: Supply vs. DWV

To understand how your drains work, you first need to distinguish between the two main plumbing networks in your house. Many people confuse them, but they serve opposite purposes.

1. The Water Supply System: This brings fresh, pressurized water into your home. It’s under positive pressure, meaning if you poke a hole in a supply pipe, water sprays out.
2. The DWV System (Drain-Waste-Vent): This removes wastewater and sewage out of your home. It relies on gravity and atmospheric pressure. If you poke a hole in a drain pipe, nothing sprays out; instead, air might get sucked in.

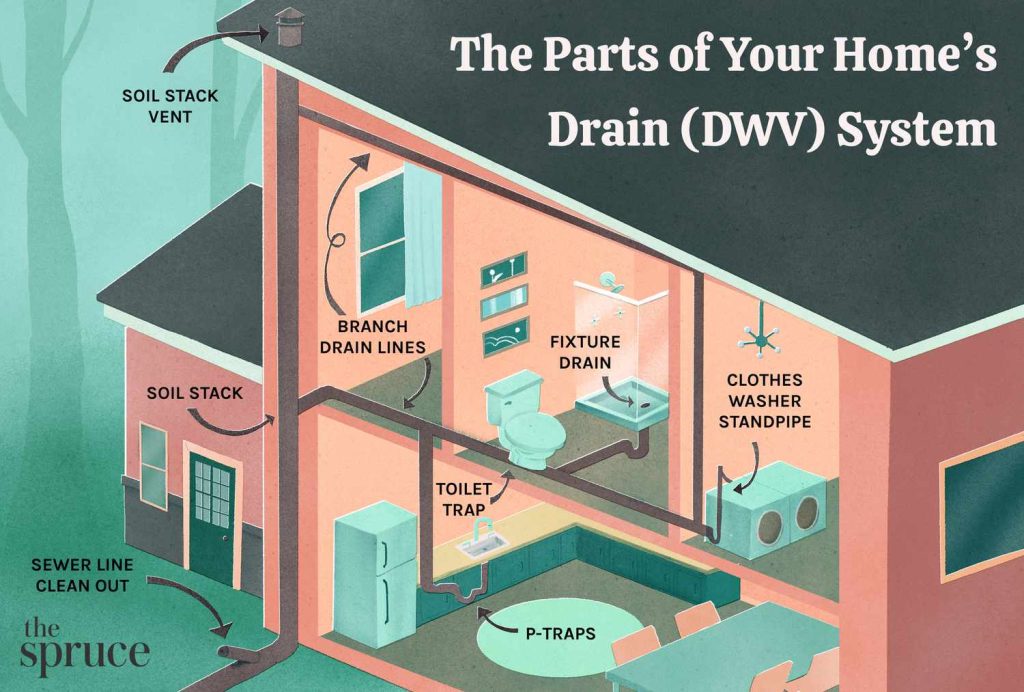

The focus of this article is the DWV system. Unlike your supply lines, which are simple pipes under pressure, the DWV system is a complex network designed to move solid and liquid waste downward while simultaneously allowing air to enter the system to prevent vacuum locks.

How Does Gravity Move Waste Through Your Pipes?

The primary engine of your drainage system is gravity. When you flush a toilet or drain a sink, wastewater flows downward through horizontal branch lines into larger vertical stacks, and finally into the main sewer line or septic tank.

However, gravity alone isn’t enough. For water to flow smoothly, it needs to displace the air in front of it. If the air cannot escape or be replaced, it creates resistance. Think of it like trying to pour juice out of a sealed carton—if you don’t punch a second hole for air to enter, the juice glugs and spills.

The Importance of Pipe Slope

For gravity to work effectively, your horizontal drain pipes must be installed with a precise slope, often referred to as “fall” or “pitch.”

• Standard Rule: The International Plumbing Code (IPC) generally recommends a slope of 1/4 inch per foot for pipes up to 3 inches in diameter.
• Too Steep: If the slope is too steep, the water runs away faster than the solids, leaving waste behind to clog the pipe.
• Too Flat: If the slope is insufficient, water moves too slowly, allowing solids to settle and create blockages.

This delicate balance ensures that waste is carried away efficiently without leaving residue behind.

Why Are Plumbing Vents Essential?

If gravity moves the waste, vents ensure the flow remains uninterrupted. This is the most misunderstood part of the home plumbing drain and vent system.

A plumbing vent (or stack vent) is a pipe that extends from your drain lines up through your roof. Its primary job is not to let smells out (though it does that too), but to let air in.

The Physics of Air Pressure

When a large volume of water rushes down a vertical stack (like when you flush a toilet), it acts like a piston. This moving column of water creates negative pressure (a vacuum) behind it.

Without a vent to introduce fresh air:

1. The vacuum would suck the water out of your P-traps (the U-shaped pipe under your sink).
2. Once the trap water is gone, there is no barrier against sewer gases.
3. The flow of waste would slow down significantly due to the suction effect, leading to poor drainage.

By connecting to the atmosphere via the roof, the vent equalizes the pressure in the drain pipes, allowing wastewater to flow freely and quickly.

Expert Insight: According to fundamental principles of fluid dynamics documented in engineering resources, maintaining atmospheric pressure within a drainage system is critical to prevent siphonage and ensure self-scouring velocities in pipes Wikipedia – Drain-Waste-Vent System.

What Is a P-Trap and How Does It Protect You?

You’ve likely seen the U-shaped pipe under your kitchen sink. That is a P-trap, and it is your first line of defense against health hazards.

How It Works

The P-trap is designed to hold a small amount of water at all times. This water creates an airtight seal that blocks sewer gases from entering your living space. Sewer gas contains methane, hydrogen sulfide, and other potentially harmful or explosive compounds. The P-trap keeps these gases where they belong: in the sewer line.

Common P-Trap Issues

• Drying Out: If a sink or floor drain is rarely used, the water in the trap can evaporate. This breaks the seal, allowing smells to enter. Solution: Run water in unused drains once a month.
• Siphoning: As mentioned earlier, if the vent system is blocked, the negative pressure can suck the water out of the trap. This is known as “trap siphonage.”
• Clogs: Hair, grease, and food particles often get stuck in the bend of the trap. Fortunately, P-traps are designed to be easily unscrewed for cleaning.

Signs Your Drain and Vent System Is Failing

How do you know if there is a problem with your home plumbing drain and vent system? Look for these common red flags:

If you notice multiple fixtures draining slowly at the same time, the issue is likely in the main sewer line or the main vent stack, rather than a single branch line.

Step-by-Step: Basic Troubleshooting for Homeowners

Before calling a plumber, you can perform a few safe checks to diagnose potential vent or drain issues.

Step 1: Check for Visible Roof Obstructions Go outside and look at your vent stack protruding from the roof.

• Look for bird nests, leaves, or debris blocking the opening.
• Safety Note: Only do this if you can safely access your roof. Otherwise, use binoculars from the ground.

Step 2: The Garden Hose Test If you suspect a blocked vent but can’t climb the roof:

1. Have a helper flush a toilet or run water in a tub inside.
2. Listen near the vent pipe location in the attic or outside.
3. If you have safe roof access, you can gently run water from a garden hose down the vent pipe. If the water backs up immediately, there is a blockage.

Step 3: Inspect P-Traps Check the traps under your sinks.

• Ensure they are filled with water.
• Tighten any loose slip nuts that might be leaking air.
• Place a bucket underneath and unscrew the trap to check for clogs if drainage is slow.

Step 4: Use a Plunger Correctly For minor clogs, use a flange plunger (designed for toilets) or a cup plunger (for sinks).

• Seal the overflow opening in sinks with a wet rag to ensure proper pressure.
• Push and pull vigorously for 20–30 seconds.

FAQ: Common Questions About Plumbing Vents and Drains

1. Can I have a drain without a vent?

No. Every plumbing fixture trap must be protected by a vent. Without a vent, the trap will likely siphon dry, allowing dangerous sewer gases into your home. While some modern codes allow for “Air Admittance Valves” (AAVs) in specific situations, traditional venting to the roof is the gold standard.

2. Why does my toilet gurgle when I run the washing machine?

This indicates a ventilation issue or a partial blockage in the main line. The washing machine discharges a large volume of water quickly, creating negative pressure. If the vent is blocked, the toilet trap is the easiest place for air to be sucked in, causing the gurgle.

3. How far can a drain be from its vent?

According to the Uniform Plumbing Code (UPC), the distance depends on the pipe diameter. For a 1.5-inch pipe (typical for sinks), the trap arm can generally be up to 3.5 feet from the vent. For a 3-inch pipe (toilets), it can be up to 6 feet. Always check local codes, as they vary by municipality.

4. What is an Air Admittance Valve (AAV)?

An AAV is a one-way mechanical valve that allows air to enter the plumbing system when negative pressure occurs but closes to prevent gas from escaping. They are useful for island sinks or remodels where running a vent to the roof is difficult, but they are not a replacement for the main vent stack.

5. Can tree roots affect my vent stack?

Tree roots typically invade underground sewer lines, not the vertical vent stack on the roof. However, if your vent pipe has cracks underground (before it goes vertical), roots could enter. More commonly, roots block the main sewer line, which causes backup symptoms that mimic vent issues.

6. How often should I clean my plumbing vents?

There is no set schedule, but it is wise to inspect your roof vents annually, especially after heavy storms or during autumn when leaves fall. If you notice slow drainage or odors, inspect the vents immediately.

Conclusion

Understanding your home plumbing drain and vent system empowers you to maintain a healthier, more efficient home. By recognizing the symbiotic relationship between gravity-driven drains and air-pressure-balancing vents, you can diagnose minor issues before they escalate into major disasters. Remember, the P-trap is your shield against gas, and the vent is the breath that keeps the system moving.

Regular maintenance, such as checking for roof obstructions and ensuring traps stay filled with water, goes a long way. If you encounter persistent gurgling, odors, or slow drains despite basic troubleshooting, it’s time to call a licensed plumber.
