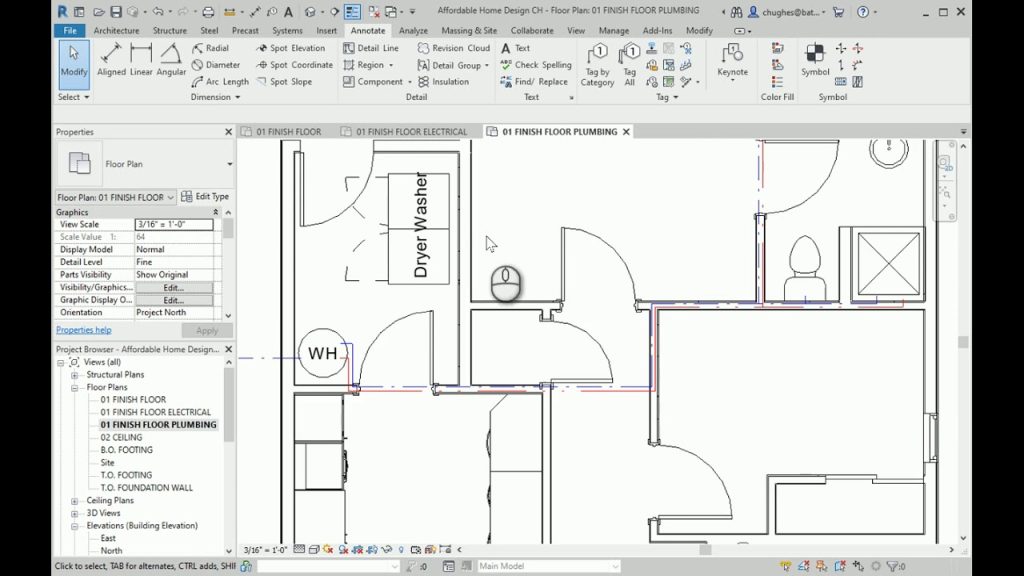

How Do I Find Out About The Plumbing Layout?

Have you ever stared at a blank wall, wondering exactly where those critical water lines and drain pipes are hiding? Whether you are planning a bathroom renovation, fixing a mysterious leak, or simply wanting to avoid drilling into a pipe, knowing how do I find out about the plumbing layout is essential for any homeowner. It saves money, prevents disasters, and gives you confidence in your home improvement projects.

In this guide, we will walk you through practical, step-by-step methods to uncover your home’s hidden vascular system. From checking official documents to using modern detection tools, we have got you covered.

Why Knowing Your Plumbing Layout Matters

Before we dive into the “how,” let’s briefly address the “why.” According to the Insurance Information Institute, water damage and freezing account for nearly 24% of all home insurance claims. Many of these incidents occur because homeowners inadvertently damaged pipes during DIY projects or failed to identify vulnerable areas before winter.

Understanding your plumbing layout isn’t just for professional contractors. It is a fundamental part of home maintenance that empowers you to:

• Prevent Accidental Damage: Avoid drilling into supply lines when hanging shelves or installing cabinets.
• Speed Up Repairs: Help plumbers diagnose issues faster, potentially lowering labor costs.
• Plan Renovations Efficiently: Determine if moving a sink or toilet is feasible without massive structural changes.

Method 1: Check Your Home’s Original Blueprints

The most accurate way to understand your plumbing system is to start with the original architectural drawings. When your home was built, the contractor was required to create detailed plans that included the plumbing rough-in.

Where to Find These Documents

1. Local Building Department: Visit your city or county’s building permit office. You can often request copies of the original permits and approved plans for a small fee.
2. Previous Owners: If you bought the house recently, check the closing documents. Sometimes, previous owners leave behind a “home manual” that includes these sketches.
3. The Builder: If your home is part of a newer development, the construction company might still have archives of the floor plans.

What to Look For

Look for sheets labeled “P” (Plumbing) or “M” (Mechanical). These diagrams will show:

• The location of the main water shut-off valve.
• The path of supply lines (hot and cold).
• The slope and direction of drain-waste-vent (DWV) lines.

Pro Tip: Blueprints show the intended layout. However, contractors sometimes make on-site adjustments. Always verify with physical inspection if possible.

Method 2: Visual Inspection and Logical Deduction

If you cannot find blueprints, don’t worry. You can create your own map by conducting a thorough visual inspection. Plumbing follows logic: water needs to get from the source to the fixture, and waste needs to go down.

Step-by-Step Inspection Guide

1. Locate the Main Stack: Go to your basement, crawlspace, or attic. Look for the largest vertical pipe (usually 3–4 inches in diameter). This is the main soil stack. All drains in your house eventually connect to this pipe. Mark its location on a piece of graph paper; this is the spine of your plumbing system.
2. Trace Fixture Connections:
   • Bathrooms: These are usually grouped together to share vent stacks and water lines. If you have two bathrooms back-to-back or stacked vertically, they likely share the same plumbing wall.
   • Kitchen: The kitchen sink drain usually runs horizontally through the cabinet base before dropping into the main stack or a secondary waste line.
   • Laundry: Washing machine drains are often near the main stack or an exterior wall for easy venting.
3. Identify Supply Lines: Turn on a faucet and listen. In quiet moments, you can sometimes hear water moving through walls. More effectively, look under sinks. You will see flexible supply lines coming up from the floor or out from the wall. Trace their direction visually as far as you can see.

Creating Your DIY Map

Use a simple notebook or a digital app. Draw your floor plan and mark:

• Red Lines: Hot water supply.
• Blue Lines: Cold water supply.
• Black Lines: Drain/Waste pipes.

For more technical definitions of plumbing components, you can refer to the general overview on Wikipedia’s Plumbing page to ensure you are identifying parts correctly.

Method 3: Use Electronic Stud and Pipe Finders

Technology has made it easier to see what is behind drywall without making a hole. Electronic stud finders with AC detection and metal scanning capabilities are invaluable tools for this task.

How to Use a Pipe Finder

1. Calibrate the Device: Place the finder on a section of the wall where you know there are no pipes or studs to set the baseline.
2. Scan Horizontally and Vertically: Move the device slowly across the wall. Most pipes run either vertically from the floor/ceiling or horizontally between studs.
3. Mark the Edges: When the device beeps or lights up, mark the edges of the detected object. Pipes are typically round, so the signal will peak in the center.

Limitations to Keep in Mind

• Material Matters: Standard electronic finders detect metal (copper, galvanized steel) and PVC (if it contains a metal tracer wire). Pure PEX plastic pipes may not be detected unless they carry hot water (thermal imaging helps here) or have metal fittings nearby.
• Depth Accuracy: Cheap finders may struggle with deep pipes (more than 1.5 inches behind drywall).

Method 4: Thermal Imaging Cameras

If you suspect a leak or want to trace hot water lines specifically, a thermal imaging camera is a game-changer. These cameras detect temperature differences, making hot water pipes glow against cooler wall cavities.

When to Use Thermal Imaging

• Tracing Hot Water Lines: Run the hot water in a sink for 2–3 minutes. Then, scan the wall. You will see a distinct heat signature tracing the path of the pipe.
• Detecting Leaks: A hidden leak often creates a cool spot (from evaporating water) or a warm spot (if it’s a hot water leak) on the wall surface.

Note: You can rent thermal cameras from many hardware stores like Home Depot or United Rentals for a daily fee, which is cost-effective for a one-time project.

Method 5: Hire a Professional Plumber for a Camera Inspection

For the most definitive answer, especially for underground sewer lines or complex slab foundations, hiring a pro is the best route. Plumbers use borescopes and sewer cameras.

What They Do

• Sewer Camera Inspection: A waterproof camera is fed into your drain lines, providing a live video feed of the pipe’s interior and its path.
• Acoustic Listening Devices: Professionals use ground microphones to hear the sound of water flowing through pipes behind walls or under concrete slabs.

While this option costs more (typically $100–$300), it provides 100% accuracy and can identify existing problems like root intrusion or cracks.

Comparison: DIY vs. Professional Methods

FAQ Section

1. Can I find my plumbing layout online?

Generally, no. Individual home blueprints are not public domain records available on open websites. You must request them from your local municipal building department or obtain them from the previous owner or builder. Some newer smart home apps allow you to input data manually, but they do not auto-generate existing layouts.

2. How deep are water lines usually buried in a slab foundation?

In a slab-on-grade foundation, water lines are typically embedded in the concrete or run through channels beneath the slab. They are usually 2–4 inches below the surface of the concrete. Drilling into a slab requires extreme caution and should ideally be done with a concrete scanner.

3. Do all houses have the same plumbing layout?

No. While the principles are the same (gravity for drains, pressure for supply), the layout depends on the era of construction, the architect’s design, and local code requirements. Older homes (pre-1960s) may have galvanized steel pipes and cast iron drains, while modern homes use PEX and PVC.

4. How can I tell if a pipe is hot or cold without touching it?

If the pipes are exposed, turn on the faucet and feel the pipe after a minute. If they are behind a wall, use a thermal imaging camera. Hot water pipes will show up as red/orange signatures, while cold water pipes will match the ambient temperature of the wall or appear slightly cooler.

5. Is it safe to drill into a wall if I don’t see a pipe?

Not necessarily. Pipes can be hidden deep within the wall cavity or run diagonally in older constructions. Always use a stud finder with pipe detection capabilities before drilling. If in doubt, drill a small pilot hole carefully or consult a professional.

Conclusion

Learning how do I find out about the plumbing layout of your home is a valuable skill that pays dividends in safety and savings. By starting with original blueprints, conducting a logical visual inspection, and utilizing tools like stud finders or thermal cameras, you can create an accurate map of your system.

Remember, when in doubt, especially for major renovations or suspected leaks, calling a licensed plumber is the safest bet. Don’t keep this knowledge to yourself—share this guide with your friends and family on social media to help them avoid costly plumbing mishaps!
