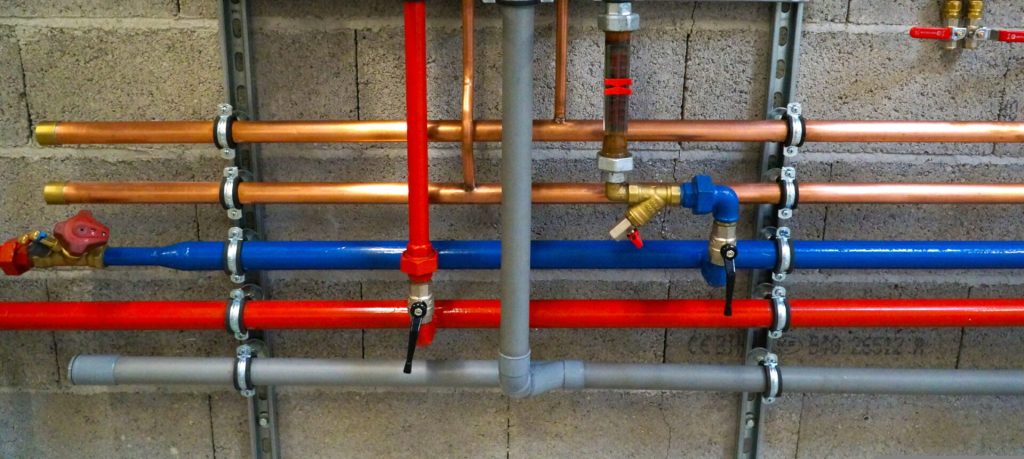

How Far Apart Does Plumbing Need To Be Strapped?

Have you ever heard a mysterious rattling sound coming from your walls when you turn on the shower? Or perhaps you’ve noticed your new piping setup looking slightly uneven and sagging between the studs? These are common signs that your plumbing supports are either missing or spaced too far apart. Properly securing your pipes is not just about aesthetics; it is critical for preventing water hammer, reducing noise, and ensuring the longevity of your plumbing system.

If you are a DIY enthusiast or a homeowner overseeing a renovation, knowing how far apart plumbing needs to be strapped is one of the most important details you can get right. Getting this wrong can lead to costly repairs down the line. In this guide, we will break down the exact International Plumbing Code (IPC) standards, material-specific requirements, and best practices to ensure your installation is safe, quiet, and up to code.

Understanding the Basics: Why Pipe Strapping Matters

Before we dive into the specific measurements, it is essential to understand why strapping is non-negotiable. Pipes carry water under pressure. When water flows, stops, or changes direction, it creates kinetic energy. Without adequate support, this energy translates into movement.

Over time, unsupported pipes can:

• Sag: Creating low spots where water can pool (in drainage lines) or causing stress on joints.
• Vibrate: Leading to annoying noises that travel through your home’s structure.
• Fail: Excessive movement can weaken solder joints in copper or crimp connections in PEX, leading to leaks.

According to general engineering principles, supporting pipes at regular intervals distributes the weight of the pipe and the water inside it evenly across the building’s framework. This is why local building codes, which often adopt the International Plumbing Code (IPC), have strict guidelines on spacing.

General Rule of Thumb: The 10-Foot Standard

For many horizontal runs of rigid piping, such as copper or CPVC, the general rule of thumb cited in many jurisdictions is every 10 feet. However, this is a broad generalization. The actual requirement depends heavily on three factors:

1. Pipe Material: Is it rigid (copper) or flexible (PEX)?
2. Pipe Diameter: Larger pipes hold more water and weigh more.
3. Orientation: Is the pipe running horizontally or vertically?

Note: Always check with your local building department. While most US states adopt the IPC or Uniform Plumbing Code (UPC), local amendments can vary.

Specific Spacing Requirements by Material

Different materials have different structural integrities. Here is a detailed breakdown of how far apart plumbing needs to be strapped for the most common residential materials.

1. Copper Pipe Spacing

Copper is rigid but can bend if unsupported over long spans. It is also prone to transmitting sound if it touches wood framing directly.

• Horizontal Runs:
  • For copper tubing 1¼ inches or smaller, supports should be placed no more than 6 feet apart.
  • For copper tubing 1½ inches or larger, supports can be up to 10 feet apart.
• Vertical Runs:
  • Copper pipes must be supported at each floor level. Additionally, intermediate supports are required if the story height exceeds 10 feet.

Pro Tip: Never strap copper pipe tightly against wooden joists without a cushion. Use rubber-lined clamps or foam insulation to prevent galvanic corrosion and noise transmission.

2. PVC and CPVC Plastic Pipe Spacing

Plastic pipes are lighter than copper but are more susceptible to sagging due to heat and weight. They also expand and contract more with temperature changes.

• Horizontal Runs:
  • For pipes 1¼ inches or smaller, spacing should not exceed 4 feet.
  • For pipes 1½ inches to 2 inches, spacing should not exceed 6 feet.
  • For pipes 3 inches or larger, spacing can be up to 10 feet.
• Vertical Runs:
  • PVC and CPVC generally require support at each floor interval.

Because plastic expands, you must allow for movement. Do not clamp plastic pipes so tightly that they cannot slide slightly within the hanger. Wikipedia provides a detailed overview of PVC pipe applications and properties which highlights its thermal expansion characteristics.

3. PEX (Cross-linked Polyethylene) Spacing

PEX has become the standard for modern residential plumbing due to its flexibility and ease of installation. However, its flexibility is exactly why it requires frequent support. If left unsupported, PEX will sag noticeably between joists.

• Horizontal Runs:
  • The general consensus and manufacturer recommendations usually dictate support every 32 inches (or every other joist bay if joists are 16 inches on center).
  • Some codes allow up to 4 feet for smaller diameters (½ inch), but 32 inches is the safest bet to prevent sagging.
• Vertical Runs:
  • PEX must be supported at each floor level and roughly every 4 to 6 feet vertically to keep it straight and prevent bowing.

Critical Note for PEX: When running PEX horizontally through drilled holes in joists, you technically do not need straps between the joists if the hole is centered. However, you must secure the pipe within 8 inches of the joist face where it exits the hole.

Horizontal vs. Vertical Support Rules

The orientation of your pipe changes the physics of the load. Here is how to handle both scenarios.

Horizontal Supports

Horizontal pipes bear the full weight of the water column inside them. Gravity is your enemy here.

• Requirement: Supports must be placed at regular intervals as defined by the material charts above.
• Anchor Points: Every long horizontal run should have at least one “anchor” or fixed point that prevents axial movement (sliding back and forth). The other hangers should allow for sliding to accommodate thermal expansion.

Vertical Supports

Vertical pipes carry their own weight downward. The primary risk here is buckling or shifting at the joints.

• Requirement: Support at every floor level is mandatory.
• Mid-Span Support: If a vertical riser is longer than 10–15 feet, intermediate guides are needed to keep the pipe aligned and prevent it from swaying during water flow.

Step-by-Step Guide: How to Strap Plumbing Correctly

Installing pipe straps correctly is just as important as placing them at the right distance. Follow these steps for a professional finish.

1. Gather Your Tools: You will need a drill, appropriate screws (usually #8 or #10 wood screws), pipe hangers/clamps sized for your pipe, and a tape measure.
2. Mark Your Lines: Use a chalk line or a laser level to mark a straight line along the joists or studs where the pipe will run. Consistency is key for a clean look.
3. Measure and Mark Spacing: Based on the material guidelines above, mark the exact locations for your straps. For example, if using ½-inch PEX, mark every 32 inches.
4. Install the Straps:
   • For Copper: Install rubber-lined copper clamps. Screw them into the center of the joist. Ensure the pipe sits snugly but isn’t crushed.
   • For PEX: Use plastic PEX clips or nail-in straps. If using nails, be careful not to puncture the pipe. Screws are safer.
   • For PVC: Use plastic loop hangers. Ensure the strap is wide enough to support the pipe without cutting into it.
5. Secure the Pipe: Snap the pipe into the hangers. Check for any sagging between supports. If you see a dip, add an extra strap in the middle.
6. Check for Clearance: Ensure pipes are at least 1 inch away from wood framing to prevent noise transfer and allow for air circulation.

Common Mistakes to Avoid

Even experienced DIYers make these errors. Avoid them to ensure your system passes inspection.

FAQ Section

1. Can I use zip ties to strap plumbing?

No. Standard zip ties are not rated for long-term structural support. They can become brittle over time, especially in hot environments, and may snap. Always use code-approved pipe hangers, clamps, or straps made of metal or durable plastic designed for plumbing.

2. Do I need to strap PEX if it runs through drilled holes in joists?

If the PEX runs horizontally through holes drilled in the center of the joists, you generally do not need straps in the middle of the span. However, you must secure the pipe within 8 inches of where it exits the joist to prevent it from moving or vibrating against the wood.

3. What happens if my plumbing straps are too far apart?

If straps are spaced too far apart, the pipe will sag. In drainage lines, this creates “bellies” where waste can accumulate, leading to clogs. In supply lines, sagging puts stress on fittings and can cause leaks. It also amplifies the noise of flowing water.

4. Is there a difference between “hangers” and “straps”?

Technically, yes, though the terms are often used interchangeably. Hangers typically hang from above (like from a ceiling joist), while straps or clamps attach to the side of a stud or joist. Both serve the same purpose: supporting the pipe at specified intervals.

5. How close to a fitting do I need a strap?

Most codes require a support within 12 inches of any change in direction (elbow, tee) or any fixture connection (like a sink or toilet valve). This prevents the weight of the fixture or the torque from tightening connections from stressing the pipe joint.

Conclusion

Knowing how far apart plumbing needs to be strapped is the difference between a quiet, leak-free home and a noisy maintenance nightmare. Whether you are working with rigid copper, versatile PVC, or flexible PEX, adhering to the spacing guidelines—typically 6 feet for copper, 4–6 feet for PVC, and 32 inches for PEX—ensures your system performs optimally.

Remember, local codes always take precedence, so a quick call to your local building department can save you from failing an inspection. By taking the time to install proper supports, you are investing in the durability and peace of mind of your home’s plumbing infrastructure.
