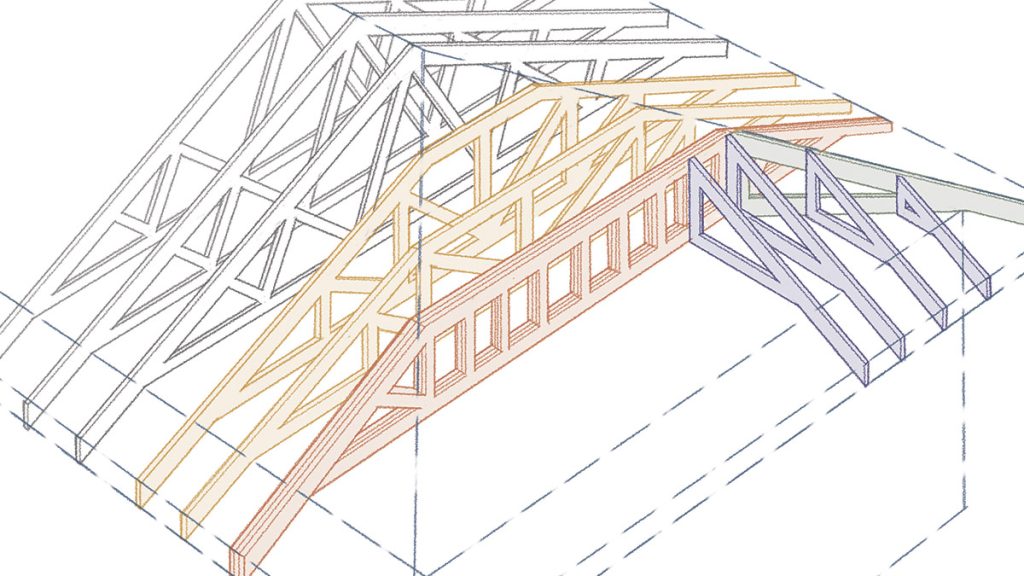

How Far Can A Truss Be Out Of Plumb?

Discovering that your new roof structure isn’t perfectly straight can be a stomach-dropping moment for any homeowner or builder. You’ve invested time and money into your project, and now you’re left wondering if the structure is safe or if it needs costly corrections. Understanding exactly how far can a truss be out of plumb is critical not just for aesthetics, but for the long-term structural integrity of your home.

In this guide, we will break down the industry standards, legal tolerances, and practical steps to address misaligned trusses. Whether you are a DIY enthusiast or a professional contractor, knowing these limits ensures your project passes inspection and stands the test of time.

The Golden Rule: What Is the Acceptable Tolerance?

When asking how far can a truss be out of plumb, the short answer is: very little.

According to the Building Component Safety Information (BCSI) Guide and most US building codes, the general tolerance for truss verticality (plumbness) is 1/4 inch in 10 feet (or approximately 2% deviation). However, for individual truss members, the tolerance is often stricter, typically capped at 1/4 inch total deviation from the true vertical plane for standard residential spans.

Why Is This Tolerance So Strict?

Roof trusses are engineered components. Unlike stick-framed rafters, which have some flexibility, trusses rely on precise geometry to distribute loads. If a truss leans:

1. Load Path Disruption: The weight of the roof may not transfer correctly to the bearing walls.
2. Connection Failure: The metal connector plates (gang nails) can shear off if the wood members twist or lean under load.
3. Cascading Errors: One out-of-plumb truss makes it nearly impossible to install sheathing, drywall, and siding correctly.

Expert Insight: “A truss that is out of plumb by more than 1/4 inch is not just a cosmetic issue; it is a structural defect. It indicates that the temporary bracing was insufficient during installation or that the bearing walls are uneven.” — Structural Engineering Journal

People Also Ask: Common Questions About Truss Alignment

To help you navigate this technical topic, we have addressed the most frequent questions found in search results regarding truss alignment.

1. What Causes Trusses to Go Out of Plumb?

Understanding the cause is the first step to prevention. The most common reasons include:

• Improper Bracing: This is the #1 culprit. Trusses are unstable until permanently braced. If temporary lateral bracing is removed too early, wind or worker movement can push them over.
• Uneven Bearing Walls: If the top plate of the wall below is not level, the truss will naturally tilt when seated.
• Wind Loads During Installation: Installing trusses on windy days without adequate diagonal bracing can cause immediate shifting.
• Manufacturing Defects: Rarely, a truss may arrive with bowed chords or incorrect web configurations, making it impossible to install plumb.

2. How Do You Measure If a Truss Is Plumb?

You cannot rely on the naked eye. To accurately determine how far can a truss be out of plumb, you need the right tools:

1. 4-Foot Level: Place a high-quality spirit level against the side of the truss chord (vertical member). Check the bubble.
2. Plumb Bob: For taller trusses, drop a plumb bob from the peak down to the bottom chord. Measure the distance at the top and bottom.
3. String Line: Run a tight string line along the top of the trusses. Measure the distance from the string to the edge of each truss. This helps identify which specific trusses are leaning.

Step-by-Step Measurement:

• Identify the reference truss (usually the gable end or a centrally braced truss).
• Measure the deviation at the top plate and the peak.
• Calculate the difference. If the top is 1/2 inch off while the bottom is fixed, the truss is out of plumb by 1/2 inch.

3. Can You Fix a Truss That Is Out of Plumb?

Yes, but the method depends on the severity.

Warning: Never try to force a truss into place by screwing it down tightly if it is significantly out of plumb. This creates “built-in stress” that can lead to premature failure or loud popping noises as the house settles.

4. What Are the Code Requirements for Truss Bracing?

The International Residential Code (IRC) and the International Building Code (IBC) do not give a single number for “plumbness” in every clause, but they defer to the Truss Plate Institute (TPI) standards and the manufacturer’s placement instructions.

According to Wikipedia’s overview on Roof Trusses, modern trusses are engineered systems that require specific bracing patterns. These patterns are provided by the manufacturer for each job. Ignoring these bracing diagrams is a direct violation of code compliance because the engineering validation assumes the bracing is installed correctly.

Step-by-Step: How to Correct an Out-of-Plumb Truss

If you have identified a truss that exceeds the 1/4-inch tolerance, follow these steps to correct it safely.

Step 1: Secure the Area

Ensure no one is walking on the roof deck or working directly below the area you are adjusting. Remove any permanent bracing that has already been incorrectly installed.

Step 2: Loosen Connections

If the truss is nailed or screwed to the top plate, remove those fasteners. You need the base of the truss to be able to slide slightly.

Step 3: Apply Lateral Force

Use a ratchet strap or a come-along tool.

• Attach one end to the out-of-plumb truss (near the top).
• Attach the other end to a known plumb truss or a solid anchor point.
• Slowly tighten the strap to pull the truss back into vertical alignment.
• Tip: Use a level to monitor the movement in real-time. Stop exactly when the bubble is centered.

Step 4: Install Permanent Bracing

Once plumb, immediately install the permanent lateral bracing as specified in the truss layout diagram. This usually involves 2×4 lumber nailed diagonally across the top chords.

Step 5: Re-fasten the Base

Secure the bottom chord to the top plate with the required nails or hurricane ties. Ensure the truss does not shift during this process.

The Risks of Ignoring Out-of-Plumb Trusses

Some builders might say, “It’s close enough,” but ignoring the question of how far can a truss be out of plumb carries significant risks.

Structural Integrity Issues

• Roof Sagging: Misaligned trusses can cause the ridge beam to sag or the roofline to look wavy.
• Wall Cracks: As the roof load shifts unevenly, interior drywall cracks often appear around door frames and windows.
• Reduced Load Capacity: An out-of-plumb truss has a reduced capacity to hold snow loads. In heavy snow regions, this can lead to catastrophic collapse.

Financial and Legal Consequences

• Failed Inspections: Building inspectors use levels. If they spot a visible lean, they will fail the framing inspection, delaying your project.
• Liability: If a roof fails due to improper installation, the installer and general contractor can be held liable for damages.
• Resale Value: Visible roof lines that are not straight can deter potential buyers and lower property value.

Best Practices for Prevention

Prevention is always cheaper than correction. Here is how to ensure your trusses stay plumb from day one.

1. Check Bearing Walls First: Before the truss truck arrives, laser-level all top plates. Shim any low spots.
2. Install Temporary Bracing Immediately: As soon as the first few trusses are up, brace them together. Do not wait until all trusses are set.
3. Follow the Manufacturer’s Diagram: Every truss package comes with a bracing diagram. Treat it like a legal document.
4. Work in Calm Weather: Avoid installing trusses in high winds. If you must, increase the amount of temporary bracing.
5. Use Spacers: Use block spacers between trusses at the top chord to maintain consistent spacing while you brace them.

FAQ Section

Q1: Is a 1/2 inch deviation acceptable for a 20-foot truss?

A: Generally, no. While some field tolerances allow for slight variations, 1/2 inch is double the standard 1/4-inch recommendation. For a 20-foot span, this deviation can cause noticeable issues with roofing materials and interior finishes. It should be corrected.

Q2: Does the type of truss affect the tolerance?

A: Yes. Engineered wood I-joist trusses may have different stiffness characteristics than dimensional lumber trusses. However, the 1/4-inch plumb rule is a universal best practice for all residential roof systems to ensure proper load distribution.

Q3: Can wind permanently damage a truss that went out of plumb?

A: If the truss was pushed out of plumb by wind before being braced, check for cracked wood or pulled-out connector plates. If the wood fibers are intact and plates are secure, it can usually be pulled back. If plates are damaged, the truss must be replaced or repaired by an engineer.

Q4: Who is responsible for fixing out-of-plumb trusses?

A: Typically, the framing contractor or the truss installer is responsible. If the trusses were manufactured incorrectly, the supplier may share liability. However, improper bracing during installation is almost always the installer’s responsibility.

Q5: How much does it cost to fix out-of-plumb trusses?

A: Minor corrections may only cost labor time (1–2 hours). Severe cases requiring engineering consultation, truss replacement, or extensive re-bracing can cost anywhere from $500 to $2,000+, depending on the scope.

Q6: Will drywall hide a slightly out-of-plumb truss?

A: Drywall can hide minor cosmetic imperfections, but it cannot fix structural lean. If the truss is leaning, the drywall screws may pop out over time, or the ceiling may appear wavy. Always fix the structure before covering it.

Conclusion

Knowing how far can a truss be out of plumb is essential for anyone involved in residential construction. The standard tolerance of 1/4 inch is not arbitrary; it is a critical threshold that ensures your roof remains safe, stable, and durable.

Ignoring these tolerances can lead to failed inspections, costly repairs, and long-term structural issues. By using proper measurement tools, adhering to bracing diagrams, and correcting deviations immediately, you protect your investment and ensure the safety of the home’s occupants.
