How Far Can A Wall Be Out Of Plumb?

Have you ever hung a picture frame only to notice it looks crooked, even when your level says it’s straight? Or perhaps you’re installing new cabinetry and noticing unsightly gaps that seem to grow wider at the top or bottom? You are not alone. These are classic signs that your structure might have alignment issues. Understanding how far can a wall be out of plumb is critical for any homeowner, DIY enthusiast, or contractor aiming for a professional finish.

While no wall is perfectly straight due to natural settling and material inconsistencies, there are strict industry limits to what is considered acceptable. Exceeding these tolerances can lead to structural concerns, aesthetic failures, and difficulties during renovations. In this guide, we will break down the exact measurements, building codes, and practical solutions to ensure your walls stand tall and true.

What Does “Plumb” Actually Mean in Construction?

Before diving into the numbers, it is essential to clarify the terminology. In construction, “plumb” refers to a vertical line that is perfectly perpendicular to the horizon (a 90-degree angle). It is distinct from “level,” which refers to a horizontal plane.

When we ask how far can a wall be out of plumb, we are measuring the deviation from that perfect vertical line over a specific height. For example, if a wall leans slightly to the left as it goes up, it is “out of plumb.” This deviation is usually measured in inches per foot or millimeters per meter.

Why Precision Matters

• Aesthetics: Crooked walls make tile work, cabinetry, and trim look amateurish.
• Structural Integrity: Significant leaning can indicate foundation issues or framing failures.
• Functionality: Doors may not latch correctly, and windows may stick if the frame is distorted by an out-of-plumb wall.

Industry Standards: How Far Is Too Far?

The answer to how far can a wall be out of plumb depends largely on the type of construction and the applicable building codes. In the United States, most residential construction follows guidelines set by the International Residential Code (IRC) and best practices from organizations like the National Association of Home Builders (NAHB).

The General Rule of Thumb

For standard wood-framed residential walls, the general industry acceptance is:

A wall should not deviate more than 1/4 inch (6 mm) in any 10 feet (3 meters) of vertical height.

However, this is not a one-size-fits-all rule. Let’s break it down by specific scenarios.

Tolerance Table by Application

Note: Always check your local municipal building codes, as some jurisdictions have stricter requirements.

The “String Line” Test

Professionals often use a string line stretched from the top plate to the bottom plate to check for bowing or leaning. If the wall touches the string at the top and bottom but has a gap in the middle, it is “bowing.” If the gap increases consistently from top to bottom, it is “out of plumb.”

Factors That Cause Walls to Go Out of Plumb

Understanding why walls shift helps in determining whether the issue is cosmetic or structural. Here are the primary culprits:

1. Natural Settling

All houses settle over time. As the soil beneath the foundation compacts, the structure shifts. Minor settling is normal and usually results in deviations well within the 1/4-inch tolerance. However, uneven settling can cause significant plumb issues.

2. Moisture and Humidity Changes

Wood is hygroscopic, meaning it absorbs and releases moisture. In humid climates, framing lumber can swell; in dry conditions, it shrinks. This movement can cause walls to twist or lean slightly. This is particularly common in new constructions where the lumber has not yet fully acclimated.

3. Poor Workmanship

Rushed framing jobs often result in walls that were never plumb to begin with. If studs were not aligned correctly during the initial build, or if the top and bottom plates were not parallel, the entire wall section will be out of alignment.

4. Structural Overloading

Removing load-bearing walls without proper support, or adding heavy second-story additions without reinforcing the foundation, can cause walls to lean under pressure.

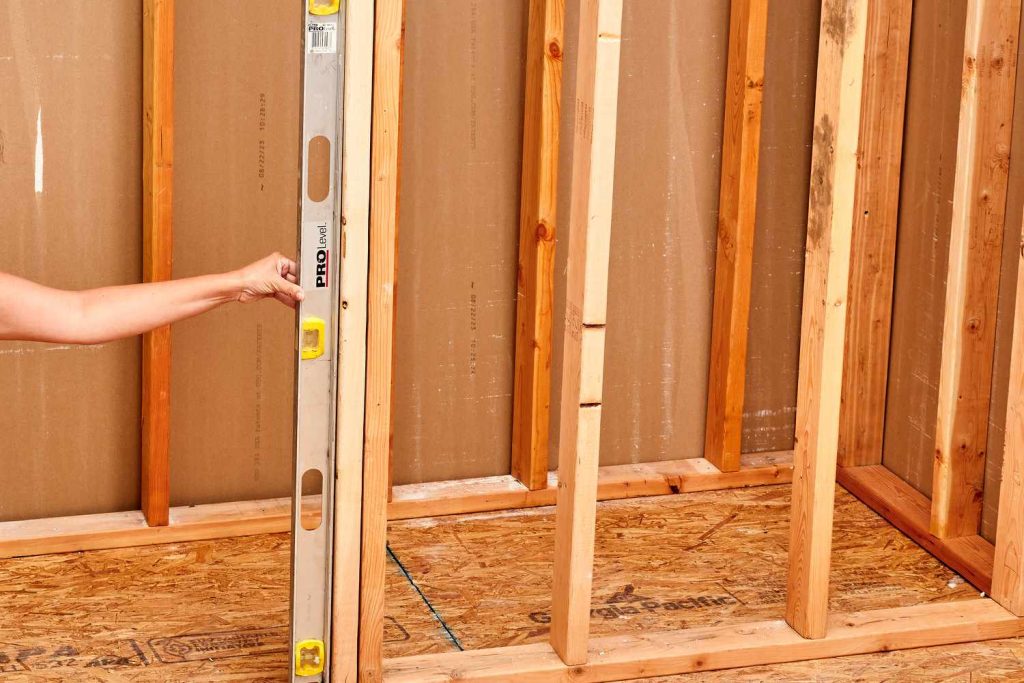

How to Measure Wall Plumb Accuracy

You don’t need expensive laser equipment to check your walls. Here is a step-by-step guide to measuring how far can a wall be out of plumb using basic tools.

Tools Needed:

• A high-quality 4-foot spirit level (or a laser level).
• A tape measure.
• A pencil.

Step-by-Step Measurement Process:

1. Clean the Surface: Ensure the wall surface is free of debris or protruding nails that could skew the level.
2. Place the Level: Hold your 4-foot level vertically against the wall. Ensure it is stable.
3. Check the Bubble: Look at the vial. If the bubble is centered between the lines, that specific 4-foot section is plumb.
4. Measure the Gap: If the bubble is off-center, tilt the level until the bubble is centered. Now, measure the distance between the edge of the level and the wall surface at the top or bottom of the level.
5. Calculate the Deviation:
   • If you measure a 1/8-inch gap at the top of a 4-foot level, your wall is out of plumb by 1/8 inch per 4 feet.
   • To extrapolate to a 10-foot standard: $(1\mathrm{/}8\text{ inch}\mathrm{/}4\text{ feet})\times 10\text{ feet}=5\mathrm{/}16\text{ inch}$(1/8 inch/4 feet)×10 feet=5/16 inch.
   • Since 5/16 inch is greater than the 1/4-inch tolerance, this wall fails the standard test.

For more detailed information on construction terminology and standards, you can refer to Wikipedia’s article on Plumb Bob, which offers historical context and basic physics behind vertical alignment.

Fixing Walls That Are Out of Plumb

If your measurement exceeds the acceptable tolerance, don’t panic. There are several ways to correct the issue, depending on the severity and the stage of construction.

Option 1: Shimming (Best for Drywall & Trim)

If the wall is slightly out of plumb (less than 1/2 inch) and you are in the finishing stage, shimming is the most effective solution.

• How it works: Insert thin wedges (shims) between the studs and the drywall or trim.
• Application: When installing drywall, place shims behind the sheets to create a flat, plumb surface. For cabinets, shim behind the mounting rails.

Option 2: Skim Coating (Best for Cosmetic Fixes)

For minor deviations (1/8 to 1/4 inch), applying a skim coat of joint compound can visually straighten the wall.

• Process: Apply a thin layer of mud, using a long straightedge to pull it flat. This fills low spots and creates the illusion of a plumb wall.

Option 3: Reframing (Best for Major Issues)

If the wall is significantly out of plumb (more than 1/2 inch) or if the deviation is due to structural failure, reframing is necessary.

• Process: Remove the drywall, cut out the compromised studs, and install new ones. Use temporary bracing to hold the top plate in place while ensuring the new studs are perfectly plumb before nailing them in.

Option 4: Sistering Studs

If a stud is bowed or leaning but still structurally sound, you can “sister” a new piece of lumber alongside it.

• Technique: Apply construction adhesive to a new stud, clamp it tightly against the old one, and nail them together. This straightens the wall face without removing the original framing.

FAQ: Common Questions About Wall Plumb

1. Is a 1/2 inch deviation in a 10-foot wall acceptable?

Generally, no. A 1/2 inch deviation exceeds the standard 1/4 inch tolerance for residential framing. While it might not cause immediate structural collapse, it will cause significant issues with tile installation, cabinetry, and door fitting. It should be corrected.

2. Does an out-of-plumb wall mean my house is unsafe?

Not necessarily. Minor deviations are common and usually cosmetic. However, if the wall is leaning significantly (e.g., more than 1 inch) or if you see cracks in the foundation, doors sticking, or gaps in exterior brickwork, it could indicate a serious structural problem requiring a professional engineer’s assessment.

3. Can I hang heavy items on a wall that is out of plumb?

Yes, provided the wall is structurally sound. The plumbness affects alignment, not necessarily strength. However, ensure you anchor heavy items into the studs, not just the drywall, especially if the drywall has been shimmed or manipulated.

4. How do builders keep walls plumb during construction?

Builders use temporary diagonal braces (often made of 2x4s) nailed to the studs and the floor/subfloor. These braces hold the wall in a plumb position until the roof trusses, sheathing, and drywall are installed, which provide permanent rigidity.

5. Will humidity changes make my wall go out of plumb after I fix it?

Wood does expand and contract with humidity, but once the wall is sheathed, drywalled, and painted, the movement is minimal and rarely enough to push a properly plumb wall out of tolerance. Using kiln-dried lumber during construction minimizes this risk.

6. What is the difference between “plumb” and “square”?

“Plumb” refers to vertical alignment (up and down). “Square” refers to corners being exactly 90 degrees. A wall can be perfectly plumb but not square if the corners are angled. Both are important for different aspects of construction.

Conclusion

Knowing how far can a wall be out of plumb is more than just trivia; it is a fundamental skill for ensuring quality home improvement projects. The golden rule to remember is the 1/4 inch per 10 feet tolerance for standard framing. Staying within this limit ensures that your tiles lay flat, your cabinets fit snugly, and your home maintains its structural integrity and aesthetic appeal.

Whether you are building a new partition wall or renovating an older home, always take the time to measure. A few minutes with a level can save you hours of frustration later. If you find your walls are significantly out of alignment, address the root cause—whether it’s simple shimming or necessary reframing—before proceeding with finishes.
