Are you staring at a bare wall in your bathroom, wondering exactly where those water lines and drain pipes should go? You are not alone; getting the vanity plumbing height wrong can lead to awkward gaps, difficult installations, or even code violations that halt your renovation in its tracks. Whether you are a DIY enthusiast or hiring a pro, knowing the precise measurements is crucial for a seamless, functional, and aesthetically pleasing bathroom vanity setup.
In this guide, we will break down the exact standards, explain why they matter, and provide you with the confidence to measure twice and cut once. Let’s dive into the details of positioning your plumbing for optimal performance and style.

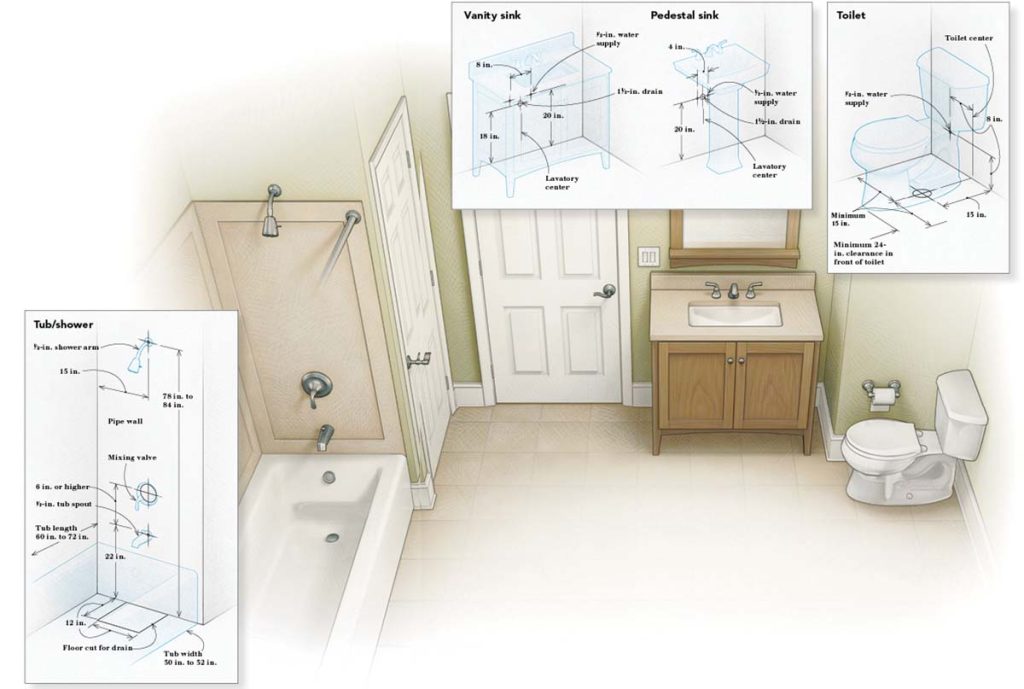

What Is the Standard Height for Vanity Plumbing?
When planning a bathroom renovation, one of the most common questions homeowners ask is: how high off the floor should vanity plumbing be? While there is some flexibility depending on the specific vanity design, there are industry-standard measurements that plumbers and builders across the United States follow to ensure compatibility and ease of installation.
The General Rule of Thumb
For a standard bathroom vanity, the typical height for the water supply lines (hot and cold) and the drain pipe is between 20 and 21 inches from the finished floor.
- Water Supply Lines: Usually positioned at 21 inches above the finished floor.
- Drain Pipe (P-Trap): Typically centered at 20 inches above the finished floor.
This placement ensures that the plumbing connections sit comfortably within the cabinet box of a standard vanity, which is usually 34 to 36 inches tall. It allows enough room for the P-trap and shut-off valves without interfering with drawers or shelves inside the vanity.
Why These Measurements Matter
Sticking to these standards isn’t just about tradition; it’s about functionality. If the plumbing is too high, it may interfere with the back panel of the vanity or make it difficult to connect the faucet supplies. If it’s too low, you might struggle to fit the P-trap, especially if you have a shallow cabinet depth.
Pro Tip: Always measure from the finished floor, not the subfloor. If you are installing new flooring (tile, vinyl, or hardwood), account for the thickness of the flooring material in your measurements. For example, if tile adds 0.5 inches, adjust your rough-in height accordingly.
How Does Vanity Type Affect Plumbing Height?
Not all vanities are created equal. The style of vanity you choose significantly impacts where your plumbing should be located. Understanding these differences can save you from costly modifications later.
1. Standard Floor-Mounted Vanities
As mentioned, these rely on the 20–21 inch standard. The plumbing is hidden inside the cabinet, so aesthetics are less of a concern than accessibility.
2. Wall-Mounted (Floating) Vanities
Floating vanities are popular for their modern look and ability to make small bathrooms feel larger. However, because the cabinet does not touch the floor, the plumbing is often visible.
- Aesthetic Consideration: You want the plumbing to look neat. Many designers recommend aligning the drain and supply lines symmetrically.
- Height Adjustment: The height may vary based on the vanity’s mounting height. Typically, the plumbing is still kept around 20–22 inches, but it must be precisely centered to match the vanity’s drain hole.
- Concealment: Some homeowners opt for a “shroud” or a decorative box to hide the pipes, while others choose polished chrome or brass pipes as a design feature.
3. Vessel Sink Vanities
Vessel sinks sit on top of the counter, which raises the sink basin significantly.
- Higher Plumbing Required: Because the sink is higher, the drain connection needs to be higher to maintain proper slope and function.
- Recommended Height: For vessel sinks, the drain rough-in is often raised to 24–26 inches above the finished floor.
- Supply Lines: These may also need to be raised slightly, typically to 24 inches, to ensure the faucet connections reach comfortably.
| Vanity Type | Drain Height (from finished floor) | Supply Line Height (from finished floor) | Notes |
|---|---|---|---|
| Standard Floor-Mount | 20 inches | 21 inches | Most common; hides inside cabinet. |
| Wall-Mounted (Floating) | 20–22 inches | 20–22 inches | Visibility matters; keep it neat. |
| Vessel Sink | 24–26 inches | 24 inches | Higher due to elevated basin. |
What Do Building Codes Say About Plumbing Heights?
One of the most critical aspects of any renovation is compliance with local building codes. While the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) provide guidelines, local jurisdictions may have specific amendments.
The Role of the IPC and UPC
The International Plumbing Code (IPC) is widely adopted across the US. It focuses on safety, sanitation, and functionality rather than dictating exact aesthetic heights for vanities. However, it does specify requirements for trap arms, venting, and pipe materials.
- Trap Arm Slope: The pipe connecting the P-trap to the wall drain must have a slope of 1/4 inch per foot to ensure proper drainage and prevent clogs.
- Venting: Every fixture must be properly vented to prevent sewer gases from entering the home and to allow wastewater to flow smoothly.
Local Variations
Always check with your local building department before starting work. Some municipalities may have stricter requirements regarding:
- Shut-off Valves: Many codes now require individual shut-off valves for each sink.
- Pipe Materials: Copper, PEX, and CPVC are common, but some areas restrict certain plastics.
- Accessibility Standards: If the bathroom is required to be ADA-compliant (Americans with Disabilities Act), the vanity height and knee clearance will dictate different plumbing positions, often requiring lower clearances and specific pipe insulation to prevent burns.
Step-by-Step: How to Measure and Mark Plumbing Locations
If you are roughing in new plumbing or relocating existing lines, precision is key. Follow these steps to ensure your measurements are accurate.
Tools You Will Need:
- Tape measure
- Level (2-foot or 4-foot)
- Pencil or marker
- Stud finder
Step 1: Determine the Finished Floor Level
Measure the thickness of your future flooring. If you are installing 1/2-inch tile, your “finished floor” is 1/2 inch higher than the current subfloor. Mark this level on the wall.
Step 2: Locate the Centerline
Find the center of the vanity area. Use a stud finder to locate the studs, then measure to find the exact midpoint. Draw a vertical line up the wall. This is your centerline for the drain.
Step 3: Mark the Drain Height
From the finished floor line, measure up 20 inches (for standard vanities) along the centerline. Mark this point clearly. This is where the center of the drain pipe should be.
Step 4: Mark the Supply Lines
Measure up 21 inches from the finished floor. From the centerline, measure 4 to 6 inches to the left and right. Mark these two points. These are for the hot and cold water supply lines.
- Note: Keep the supply lines symmetrical. Standard spacing is often 4 inches apart, but check your faucet’s specifications.
Step 5: Verify with Your Vanity Specs
Before cutting any pipes, bring your vanity (or its template) into the room. Hold it in place to ensure the marked lines align with the cutouts in the back of the cabinet. Adjust if necessary.
Common Mistakes to Avoid When Installing Vanity Plumbing
Even experienced DIYers can make mistakes. Here are the most common pitfalls and how to avoid them.
1. Ignoring the Back Panel Thickness
Some vanities have a thick back panel or a solid wood backing. If your plumbing sticks out too far from the wall, the vanity won’t sit flush.
- Solution: Ensure the plumbing rough-in is deep enough into the wall cavity. Use deep-set boxes if necessary.
2. Forgetting the P-Trap Clearance
The P-trap needs space to curve. If the drain pipe is too close to the side wall or the bottom of the cabinet, you won’t be able to install it.
- Solution: Maintain at least 2–3 inches of clearance from the side walls and ensure the vertical drop has enough room.
3. Misaligning Hot and Cold Lines
Swapping hot and cold lines is a classic error. While it won’t break the plumbing, it’s annoying to use.
- Solution: Remember: Hot on the Left, Cold on the Right. Mark them clearly with “H” and “C” during the rough-in phase.
4. Neglecting Future Access
If you bury shut-off valves behind drywall or tile, you’ll have a nightmare when a leak occurs.
- Solution: Always ensure shut-off valves are accessible inside the vanity cabinet.
FAQ Section
Q1: Can I move my vanity plumbing higher or lower?
A: Yes, you can move plumbing, but it requires opening up the wall. Moving it higher is generally easier than moving it lower, as you may need to adjust the main drain line slope. Always consult a licensed plumber for significant moves to ensure code compliance.
Q2: What if my existing plumbing doesn’t match the standard height?
A: Don’t panic. You can use extension kits for supply lines or adjustable P-traps to accommodate slight variations. For larger discrepancies, you may need to re-route the pipes or choose a vanity designed for non-standard plumbing.
Q3: How wide should the gap be between the hot and cold water lines?
A: The standard spacing is 4 to 8 inches apart, centered on the drain. Most faucets have flexible supply lines that can accommodate this range. Check your specific faucet’s installation manual for the recommended spread.
Q4: Do I need a permit to move vanity plumbing?
A: In most US jurisdictions, moving water supply lines or drain pipes requires a plumbing permit. This ensures the work is inspected and meets safety codes. Check with your local building department before starting.
Q5: What is the best pipe material for vanity plumbing?
A: PEX (Cross-linked Polyethylene) is currently the most popular choice for supply lines due to its flexibility, ease of installation, and resistance to freezing. For drains, ABS or PVC plastic pipes are standard. Copper is also excellent but more expensive and harder to work with.
Q6: How do I hide exposed plumbing on a floating vanity?
A: You can use decorative pipe covers, install a false back panel on the vanity, or choose a vanity with a built-in shroud. Another option is to use stylish, exposed chrome or brass piping as a design element.
Conclusion
Getting the vanity plumbing height right is a foundational step in creating a beautiful and functional bathroom. By sticking to the standard 20–21 inch rule for standard vanities—and adjusting for vessel or floating styles—you ensure a smooth installation process and a professional finish. Remember to always measure from the finished floor, check local codes, and double-check your vanity’s specific requirements.
Whether you are tackling this project yourself or overseeing a contractor, understanding these details empowers you to make informed decisions. A well-planned plumbing layout not only looks better but also lasts longer and performs more reliably.
