Kitchen Angle Stop Height: The Perfect Rough-In Guide

Are you staring at bare studs in your kitchen, wondering if your plumber placed those valves too high or too low? You are not alone. Getting the kitchen angle stop height on rough plumbing wrong can lead to awkward cabinet cuts, visible pipes, or even leaks down the road.

This guide cuts through the confusion. We will provide the exact measurements professionals use, explain why precision matters for your cabinetry, and help you avoid costly mistakes before the drywall goes up. Let’s get your plumbing right the first time.

The Golden Standard: Exact Height Measurements

When asking how high should kitchen angle stops be on rough plumbing, the answer isn’t just a random guess; it is a calculated standard based on decades of ergonomic design and cabinet manufacturing norms.

The Ideal Measurement

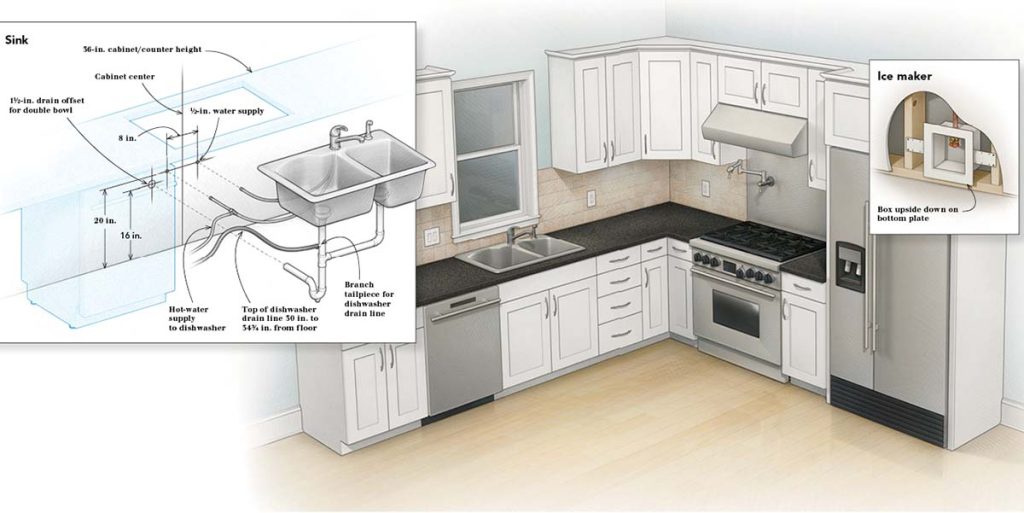

For most standard US kitchens, the center of the hot and cold water supply lines (where the angle stops will attach) should be located 20 to 22 inches above the finished floor (AFF).

• Center Point: Measure from the finished floor to the center of the valve outlet.
• Why this range? This height ensures that the flexible supply lines connecting the angle stops to the faucet have enough slack to loop gently without kinking, while staying hidden inside the sink base cabinet.

Horizontal Placement (Left vs. Right)

Height is only half the battle. You must also consider horizontal placement relative to the sink drain.

• Offset from Center: Typically, the hot water line is on the left and the cold on the right (when facing the wall).
• Distance from Drain: Keep the supply lines at least 6 to 8 inches away from the center of the drain pipe. This prevents crowding and allows room for the P-trap and garbage disposal unit if applicable.

Pro Tip: Always check your specific cabinet manufacturer’s specifications. Some “slim-profile” or European-style cabinets may have different internal clearances that require adjustments.

Why Precision Matters: Avoiding Common Pitfalls

You might think, “It’s just a few inches; does it really matter?” In the world of professional remodeling, the answer is a resounding yes. Here is why getting the kitchen angle stop height on rough plumbing correct is critical for your project’s success.

1. Cabinet Interference

Modern sink base cabinets often come with pre-drilled holes or specific cutout areas for plumbing. If your valves are too high, they might hit the back panel of the cabinet or the drawer box above the sink. If they are too low, they might interfere with the bottom shelf or the cabinet floor, making installation difficult.

2. Aesthetic Cleanliness

The goal of modern plumbing is invisibility. When the height is correct, the flexible supply lines drape neatly behind the sink bowl. Incorrect heights force these lines to bend sharply or stick out, making them visible when you open the cabinet doors. This looks unprofessional and cluttered.

3. Ease of Maintenance

Angle stops are shut-off valves. They need to be accessible. If placed too high behind a deep sink basin, reaching them in an emergency (like a burst hose) becomes a struggle. The 20–22 inch range keeps them within easy reach for homeowners and plumbers alike.

Step-by-Step: Marking and Installing Rough Plumbing

If you are managing the rough-in phase yourself or supervising a contractor, follow these steps to ensure accuracy. Note that “rough plumbing” refers to the stage where pipes are installed but walls are not yet closed up.

Step 1: Determine Your Finished Floor Level

This is the most common mistake. You must measure from the finished floor, not the subfloor.

• If you are installing hardwood, tile, or vinyl, add the thickness of the flooring material to your measurement.
• Example: If your tile is 0.5 inches thick, and you want the valve at 21 inches AFF, mark your stud at 21.5 inches from the subfloor.

Step 2: Locate the Sink Center

Find the exact center of where the sink cabinet will sit. Mark a vertical line on the studs. This is your reference point for the drain and the symmetric placement of the water lines.

Step 3: Mark the Valve Heights

Using your tape measure, mark the stud at 21 inches (the sweet spot) from the finished floor level.

• Mark the left side for Hot.
• Mark the right side for Cold.
• Ensure both marks are level with each other. Use a laser level for best results.

Step 4: Install the Blocking

Angle stops need solid backing. You cannot screw them directly into drywall.

• Install horizontal wood blocking (2x4s) between the studs at the marked height.
• This ensures the valves remain stable and do not wiggle when you turn the handle, which could stress the solder joints or PEX crimps over time.

Step 5: Run the Lines

Run your PEX or Copper lines to the blocking. Leave about 6 to 8 inches of pipe protruding from the wall. This gives the plumber enough length to install the angle stop comfortably.

Expert Insight: What Do the Codes Say?

While the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) provide strict guidelines for drainage and venting, they are surprisingly flexible regarding the exact height of fixture supply valves. They generally state that supplies must be “accessible” and “installed in a workmanlike manner.”

However, adhering to the 20–22 inch standard is considered industry best practice. It aligns with the Americans with Disabilities Act (ADA) guidelines for forward reach ranges, ensuring that even users in wheelchairs can access the shut-off valves if necessary. For more detailed technical definitions on plumbing fixtures, you can refer to general standards on Wikipedia.

Material Matters: Choosing the Right Angle Stops

The height is crucial, but the quality of the valve itself is equally important. When your rough plumbing is ready for trim-out (the final installation of fixtures), choose wisely.

Compression vs. Quarter-Turn

• Multi-Turn (Compression): The old style. Requires several turns to close. Prone to washer wear and leaks over time.
• Quarter-Turn (Ball Valve): The modern standard. Opens and closes with a 90-degree turn. More reliable, less prone to leakage, and easier to operate in an emergency. Always recommend quarter-turn valves.

Material Selection

• Brass: The gold standard. Durable, corrosion-resistant, and strong.
• Chrome-Plated Brass: Looks nice if visible, but the plating can chip.
• Avoid Plastic: Never use plastic angle stops for permanent installations. They become brittle and can crack, leading to catastrophic water damage.

FAQ Section

1. Can I move angle stops after the drywall is up?

Technically, yes, but it is invasive and expensive. You would need to cut open the drywall, extend or shorten the pipes, and patch the wall. It is far cheaper and easier to get the kitchen angle stop height on rough plumbing correct before closing the walls.

2. What if my sink has a rear-mounted faucet?

Rear-mounted faucets (common in farmhouse sinks) may require different plumbing configurations. Often, the supplies still come up from the floor or lower wall, but the connections happen behind the sink bowl. Check the faucet manufacturer’s template. The 20–22 inch rule usually still applies, but verify horizontal spacing carefully.

3. Should hot water be on the left or right?

Standard convention in the US is Hot on the Left and Cold on the Right. This is consistent across almost all faucets and appliances. Stick to this standard to avoid confusion for future homeowners or guests.

4. How long should the flexible supply lines be?

Once the angle stops are installed, you will connect them to the faucet with flexible braided stainless steel hoses. These are typically 12, 16, or 20 inches long. With valves at 21 inches high, a 16-inch or 20-inch supply line is usually ideal, allowing for a gentle U-bend without tension.

5. Do I need shut-off valves for the dishwasher and fridge?

Yes. While the question focuses on the sink, remember that your rough-in should also include dedicated stops for the dishwasher (usually under the counter, near the sink) and the refrigerator ice maker (often behind the fridge or in an adjacent cabinet). These are typically placed lower, around 6–10 inches AFF.

Conclusion

Getting the kitchen angle stop height on rough plumbing right is a small detail that makes a massive difference in the functionality and aesthetics of your kitchen. By aiming for 20 to 22 inches above the finished floor, you ensure compatibility with standard cabinets, ease of maintenance, and a clean, professional look.

Remember to measure from the finished floor, install solid wood blocking, and opt for high-quality quarter-turn brass valves. These steps will save you time, money, and stress during the final stages of your remodel.
