Dealing with a leaking pipe or needing to add a new fixture can feel overwhelming, especially when the problem lies in a hard-to-reach horizontal line. You are not alone; plumbing issues are among the most common home maintenance challenges, with water damage affecting nearly 14,000 people per day in the US alone. Knowing how to cut in a horizontal copper plumbing pipe correctly is the difference between a quick, clean repair and a costly water disaster. This guide will walk you through the process with professional precision, ensuring your home stays dry and your plumbing system remains efficient.
Why Cutting Horizontal Copper Pipes Requires Special Care
Cutting a vertical pipe is straightforward because gravity helps keep things stable. However, horizontal pipes present unique challenges. They are often supported by hangers, may have residual water pressure, and require precise alignment to ensure the new fitting sits flush.
According to the International Residential Code (IRC), all plumbing modifications must maintain the structural integrity of the piping system and prevent leaks. A poor cut can lead to turbulent water flow, increased wear on fittings, and eventual failure. Therefore, precision is not just aesthetic; it is functional.
The Physics of Horizontal Cuts
When you cut horizontally, you must account for:
- Sagging: Removing a section can cause the remaining pipe to drop if not properly supported.
- Water Drainage: Horizontal lines hold more residual water than vertical ones, requiring thorough drying before soldering.
- Alignment: The new piece must align perfectly in both the horizontal and vertical planes to avoid stress on the joints.
Essential Tools and Safety Gear
Before you make the first cut, gather the right tools. Using improper tools is the number one cause of jagged edges and failed solder joints.
Must-Have Tools

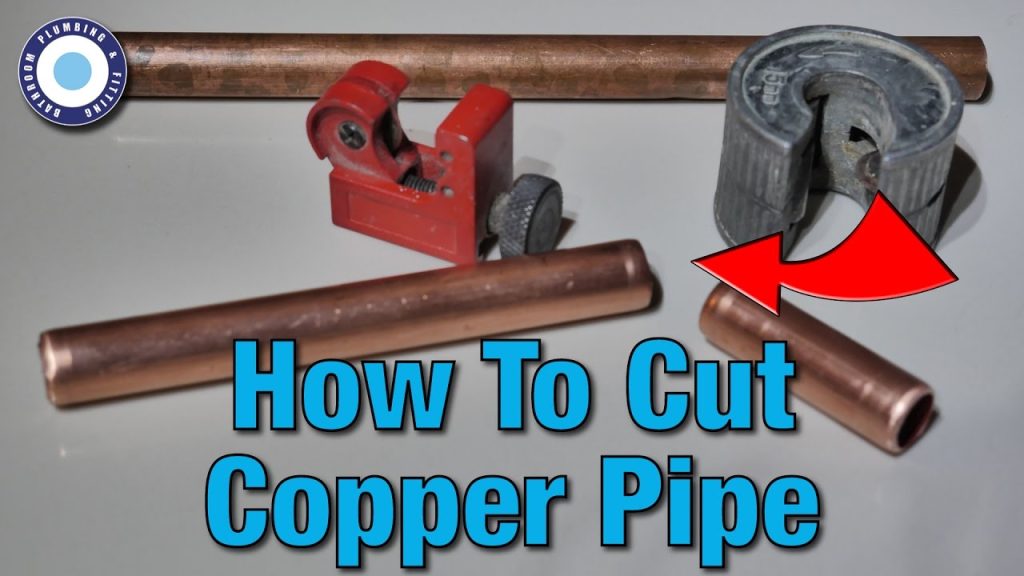

- Tubing Cutter: A rotary tubing cutter is preferred over a hacksaw for clean, square cuts. Look for one with a spare cutting wheel.
- Deburring Tool: Essential for removing internal ridges (burrs) that restrict water flow.
- Emery Cloth or Sandpaper: 120-grit or finer for cleaning the outside of the pipe.
- Pipe Support/Clamps: To hold the pipe steady while cutting.
- Propane or MAPP Gas Torch: For soldering (sweating) the joints.
- Lead-Free Solder and Flux: Compliant with US Safe Drinking Water Act standards.
Safety First
- Eye Protection: Copper shards and flux splatter can injure eyes.
- Gloves: Copper edges are sharp, and torches get hot.
- Fire Extinguisher: Keep one nearby when using an open flame.
Step-by-Step: How to Cut In A Horizontal Copper Plumbing Pipe
Follow these steps meticulously to ensure a professional-grade result.
Step 1: Shut Off Water and Drain the Line
Locate the main water shut-off valve or the local isolation valve for the specific branch. Turn it off completely. Open faucets downstream from your work area to relieve pressure and drain remaining water.
Pro Tip: Use a wet/dry vacuum to suck out any standing water in the horizontal pipe. Even a few drops can ruin a solder joint.
Step 2: Measure and Mark the Cut Section
Determine exactly where you need to insert the new fitting (e.g., a tee or coupling). Measure the length of the fitting’s socket depth. Add this to the length of the pipe segment you are removing.
Mark your cut lines clearly with a permanent marker. Ensure your marks are perpendicular to the pipe. A misaligned mark leads to a crooked cut, which causes leaks.
Step 3: Support the Pipe
Horizontal pipes can sag when cut. Place pipe clamps or adjustable supports on both sides of the cut area, about 6–8 inches away from your mark. This prevents the pipe from dropping and stressing adjacent joints when you remove the section.
Step 4: Make the Cut
Place the tubing cutter on your mark. Tighten the knob until the cutting wheel bites into the copper. Rotate the cutter around the pipe, tightening the knob slightly after every full rotation.
- Do not rush. Over-tightening too quickly can deform the pipe (ovalize it), making it difficult to fit into new fittings.
- Continue until the pipe separates.
If you must use a hacksaw due to space constraints, use a miter box to ensure a straight cut. However, a rotary cutter is vastly superior for how to cut in a horizontal copper plumbing pipe tasks.
Step 5: Deburr and Clean
This step is often skipped by amateurs but is critical for professionals.
- Internal Deburring: Insert the deburring tool into the cut end and twist. Remove the internal ridge. If left, this ridge creates turbulence and reduces water volume.
- External Cleaning: Use emery cloth to shine the outside of the pipe ends and the inside of the fittings. The copper should look bright and shiny, like a new penny.
Note: Do not touch the cleaned surfaces with your fingers. Oils from your skin can prevent proper solder adhesion.
Step 6: Dry Fit and Flux Application
Assemble the new fitting and pipe section without solder to ensure everything fits snugly. Once confirmed, disassemble and apply a thin, even layer of flux to the outside of the pipe and the inside of the fitting.
Step 7: Solder the Joints
Light your torch and adjust the flame to a neutral blue cone. Heat the fitting, not the solder. Move the flame back and forth to distribute heat evenly.
- Touch the solder to the joint seam. If the metal is hot enough, the solder will melt and be drawn into the joint via capillary action.
- Wipe away excess solder with a damp rag immediately after it solidifies.
For more detailed information on copper properties and safety, you can refer to Wikipedia’s entry on Copper.
Step 8: Pressure Test
Turn the water back on slowly. Check for leaks. If you see drips, the joint may need to be reheated and resoldered. Ensure no water is running through the pipe while soldering, as flowing water cools the joint and prevents proper bonding.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Skipping Deburring | Reduced water flow, noise, erosion | Always use a deburring tool |
| Overheating the Joint | Burnt flux, weak joint, fire hazard | Use a heat shield; move flame constantly |
| Water in Pipe | Steam pockets, pinhole leaks | Vacuum out water; use bread trick if necessary |
| Ovalizing the Pipe | Poor fit, gaps in solder joint | Tighten cutter gradually; support pipe |
FAQ: Frequently Asked Questions
1. Can I cut copper pipe with a hacksaw?
Yes, but it is not recommended for horizontal cuts where precision is key. Hacksaws often create angled cuts that are difficult to seal. If you must use one, use a miter box and file the end smooth. A rotary tubing cutter is the standard for how to cut in a horizontal copper plumbing pipe projects.
2. How do I stop water from dripping while I cut?
If you cannot fully drain the line, you can stuff a piece of white bread into the pipe upstream from the cut. The bread acts as a temporary plug. Once the soldering is done and water is turned on, the bread will dissolve and pass through the system without clogging. However, draining the line is the superior method.
3. What size tubing cutter should I use?
Ensure your cutter is rated for the diameter of your pipe (typically 1/2 inch or 3/4 inch for residential lines). Most standard cutters handle up to 1-1/8 inches. Check the tool’s specifications before starting.
4. Is it safe to solder near wooden studs?
Yes, but you must use a heat-resistant shield (like a sheet metal guard) between the torch and the wood. Wood can ignite at temperatures around 300°F (150°C), while soldering requires higher temps. Always have a fire extinguisher ready.
5. Why is my solder joint leaking?
Leaks are usually caused by moisture in the pipe, insufficient heat, or dirty surfaces. Ensure the pipe is completely dry, cleaned to a bright shine, and heated evenly. If it leaks, you must drain the pipe again and re-solder.
6. Do I need a permit for this repair?
Minor repairs like replacing a small section of pipe often do not require a permit in many US jurisdictions. However, major modifications or moving lines may. Check with your local building department to ensure compliance with local codes.
Conclusion
Mastering how to cut in a horizontal copper plumbing pipe is a valuable skill that can save you hundreds of dollars in plumber fees. By following the steps outlined above—shutting off water, supporting the pipe, making clean cuts, and soldering correctly—you can achieve a durable, leak-free repair. Remember, patience and preparation are your best tools.
