Installing an instant hot water system can feel overwhelming, especially when you are staring at a tangle of pipes and trying to figure out which line goes where. Many homeowners struggle with confusing manuals that lack visual clarity, leading to costly mistakes or inefficient heating. If you are looking for a clear line diagram for hot and cold plumbing for Instahot systems, you have come to the right place. This guide breaks down the process into simple, actionable steps to ensure your installation is safe, code-compliant, and efficient.
Understanding the Basics of Instahot Plumbing
Before diving into the diagrams, it is crucial to understand how an instantaneous (tankless) water heater differs from traditional tank models. Unlike tanks that store heated water, Instahot units heat water on demand as it flows through the unit. This means the plumbing configuration must support high flow rates and immediate thermal response.
The core concept relies on two main lines:
- The Cold Water Inlet: Supplies unheated water from your main line.
- The Hot Water Outlet: Distributes heated water to your fixtures.
Getting these mixed up is a common error that can damage the heating element or void your warranty. According to general plumbing principles, proper orientation ensures that the flow sensor activates correctly, triggering the heating mechanism only when water is moving.
The Standard Line Diagram for Hot and Cold Plumbing
While specific models vary by manufacturer (such as Rheem, Rinnai, or Bosch), the fundamental plumbing architecture remains consistent. Below is a text-based representation of the standard flow, which serves as your primary line diagram for hot and cold plumbing for Instahot.
Visualizing the Flow
Imagine standing in front of your unit. From left to right, the typical configuration is:
- Left Side: Cold Water Inlet (Blue Handle/Marker)
- Center: Gas Line or Electrical Connection (depending on fuel source)
- Right Side: Hot Water Outlet (Red Handle/Marker)
Pro Tip: Always look for the color-coded rings on the pipe connections. Blue indicates cold input; Red indicates hot output. Never rely solely on position, as some compact models may reverse this layout.
Key Components in the Diagram
To create a functional system, your diagram must include more than just the heater. You need isolation valves and service loops.
| Component | Purpose | Placement |
|---|---|---|
| Isolation Valves | Allows you to shut off water to the unit for maintenance without cutting water to the whole house. | Immediately before the inlet and after the outlet. |
| Sediment Filter | Protects the heat exchanger from debris that can cause clogs or overheating. | On the cold water inlet line, before the valve. |
| Pressure Relief Valve | Safety device that releases pressure if it gets too high. | Usually built-in, but check local codes for external requirements. |
| Union Fittings | Allows for easy removal of the unit for servicing. | Between the isolation valve and the heater. |
Step-by-Step Installation Guide
If you are comfortable with DIY plumbing, follow these steps. However, always check if your local jurisdiction requires a licensed plumber for gas or electrical connections.
Step 1: Shut Off and Drain
Turn off the main water supply and open a faucet to relieve pressure. If replacing an old tank, drain it completely. For new installations, ensure your main lines are accessible.
Step 2: Install Isolation Valves
Install full-port ball valves on both the cold inlet and hot outlet lines. Use PEX tubing or copper, depending on your existing infrastructure. PEX is often preferred for its flexibility and resistance to scale buildup.
- Detail: Ensure the valve handles are accessible. Do not bury them behind drywall.
Step 3: Connect the Cold Water Inlet
Connect the cold water supply to the inlet marked “Cold” or with a blue ring. Insert a sediment filter here if your area has hard water. Hard water can reduce the efficiency of your Instahot unit by up to 20% over time due to mineral buildup.
Step 4: Connect the Hot Water Outlet
Connect the outlet pipe to the hot water distribution line of your home. Ensure all fittings are tight. Use thread seal tape (Teflon tape) on threaded connections, wrapping it clockwise three times.
Step 5: Pressure Test
Turn the main water back on slowly. Open the isolation valves. Check every joint for leaks. Let the system run for 10 minutes to purge air from the lines.
For more detailed technical standards on plumbing materials, you can refer to the Wikipedia page on PEX piping, which outlines the durability and chemical resistance properties relevant to modern water heaters.
People Also Ask: Common Questions Answered
Can I use PVC pipes for Instahot plumbing?
No. PVC is not rated for high temperatures and can melt or warp when exposed to hot water from an instantaneous heater. Always use CPVC, Copper, or PEX-A/PEX-B, which are rated for hot water applications.
What size pipe should I use for the line diagram?
Most residential Instahot units require 3/4-inch piping for both the inlet and outlet to maintain adequate flow rate. Using 1/2-inch pipe can restrict flow, causing the unit to underperform or shut off due to low flow detection.
Do I need a recirculation pump?

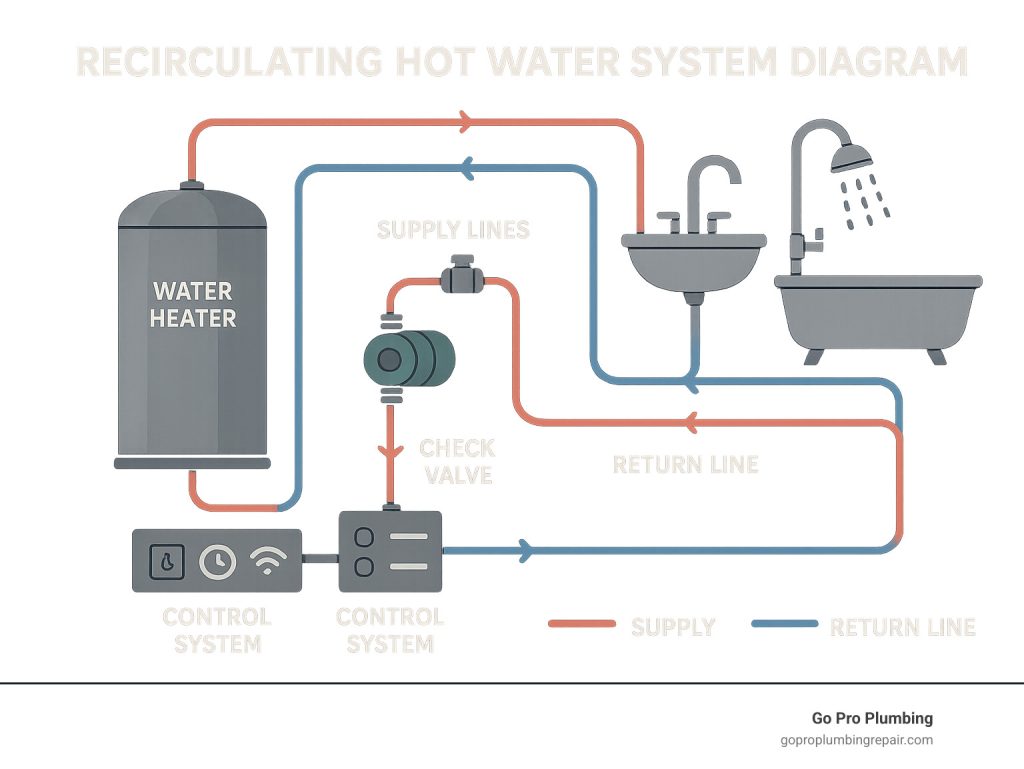

If your heater is far from your bathroom or kitchen, you may experience a “cold water sandwich” effect (a burst of cold water between hot bursts). A recirculation pump keeps hot water moving in the lines, providing instant hot water at the tap. This adds complexity to your line diagram for hot and cold plumbing for Instahot but improves user experience significantly.
How do I prevent freezing in cold climates?
If your unit is installed in a garage or unheated space, you must insulate the pipes. Some high-end models come with built-in freeze protection, but adding foam pipe insulation is a cheap and effective backup. In extreme cold, consider installing a condensate drain trap heater if applicable.
Troubleshooting Common Plumbing Issues
Even with a perfect diagram, issues can arise. Here is how to diagnose them:
- No Hot Water: Check if the isolation valves are fully open. Verify that the flow sensor is not clogged with debris.
- Fluctuating Temperature: This often indicates a flow rate issue. If multiple fixtures are running, the unit may be maxed out. Consider installing a flow restrictor on showerheads to balance demand.
- Leaking at Connections: Re-tighten union fittings. If it persists, replace the O-rings or gaskets inside the fitting. Never overtighten, as this can crack the housing.
Comparison: Traditional Tank vs. Instahot Plumbing
Understanding the difference helps you appreciate why the line diagram matters.
| Feature | Traditional Tank | Instahot (Tankless) |
|---|---|---|
| Space Required | Large footprint (40-60 gallons) | Compact, wall-mounted |
| Pipe Complexity | Simple gravity feed | Requires precise flow management |
| Energy Efficiency | Lower (standby heat loss) | Higher (on-demand heating) |
| Installation Cost | Lower | Higher (due to venting and gas upgrades) |
Why Professional Help Might Be Necessary
While understanding the line diagram for hot and cold plumbing for Instahot empowers you to oversee the project, certain aspects require certification. Gas line modifications, in particular, pose serious safety risks if not sealed correctly. Carbon monoxide leaks are silent killers.
Furthermore, many manufacturers will void the warranty if the installation is not performed by a licensed professional. Always read the fine print. If you are unsure about gas venting or electrical load requirements, hire a pro. It is an investment in safety and longevity.
Conclusion
Mastering the line diagram for hot and cold plumbing for Instahot systems is the first step toward enjoying endless hot water and lower energy bills. By following the correct flow direction, using appropriate materials like PEX or Copper, and installing isolation valves, you ensure a system that is easy to maintain and efficient to run.
Remember, precision is key. Double-check your connections, respect the temperature ratings of your materials, and never skip the pressure test. If you found this guide helpful, please share it with your friends on social media who might be tackling their own home improvement projects. Proper knowledge saves money and prevents headaches down the road!
FAQ Section
Q1: Is it difficult to read a plumbing line diagram for a beginner? A: Not if you break it down. Focus on the direction of water flow: Cold In -> Heater -> Hot Out. Most diagrams use color codes (Blue/Red) which makes it intuitive.
Q2: Can I install an Instahot unit myself? A: You can handle the water plumbing if you are experienced. However, gas and electrical connections should always be done by licensed professionals to comply with US building codes and insurance requirements.
Q3: What is the most common mistake in Instahot plumbing? A: Installing the unit backwards (connecting hot to cold) or using undersized piping (1/2 inch instead of 3/4 inch), which restricts flow and causes performance issues.
Q4: Do I need a permit for this installation? A: In most US jurisdictions, yes. Replacing a water heater typically requires a permit to ensure it meets current safety and energy codes. Check with your local building department.
Q5: How long does an Instahot unit last compared to a tank? A: An Instahot unit typically lasts 20+ years, whereas traditional tanks last 10-15 years. Proper plumbing maintenance, such as flushing the system annually, extends this lifespan further.
