Are you struggling with uneven cooling or inefficient refrigerant flow in your HVAC system? Often, the culprit isn’t the compressor, but the intricate network of pipes connecting it. Specifically, choosing the right copper plumbing fittings Y shape tee for air conditioning can make the difference between a system that hums along efficiently and one that constantly struggles.
As an HVAC professional with over a decade of experience, I’ve seen how small components impact overall performance. A Y-shaped tee, often referred to as a “branch” or “refnet” in multi-split systems, ensures smooth refrigerant distribution. In this guide, we will break down everything you need to know about these critical fittings, from selection to installation, ensuring your system runs at peak performance.

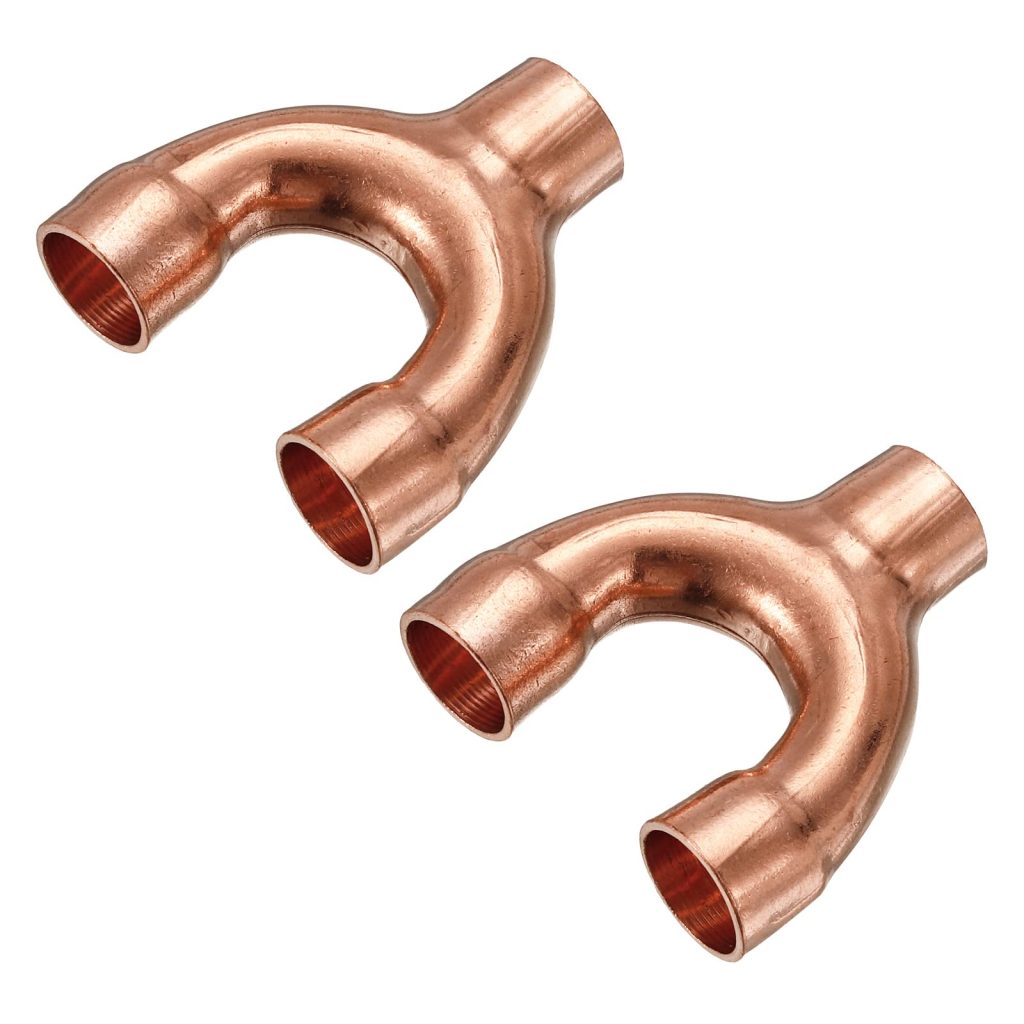

What Is a Y-Shape Tee and Why Does It Matter?
Before diving into installation, it is crucial to understand what this component actually does. Unlike a standard T-fitting, which creates a 90-degree branch, a Y-shape tee allows for a smoother, more gradual divergence of flow.
The Physics of Flow
In air conditioning systems, particularly those using R-410A or the newer R-32 refrigerants, maintaining pressure and velocity is key. When refrigerant hits a sharp 90-degree angle (like in a standard T), it creates turbulence. This turbulence leads to:
- Pressure Drop: Reduced efficiency as the compressor works harder.
- Noise: Hissing or gurgling sounds in the lineset.
- Uneven Distribution: In multi-zone systems, some rooms may get too cold while others remain warm.
A Y-shape fitting minimizes this resistance. By guiding the refrigerant at a 45-degree angle (or similar gradual slope), it maintains laminar flow. This is why modern inverter-driven multi-split systems almost exclusively use Y-branches rather than standard tees.
Pro Tip: Never substitute a standard sanitary tee for a specialized HVAC Y-branch. The internal geometry is designed specifically for two-phase flow (liquid and gas refrigerant).
Key Benefits of Using Copper Y-Shape Fittings
Why do professionals insist on copper? While aluminum and brass exist, copper remains the gold standard for US residential and commercial AC units.
1. Superior Thermal Conductivity
Copper transfers heat exceptionally well. While the fitting itself isn’t a heat exchanger, its ability to adapt to temperature fluctuations without cracking is vital. AC lines expand and contract significantly during operation.
2. Durability and Corrosion Resistance
High-quality copper fittings (such as those made from C12200 phosphorus deoxidized copper) resist corrosion from moisture and refrigerant oils. This longevity ensures that your system doesn’t develop leaks behind walls or in tight crawl spaces.
3. Compatibility with Modern Refrigerants
Older fittings may not withstand the higher operating pressures of modern eco-friendly refrigerants. A dedicated copper plumbing fittings Y shape tee for air conditioning is rated for high-pressure applications, ensuring safety and compliance with EPA regulations.
| Feature | Standard T-Fitting | Y-Shape Branch Fitting |
|---|---|---|
| Flow Angle | 90 Degrees | 45–30 Degrees (Gradual) |
| Turbulence | High | Low |
| Pressure Drop | Significant | Minimal |
| Best Use Case | Drain Lines, Water | Refrigerant Lines (HVAC) |
| Noise Level | Higher | Lower |
How to Choose the Right Size and Type
Selecting the wrong size is a common DIY mistake that leads to system failure. Here is how to get it right.
Understanding Nominal Sizes
Copper tubing is measured by nominal size, which differs from its actual outer diameter (OD). For example, a 3/8″ copper tube has an OD of roughly 0.5 inches. Your Y-tee must match the OD of your existing lineset exactly.
- Common Sizes: 1/4″, 3/8″, 1/2″, 5/8″, and 7/8″.
- Multi-Split Systems: These often require specific “refnet” kits where the inlet size differs from the outlet sizes (e.g., inlet 1/2″ splitting into two 3/8″ outlets).
Material Grade Matters
Ensure the fitting is made from ASTM B88 standard seamless copper water tube material or equivalent HVAC-grade copper. Avoid cheap imports that may have impurities, leading to pinhole leaks under vibration.
For more detailed information on copper standards and properties, you can refer to the comprehensive data available on Wikipedia’s Copper page.
Step-by-Step Installation Guide
Installing a Y-shape tee requires precision. Improper brazing can introduce oxides into the system, clogging the expansion valve or compressor. Follow these steps carefully.
Safety First: Always wear safety glasses and gloves. Ensure the system is evacuated and free of refrigerant before cutting into lines.
Step 1: Preparation and Cleaning
Cut the copper pipe using a tube cutter for a clean, square edge. Do not use a hacksaw, as it leaves burrs.
- Use reaming tool to remove internal burrs.
- Clean the outside of the pipe and the inside of the Y-tee fitting with emery cloth or sandpaper until shiny.
- Critical: Any dirt or oil will prevent the brazing alloy from bonding.
Step 2: Nitrogen Purging (The Secret to Success)
This is the step most amateurs skip. You must flow dry nitrogen through the copper pipes while brazing.
- Connect a nitrogen regulator to the line.
- Set flow to a low pressure (approx. 2–3 PSI).
- Why? Without nitrogen, the intense heat of brazing causes oxygen inside the pipe to react with copper, creating black flaky scale (oxidation). This scale will eventually clog your AC system.
Step 3: Brazing the Joint
Use a silver-bearing brazing alloy (typically 15% or 45% silver) for HVAC applications. Do not use lead-based solder.
- Heat the fitting evenly with an oxy-acetylene or air-acetylene torch.
- Apply the brazing rod to the joint seam. Capillary action will draw the molten metal into the gap.
- Ensure the Y-tee is oriented correctly according to the flow direction arrows stamped on the fitting.
Step 4: Cooling and Inspection
Let the joint cool naturally. Do not quench with water, as this can brittle the joint.
- Once cool, wipe the joint with a damp cloth to remove flux residue.
- Inspect for a smooth, concave fillet around the joint.
Step 5: Pressure Testing and Vacuum
- Pressurize the system with nitrogen to check for leaks (use soap bubbles).
- If leak-free, evacuate the system with a vacuum pump to below 500 microns to remove moisture and non-condensables.
Common Mistakes to Avoid
Even experienced technicians can slip up. Here are the top three errors regarding copper plumbing fittings Y shape tee for air conditioning:
- Ignoring Flow Direction: Many Y-tees are directional. Installing them backward causes massive pressure drops and noise. Always look for the arrow indicating flow from the main line to the branches.
- Overheating the Joint: Applying too much heat can burn the flux or weaken the copper. Move the torch constantly.
- Skipping the Vacuum: Brazing introduces heat, which can create moisture if the system was open to humid air. A deep vacuum is non-negotiable for system longevity.
FAQ Section
Q1: Can I use a regular plumbing tee for my AC refrigerant lines?
A: No. Regular plumbing tees create a 90-degree turn that causes excessive turbulence and pressure drop for refrigerant gases. This reduces efficiency and can cause uneven cooling in multi-zone systems. Always use a specialized Y-branch or HVAC-rated header.
Q2: What is the difference between a Y-tee and a Refnet?
A: Functionally, they are very similar. “Refnet” is a term often used by manufacturers like Daikin or Mitsubishi for their proprietary Y-branch kits. A generic copper plumbing fittings Y shape tee for air conditioning serves the same purpose but ensure it is rated for the specific pressure and refrigerant type you are using.
Q3: Do I need to insulate the Y-tee fitting?
A: Yes. After brazing and leak testing, the entire fitting and the adjacent piping must be insulated with closed-cell foam insulation. This prevents condensation from forming on the cold copper, which can lead to water damage and mold growth in your ceilings or walls.
Q4: Can I install a Y-tee vertically?
A: Yes, but orientation matters. In vertical risers, specific guidelines apply to ensure oil return to the compressor. Generally, Y-branches should be installed horizontally if possible. If vertical installation is necessary, consult the manufacturer’s engineering manual for your specific AC unit, as improper orientation can trap oil or liquid refrigerant.
Q5: How much does a copper Y-shape tee cost?
A: Prices vary based on size and brand. A standard residential size (e.g., 3/8″ or 1/2″) typically ranges from $5 to $15 per fitting. Proprietary branded refnets may cost slightly more. However, considering the cost of AC repair, investing in high-quality fittings is economical.
Conclusion
Choosing the correct copper plumbing fittings Y shape tee for air conditioning is not just about connecting pipes; it is about optimizing the heart of your home’s comfort system. By reducing turbulence, preventing pressure drops, and ensuring even refrigerant distribution, these small components play a massive role in energy efficiency and system longevity.
Remember, proper installation—specifically nitrogen purging during brazing—is just as important as the fitting itself. Whether you are a seasoned HVAC technician or a knowledgeable homeowner, paying attention to these details will save you money on energy bills and costly repairs down the road.
Found this guide helpful? Share it with your fellow DIY enthusiasts or HVAC colleagues on social media! Let’s keep our systems running efficiently, one fitting at a time.
